Estimating limit values from graphs means reading where a function is headed as x approaches a value, not what the function equals there. Check the left side and the right side separately: if they meet at the same y-value, that is your limit, and if they disagree, oscillate, or grow without bound, the limit does not exist. For AP Calculus, open and filled points matter less than the path the graph approaches.

Why This Matters for the AP Calculus Exam

This topic builds the graph-reading skill you will use across all of AP Calculus. Limits are the foundation for derivatives, integrals, and (for BC) infinite series, so being able to look at a curve and decide what value it approaches sets up everything that follows.

On the exam you will see limit questions in both calculator and non-calculator settings. Reading limits off a graph shows up often in multiple-choice problems, and graph interpretation supports free-response work where you justify behavior of a function. Getting comfortable with one-sided limits now makes later topics like continuity, asymptotes, and the Intermediate Value Theorem much easier.

more resources to help you study

practice multiple choice FRQ practice & scoring cheatsheets score calculator key terms

Key Takeaways

A limit is the y-value a function approaches as x gets close to a point, not necessarily the value of the function at that point.
Check the left-hand limit and the right-hand limit separately. If they match, the two-sided limit equals that value.
A limit does not exist (DNE) when the left and right limits differ, when the function is unbounded near the point, or when it oscillates near the point.
An open circle marks a value the function does not actually take, while a filled dot marks the true function value. The limit can still exist at an open circle.
Watch the scale of a graph. Zooming in or out can hide important behavior near a point.
Use correct notation for one-sided limits: $\lim_{x \to a^-} f(x)$ for the left side and $\lim_{x \to a^+} f(x)$ for the right side.

Understanding the Concept of Limits

A limit describes the behavior of a function as it approaches a particular x-value. You are asking what y-value the function gets close to as x gets closer and closer to that point. Importantly, the limit is about where the function is heading, not where it lands at that exact x.

To review how limits are defined and written, see Topic 1.2.

One-Sided Limits

Sometimes you need to examine the function as it approaches a point from just one direction. These are one-sided limits.

A left-hand limit (approaching from the left side):

$\lim_{{x \to 0^-}} \frac{1}{x}$

A right-hand limit (approaching from the right side):

$\lim_{{x \to 0^+}} \frac{1}{x}$

The two-sided limit $\lim_{x \to a} f(x)$ exists only when the left-hand and right-hand limits are equal to the same real number.

Estimating Limits from Graphs

Graphs are one of the clearest ways to estimate a limit. Here is how to read them carefully.

Find the point. Look at the graph near the x-value in question and ask what y-value the curve seems to head toward as you get closer to that x.
Trace from both sides. Follow the curve toward the point from the left and from the right. If both sides head to the same y-value, that value is your limit.
Compare the one-sided limits. If the left and right approaches match, the limit exists. If they differ, the limit does not exist.
Separate the limit from the function value. An open circle (hole) means the function does not actually take that value, while a filled dot shows the real value of the function. The limit can still exist at a hole, because the limit only cares about the approach, not the point itself.

Challenges with Graphical Estimation

Graphs are helpful, but they have limits of their own.

Issues of scale. A poorly chosen scale can distort how a function behaves and give a misleading impression of the limit. Pay attention to the axis scale, and zoom in when you can to inspect behavior closely.
Missed function behavior. A graph can hide sharp changes, holes, or oscillation near a point, especially at low resolution. Be cautious when a curve looks smooth but the function may be doing something subtle.

When Limits Do Not Exist

A limit might not exist at a particular x-value. Here are the common reasons.

Unbounded behavior: If the function grows without bound near a value, the two-sided limit does not exist. For example, $\lim_{x \to 0} \frac{1}{x}$ does not exist, and $\lim_{x \to 0} \frac{1}{x^2} = \infty$ (still not a finite limit). These show up as vertical asymptotes on a graph.

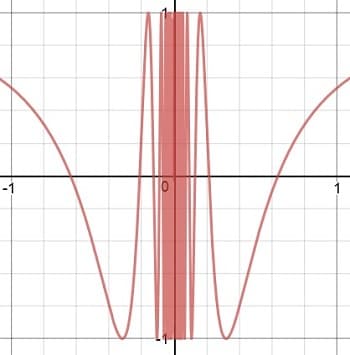

Oscillating behavior: Some functions wiggle faster and faster as they approach a point, never settling on a single value. For example, $\lim_{x \to 0} \sin\left(\frac{1}{x}\right)$ does not exist.

Left and right limits differ: If the limit from the left does not equal the limit from the right, the two-sided limit does not exist. A clear case is $\lim_{x \to 0} \frac{|x|}{x}$ , which approaches $-1$ from the left and $1$ from the right. This is the jump you see at a jump discontinuity.

How to Use This on the AP Calculus Exam

Problem Solving

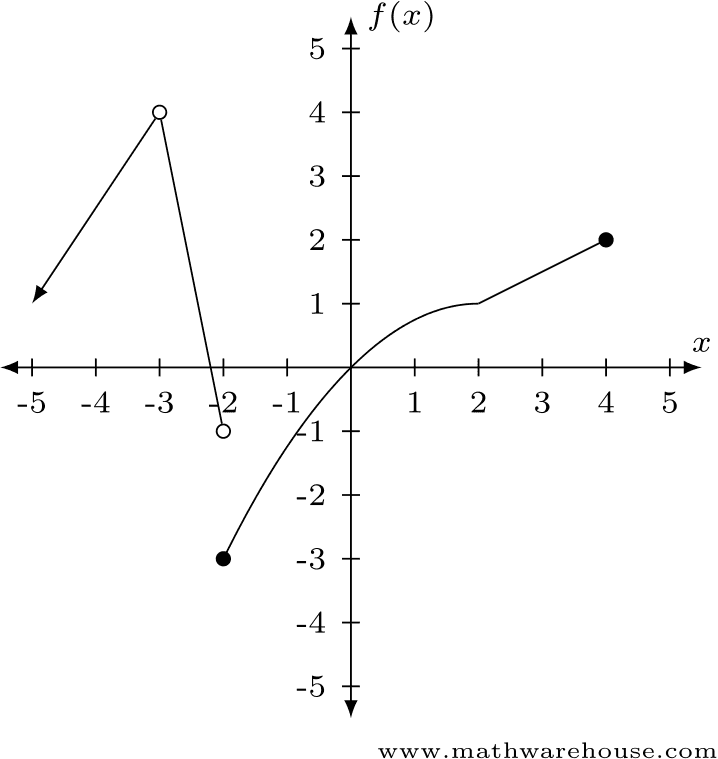

Work through this graph-reading example. Use the graph of a piecewise function $f(x)$ to evaluate each limit.

$\lim\limits_{x \to -2} f(x)$
$\lim\limits_{x \to -3} f(x)$
$\lim\limits_{x \to 0} f(x)$
$\lim\limits_{x \to 2} f(x)$

Answers:

$\lim\limits_{x \to -2} f(x) = \text{DNE}$
- $\lim\limits_{x \to -2^-} f(x) = -1$ , because the curve approaches $-1$ from the left side.
- $\lim\limits_{x \to -2^+} f(x) = -3$ , because the curve approaches $-3$ from the right side.
- The left and right limits differ, so the two-sided limit at $x = -2$ does not exist.
$\lim\limits_{x \to -3} f(x) = 4$
$\lim\limits_{x \to 0} f(x) = 0$
$\lim\limits_{x \to 2} f(x) = 1$

A limit is not always equal to $f(x)$ at that point. The limit is the value the function approaches.

Common Trap

When you see a hole at a point, do not automatically say the limit does not exist. If the curve heads toward the same y-value from both sides, the limit exists and equals that y-value, even if the function itself is undefined or defined elsewhere by a filled dot.

MCQ

On multiple-choice questions, decide which kind of DNE you are dealing with before answering. Ask whether the function is unbounded, oscillating, or has mismatched one-sided limits. Naming the cause keeps you from confusing a finite limit at a hole with a true DNE.

Common Misconceptions

The limit equals the function value. Not always. The limit is about the approach. At an open circle, the limit can exist even though the function is not defined there.
A limit equal to infinity "exists." Saying $\lim_{x \to 0} \frac{1}{x^2} = \infty$ describes unbounded behavior, but the limit does not exist as a finite real number. On graphs this is a vertical asymptote.
One side is enough. Checking only the right side or only the left side does not tell you the two-sided limit. You must compare both directions.
A smooth-looking graph tells the whole story. Because of scale and resolution, a graph can miss oscillation, holes, or sudden jumps. Zoom in and check the behavior carefully.
Open and filled dots are interchangeable. An open circle is a value the function does not take, and a filled dot is the actual function value. They mean different things and affect continuity, even when the limit is the same.

Vocabulary

The following words are mentioned explicitly in the College Board Course and Exam Description for this topic.

Term	Definition
limit	The value that a function approaches as the input approaches some value, which may or may not equal the function's value at that point.
one-sided limit	A limit that considers the function's behavior as the input approaches a value from only one direction (either from the left or from the right).
oscillating	A function behavior where the output repeatedly fluctuates between values without settling on a single limit as the input approaches a particular value.
unbounded	A function behavior where the output grows without bound (approaches positive or negative infinity) as the input approaches a particular value.

Frequently Asked Questions

How do you estimate a limit from a graph?

Trace the graph as x approaches the target value from the left and from the right. If both sides approach the same y-value, that y-value is the two-sided limit.

What is a one-sided limit on a graph?

A one-sided limit describes the y-value a function approaches from only one direction. The left-hand limit approaches from x-values less than a, and the right-hand limit approaches from x-values greater than a.

When does a two-sided limit exist?

A two-sided limit exists when the left-hand limit and right-hand limit are equal to the same finite value.

When does a limit not exist from a graph?

A limit does not exist when the left and right limits differ, the function is unbounded near the x-value, or the graph oscillates without approaching one value.

Do open circles affect limits?

An open circle means the function does not take that value at the point, but the limit can still exist if the graph approaches that y-value from both sides.

Why does graph scale matter for limits?

A graph with a poor scale can hide holes, jumps, oscillation, or unbounded behavior near the point, so AP Calculus asks you to be cautious when estimating from graphs.
