8.2 Connecting Position, Velocity, and Acceleration of Functions Using Integrals
In this guide, we will look at how to use integrals to find the position, velocity, and acceleration of a function. We'll break it down for you in a way that's not just about numbers and formulas, but about understanding the language of motion.
💭 What are Position, Velocity, and Acceleration?
To begin with, it is important to understand the definitions of position, velocity, and acceleration. Going back to unit 4, we did cover rectilinear motion and applied our knowledge of derivatives to these three concepts. Check out our 4.2 guide here for a review! If you’re curious and want to learn more, we have an entire guide dedicated to these concepts as part of our AP Physics 1 study material.
🧍Position
In the calculus world, position refers to the location of an object in space at a given time. Mathematically, we denote position as a function of time, usually represented by .
Imagine you're in the driver's seat of your dream car, and you want to know where you are on the highway. Well, that's your position . It's like your car's GPS telling you exactly where you are at any given time. Let's say you start at mile marker zero—that's your starting position. We can represent an object’s position as a function of time using a graph, such as the graph below.

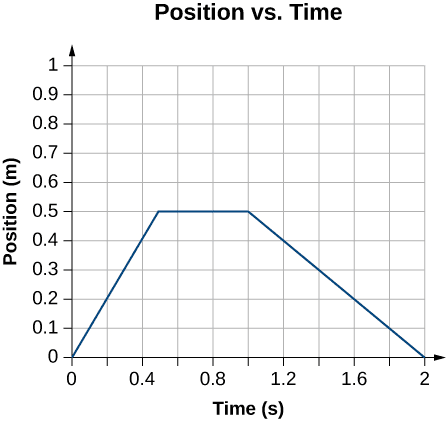

Let’s say the graph above represents the movements of a caterpillar. From time to , the caterpillar is moving in a positive direction, away from the starting point. We can conclude this because the slope of the first line segment is positive.
At , the caterpillar is at position 0.5 m—in other words, the caterpillar is 0.5 meters away from its starting point. Then, from to , the caterpillar does not change position, meaning it has stopped moving and is at rest. Whenever there is a horizontal line on a position vs. time graph, it means the object is at rest.
Finally, from to , the caterpillar is moving in the negative direction, back towards the starting point. We can conclude this because the slope of the last line segment is negative.
It is important that you learn to read this graph, as well as the graphs that are pictured below, to make sure you have a good understanding of the relationship between position, velocity, and acceleration.
🚗 Velocity
Velocity is the rate of change of position concerning time. In simpler terms, it tells us how fast an object is moving and in which direction. Mathematically, velocity, denoted by , is the derivative of the position function with respect to time.
Going back to our example of your dream car, let’s say you step on the gas, and your car starts zooming down the road. How fast are you going, and in which direction? That's velocity, the rate of change of your position. Here is an equation that states the previous sentence in mathematical terms:
As you can see, the velocity can be found by taking the derivative of a position function . On a graph, the velocity is the slope of a position vs. time graph, and is often written in m/s (meters per second). We can also use a velocity vs. time graph to represent the velocity of an object as a function of time.

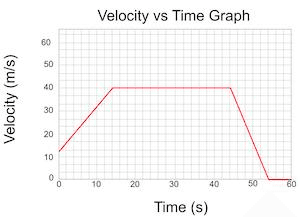

In the graph above, when the line segment has a positive slope, that means the velocity is steadily increasing. When the segment is horizontal, that means the velocity is constant, but the object is still moving, just with a constant speed. When the line segment has a negative slope, the velocity is steadily decreasing.
There is one more quantity related to velocity: speed. The speed of an object is simply the magnitude of the velocity, or in one-dimensional motion, the absolute value of the velocity.
🏎 Acceleration
Acceleration is the rate of change of the velocity with respect to time. It provides insights into how an object's speed is increasing or decreasing at a given moment. Acceleration is denoted as and is the derivative of velocity with respect to time. It’s like the force that pushes or slows down your car. Speeding up? Positive acceleration. Slamming on the brakes? Negative acceleration (or deceleration).
Because acceleration is the derivative of the velocity, and velocity is the derivative of position, acceleration can also be defined as the second derivative of position.
In terms of the graphs, the acceleration is the slope of the velocity vs. time graph. In the velocity vs. time graph above, the fact that the line segments are all straight lines, not curves, means the acceleration has constant values. In the first, positively-sloped line segment, the acceleration has a constant positive value. In the horizontal line segment, the velocity is not changing, so the acceleration is zero. In the negatively-sloped line segment, the acceleration has a constant negative value, so the object is decelerating.
✈️ Using Integration to Find Position, Velocity, and Acceleration
Understanding the connections between position, velocity, and acceleration involves integrating and differentiating these functions. Let's explore how integration plays a crucial role in solving real-world problems.
🧮 Integrating Velocity to Find Position
To determine an object's position at any given time, we integrate its velocity function and add the initial position. Recall that the velocity is the derivative of an object’s position, so integrating velocity will give us the position equation of an object. The fundamental theorem of calculus states that the integral of velocity over a specific time interval gives the change in position over that interval.
Here, represents the constant of integration, which corresponds to the initial position. It’s important to recognize here that simply integrating the velocity function gives us the change in position, not the final position of the object. This change in position is called the displacement of the object, defined as the difference between the final position and the initial position .
So, to find the final position of an object, we have to add its initial position after integrating the velocity function. There is one more quantity we can measure by integrating the speed of an object, which is the absolute value of the velocity. This quantity is called the distance traveled, and it measures the length of the path an object takes. Below is an example of how the distance traveled and displacement measure two different quantities.

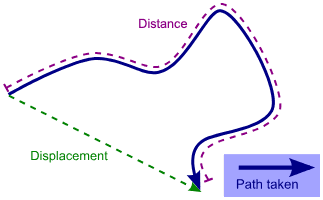

As you can see the displacement only measures the difference between the final and initial positions, but does not take into account that the object may not have taken the shortest path to get there. In the image above, the object took a much longer path to get to the final position, so its distance traveled is greater than its displacement. The general formula for finding the distance traveled is…
where we integrate the absolute value of the velocity function.
🏃 Integrating Acceleration to Find Velocity
Similarly, to find an object's velocity at any time, we integrate its acceleration function. The integral of acceleration with respect to time yields the change in velocity over a given interval.
In this equation, represents the constant of integration, which corresponds to the initial velocity. Just like finding the final position, we need to add the initial velocity to the result of our integral in order to find the final velocity.
✏️ Practice with Examples
❓ Integration and Motion: Question 1
Suppose an object has a velocity function with an initial position . Find the position function .
The velocity function tells us how fast the object is moving at any given time. To find the position function we integrate the velocity function with respect to time. Mathematically, this is represented as…
Integrating this function and adding the initial position, we get…
Great work!
❓ Integration and Motion: Question 2
Given an object's velocity function on the interval with an initial position of , find the displacement and distance traveled.
The displacement is the change in position from to . Mathematically, it's represented as:
Let's integrate the velocity function over the given interval:
Evaluating this expression using the fundamental theorem of calculus yields $\frac{9}{2}$, which is our displacement. Next, let’s find the distance traveled. The distance traveled is the total path length covered. Since velocity can be negative, we need to consider the absolute value when finding distance.
Integrate the absolute value of the velocity function over the interval. This velocity function is already always positive, so we can remove the absolute value symbols and integrate normally:
Evaluating this integral using the fundamental theorem of calculus yields .
Surprisingly, in this case, the displacement and distance traveled are the same, both equal to . This means that the object didn't take a longer path during the interval , resulting in a positive displacement equal to the distance traveled.
📘 Conclusion
You've successfully navigated through the intricacies of connecting position, velocity, and acceleration using integrals. To recap, the velocity is the derivative of the position with respect to time, and the acceleration is the derivative of velocity with respect to time. The displacement is calculated using the difference between the final and initial position values, and the distance traveled is the length of the path the object took. Here’s a little summary as well:
| Graph Type | Slope Represents | Area Under Graph Represents | Definite Integral Represents | |
|---|---|---|---|---|
| Position | Position vs Time | Velocity | - | - |
| Velocity | Velocity vs Time | Acceleration | Change in position (displacement) | Particle’s displacement over time |
| Acceleration | Acceleration vs Time | Change in acceleration | Change in velocity | - |
Remember, this understanding is not just a tool for calculus exams; it's a powerful skill applicable to various real-world scenarios. Keep practicing, and you'll master the art of solving dynamic problems in no time. 🍀
Vocabulary
The following words are mentioned explicitly in the College Board Course and Exam Description for this topic.
| Term | Definition |
|---|---|
| definite integral | The integral of a function over a specific interval [a, b], representing the net signed area between the curve and the x-axis. |
| displacement | The net change in position of a particle over a time interval, found by integrating the velocity vector. |
| rectilinear motion | Motion of a particle along a straight line, characterized by changes in position, velocity, and acceleration. |
| speed | The magnitude of the velocity vector, representing the rate at which a particle is moving without regard to direction. |
| total distance traveled | The total length of the path traveled by a particle over a time interval, found by integrating the speed. |
| velocity | The derivative of a position function with respect to time, representing the rate and direction of change of position for a moving particle. |
Frequently Asked Questions
How do I find displacement when I have a velocity function?
Displacement over a time interval [a, b] is the net change in position—it’s the definite integral of velocity: s(b) − s(a) = ∫_a^b v(t) dt. That integral gives signed area (right to left motion subtracts). If you don’t know s(a), ∫_a^b v(t) dt still gives displacement; to get absolute position you need an initial position s(a) and use s(b)=s(a)+∫_a^b v(t) dt. If you want total distance traveled (always positive), integrate speed: distance = ∫_a^b |v(t)| dt—break the interval where v(t) = 0 so you can remove the sign on each subinterval. Use the Fundamental Theorem of Calculus to evaluate antiderivatives of v when possible. For more examples and AP-style practice (CHA-4.C goals), see the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw) and Unit 8 overview (https://library.fiveable.me/ap-calculus/unit-8). Practice problems: (https://library.fiveable.me/practice/ap-calculus).
What's the difference between displacement and total distance traveled?
Displacement is the net change in position over an interval: ∫_a^b v(t) dt. It’s a signed area, so motion one way can cancel motion the other way (you end up farther or closer to the start). Total distance traveled is ∫_a^b |v(t)| dt—the integral of speed—which adds up all motion regardless of direction. How to compute total distance on a problem: find times where v(t)=0 (direction changes), split the interval at those times, then integrate v(t) on each subinterval and take absolute value of each integral (or integrate |v| directly). The AP CED explicitly distinguishes these: definite integral of velocity = displacement (CHA-4.C.1); definite integral of speed = total distance. For extra practice and step-by-step examples, see the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw) and try more problems at (https://library.fiveable.me/practice/ap-calculus).
When do I use the integral of velocity vs the integral of speed?
Use ∫ v(t) dt when you want displacement (net change in position)—signed area under the velocity curve. Use ∫ |v(t)| dt when you need total distance traveled (always positive). This matches the CED: “definite integral of velocity = displacement” and “definite integral of speed = total distance traveled.” Quick rule of thumb: - If velocity keeps one sign on [a,b] (always ≥0 or always ≤0), ∫ v = ∫ |v|, so either works. - If velocity changes sign, split at the zeros: total distance = ∫a^c |v| dt + ∫c^b |v| dt = sum of areas (or equivalently integrate v on each subinterval after taking absolute value of each signed area). Short example: v(t)=t−2 on [0,4]. Displacement = ∫0^4 (t−2) dt = 0. Total distance = ∫0^2 (2−t) dt + ∫2^4 (t−2) dt = 4. For AP free-response, explicitly state whether you’re computing displacement or distance, show sign changes and any interval splitting, and cite integrals by the Fundamental Theorem of Calculus. For more practice and reminders see the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw), the Unit 8 overview (https://library.fiveable.me/ap-calculus/unit-8), and lots of practice problems (https://library.fiveable.me/practice/ap-calculus).
I'm confused about position, velocity, and acceleration - how are they connected with integrals?
Think of s(t) = position, v(t) = velocity, a(t) = acceleration. They’re linked by derivatives and integrals: - v(t) = s′(t) and a(t) = v′(t) = s′′(t). - By the Fundamental Theorem of Calculus, s(t) = s(t0) + ∫_{t0}^{t} v(τ) dτ. So the definite integral of velocity gives displacement (net change in position) on [a,b]: ∫_a^b v(t) dt. - Total distance traveled on [a,b] = ∫_a^b |v(t)| dt (you must use the absolute value because signed area can cancel). - Acceleration tells you how velocity changes; integrating acceleration gives change in velocity: v(t) = v(t0) + ∫_{t0}^{t} a(τ) dτ. On the AP exam this is tested as CHA-4.C (displacement vs total distance, antiderivatives, signed area). For a focused review see the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw). Want practice? Try problems at (https://library.fiveable.me/practice/ap-calculus).
How do I solve for the position function if I'm given velocity?
If you’re given velocity v(t), the position s(t) comes from integrating v and using any initial position. By the Fundamental Theorem of Calculus and CHA-4.C: - Displacement from t0 to t is ∫_{t0}^{t} v(u) du (signed area). - So the position function is s(t) = s(t0) + ∫_{t0}^{t} v(u) du, where s(t0) is the known initial position. If you don’t have s(t0), the antiderivative gives position up to a constant: s(t) = ∫ v(t) dt + C, and you solve C using the initial condition. Remember: total distance traveled on [a,b] = ∫_{a}^{b} |v(t)| dt (speed = |v|). This distinction (displacement vs total distance) is tested in Topic 8.2 of the CED. Quick example: v(t)=3t, s(0)=2 → s(t)=2+∫_0^t 3u du = 2 + (3/2)t^2. For more review on connecting position, velocity, and acceleration, check the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw) and get extra practice at (https://library.fiveable.me/practice/ap-calculus).
What's the formula for finding total distance traveled using integrals?
Total distance traveled on [a, b] = ∫_a^b |v(t)| dt—where v(t) is velocity. Why that vs. displacement: ∫_a^b v(t) dt gives displacement (signed area); using |v| makes all motion positive so you add up actual ground covered (CED CHA-4.C.1). In practice: find times t1, t2, ... where v(t) = 0 on [a,b]; split [a,b] into subintervals on which v keeps one sign; then compute distance = sum_k ∫_{interval_k} |v(t)| dt = sum_k ±∫_{interval_k} v(t) dt (take + sign if v≥0 there, − if v≤0). Use FTC to evaluate each definite integral. For extra review and AP-style problems on this topic, see the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw) and practice problems (https://library.fiveable.me/practice/ap-calculus).
Can someone explain step by step how to go from acceleration to velocity to position?
Think of acceleration, velocity, and position as derivatives in a chain: a(t) = v′(t) and v(t) = s′(t). To go forward (accel → vel → pos) you anti-differentiate and use initial conditions. Step 1—acceleration to velocity: - v(t) = v(t0) + ∫[t0 to t] a(u) du. Interpretation: the definite integral of a is the change in velocity from t0 to t. Step 2—velocity to position: - s(t) = s(t0) + ∫[t0 to t] v(u) du. Interpretation (CHA-4.C.1): ∫ v is displacement; ∫ |v| is total distance traveled. Practical tips: - Always plug in the given initial velocity v(t0) and position s(t0). - If you only have formulas, find antiderivatives plus constants; if you have a(t) graph, use signed area for ∫ a. - Watch sign changes: where v crosses zero matters for distance vs displacement. For AP review, see the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw) and extra practice (https://library.fiveable.me/practice/ap-calculus).
Why do I need absolute value when finding distance but not displacement?
Displacement uses signed area: ∫_a^b v(t) dt gives net change in position (right/forward positive, left/back negative). Distance traveled uses speed, which is |v(t)|, so you must remove sign. If v changes sign on [a,b], positive parts add and negative parts still add (but with absolute value), so total distance = ∫_a^b |v(t)| dt. In practice you find times t1,t2,... where v(t)=0, split the interval, and on each piece use either ∫ v or −∫ v depending on the sign. This follows from the Fundamental Theorem and the CED facts: integral of velocity = displacement; integral of speed (|v|) = total distance traveled (CHA-4.C.1). If you want more examples and step-by-step practice, check the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw) and try problems at (https://library.fiveable.me/practice/ap-calculus).
How do I know when a particle changes direction in a motion problem?
Look at the velocity function v(t). A particle changes direction only when v(t) changes sign (positive → negative or negative → positive). So: - Find times where v(t)=0 or v is undefined (candidates). - Make a sign chart for v(t) around each candidate (plug values left/right). If the sign flips, the particle reverses direction there. If the sign doesn’t flip (e.g., + → 0 → +), it only pauses, it doesn’t change direction. A quick test: if v(t0)=0 and a(t0)=v′(t0) ≠ 0, the velocity crosses through zero so direction changes. If both v(t0)=0 and a(t0)=0, you must use higher derivatives or a sign chart. Remember AP wording: velocity gives direction (signed), displacement = ∫ v, total distance = ∫ |v| (CED CHA-4.C). For practice, see the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw) and more problems at (https://library.fiveable.me/practice/ap-calculus).
I don't understand when to use definite vs indefinite integrals in motion problems
Use definite integrals when you need a net change over an interval (displacement) or total distance over an interval; use indefinite integrals when you need the general antiderivative (a position function) and will solve for the constant with an initial condition. Quick rules tied to the CED: - Displacement on [a,b]: compute the definite integral ∫_a^b v(t) dt (signed area → net change). - Total distance: compute ∫_a^b |v(t)| dt (integral of speed). - Position function: find an antiderivative s(t) = ∫ v(t) dt + C (indefinite integral), then use a given initial position s(t0)=s0 to solve for C. Example: v(t)=3t. Displacement from t=1 to 4: ∫_1^4 3t dt = (3/2)(4^2−1^2)= (3/2)(15)=22.5. Position: s(t)=(3/2)t^2 + C; if s(1)=5 then C=5−1.5=3.5 so s(t)=(3/2)t^2+3.5. Remember the Fundamental Theorem of Calculus connects the two: definite integrals compute net change; indefinite integrals give antiderivatives you need for position. For AP review, see the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw) and practice problems (https://library.fiveable.me/practice/ap-calculus).
What does it mean when the integral of velocity is negative?
If the definite integral of velocity over [a,b] is negative, it means the particle’s displacement is negative—the net change in position moved opposite to the positive direction. By the Fundamental Theorem of Calculus, ∫_a^b v(t) dt = s(b) − s(a). So a negative value means s(b) < s(a) (you ended up left/behind your start). Remember: that integral gives signed area (positive area when v>0, negative when v<0). It’s different from total distance traveled: ∫_a^b |v(t)| dt (speed) is always nonnegative and counts all movement regardless of direction. This distinction is exactly CHA-4.C in the CED: definite integral of velocity = displacement; definite integral of speed = total distance. Want more practice and examples on this topic? See the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw) and try problems at (https://library.fiveable.me/practice/ap-calculus).
How do I find where a particle is at a specific time if I have its velocity function?
If you have a velocity function v(t) and an initial position s(t0), the position at time t is found with the Net Change (Fundamental Theorem of Calculus) formula: s(t) = s(t0) + ∫_{t0}^{t} v(u) du. The definite integral of v gives displacement (signed area). If you need total distance traveled on [a,b], use ∫_{a}^{b} |v(t)| dt (speed = |v|). Important: you must know or be given an initial position s(t0) to get absolute position; without it you only get position up to a constant. Quick example: if v(t)=3t and s(0)=2, then s(4)=2+∫_0^4 3t dt = 2 + 24 = 26. This is exactly what the CED calls CHA-4.C (displacement vs. total distance). Practice these on the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw) and more problems at the Unit 8 page (https://library.fiveable.me/ap-calculus/unit-8) or the practice problem bank (https://library.fiveable.me/practice/ap-calculus).
When do I use the fundamental theorem of calculus in position and velocity problems?
Use the Fundamental Theorem of Calculus whenever you need to move between a rate (velocity or acceleration) and an accumulated quantity (position or change in velocity). Quick rules you can apply on AP problems (CHA-4.C language): - If you’re given v(t) and asked for displacement on [a,b], use the definite integral: displacement = ∫_a^b v(t) dt (signed area). This is the Net Change Theorem (FTC idea). - If you need position p(t) and you know an initial position p(t0), use the accumulation form: p(t) = p(t0) + ∫_{t0}^t v(s) ds. - If you’re given a rate and want an antiderivative, use the FTC Part 2: an antiderivative of v is a position function (up to a constant). Solve for the constant with initial position. - For total distance traveled, integrate speed: distance = ∫_a^b |v(t)| dt (split intervals where v changes sign). Use FTC Part 1 when differentiating an integral-defined function: if H(x)=∫_a^x v(t) dt then H′(x)=v(x). These are the exact connections AP tests in Topic 8.2. For a short study guide and practice, check the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw), the Unit 8 overview (https://library.fiveable.me/ap-calculus/unit-8), and lots of practice problems (https://library.fiveable.me/practice/ap-calculus).
I keep getting confused about whether to integrate or take the derivative in motion problems - help?
Short checklist to decide: start by asking what quantity you’re given and what you need. - If you’re given position s(t): velocity v(t) = s′(t), acceleration a(t) = s″(t). (Differentiate.) - If you’re given velocity v(t): acceleration a(t) = v′(t). To get position use an antiderivative: s(t) = s(t0) + ∫[t0 to t] v(τ) dτ. (Integrate; use initial position.) - If you’re given acceleration a(t): v(t) = v(t0) + ∫[t0 to t] a(τ) dτ, then integrate again for s(t) if you need position. Key AP idea (CHA-4.C): ∫ v(t) dt gives displacement (signed area). To get total distance, integrate |v(t)| over the interval—so find sign changes of v first. Always track initial conditions (s(t0) or v(t0))—they fix constants after integrating. Use the Fundamental Theorem of Calculus when moving between antiderivatives and definite integrals. For more examples and AP-style practice tied to Topic 8.2, see the Fiveable study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw) and practice problems (https://library.fiveable.me/practice/ap-calculus).
How do I set up the integral when the velocity function changes sign over the interval?
Use signed area for displacement but split at sign changes for total distance. Steps: 1. Find times where v(t) = 0 on [a,b]: a = t0 < t1 < t2 < ... < tk = b. These partition intervals where v keeps one sign. 2. Displacement = ∫_a^b v(t) dt (antiderivative or FTC with initial position). This is net change (signed area). 3. Total distance = ∫_a^b |v(t)| dt = sum_{i=1}^k ∫_{t_{i-1}}^{t_i} |v(t)| dt. On each subinterval replace |v| by +v if v≥0 there, or by −v if v≤0 there. So distance = Σ ∫_{t_{i-1}}^{t_i} s_i v(t) dt where s_i = 1 if v≥0 on that subinterval, s_i = −1 if v≤0. Also: to get position s(t), use s(t)=s(a)+∫_a^t v(u) du. This procedure is exactly what the CED calls for: displacement vs speed (absolute value of velocity). For practice and examples, see the Topic 8.2 study guide (https://library.fiveable.me/ap-calculus/unit-8/connecting-position-velocity-acceleration-functions-using-integrals/study-guide/k9tY28YXs7YDVu1uqFuw). For more problems, check the Unit 8 overview (https://library.fiveable.me/ap-calculus/unit-8) and practice sets (https://library.fiveable.me/practice/ap-calculus).
