3.7 Sinusoidal Function Context and Data Modeling

Sinusoidal modeling means building an equation like $f(x) = a\sin(b(x + c)) + d$ from real data or a graph of a repeating pattern. You pull amplitude and vertical shift from the maximum and minimum values, get the period from the gap between consecutive peaks or troughs, and use a known point to lock in the phase shift.

Why This Matters for the AP Precalculus Exam

This topic shows up when the exam asks you to model periodic situations like seasonal temperatures, tides, or daily light cycles. You need to be able to read key features from a graph or table and turn them into the parameters $a$, $b$, $c$, and $d$, then explain why your values match the situation. Some questions expect you to use a graphing calculator to run a sinusoidal regression, and others ask you to use your model to predict an output for a given input while staying inside the contextual domain. Clear setup, correct units, and a model that matches the data are all important for strong exam work.

Key Takeaways

• Amplitude $a$ is half the distance between the maximum and minimum: $a = \dfrac{\text{max} - \text{min}}{2}$.
• Vertical shift (midline) $d$ is the average of the max and min: $d = \dfrac{\text{max} + \text{min}}{2}$ (keep the sign of the minimum).
• Find the period from the input interval between consecutive maxima or consecutive minima, then get $b$ from $b = \dfrac{2\pi}{\text{period}}$.
• Use one known input-output point to solve for the phase shift $c$.
• Sinusoidal regression on a graphing calculator can fit a model to a data set when estimating by hand is hard.
• A sinusoidal model is usually only reliable over its contextual domain, so be cautious extrapolating far beyond the data.

Building the Sinusoidal Equation

The standard model for a sinusoidal function is:

$f(x) = a\sin(b(x + c)) + d$

or

$f(x) = a\cos(b(x + c)) + d$

Where:

• $a$ is the amplitude, half the distance between the maximum and minimum values.
• $b$ controls the period, with period $= \dfrac{2\pi}{b}$ and $b = \dfrac{2\pi}{\text{period}}$.
• $c$ is the horizontal (phase) shift. In this factored form, the graph shifts by $-c$.
• $d$ is the vertical shift, which sets the midline.

The four steps below let you build a model from a graph or a data set.

Step 1: Amplitude

Measure the distance between the maximum and minimum output values and divide by 2:

$a = \frac{\text{max} - \text{min}}{2}$

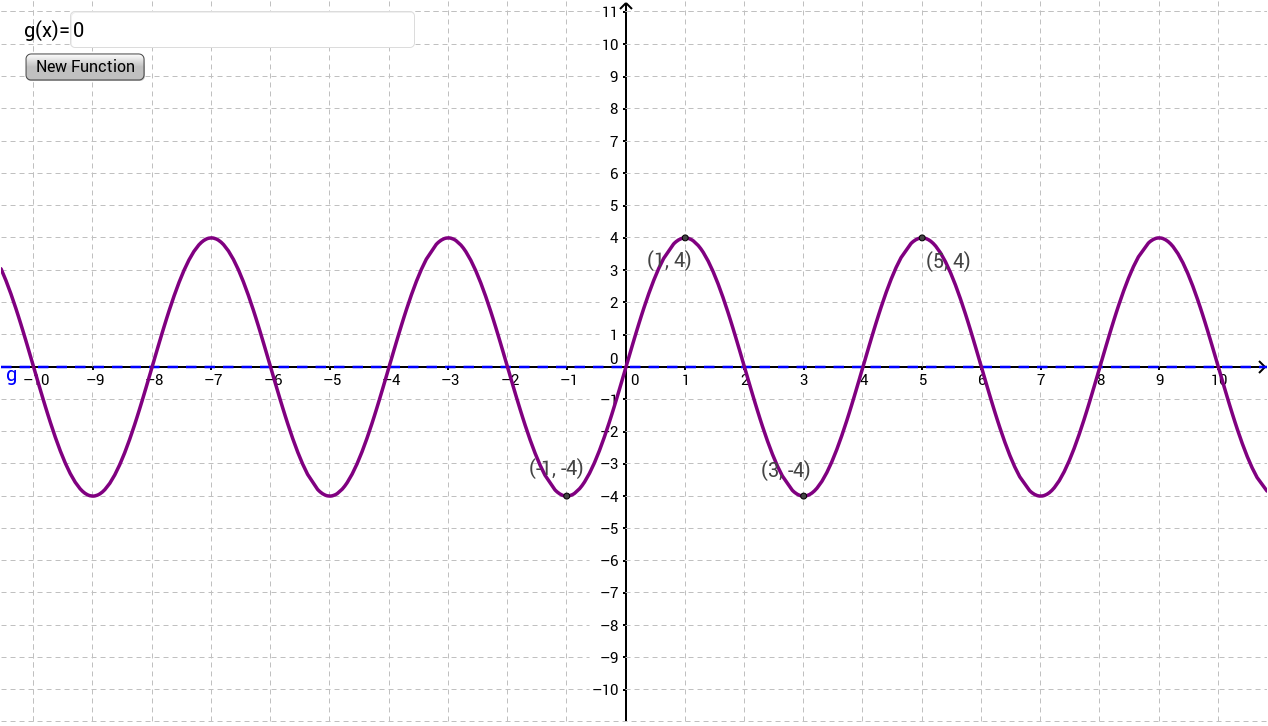

For a graph with a maximum of $4$ and a minimum of $-4$:

$a = \frac{4 - (-4)}{2} = 4$

Step 2: Period and the b Value

Look at the input values where the function repeats a maximum or a minimum. The period is the gap between two consecutive peaks (or two consecutive troughs). If a peak is at $x = 1$ and the next peak is at $x = 5$, then:

$\text{period} = 5 - 1 = 4$

Since the period of $\sin x$ is $2\pi$, find $b$ with:

$b = \frac{2\pi}{\text{period}} = \frac{2\pi}{4} = \frac{\pi}{2}$

Frequency is the reciprocal of the period, so here frequency $= \dfrac{1}{4}$ cycle per unit.

Step 3: Vertical Shift (Midline)

The vertical shift $d$ is the value of the midline. Average the max and min, keeping the sign of the minimum:

$d = \frac{\text{max} + \text{min}}{2} = \frac{4 + (-4)}{2} = 0$

So the midline is $y = 0$ and the vertical shift is $0$. Notice this is different from amplitude: for the midline you keep the negative sign on the minimum, but for amplitude you use the full distance.

Step 4: Phase Shift

Once you have $a$, $b$, and $d$, plug in a known point to solve for the phase shift $c$. Using the point $(1, 4)$ with $a = 4$, $b = \frac{\pi}{2}$, and $d = 0$:

$f(x) = 4\sin\left(\frac{\pi}{2}(x + c)\right)$

$4 = 4\sin\left(\frac{\pi}{2}(1 + c)\right)$

$c = 0$

So the phase shift is $0$. The argument of the sine function is in radians, not degrees, so keep your phase calculations in radians.

Putting It Together

Collecting the parameters:

• amplitude $= \dfrac{4 - (-4)}{2} = 4$
• period $= 4$
• $b = \dfrac{2\pi}{4} = \dfrac{\pi}{2}$
• phase shift $c = 0$
• vertical shift $d = 0$

$f(x) = a\sin(b(x + c)) + d$

$f(x) = 4\sin\left(\frac{\pi}{2}(x + 0)\right) + 0$

$\boxed{f(x) = 4\sin\left(\frac{\pi}{2}x\right)}$

This is the equation of the sinusoidal function shown by the graph.

Modeling Data with a Calculator

Real data rarely gives clean peaks. When estimating by hand is tough, you can use a graphing calculator to run a sinusoidal regression, which fits a sine model to your data points. You can also seed the model by estimating key values (max, min, and period) from the data first, then refine. This is the same skill used to model things like seasonal temperature cycles, tidal heights, and daily light intensity.

Whatever model you build, remember that it is usually only meaningful over its contextual domain. You can use it to predict a dependent value from an independent value inside that range, but predicting far outside the data is risky.

How to Use This on the AP Precalculus Exam

Problem Solving

• Read the max and min first, then compute amplitude and midline before anything else.
• Get the period from peak-to-peak or trough-to-trough spacing, then convert to $b$ with $b = \frac{2\pi}{\text{period}}$.
• Solve for $c$ using a single anchor point and the parameters you already found.
• When asked, justify why your values match the data, such as explaining how the spacing of maxima gives the period.

Calculator Use

• Some questions expect a sinusoidal regression done on a graphing calculator.
• Enter the data, run the sinusoidal regression, and round consistently.
• Use the resulting equation to predict outputs, but stay inside the contextual domain.

Common Trap

• Keep amplitude and vertical shift separate. Amplitude uses the full distance between max and min; the midline keeps the sign of the minimum.
• In the factored form $a\sin(b(x + c)) + d$, the graph shifts by $-c$, so watch your sign.

Practice Problems

Construct the equations of the graphs below.

Answer: $f(x) = 5\sin(x + \pi) + 3$

Answer: $2\sin\left(x + \dfrac{\pi}{2}\right) + 2$

Answer: $3\sin\left(3\left(x + \dfrac{\pi}{9}\right)\right) + 1$

Common Misconceptions

• Amplitude is not the maximum value. Amplitude is half the distance between the max and min, so a function that swings from $-4$ to $4$ has amplitude $4$, not $8$.
• The midline is not always $y = 0$. It is the average of the max and min, and it equals the vertical shift $d$.
• The number $b$ is not the period. The period is $\frac{2\pi}{b}$, and you solve for $b$ from the period, not the other way around.
• In factored form $a\sin(b(x + c)) + d$, a positive $c$ shifts the graph left by $c$, not right. Watch the sign carefully.
• A sinusoidal model does not stay accurate forever. It is reliable over its contextual domain, so avoid extrapolating far past the data.
• Phase shift arguments are in radians, not degrees, unless a problem clearly tells you otherwise.
