A sinusoidal function written as (or with cosine) packs four transformations into one equation: is the amplitude, the period is , is the phase shift, and is the midline. Once you can read , , , and , you can describe the graph or build an equation from a graph.
Sinusoidal Function Transformations Summary
In AP Precalculus 3.6, sinusoidal functions can be written as or , where and . The constants tell you the graph's transformations: amplitude is , period is , phase shift is , and midline is .
The common exam task is reading these features from an equation or graph. Always factor out before reading the phase shift, because only works when the inside is written as .
Exam questions can ask you to explain why your chosen values fit the given information, not just state them. These constants also carry into the next topic, 3.7, where you build sinusoidal models from real data.
How Each Constant Changes a Sinusoidal Graph
- The standard forms are f(θ) = a sin(b(θ + c)) + d and g(θ) = a cos(b(θ + c)) + d, with a ≠ 0.
- Amplitude is |a|. If a < 0, the graph is reflected over the x-axis, but the amplitude is still positive.
- Period is 2π/|b|; the factor |1/b| is the horizontal dilation compared to the parent curve.
- Phase shift is -c (horizontal translation), and the midline is y = d (vertical translation).
- Maximum value is d + |a| and minimum value is d - |a|.
- Always factor out b before reading the phase shift, so θ is by itself inside the function.
The Equation
Image courtesy of CollegeBoard. Image courtesy of CollegeBoard.The general form of a sinusoidal function based on the sine curve is:
The form based on the cosine curve is:
where a, b, c, and d are real numbers and a ≠ 0. These look complex, but the letters just describe how the parent sine or cosine curve has been stretched, compressed, and shifted. The four transformations are vertical stretch/compression, horizontal stretch/compression, horizontal shift, and vertical shift. Because cosine is just sine shifted by -π/2, the same rules apply to both, so the examples below use sine.
In f(θ) = a sin(b(θ + c)) + d, the input is the angle θ (sometimes written as x), and the output is f(θ). The constants a, b, c, and d each control a specific feature of the wave.
Amplitude
The constant a controls the amplitude, which is |a|. Amplitude is half the distance between the maximum and minimum values, or how far the curve rises above and falls below its midline.
A larger |a| makes the wave taller; a smaller |a| makes it shorter. Amplitude is always positive, so if a = -7, the amplitude is 7. The negative sign means the graph is reflected over the x-axis.
Period
The constant b controls the period. The period is the length of one complete cycle, given by:
The factor |1/b| tells you the horizontal dilation compared to the parent curve. As |b| increases, the period gets shorter, so cycles happen closer together. As |b| decreases, the period gets longer, so cycles spread out.
Period and frequency are reciprocals. Frequency is |b|/(2π), the number of cycles per unit of input.
Phase Shift
The constant c controls the phase shift, which is -c. This is a horizontal translation of the graph. Watch the sign: the shift is -c, not c. If c = 2, the graph shifts 2 units left; if c = -2, the graph shifts 2 units right.
Important: c is the phase shift only when b has been factored out so that θ stands alone inside the function. If you see something like sin(3θ + 1.5), factor out the 3 first: sin(3(θ + 0.5)), which gives a phase shift of -0.5.
Vertical Translation (Midline)
The constant d controls the vertical shift, which moves the entire graph, including its midline, up or down. The midline is the line y = d. Increasing d shifts the graph up; decreasing d shifts it down.
Putting it together, the graph of f(θ) = a sin(b(θ + c)) + d has:
- amplitude |a|
- period 2π/|b|
- midline y = d (a vertical shift of d units from y = 0)
- phase shift of -c units
- maximum value d + |a| and minimum value d - |a|
Reading Transformations and Building Sinusoidal Equations
Problem Solving: To read transformations from an equation:
- Match the equation to the form a sin(b(θ + c)) + d.
- If b is not already factored out from the θ term, factor it first.
- Amplitude = |a|, period = 2π/|b|, phase shift = -c, midline = y = d.
To build an equation from a graph:
- Find the midline by averaging the maximum and minimum: that is d.
- Find the amplitude: a = (max - min)/2.
- Find the period (distance for one full cycle), then solve b = 2π/period.
- Use a known feature like a maximum or a midline crossing to find c.
Common Trap: The phase shift trips up many students because of the sign and the factoring. Reading c directly off sin(bθ + c) gives the wrong answer. Factor out b first, then the phase shift is -c.
Practice Problems: 1. What is the amplitude of the wave represented by f(θ) = 3sin(2(θ + 1)) + 5?
a) 3 b) 2 c) 5 d) 1
Answer: a) 3. The amplitude is |a| = |3| = 3.
2. What is the period of the wave represented by f(θ) = 2sin(0.5(θ - 2)) + 3?
a) 2π b) 4π c) 0.5π d) 1π
Answer: b) 4π. Period = 2π/|b| = 2π/0.5 = 4π.
3. What is the phase shift of the wave represented by f(θ) = 4sin(3θ + 1.5) - 2?
a) -0.5 b) -2 c) 3 d) 1.5
Answer: a) -0.5. Factor out the 3 inside the function: 3θ + 1.5 = 3(θ + 0.5). The phase shift is -c = -0.5, meaning the graph shifts 0.5 units left.
Common Misconceptions
- Misconception: Amplitude equals a when a is negative.Actually: Amplitude is not the a value when a is negative. Amplitude is |a|; a negative a only adds a reflection over the x-axis.
- Misconception: The phase shift is c, not -c.Actually: The phase shift is -c, not c. A positive c shifts the graph left, and a negative c shifts it right.
- Misconception: You can read the phase shift directly when b is still attached to θ inside the function.Actually: You cannot read the phase shift directly when b is still attached to θ inside the function. Factor out b first so θ is alone.
- Misconception: A larger b stretches the graph horizontally.Actually: A larger b does not stretch the graph horizontally; it compresses it. A larger |b| gives a shorter period.
- Misconception: The midline is y = 0.Actually: The midline is y = d, not y = 0. Forgetting d shifts your whole graph and changes the max and min values, which are d + |a| and d - |a|.
- Misconception: Period and frequency are not reciprocals.Actually: Period and frequency are reciprocals, so do not mix them up. The period is 2π/|b|, while the frequency is |b|/(2π).
Related AP Precalculus Guides
Practice Questions for 3.6
1 of 10

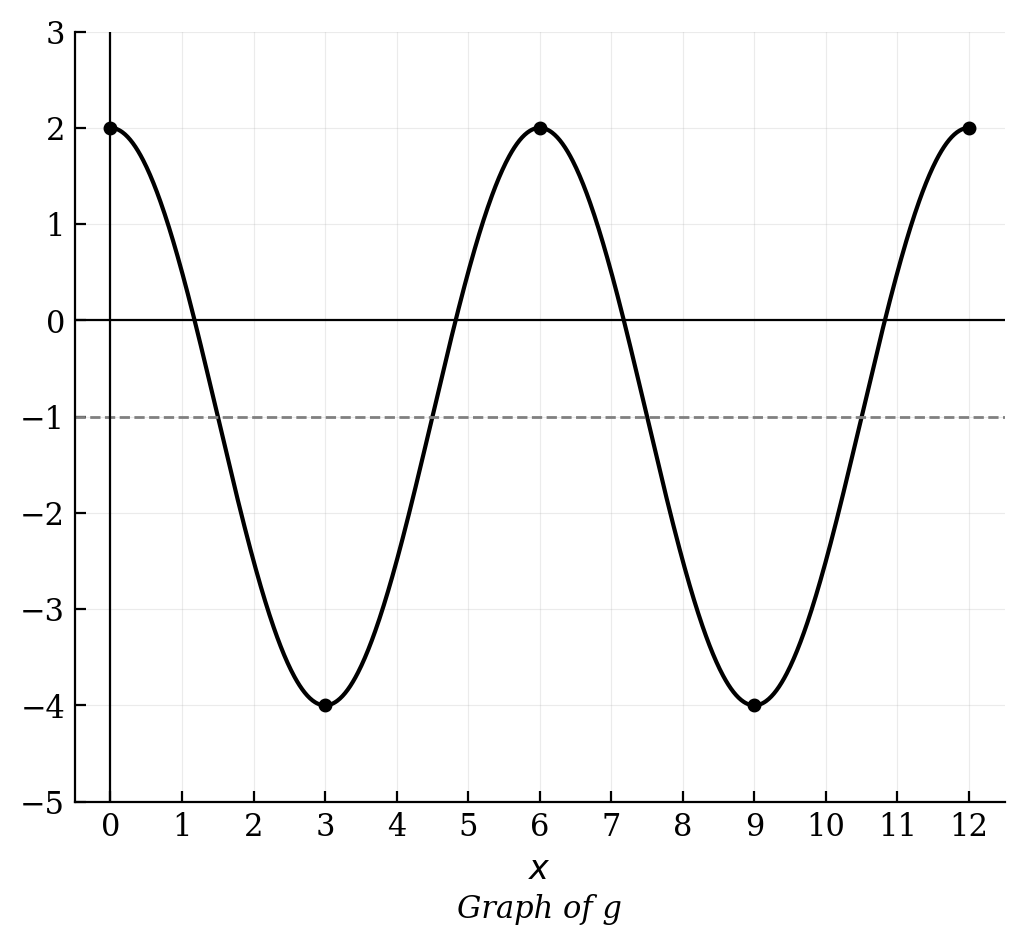

The graph of the sinusoidal function is shown.
Which of the following could be an expression for ?
A.
B.
C.
D.
Vocabulary
The following words are mentioned explicitly in the AP® course framework for this topic.Term | Definition |
|---|---|
amplitude | The absolute value of the coefficient a in a sinusoidal function, representing the maximum distance from the midline to the peak or trough of the graph. |
horizontal dilation | A transformation that stretches or compresses the graph of a function horizontally by multiplying the input by a constant factor b, written as g(x) = f(bx). |
horizontal translation | A transformation that shifts the graph of a function left or right by adding a constant to the input, written as g(x) = f(x + h). |
midline | The horizontal line around which a sinusoidal function oscillates, located at y = d in the function a sin(b(θ + c)) + d. |
period | The smallest positive value k such that a periodic function repeats its pattern, meaning f(x+k) = f(x) for all x in the domain. |
phase shift | A horizontal translation of a sinusoidal function represented by the constant c, which shifts the graph left or right by -c units. |
sinusoidal function | A function of the form f(θ) = a sin(b(θ + c)) + d or g(θ) = a cos(b(θ + c)) + d, where a, b, c, and d are real numbers and a ≠ 0. |
vertical dilation | A transformation that stretches or compresses the graph of a function vertically by multiplying the function by a constant factor a, written as g(x) = af(x). |
vertical shift | A vertical translation of a sinusoidal function represented by the additive constant d, which moves the entire graph up or down and shifts the midline. |
vertical translation | A transformation that shifts the graph of a function up or down by adding a constant k to the function, written as g(x) = f(x) + k. |
