Topic 3.3 is about finding the coordinates of a point where a terminal ray crosses a circle centered at the origin. For any angle θ on a circle of radius r, that point P is at (r cos θ, r sin θ), and you can find exact sine and cosine values for angles that are multiples of π/4 and π/6 using 45-45-90 and 30-60-90 triangles plus quadrant signs.

more resources to help you study

practice multiple choice FRQ practice & scoring cheatsheets score calculator

Why This Matters for the AP Precalculus Exam

Unit 3 (Trigonometric and Polar Functions) is one of the most heavily weighted parts of the AP Precalculus exam. This topic builds the foundation for everything that follows in the unit: sine and cosine graphs, sinusoidal models, the tangent function, and polar coordinates all rely on knowing where points land on a circle.

On the exam, you may need to find exact coordinates of points on a circle of any radius, identify exact sine and cosine values without a calculator, and reason about signs based on the quadrant. Some multiple-choice and free-response questions allow a graphing calculator, but exact-value work for common angles is expected without one, so building fluency here saves time and reduces errors.

Key Takeaways

For an angle θ in standard position on a circle of radius r centered at the origin, the terminal ray hits the circle at point P = (r cos θ, r sin θ).
On the unit circle (r = 1), the x-coordinate of P is cos θ and the y-coordinate is sin θ.
Use 45-45-90 (isosceles right) triangles for multiples of π/4 and 30-60-90 (equilateral-based) triangles for multiples of π/6 and π/3.
The common exact values are √2/2 for π/4 angles, and 1/2 and √3/2 for π/6 and π/3 angles.
The quadrant of θ sets the signs of cos θ and sin θ, so always check which quadrant the terminal ray lands in.
Scaling by radius r just multiplies both unit-circle coordinates by r.

Unit Circle Study: Sine and Cosine Values

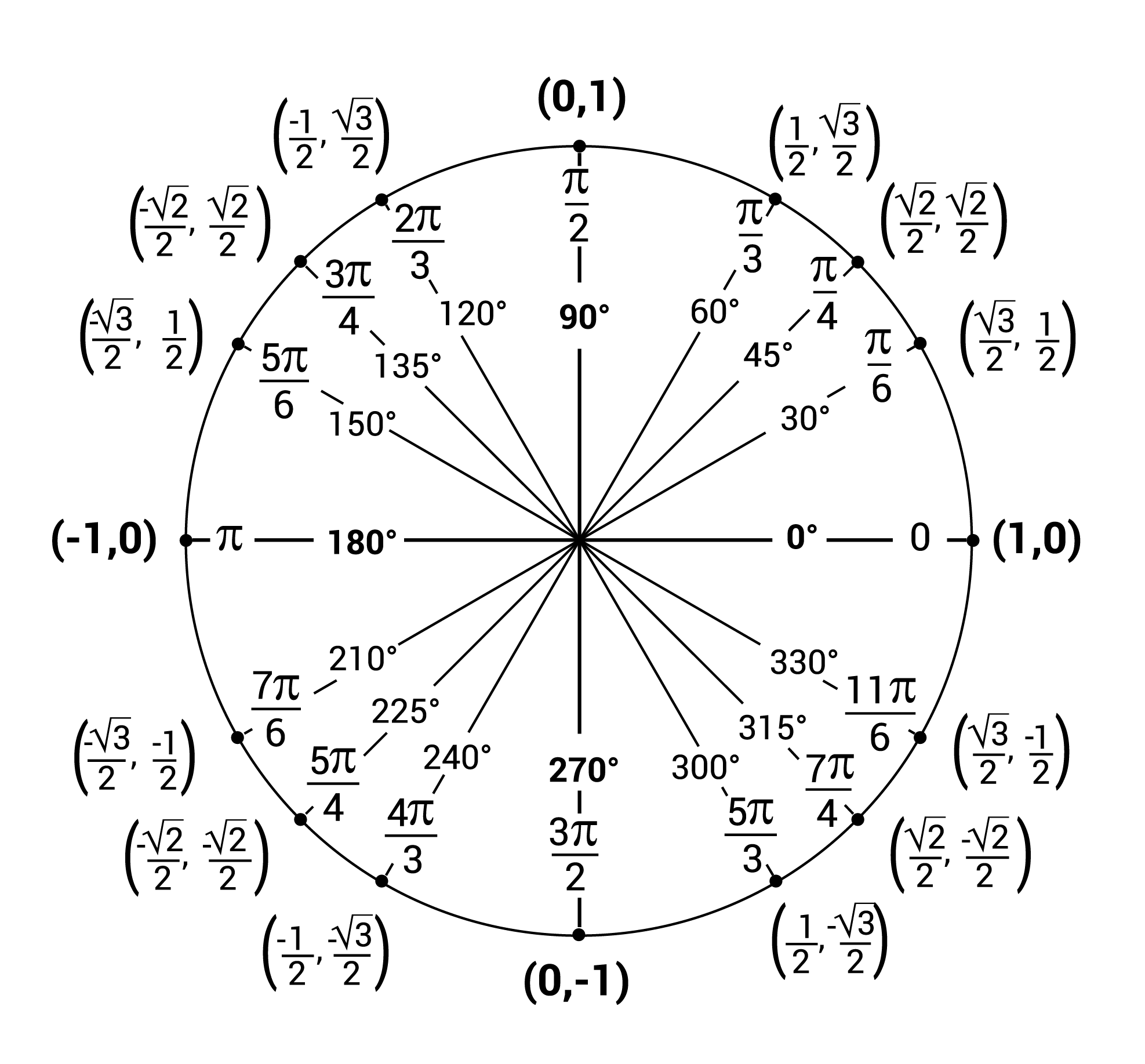

The unit circle is a circle with a radius of 1 centered at the origin (0,0). This simple circle is the key to a lot of what comes next in AP Precalculus, from trigonometric functions to polar coordinates.

Start with the idea of an angle in standard position. An angle in standard position has its vertex at the origin and one ray along the positive x-axis. The other ray is the terminal ray. Measuring counterclockwise gives a positive angle, and measuring clockwise gives a negative angle.

We read the unit circle starting at the right, on the positive x-axis, which corresponds to an angle of 0 degrees (or 0 radians).

Finding Angles on the Unit Circle

To make a full rotation, start at 0 degrees and go counterclockwise until you return to the positive x-axis. Around the circle, angle measures are given in radians and degrees. Each value is the measure of the angle that ray makes with the positive x-axis in standard position.

For example, $𝞹/6$ radians is the angle made by that ray and the positive x-axis, which equals 30 degrees. An angle of $5𝞹/3$ radians (300 degrees) is measured counterclockwise from the positive x-axis. That is a reflex angle (greater than 180 degrees but less than 360 degrees). An angle of $5𝞹/3$ radians counterclockwise lands on the same terminal ray as $-𝞹/3$ radians, which is measured clockwise. Both $5𝞹/3$ and $-𝞹/3$ point to the same spot on the circle.

One full revolution is $2𝞹$ radians, or 360 degrees. Angles that share a terminal ray differ by an integer number of full revolutions. For example, 3 and a half revolutions cover $2𝞹 \times 3 = 6𝞹$ radians, plus $𝞹$ for the half revolution, giving $7𝞹$ radians.

Coordinates of Points on a Circle

When you take an angle in standard position and draw the terminal ray out from the origin, the point where that ray meets the circle is point P.

For a circle of radius r centered at the origin, the coordinates of P are:

$P = (r\cos\theta,\ r\sin\theta)$

On the unit circle, where r = 1, this simplifies so that the x-coordinate of P is $\cos\theta$ and the y-coordinate is $\sin\theta$ . The sine of an angle is the y-coordinate of the point on the unit circle, and the cosine is the x-coordinate. The tangent is the ratio of the y-coordinate to the x-coordinate, so $\tan\theta = \sin\theta / \cos\theta$ .

If the radius is not 1, scale both coordinates by r. For example, on a circle of radius 5, the point at angle θ is $(5\cos\theta,\ 5\sin\theta)$ . The unit-circle values still drive everything; you just multiply by the radius.

To find the sine, cosine, or tangent at a specific angle, read off the coordinates of P. For example, at 30 degrees ( $𝞹/6$ ), the y-coordinate is $1/2$ , so $\sin(𝞹/6) = 1/2$ . The x-coordinate is $√3/2$ , so $\cos(𝞹/6) = √3/2$ . Then $\tan(𝞹/6) = (1/2) / (√3/2) = √3/3$ .

These values stay constant regardless of how large you draw the right triangle, because they depend only on the angle.

You can use the acronym SOHCAHTOA to remember the right-triangle ratios. SOH = Sine is Opposite over Hypotenuse. CAH = Cosine is Adjacent over Hypotenuse. TOA = Tangent is Opposite over Adjacent.

On the unit circle, the hypotenuse of the right triangle formed by an angle is always 1, because that is the radius. The horizontal leg gives the cosine (the x-coordinate of P), and the vertical leg gives the sine (the y-coordinate of P).

Exact Values Using Special Triangles

For angles whose terminal rays do not lie on an axis, you can find exact sine and cosine values using two special triangles.

45-45-90 (isosceles right) triangle: used for multiples of $𝞹/4$ , such as $𝞹/4, 3𝞹/4, 5𝞹/4, 7𝞹/4$ . The side ratios are $1 : 1 : √2$ , which gives coordinate values of $√2/2$ .
30-60-90 triangle: used for multiples of $𝞹/6$ and $𝞹/3$ , such as $𝞹/6, 5𝞹/6, 7𝞹/6, 11𝞹/6$ and $𝞹/3, 2𝞹/3, 4𝞹/3, 5𝞹/3$ . The side ratios are $1 : √3 : 2$ , which gives coordinate values of $1/2$ and $√3/2$ .

The size of the value comes from the triangle geometry, and the sign comes from the quadrant of the angle. Always pair the triangle ratio with the correct quadrant sign.

Finding the Angle Given the Trig Value

You can also work backward from a sine or cosine value to an angle. If $\cos\theta = 1/2$ , look for where the x-coordinate equals $1/2$ on the unit circle. Moving counterclockwise from the positive x-axis, you reach $𝞹/3$ radians (60 degrees).

If $\sin\theta = -√3/2$ , look for where the y-coordinate equals $-√3/2$ . That happens in the third quadrant, at $4𝞹/3$ radians. Because sine and cosine values repeat, there is often more than one angle that produces a given value, so pay attention to the quadrant or any domain restriction in the problem.

Determining the Sign of Trig Values

Knowing when sine and cosine are positive or negative comes down to the quadrant of the terminal ray.

The acronym "All Students Take Calculus" tells you which functions are positive in each quadrant.

All: In the first quadrant, sine, cosine, and tangent are all positive.
Students: In the second quadrant, only sine is positive.
Take: In the third quadrant, only tangent is positive.
Calculus: In the fourth quadrant, only cosine is positive.

This works because cosine is the x-coordinate (positive on the right side of the plane) and sine is the y-coordinate (positive on the top half of the plane).

How to Use This on the AP Precalculus Exam

Problem Solving

To find a point on a circle of radius r at angle θ, compute $(r\cos\theta,\ r\sin\theta)$ . Do not forget to multiply by r when the radius is not 1.
For common angles, decide whether the angle is a multiple of $𝞹/4$ or $𝞹/6$ , pick the matching special triangle, then apply the quadrant sign.
When you need exact values for angles like $3𝞹/4$ or $7𝞹/6$ , find the reference angle first, get the unit-circle magnitude, then attach the correct sign.

Common Trap

Mixing up which coordinate is sine and which is cosine. Cosine is the x-coordinate; sine is the y-coordinate.
Forgetting the sign. The triangle gives the size of the value, but the quadrant decides whether it is positive or negative.
Leaving off the radius. On a circle of radius r, you must scale both unit-circle coordinates by r.

Common Misconceptions

The unit circle is the only circle that matters. The unit circle makes coordinates simple because r = 1, but any circle centered at the origin uses $(r\cos\theta,\ r\sin\theta)$ . Scale by r when the radius is not 1.
Sine is the x-coordinate. It is the reverse: cosine is the x-coordinate and sine is the y-coordinate of point P.
Exact values come from memorizing the whole circle. You only need the 45-45-90 and 30-60-90 triangle ratios plus the quadrant signs to rebuild every common value.
A given sine or cosine value has only one angle. Because these values repeat around the circle, several angles can share the same value, so check the quadrant or any restriction in the problem.
Negative angles are different points. A negative angle measured clockwise can land on the same terminal ray as a positive angle measured counterclockwise, such as $-𝞹/3$ and $5𝞹/3$ .

Frequently Asked Questions

What does AP Precalculus 3.3 cover?

AP Precalculus 3.3 covers finding coordinates on a circle centered at the origin using sine and cosine. For an angle θ on a circle of radius r, the point is (r cos θ, r sin θ).

How do sine and cosine relate to unit circle coordinates?

On the unit circle, cosine is the x-coordinate and sine is the y-coordinate of the point where the terminal ray meets the circle. That is why the point is written (cos θ, sin θ) when r = 1.

What is the formula for coordinates on a circle of radius r?

For a circle centered at the origin with radius r, the point at angle θ is (r cos θ, r sin θ). If r is not 1, multiply the unit-circle coordinates by the radius.

How do you find exact sine and cosine values?

Use special triangles and quadrant signs. Multiples of π/4 come from 45-45-90 triangles, while multiples of π/6 and π/3 come from 30-60-90 triangles.

How do quadrants affect sine and cosine signs?

Cosine follows the x-coordinate sign, so it is positive on the right and negative on the left. Sine follows the y-coordinate sign, so it is positive above the x-axis and negative below it.

What is the common mistake with sine and cosine values?

The common mistake is swapping the coordinates. Cosine is the x-coordinate and sine is the y-coordinate. The triangle gives the magnitude, but the quadrant determines the sign.
