2.15 Semi-log Plots

A semi-log plot uses a logarithmic scale on the y-axis and a regular linear scale on the x-axis. The big payoff: data that follows an exponential pattern shows up as a straight line, so you can quickly tell whether an exponential model fits.

What Is a Semi-log Graph?

A semi-log graph, or semi-log plot, is a graph where one axis uses a logarithmic scale and the other axis uses a regular linear scale. In AP Precalculus Topic 2.15, the y-axis is the logarithmic axis and the x-axis stays linear.

Use a semi-log plot when you suspect data is exponential. If the points form an approximately straight line on the semi-log graph, an exponential model is probably appropriate. If the points curve on the semi-log graph, the data is not behaving like a simple exponential model.

more resources to help you study

practice multiple choiceFRQ practice & scoringcheatsheetsscore calculator

Why This Matters for the AP Precalculus Exam

Semi-log plots tie together exponential functions, logarithms, and linear modeling, which are all heavily tested in Unit 2 of AP Precalculus. Being able to read a semi-log plot lets you decide if exponential growth or decay is the right model without guessing. On exam questions, you may need to recognize that a straight line on a logarithmically scaled y-axis signals an exponential relationship, then connect the slope and intercept of that line back to the values $b$ and $a$ in $y = ab^x$. Some questions in this course expect you to use a graphing calculator to work with data and regressions, so being comfortable moving between data, graphs, and equations helps here.

Key Takeaways

• A semi-log plot has one axis (the y-axis here) on a logarithmic scale and the other axis (the x-axis) on a linear scale.
• Exponential data appears as a straight line on a semi-log plot, which is the quick visual test for whether an exponential model fits.
• You never need to add a constant to the y-values to reveal an exponential pattern on a semi-log plot.
• Taking the logarithm of both sides of $y = ab^x$ produces $\log_n(y) = (\log_n b)x + \log_n a$.
• On the semi-log line, the linear rate of change is $\log_n b$ and the initial linear value is $\log_n a$.
• The base $n$ of the logarithm can be any valid base ($n > 0$, $n \neq 1$); base 10 and base $e$ are the common choices.

What a Semi-log Plot Is

A semi-log plot, also called a semi-logarithmic plot, is a graph that uses a logarithmic scale on one axis and a linear scale on the other. It is a hybrid between the two scale types. This setup is useful for showing data that spans a wide range of values, because the logarithmic scale compresses large values so they fit alongside smaller values.

When the y-axis is logarithmically scaled, data or functions that have exponential characteristics will appear linear. The logarithmic scale squeezes the large output values so the overall trend becomes visible and easy to compare. The linear scale on the x-axis keeps the input values in the same proportion, which makes the slope of the data meaningful.

For example, if you have data that grows exponentially over time, the trend can be hard to see on a normal linear graph because early changes look tiny next to later changes. Plotted on a semi-log graph with a logarithmic y-axis, that same exponential growth shows up as a straight line, which makes the trend and any comparisons much clearer.

Semi-log plots show up in fields like biology, chemistry, and physics, where data such as bacterial growth, reaction rates, and radioactive decay are studied. These are applications of the idea, not required AP content, but they show why the tool is useful when values vary across many orders of magnitude.

Why the No-Constant Advantage Matters

One advantage of semi-log plots is that you can detect exponential growth or decay without adding a constant to the dependent variable values. The logarithmic scale on the y-axis automatically compresses large values, so the exponential pattern reveals itself as a straight line on its own.

On a linear scale, exponential data can be hard to read because small early changes are invisible next to large later changes. The semi-log scale fixes this, and once the data lines up straight, you can fit an exponential model by reading the slope of that line, which is tied directly to the rate of growth or decay.

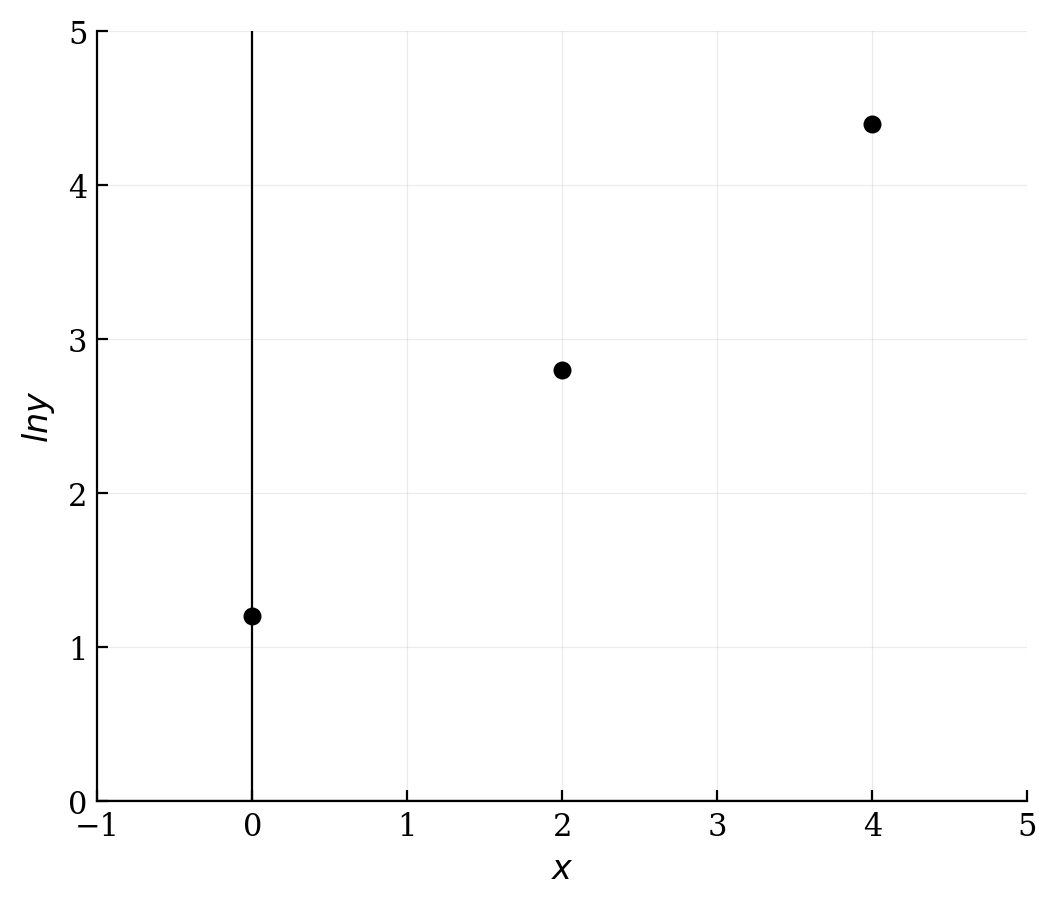

Linearization of Exponential Data

When exponential data is plotted on a semi-log graph with a logarithmic y-axis, it appears as a straight line. That means the same techniques you use to model linear functions can be applied to the semi-log graph.

The exponential model $y = ab^x$ can be transformed into a linear model by taking the logarithm of both sides:

$\log_n(y) = \log_n(ab^x)$

Using log properties, this simplifies to:

$\log_n(y) = \log_n(a) + x\log_n(b)$

The transformed relationship is:

$\log_n(y) = (\log_n b)x + \log_n(a)$

On the semi-log plot, the vertical coordinate is logarithmically scaled, so the corresponding line is read like slope-intercept form:

• The linear rate of change is $\log_n(b)$, which is tied to the growth or decay factor.
• The initial linear value is $\log_n(a)$, which is tied to the initial value.

So by applying linear modeling techniques to a semi-log graph, the slope of the line gives you the exponential rate of change and the y-intercept gives you the initial value. The choice of base $n$ is up to you as long as $n > 0$ and $n \neq 1$, with base 10 and base $e$ being the common picks. Remember that the x-axis stays on a linear scale.

How to Use This on the AP Precalculus Exam

Recognizing Representations

If a problem shows data plotted on a logarithmically scaled y-axis and the points fall along a straight line, that is your signal that an exponential model fits. A curve on that same plot means the data is not purely exponential.

Problem Solving

When you are handed $y = ab^x$ and asked for its linearized form, take the log of both sides and rewrite it as $\log_n(y) = (\log_n b)x + \log_n a$. Match the linear rate of change to $\log_n b$ and the initial linear value to $\log_n a$. Going the other direction, if you are given those values from the semi-log line, you can recover $b$ and $a$ by undoing the logarithm.

Common Trap

Keep the parts straight: the slope encodes $b$ (the base, which controls growth or decay), and the intercept encodes $a$ (the starting value). Mixing these up is an easy way to lose points. Also make sure only the y-axis is on a log scale here; the x-axis stays linear.

Common Misconceptions

• A straight line on a semi-log plot does not mean the data is linear. It means the data is exponential, because the y-axis is on a log scale.
• The slope of the semi-log line is not $b$ itself; it is $\log_n b$. You have to undo the logarithm to get $b$.
• The y-intercept is not $a$ itself; it is $\log_n a$. Solve $\log_n a = \text{intercept}$ to find $a$.
• Both axes are not logarithmic on a semi-log plot. Only one axis is (the y-axis in this case), while the x-axis stays linear.
• The no-constant advantage refers to not needing to shift the y-values to see an exponential pattern. It does not mean the model itself has no constants; $a$ and $b$ are still there.
• Changing the log base ($n$) does not change whether the data looks linear. It only rescales the slope and intercept, so base 10 and base $e$ both work.
