1.2 Fundamental concepts and principles

Electrical Quantities

Voltage, Current, and Resistance

Voltage, current, and resistance are the three quantities you'll use constantly in circuit analysis. They describe what drives electricity, how it flows, and what opposes that flow.

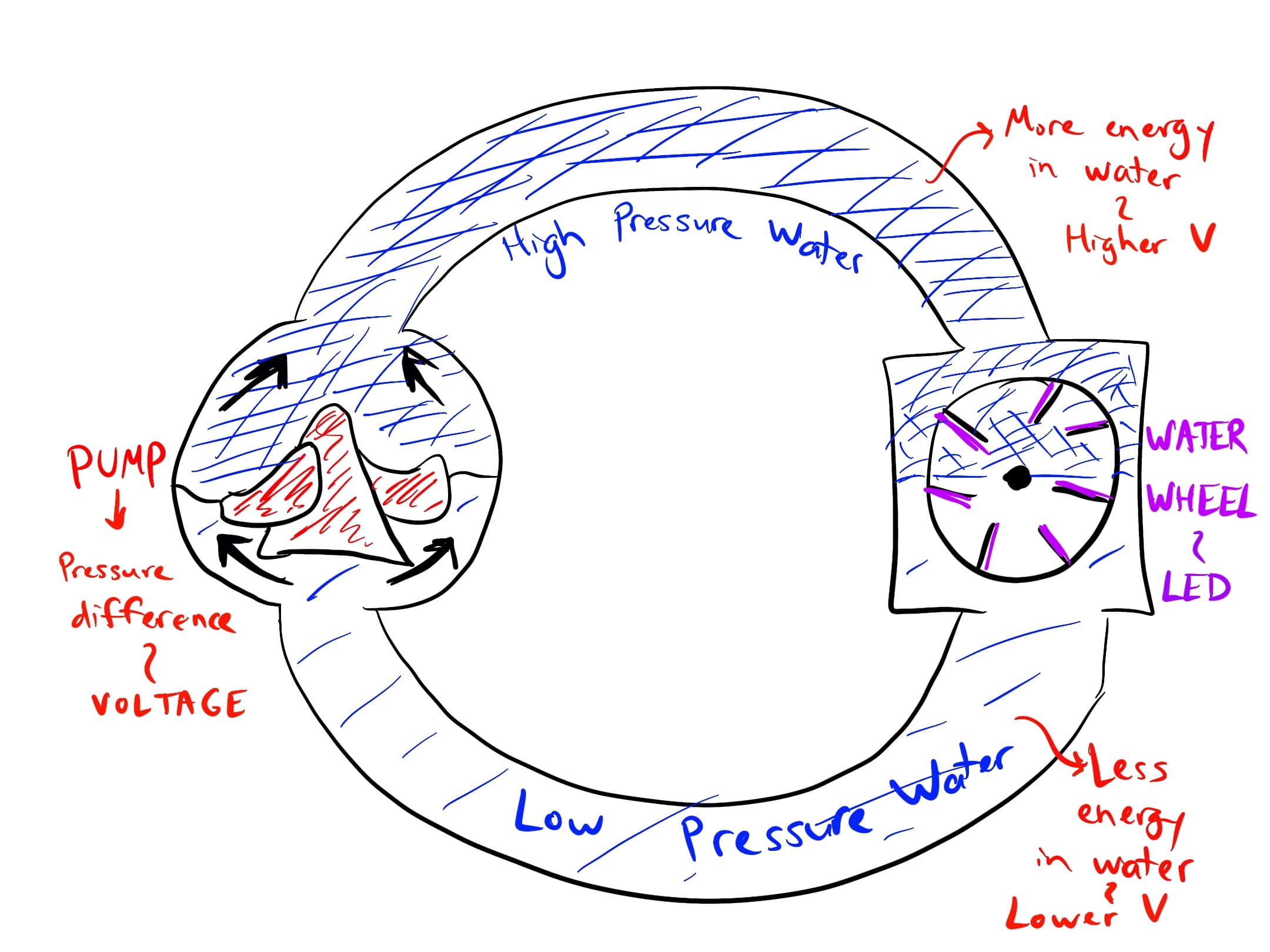

Voltage is the potential difference between two points in a circuit, measured in volts (V). Think of it like the pressure difference in a water pipe: a higher pressure difference pushes water harder, and a higher voltage pushes charge harder. Without a voltage difference, current won't flow.

Current is the actual flow of electric charge through a conductor, measured in amperes (A). In the water analogy, current is the flow rate of water through the pipe. Specifically, one ampere means one coulomb of charge passes a point every second.

Resistance is the opposition a material puts up against current flow, measured in ohms (Ω). Every material has some resistance. Resistors are components designed to provide a specific, controlled resistance value. Common types include carbon resistors and wire-wound resistors.

Power and Energy

Power is the rate at which electrical energy gets converted into another form, whether that's heat, light, or motion. It's measured in watts (W) and calculated with:

$P = VI$

where $P$ is power, $V$ is voltage, and $I$ is current. A 60 W light bulb, for example, converts 60 joules of electrical energy into heat and light every second.

Energy is the total amount of work done over time. It's measured in joules (J) or, for larger amounts, kilowatt-hours (kWh). The formula is:

$E = Pt$

where $E$ is energy, $P$ is power, and $t$ is time. If that 60 W bulb runs for 5 hours, it uses $60 \times 5 = 300$ watt-hours, or 0.3 kWh. This is exactly what your electric bill measures.

Electromagnetic Fields

Electric Fields

An electric field is a region around an electric charge where it exerts a force on other charges. You can visualize it using electric field lines, which point in the direction a positive test charge would be pushed. The field is stronger where the lines are closer together.

Electric field strength is measured in volts per meter (V/m). A practical example: the space between the plates of a capacitor has a roughly uniform electric field. If you apply 10 V across plates separated by 0.01 m, the field strength is $\frac{10}{0.01} = 1000$ V/m.

Magnetic Fields

A magnetic field is a region around a magnet or a moving electric charge where magnetic forces act on other magnets or moving charges. Magnetic field lines form closed loops, running from the north pole to the south pole outside the magnet.

Magnetic field strength is measured in teslas (T) or gauss (G), where 1 T = 10,000 G. You'll encounter magnetic fields around permanent magnets and around any wire carrying current. This connection between current and magnetism is the basis for motors, generators, and transformers.

Material Properties

Conductors, Insulators, and Semiconductors

Materials are classified by how easily they allow current to flow through them.

• Conductors allow current to flow easily. Metals like copper, aluminum, and gold are good conductors because they have many free electrons. That's why wires and electrical contacts are made from metals.
• Insulators strongly resist current flow. Rubber, plastic, and ceramic are common insulators. They're used to coat wires and separate traces on circuit boards so current only goes where you want it.
• Semiconductors fall between conductors and insulators. Silicon and germanium are the most common. What makes semiconductors special is that their conductivity can be precisely controlled by adding small amounts of impurities (a process called doping). This property makes them the foundation of diodes, transistors, and integrated circuits.

Fundamental Laws

Ohm's Law

Ohm's Law is probably the single most-used relationship in introductory circuits. It connects voltage, current, and resistance in one equation:

$V = IR$

where $V$ is voltage in volts, $I$ is current in amperes, and $R$ is resistance in ohms.

You can rearrange it to solve for any of the three quantities:

1. To find voltage: $V = IR$
2. To find current: $I = \frac{V}{R}$
3. To find resistance: $R = \frac{V}{I}$

For example, if a 100 Ω resistor has 5 V across it, the current through it is $I = \frac{5}{100} = 0.05$ A, or 50 mA.

One important note: Ohm's Law applies to ohmic (linear) components like standard resistors and simple wires. Some components, like diodes, don't follow this linear relationship. For this intro course, though, most of the circuits you'll analyze will behave according to Ohm's Law.
