AI and machine learning give electrical systems the ability to learn from data, make decisions, and adapt to changing conditions without being explicitly programmed for every scenario. For an intro EE course, the goal here is to understand what these tools are, how they connect to electrical engineering problems, and why specialized hardware matters for running them.
Neural Networks and Deep Learning

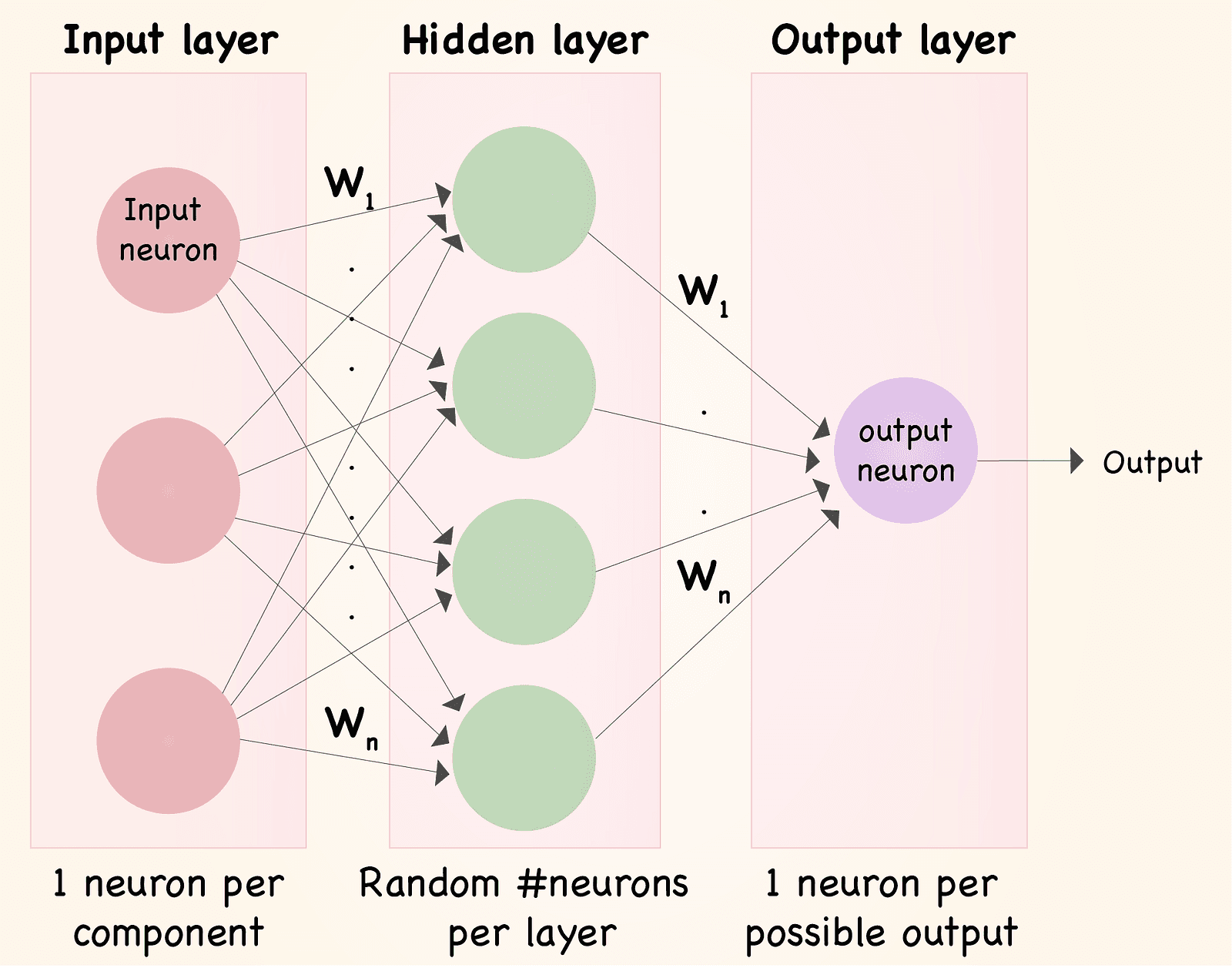

Neural Network Fundamentals
A neural network is a computing model loosely inspired by the structure of the human brain. It's built from simple units called neurons organized into layers, and it learns by adjusting the connections between those neurons based on data.
Here's the basic structure:
- Input layer receives raw data (sensor readings, pixel values, etc.)
- Hidden layers perform intermediate computations that extract patterns from the data
- Output layer produces the final result (a classification, a predicted value, etc.)
Each neuron receives inputs, multiplies them by weights, sums everything up, and passes the result through an activation function to produce an output. The activation function introduces non-linearity, which is what allows the network to learn complex patterns rather than just straight-line relationships.
Training works through a process called backpropagation:
- Feed input data through the network to get a predicted output.
- Compare the prediction to the known correct answer using a loss function.
- Calculate how much each weight contributed to the error.
- Adjust the weights to reduce the error.
- Repeat across many examples until the network's predictions become accurate.
Because of this learning process, neural networks can handle non-linear relationships and high-dimensional data. Common applications include image recognition, speech recognition, and natural language processing.
Deep Learning Advancements
Deep learning refers to neural networks with many hidden layers. The added depth lets the network learn hierarchical features: early layers detect simple patterns (like edges in an image), while deeper layers combine those into complex abstractions (like faces or objects).
Two major architectures to know:
- Convolutional Neural Networks (CNNs) are designed for image and video data. They use convolutional layers that slide small filters across the input to capture spatial relationships. This makes them excellent at tasks like object detection, facial recognition, and autonomous driving perception.
- Recurrent Neural Networks (RNNs) are designed for sequential data like text or time-series signals. They maintain an internal state that carries information from previous steps, allowing them to capture dependencies over time. Applications include language translation, sentiment analysis, and speech recognition.
Other notable architectures:
- Generative Adversarial Networks (GANs) pit two networks against each other to generate realistic images, videos, or audio.
- Transfer learning lets you take a model pre-trained on a large dataset and fine-tune it for a new, smaller task, saving significant training time and data.
Machine Learning Algorithms
Machine learning is the broader category that includes neural networks. The algorithms fall into two main camps:
- Supervised learning trains on labeled data (input-output pairs) to make predictions or classifications. Examples: linear regression for predicting continuous values, logistic regression for binary classification, and support vector machines for finding decision boundaries.
- Unsupervised learning finds patterns in unlabeled data. Examples: k-means clustering groups similar data points together, and PCA (principal component analysis) reduces the number of variables while preserving important information.
Several techniques keep neural networks training well:
- Gradient descent is the optimization algorithm that updates weights step by step in the direction that reduces error.
- Regularization (L1/L2 regularization, dropout) prevents overfitting, which is when a model memorizes training data instead of learning general patterns.
In electrical engineering specifically, these algorithms are applied to:
- Fault detection and diagnosis in electrical systems
- Load forecasting and energy management in power grids
- Signal processing and feature extraction in communication systems
AI Applications in Electrical Engineering
Computer Vision and Image Processing
Computer vision enables machines to interpret visual information from images or video. Two core tasks:
- Object detection and recognition identifies and locates specific objects within an image. Think autonomous vehicles spotting pedestrians, surveillance systems tracking movement, or industrial inspection systems finding defects on a production line.
- Image segmentation divides an image into distinct regions based on specific criteria. In medical imaging, this helps detect tumors; in remote sensing, it classifies different types of land cover.
AI also enhances traditional image processing:
- Denoising and restoration using deep learning models to clean up corrupted images
- Compression using autoencoders to reduce file sizes while preserving quality
- Super-resolution to increase the detail in low-quality images
Natural Language Processing (NLP)
NLP gives machines the ability to understand, interpret, and generate human language. Key tasks include:
- Text classification assigns categories to documents. Spam detection in email is a classic example; sentiment analysis (determining whether a product review is positive or negative) is another.
- Named entity recognition (NER) extracts specific entities like people, organizations, and locations from text, which is useful for building knowledge bases and information retrieval.
For EE specifically, NLP enables:
- Automatic generation of technical reports and documentation
- Chatbots and virtual assistants for customer support on electrical products
- Analysis of user feedback to guide product improvement
Predictive Maintenance and Fault Diagnosis
Traditional maintenance is either reactive (fix it after it breaks) or scheduled (service it on a calendar). Predictive maintenance is smarter: it uses AI to monitor equipment condition in real time and predict when something is likely to fail.
How it works:
- Sensors continuously collect data (vibration, temperature, current, etc.) from equipment.
- Machine learning models analyze this data to establish a baseline of normal behavior.
- When the data deviates from normal patterns, the model flags an anomaly.
- The system predicts the remaining useful life or the likelihood of failure, allowing maintenance to be scheduled before a breakdown occurs.
For fault diagnosis, deep learning models can identify and localize faults in power transmission lines from sensor data, and ML algorithms can classify faults in motors or generators based on vibration, current, or temperature signals.
The payoff is significant: reduced downtime, lower maintenance costs, and improved safety across power plants, manufacturing facilities, and transportation systems.
Intelligent Control Systems
Traditional control systems (like PID controllers) follow fixed rules. AI-enhanced control systems can learn and adapt, which is a major advantage for complex, nonlinear systems.
- Reinforcement learning lets a control agent learn optimal actions through trial and error, receiving rewards for good outcomes and penalties for bad ones.
- Neural networks as function approximators can model complex system dynamics that are difficult to capture with traditional equations. For example, model predictive control using neural networks can handle nonlinear systems more effectively.
Where intelligent control shows up in EE:
- Autonomous vehicles and robotics: AI-based controllers handle path planning, obstacle avoidance, and real-time decision making.
- Smart grids and energy management: AI optimizes power flow, manages demand response, and integrates variable renewable energy sources like wind and solar.
- Manufacturing process control: AI tunes process parameters to improve product quality and reduce waste.
AI Hardware and Edge Computing
Edge AI and Distributed Intelligence
Running AI in the cloud works fine when latency isn't critical, but many EE applications need decisions made in milliseconds. Edge AI deploys AI models directly on edge devices like smartphones, IoT sensors, and embedded systems, processing data right where it's generated.
Benefits of edge AI:
- Lower latency since data doesn't need to travel to a remote server and back
- Reduced bandwidth because only results (not raw data) need to be transmitted
- Better privacy since sensitive data stays on the local device
Distributed intelligence takes this further by having multiple edge devices collaborate with each other and with cloud servers. Edge devices handle local processing, while the cloud provides heavier computation and coordinates across devices. This creates AI systems that are both scalable and resilient.
AI Chips and Hardware Acceleration
General-purpose CPUs aren't efficient at the massive parallel math operations that neural networks require. AI chips are specialized hardware built for this purpose:
- GPUs (Graphics Processing Units) handle thousands of parallel operations, making them the workhorse for training deep learning models.
- TPUs (Tensor Processing Units), developed by Google, are optimized specifically for tensor operations common in neural networks.
- FPGAs (Field-Programmable Gate Arrays) can be reconfigured for specific AI tasks, offering a balance of flexibility and performance.
To fit AI models onto resource-constrained edge devices, engineers use several optimization techniques:
- Quantization reduces the numerical precision of weights (e.g., from 32-bit to 8-bit), cutting memory use and speeding up computation with minimal accuracy loss.
- Pruning removes redundant or low-importance connections from a network, shrinking the model.
- Knowledge distillation trains a smaller "student" model to mimic the behavior of a larger "teacher" model, producing a compact model with similar performance.
These techniques are essential for deploying AI in environments with limited power, memory, and processing capability, which describes most real-world embedded EE applications.
Reinforcement Learning and Adaptive Systems
Reinforcement learning (RL) is a distinct type of machine learning where an agent learns by interacting with an environment rather than studying a fixed dataset. The agent takes actions, observes the results, and receives rewards or penalties. Over time, it learns a policy that maximizes cumulative reward.
Core RL algorithms include:
- Q-learning learns the value of taking a specific action in a specific state
- SARSA is similar but updates based on the action actually taken (on-policy)
- Policy gradient methods directly optimize the policy rather than estimating values
When RL is combined with deep learning, you get deep reinforcement learning (DRL), where deep neural networks approximate the value functions or policies. DRL has produced impressive results, such as AlphaGo defeating world champions in the board game Go and robotic systems learning complex manipulation tasks.
RL and adaptive systems are particularly relevant to EE in areas where conditions change over time and optimal strategies aren't known in advance:
- Power system control and optimization (balancing supply and demand in real time)
- Wireless communication and network management (allocating resources dynamically)
- Robotics and autonomous vehicles (adapting to new environments without reprogramming)
