12.2 DC analysis and biasing of FETs

3 min read•august 6, 2024

Field-effect transistors (FETs) are crucial in modern electronics. They're used in amplifiers, switches, and logic gates. Understanding their operating regions and DC biasing techniques is key to designing effective circuits.

FETs have three main operating regions: saturation, linear, and cutoff. Each region has unique characteristics that affect circuit behavior. Proper DC biasing ensures FETs operate in the desired region, optimizing performance for specific applications.

FET Operating Regions

Saturation Region and Drain Current Equation

Top images from around the web for Saturation Region and Drain Current Equation

  • circuit analysis - Need help finding the drain current of a jfet - Electrical Engineering Stack ... View original

    Is this image relevant?

  • Current in Saturation and Active regions of BJT - Electrical Engineering Stack Exchange View original

    Is this image relevant?

  • circuit analysis - Need help finding the drain current of a jfet - Electrical Engineering Stack ... View original

    Is this image relevant?

1 of 3

Top images from around the web for Saturation Region and Drain Current Equation

  • circuit analysis - Need help finding the drain current of a jfet - Electrical Engineering Stack ... View original

    Is this image relevant?

  • Current in Saturation and Active regions of BJT - Electrical Engineering Stack Exchange View original

    Is this image relevant?

  • circuit analysis - Need help finding the drain current of a jfet - Electrical Engineering Stack ... View original

    Is this image relevant?

1 of 3

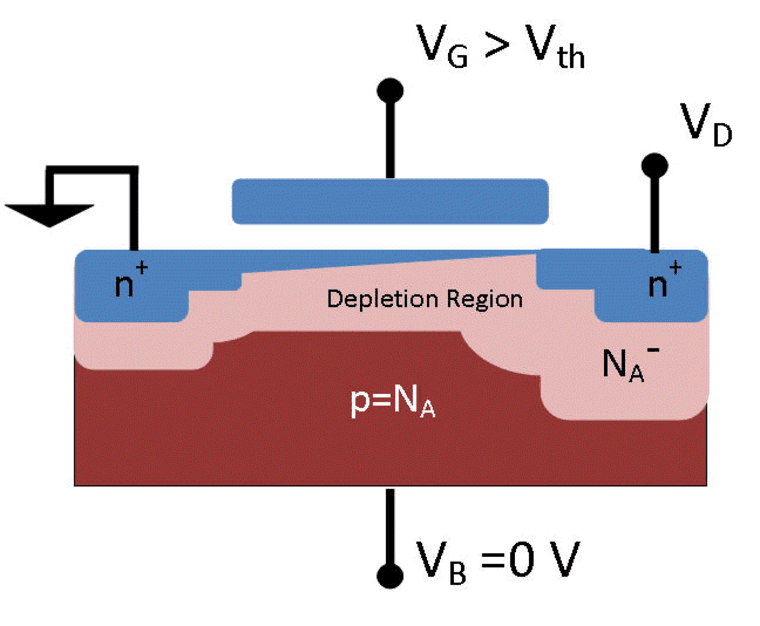

  • FET operates in the when the drain-to-source voltage (VDSV_{DS}) exceeds the gate-to-source voltage (VGSV_{GS}) minus the (VTV_T)
  • In the saturation region, the (IDI_D) remains relatively constant and is controlled by the gate-to-source voltage
  • The drain current equation for the saturation region is given by: ID=12μnCoxWL(VGS−VT)2I_D = \frac{1}{2} \mu_n C_{ox} \frac{W}{L} (V_{GS} - V_T)^2
    • μn\mu_n is the electron mobility
    • CoxC_{ox} is the oxide capacitance per unit area
    • WW and LL are the width and length of the FET channel, respectively
  • Saturation region is suitable for amplification and switching applications (common-source amplifier)

Linear Region and Cutoff Region

  • FET operates in the when the drain-to-source voltage is less than the gate-to-source voltage minus the threshold voltage (VDS<VGS−VTV_{DS} < V_{GS} - V_T)
  • In the linear region, the drain current is proportional to both the gate-to-source voltage and the drain-to-source voltage
  • The drain current equation for the linear region is given by: ID=μnCoxWL[(VGS−VT)VDS−12VDS2]I_D = \mu_n C_{ox} \frac{W}{L} [(V_{GS} - V_T)V_{DS} - \frac{1}{2}V_{DS}^2]
  • FET enters the when the gate-to-source voltage is less than the threshold voltage (VGS<VTV_{GS} < V_T)
  • In the cutoff region, the drain current is essentially zero, and the FET acts as an open switch (digital logic gates)

DC Biasing Techniques

Load Line Analysis and Q-Point

  • is a graphical technique used to determine the operating point () of a FET circuit
  • The Q-point represents the steady-state voltage and current values of the FET under DC conditions
  • The load line is a straight line plotted on the FET's , representing the relationship between the drain-to-source voltage and the drain current
  • The intersection of the load line with the FET's output characteristics determines the Q-point (Class A amplifier)
  • The Q-point should be selected to ensure proper operation of the FET in the desired region (saturation or linear)

Self-Bias and Voltage-Divider Bias

  • is a simple biasing technique that uses a single resistor (RSR_S) connected between the source and ground to establish the gate-to-source voltage
  • The self-bias configuration provides negative feedback, stabilizing the Q-point against variations in FET parameters (temperature, manufacturing)
  • Voltage-divider bias uses a voltage divider network (two resistors) to set the gate voltage
  • The voltage-divider bias provides better Q-point stability compared to self-bias and allows for more control over the gate voltage
  • The resistor values in the voltage divider are chosen to ensure proper biasing and minimize the effect of FET parameter variations ( amplifier)

Constant-Current Bias

  • Constant-current bias uses a current source to provide a stable drain current, independent of variations in the FET parameters
  • The current source can be implemented using a bipolar junction transistor (BJT) or a FET configured as a current source
  • Constant-current bias provides excellent Q-point stability and is suitable for high-performance amplifier designs (RF amplifiers)
  • The value of the constant current is chosen based on the desired operating point and the FET's characteristics
  • Constant-current bias requires additional components compared to self-bias and voltage-divider bias, but offers superior performance in terms of Q-point stability and linearity
