23.2 Simulink for system modeling and simulation
4 min read•august 6, 2024
Simulink is a powerful tool for modeling and simulating . It uses to represent mathematical models, making it easy to visualize and analyze complex systems. With its extensive library of blocks, you can quickly build and test various designs.
Simulink supports both -time and -time systems, as well as state-space models and transfer functions. By setting simulation parameters and choosing appropriate solvers, you can fine-tune your simulations for accuracy and speed. help organize large models into manageable chunks.
Simulink Basics
Introduction to Simulink
Top images from around the web for Introduction to Simulink
Simulink Raspberry Pi Driver Blocks | John Whittington's Blog View original
Is this image relevant?

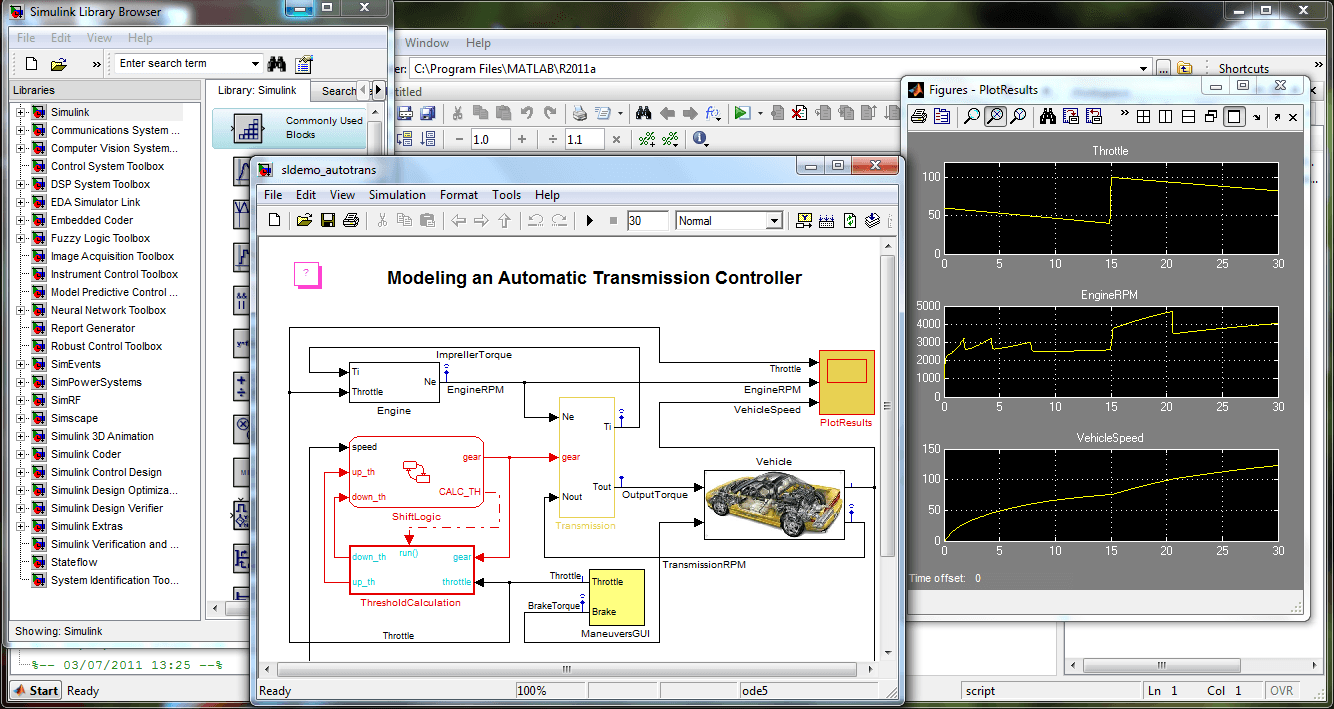

(thesis 2/4) A simulation tool for scala with spatial integration: scala-flow - Ruben Fiszel's ... View original
Is this image relevant?
Robotic Arm analysis in Matlab/simulink - Robotics Stack Exchange View original
Is this image relevant?
Simulink Raspberry Pi Driver Blocks | John Whittington's Blog View original
Is this image relevant?
(thesis 2/4) A simulation tool for scala with spatial integration: scala-flow - Ruben Fiszel's ... View original
Is this image relevant?
1 of 3
Top images from around the web for Introduction to Simulink
Simulink Raspberry Pi Driver Blocks | John Whittington's Blog View original
Is this image relevant?
(thesis 2/4) A simulation tool for scala with spatial integration: scala-flow - Ruben Fiszel's ... View original
Is this image relevant?
Robotic Arm analysis in Matlab/simulink - Robotics Stack Exchange View original
Is this image relevant?
Simulink Raspberry Pi Driver Blocks | John Whittington's Blog View original
Is this image relevant?
(thesis 2/4) A simulation tool for scala with spatial integration: scala-flow - Ruben Fiszel's ... View original
Is this image relevant?
1 of 3
- Simulink is a graphical programming environment for modeling, simulating, and analyzing multidomain dynamical systems
- Provides an interactive graphical environment and a customizable set of block libraries for designing, simulating, implementing, and testing various time-varying systems
- Integrates seamlessly with MATLAB, enabling the incorporation of MATLAB algorithms into models and exporting simulation results to MATLAB for further analysis
Block Diagrams and Model-Based Design
- Simulink uses block diagrams to represent mathematical models of dynamic systems
- Block diagrams consist of blocks interconnected by lines, representing the flow of signals and data between system components
- Blocks can represent mathematical operations, input/output relationships, or complex subsystems (, , )
- is a development methodology that uses Simulink to create a system model, which serves as the basis for simulation, verification, and code generation
- Enables rapid iteration and refinement of designs, reducing development time and improving system quality (V-model development process)
Simulink Library Blocks
- Simulink provides an extensive library of predefined blocks for building models
- Library blocks are organized into categories based on their functionality (, Continuous, Discrete, , )
- Users can customize existing blocks or create their own custom blocks using MATLAB functions or S-functions
- Library blocks can be dragged and dropped into the Simulink editor to create models
- Blocks can be parameterized to specify their behavior and characteristics (, , )
System Modeling
Continuous-time and Discrete-time Systems
- Continuous-time systems are characterized by variables that change continuously over time
- Represented by in Simulink (Integrator block, block)
- Discrete-time systems are characterized by variables that change at discrete time intervals
- Represented by difference equations in Simulink (, )
- Simulink supports the modeling and simulation of both continuous-time and discrete-time systems
State-space Models and Transfer Functions
- State-space models describe a system using a set of first-order differential equations
- Consist of , , , and a set of matrices (A, B, C, D) that define the relationships between them
- Simulink provides blocks for creating and simulating state-space models ()
- Transfer functions describe the input-output relationship of a linear time-invariant (LTI) system in the frequency domain
- Represented by a ratio of polynomials in the (s) for continuous-time systems or the (z) for discrete-time systems
- Simulink provides blocks for creating and simulating transfer function models (Transfer Function block)
Simulation Setup
Simulation Parameters
- Simulation parameters control the behavior of the simulation, such as the simulation time, , and solver type
- Start and stop times define the duration of the simulation (seconds, minutes, hours)
- Step size determines the time interval between simulation steps (, )
- Simulink provides a for configuring these settings
Solvers and Simulation Modes
- Solvers are numerical methods used to compute the system's behavior over time
- Simulink offers a variety of solvers for different types of systems (, , )
- Solvers can be fixed-step or variable-step, depending on the system's characteristics and the desired trade-off between accuracy and simulation speed
- Simulation modes determine how Simulink executes the simulation (, , )
- Normal mode is the default mode, suitable for most simulations
- Accelerator and Rapid Accelerator modes can significantly speed up simulations by compiling the model into an executable
Subsystems and Model Organization
- Subsystems are used to organize large models into hierarchical, modular structures
- Subsystems encapsulate a portion of the model, making it easier to understand, maintain, and reuse
- Simulink provides virtual and non- (Virtual subsystems do not have separate execution contexts)
- Subsystems can be masked, allowing users to create custom interfaces and parameterize the subsystem ()
- Model organization techniques, such as subsystems and model referencing, help manage complexity and facilitate collaboration among team members
Key Terms to Review (53)
Accelerator mode: Accelerator mode is a feature in Simulink that allows users to execute simulations at a faster rate than real time. This mode is particularly useful for speeding up the testing and validation of complex systems by reducing the time needed for simulation runs while still providing accurate results. By optimizing computational resources, accelerator mode enhances the efficiency of model-based design and system analysis.
Block Diagrams: Block diagrams are simplified representations of complex systems that illustrate the functional relationships between different components using blocks and connecting lines. Each block represents a specific function or process, while the lines indicate the flow of information or control between these functions, making it easier to understand and analyze system behavior.
Block parameters: Block parameters are specific settings or properties assigned to a block within a system model in simulation software. They define how a block behaves and interacts with other blocks, impacting the overall system performance and output. These parameters can be adjusted to tailor the simulation to match real-world scenarios or desired outcomes, enhancing the accuracy and effectiveness of system modeling.
Bode Plot: A Bode plot is a graphical representation of a system's frequency response, displaying the gain and phase shift of a transfer function as a function of frequency. This type of plot helps engineers understand how a system responds to different frequencies, allowing for the analysis of stability, resonance, and overall system performance in various applications.
Continuous: In the context of system modeling and simulation, 'continuous' refers to a type of system behavior where variables change smoothly over time, without abrupt jumps or interruptions. This characteristic is crucial for accurately representing real-world systems, as many physical processes operate in a continuous manner rather than in discrete steps, allowing for a more realistic simulation of dynamic systems.
Control system design: Control system design is the process of developing a system that manages and regulates the behavior of dynamic systems through feedback loops. It involves creating algorithms and selecting components that ensure desired performance, stability, and responsiveness of the system under various operating conditions. This process is crucial for ensuring that systems function optimally and meet specific performance criteria, often utilizing simulation tools to analyze and refine designs before implementation.
Differential equations: Differential equations are mathematical equations that relate a function to its derivatives, expressing how a quantity changes in relation to another. They are fundamental in modeling various dynamic systems, as they describe the behavior of systems over time, making them essential for analyzing continuous-time systems and for creating simulations in engineering applications.
Discrete: In the context of system modeling and simulation, 'discrete' refers to values or signals that are distinct and separate rather than continuous. Discrete systems operate at specific intervals or points in time, often represented by individual data points that can be analyzed separately, which is crucial in simulation environments for creating accurate models of real-world systems.
Discrete transfer function block: A discrete transfer function block is a component in Simulink that represents a mathematical model of a discrete-time system using transfer functions. It allows users to model and simulate systems that operate on discrete time intervals, making it essential for analyzing systems like digital controllers and signal processing applications. The discrete transfer function block is characterized by its numerator and denominator coefficients, which define the relationship between input and output signals.
Discretization: Discretization is the process of transforming continuous models and equations into discrete counterparts, which allows for numerical analysis and simulation. This technique is essential in system modeling as it simplifies complex real-world phenomena into manageable, finite representations that can be computed. By breaking down continuous signals or functions into distinct, separate values, discretization enables the use of digital systems, like computers and software, to analyze and simulate dynamic systems effectively.
Dynamic Systems: Dynamic systems are systems that change over time in response to inputs or external factors, often described mathematically by differential equations. These systems can exhibit complex behaviors such as oscillations, stability, and chaos, making them crucial for understanding and modeling real-world phenomena across various engineering fields.
Fixed-step: Fixed-step refers to a simulation technique in which the time intervals for each step of the numerical integration are constant throughout the simulation process. This method ensures that the simulation progresses in equally spaced time increments, making it easier to manage and analyze the results, especially when dealing with linear systems or when precise timing is essential.
Frequency-domain analysis: Frequency-domain analysis is a method used to analyze signals and systems by transforming time-domain representations into frequency-domain representations. This technique allows engineers to study how systems respond to various frequencies, making it easier to understand the behavior of circuits and systems under different operating conditions. By applying tools like Fourier Transform and Laplace Transform, frequency-domain analysis provides insight into system stability, resonance, and the effects of noise.
Gain block: A gain block is a component in a system that amplifies the input signal, resulting in an increased output signal. It is often used in electronic systems to enhance signal strength or adjust signal levels, playing a crucial role in signal processing and control systems.
Hierarchical structures: Hierarchical structures refer to the organization of components in a system where elements are ranked according to their levels of authority or control, forming a multi-layered system. This type of structure allows for clear relationships and communication between different levels, facilitating efficient management and operation in complex systems like those modeled in software environments.
Initial Conditions: Initial conditions refer to the values of system variables at the start of an analysis or simulation. They are crucial because they define the starting point for the system's behavior and impact how the system will evolve over time in response to inputs or disturbances. Understanding initial conditions helps in predicting system responses, particularly in analyzing time constants, setting up simulations, and performing various analyses.
Inputs: Inputs refer to the signals or data received by a system that influence its behavior or operation. In the context of various models and simulations, inputs play a crucial role in determining how a system reacts and evolves over time, affecting its overall functionality and output. They can be in the form of external signals, parameters, or control variables that trigger changes within the system's structure and processing logic.
Integrator Block: An integrator block is a fundamental component in system modeling that performs the mathematical operation of integration, converting a signal into its cumulative value over time. In simulation environments like Simulink, integrator blocks help to model dynamic systems by capturing the relationship between input and output signals, particularly in feedback loops, where they facilitate the analysis of system behavior and stability.
Laplace Domain: The Laplace domain is a mathematical framework used to analyze linear time-invariant systems by transforming differential equations into algebraic equations using the Laplace transform. This domain allows engineers and scientists to work with system dynamics in a more manageable way, making it easier to solve for system responses, stability, and frequency characteristics.
Linearization: Linearization is the process of approximating a nonlinear function by a linear function around a specific point. This technique is essential in control theory and system analysis, as it simplifies the analysis of complex systems, enabling easier calculations and predictions of system behavior under small perturbations.
LTI System: An LTI system, or Linear Time-Invariant system, is a system in which the output response to any input is linear and does not change over time. This means that if you apply a certain input to the system, the output will be proportional to that input and will remain consistent regardless of when the input is applied. LTI systems are fundamental in control theory and signal processing, as they can be easily modeled and analyzed using mathematical tools like Laplace transforms and convolution.
Mask editor: A mask editor is a tool used in Simulink to create custom dialog boxes for block parameters, allowing users to define how blocks appear and behave. This editor enables users to add specific parameters, customize their layout, and provide user-friendly interfaces for model components, which enhances the overall usability and functionality of models in system simulation.
Math operations: Math operations refer to the fundamental processes of mathematics used to perform calculations, including addition, subtraction, multiplication, and division. These operations serve as the building blocks for more complex mathematical functions and algorithms, often utilized in various applications, such as system modeling and simulation tools. In the context of system modeling, math operations help define relationships between variables and analyze system behavior through simulations.
Matrices a, b, c, d: Matrices a, b, c, d are essential components in the state-space representation of dynamic systems used in system modeling and simulation. These matrices encapsulate the relationships between system inputs, outputs, and states, providing a structured way to analyze and design control systems in software like Simulink. They enable users to create more accurate simulations of real-world systems by defining how different variables interact over time.
Model-based design: Model-based design is an approach to systems engineering that utilizes abstract models to represent and analyze the behavior of a system throughout its development. This method allows engineers to simulate, test, and validate system designs before physical prototypes are created, ensuring that potential issues can be identified and resolved early in the process. By integrating modeling tools with software and hardware design, it enhances collaboration and accelerates the overall development cycle.
Normal mode: Normal mode refers to a specific pattern of oscillation in a physical system where all parts of the system move together at a characteristic frequency. This concept is crucial in analyzing systems, particularly in the context of linear systems, as it allows for the simplification of complex dynamic behaviors into manageable components. Normal modes enable engineers and scientists to predict how systems respond to external forces and to design more effective control strategies.
Ode15s: ode15s is a MATLAB function specifically designed for solving stiff ordinary differential equations (ODEs) and differential algebraic equations (DAEs). It uses a variable-order, variable-step size algorithm to efficiently handle problems where traditional ODE solvers may struggle due to stiffness, which can lead to numerical instability or long computation times.
Ode23: The `ode23` function is a MATLAB numerical solver used for solving ordinary differential equations (ODEs) of the form $$ rac{dy}{dt} = f(t, y)$$. It employs a second-order Runge-Kutta method with a variable time step, making it particularly useful for solving problems where accuracy is essential but the computational cost needs to be minimized. This function fits seamlessly within the Simulink environment, facilitating system modeling and simulation by allowing engineers to simulate dynamic systems efficiently.
Ode45: ode45 is a MATLAB function used to solve ordinary differential equations (ODEs) using the Runge-Kutta method. It is particularly well-suited for non-stiff problems and allows for efficient numerical integration of systems modeled with differential equations, which is essential in system modeling and simulation.
Outputs: Outputs refer to the results or responses produced by a system or process, often based on the inputs and internal state of that system. In various engineering contexts, outputs are essential as they convey how the system behaves in response to different conditions, making them critical for understanding and predicting system performance. This concept is especially significant in modeling scenarios where the relationship between inputs and outputs determines how effectively a system meets its objectives.
Rapid accelerator mode: Rapid accelerator mode is a specific simulation setting in Simulink that optimizes the speed of model execution by reducing the computational overhead associated with continuous-time integration. This mode is particularly useful for models that are predominantly discrete or contain less complex dynamics, allowing for faster simulation times while maintaining sufficient accuracy. By leveraging this mode, engineers can quickly iterate on their designs and test various scenarios without lengthy simulation delays.
Root Locus: Root locus is a graphical method used in control theory to analyze the behavior of closed-loop poles as a system parameter, usually the gain, is varied. This technique helps in understanding how changes in system parameters affect stability and transient response, allowing engineers to design and tune control systems effectively.
S-function: An s-function is a specialized function that allows users to create custom blocks in Simulink for modeling and simulating dynamic systems. These functions can be written in languages like C, C++, or MATLAB, enabling developers to encapsulate algorithms, data processing, and system behaviors into reusable components within the Simulink environment. By utilizing s-functions, engineers can enhance the functionality of their simulations, integrate external code, and implement complex algorithms that are not available as standard Simulink blocks.
Sample time: Sample time refers to the discrete time intervals at which continuous signals are measured and converted into digital data. This concept is crucial for accurately modeling and simulating dynamic systems in tools like Simulink, where the choice of sample time can significantly affect the performance and accuracy of simulations. Properly selecting sample time ensures that system behaviors are captured effectively and allows for the correct analysis of system response over time.
Scope block: A scope block is a graphical tool in Simulink that allows users to visualize and analyze signals and data during the simulation of a model. It enables the observation of various signal attributes in real time, making it easier to understand how different components of a system interact and behave. By incorporating scope blocks into a model, users can monitor changes and troubleshoot issues effectively while simulating system dynamics.
Signal flow: Signal flow refers to the path that a signal takes through a system, from its source to its destination, often visualized in a block diagram format. Understanding signal flow is essential for analyzing and designing systems, as it highlights how different components interact with each other and the order in which signals are processed, enabling effective system modeling and simulation.
Signal processing applications: Signal processing applications involve the manipulation and analysis of signals to extract useful information, improve signal quality, or transform signals into a desired form. These applications are crucial in various fields such as telecommunications, audio and video processing, and biomedical engineering, where signals need to be filtered, compressed, or enhanced for better performance and reliability.
Simulation parameters dialog box: The simulation parameters dialog box is a feature in simulation software that allows users to set various options and configurations for a simulation run. This dialog box typically includes options for time settings, solver types, and output preferences, which help tailor the simulation environment to meet specific modeling needs. It is essential for controlling the behavior of the simulation and obtaining accurate results during system modeling and simulation processes.
Simulink Blocks: Simulink blocks are the fundamental components used in Simulink, a graphical programming environment for modeling, simulating, and analyzing dynamic systems. These blocks represent mathematical operations, algorithms, or system components and can be connected to create complex models that visualize system behavior over time. By using these blocks, users can efficiently design and simulate various systems, from simple linear models to complex nonlinear dynamics.
Simulink library: The simulink library is a collection of pre-defined blocks and models used in Simulink, which allows users to create and simulate dynamic systems in a visual environment. This library provides a wide range of components, such as mathematical operations, signal processing tools, and system dynamics elements that help in building complex simulations without the need for extensive coding. By utilizing these blocks, engineers can effectively model, simulate, and analyze systems, enabling better understanding and optimization of designs.
Sinks: In the context of system modeling and simulation, sinks refer to components that receive signals or outputs from other parts of a model, effectively acting as endpoints for data flow. Sinks are essential for visualizing results, analyzing performance, or interfacing with external systems, allowing engineers to observe how inputs are transformed within the modeled system.
Sources: In the context of system modeling and simulation, sources refer to the elements that provide input signals or data to a system. These can be physical components like sensors or virtual inputs in a simulation environment, influencing how the system behaves and responds during analysis. Sources are crucial for testing different scenarios and ensuring that the system is modeled accurately based on real-world data or predefined conditions.
State variables: State variables are a set of variables that represent the state of a dynamic system at a given time, capturing all the necessary information to describe the system's behavior. These variables are crucial in modeling and simulating systems, as they allow for the prediction of future states based on current conditions and system inputs.
State-space block: A state-space block is a representation of a dynamic system in terms of its state variables, inputs, outputs, and the relationships between them, typically used within simulation tools like Simulink. This representation allows engineers to analyze and design control systems by providing a clear framework to model complex interactions and behavior of systems over time. State-space blocks facilitate the implementation of control algorithms and the visualization of system dynamics through graphical modeling.
State-space representation: State-space representation is a mathematical model that describes a system's behavior using state variables and differential equations. This approach allows for the modeling of both linear and nonlinear systems, capturing dynamic behavior in a structured way. It's essential for analyzing systems in various applications, including control systems and simulation tools.
Step Size: Step size refers to the incremental value used in numerical methods and simulations to determine the time intervals at which calculations are performed. In the context of modeling and simulation, particularly in tools like Simulink, an appropriate step size is crucial for accurately representing system dynamics while balancing computational efficiency. The choice of step size can significantly affect the stability and accuracy of simulations, making it a key factor in system modeling.
Subsystems: Subsystems are smaller, self-contained components of a larger system that can operate independently but also interact with other subsystems to achieve a common goal. Each subsystem typically has its own functions and processes, contributing to the overall functionality and performance of the main system, especially in modeling and simulation environments.
Time-domain simulation: Time-domain simulation is a method used to analyze the behavior of systems over time by solving differential equations that describe the system dynamics. This technique focuses on how a system evolves in response to various inputs, providing insight into the system's transient and steady-state behavior. It's particularly useful in control systems and signal processing, where understanding the time response is critical for performance evaluation and design.
Transfer Function: A transfer function is a mathematical representation that relates the output of a system to its input using the Laplace transform. It provides insights into the dynamic behavior of linear time-invariant systems, enabling the analysis of stability, frequency response, and system performance across various domains.
Unit Delay Block: A unit delay block is a fundamental component in digital signal processing and system modeling that introduces a one-sample time delay to an input signal. This block allows for the simulation of systems where the output at any given time depends on the previous input value, making it essential for modeling dynamic systems and feedback loops in simulations.
Variable-step: Variable-step refers to a simulation technique where the time step used in numerical integration changes dynamically based on the behavior of the system being modeled. This approach allows for more efficient computations by using smaller time steps during rapid changes and larger steps when the system is relatively stable, thereby improving both accuracy and performance in system modeling and simulation.
Virtual subsystems: Virtual subsystems are components in system modeling that allow for the encapsulation of a set of related functionalities within a larger system, facilitating modular design and simulation. By using virtual subsystems, engineers can create complex models that are easier to understand, manage, and simulate, while enabling reuse of components in different applications.
Z-domain: The z-domain is a mathematical representation used to analyze discrete-time signals and systems through the use of complex frequency variables. It transforms a time-domain signal into a frequency-domain representation, making it easier to work with digital systems, especially when using tools like simulation software for system modeling. This domain is particularly useful in the context of control systems and signal processing, where analyzing stability and frequency response is crucial.
