7.1 RC circuits: charging and discharging
3 min read•august 6, 2024
RC circuits are all about timing. They show how capacitors charge and discharge through resistors, creating a predictable voltage curve. This behavior is key to understanding transient responses in electrical systems.
The , determined by resistance and capacitance, governs how quickly the circuit reaches steady state. This concept is crucial for designing circuits with specific timing requirements or voltage control.
Components
Capacitor and Resistor in an RC Circuit
Top images from around the web for Capacitor and Resistor in an RC Circuit

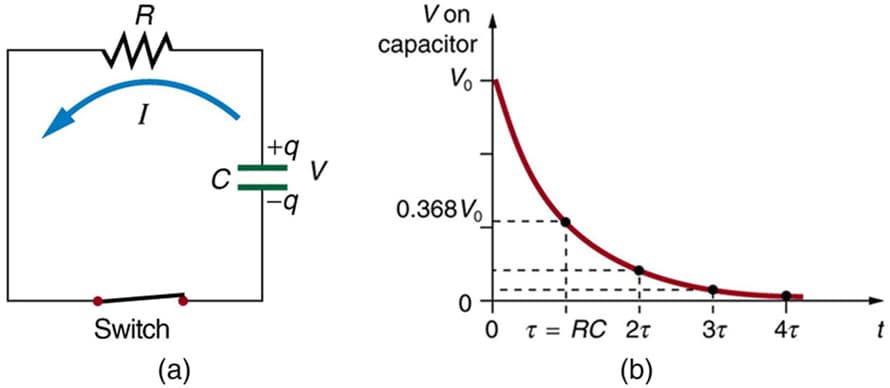

DC Circuits Containing Resistors and Capacitors | Physics View original
Is this image relevant?
4.11 DC Circuits Containing Resistors and Capacitors – Douglas College Physics 1207 View original
Is this image relevant?
DC Circuits Containing Resistors and Capacitors · Physics View original
Is this image relevant?
DC Circuits Containing Resistors and Capacitors | Physics View original
Is this image relevant?
4.11 DC Circuits Containing Resistors and Capacitors – Douglas College Physics 1207 View original
Is this image relevant?
1 of 3
Top images from around the web for Capacitor and Resistor in an RC Circuit
DC Circuits Containing Resistors and Capacitors | Physics View original
Is this image relevant?
4.11 DC Circuits Containing Resistors and Capacitors – Douglas College Physics 1207 View original
Is this image relevant?
DC Circuits Containing Resistors and Capacitors · Physics View original
Is this image relevant?
DC Circuits Containing Resistors and Capacitors | Physics View original
Is this image relevant?
4.11 DC Circuits Containing Resistors and Capacitors – Douglas College Physics 1207 View original
Is this image relevant?
1 of 3
- stores electrical charge and opposes changes in voltage across its terminals
- opposes the flow of electric current and dissipates energy as heat
- In an RC circuit, the capacitor and resistor are connected in series, allowing the capacitor to charge and discharge through the resistor
- The resistor limits the current flow and determines the charging and discharging rate of the capacitor ()
Voltage and Current Relationships
- Voltage across the capacitor () changes over time as it charges or discharges
- Current through the resistor () is directly proportional to the voltage across it, following ()
- The sum of the voltages across the capacitor and resistor is equal to the applied voltage ()
- As the capacitor charges, the voltage across it increases, and the current through the resistor decreases (capacitor acts as an open circuit when fully charged)
Charging and Discharging Behavior
Exponential Charging and Discharging
- Capacitor charges and discharges exponentially, following the equation for charging and for discharging
- represents the steady-state voltage (power supply voltage for charging, 0 for discharging)
- is the time constant, which determines the rate of charging or discharging
- The time constant is the product of the resistance and capacitance in the circuit ()
- After one time constant, the capacitor reaches 63.2% of its final voltage when charging and 36.8% when discharging
Transient and Steady-State Response
- Transient response refers to the behavior of the circuit during the charging or discharging process
- Steady-state is reached when the capacitor is fully charged (charging) or fully discharged (discharging)
- In the steady-state, the capacitor acts as an open circuit (charging) or a short circuit (discharging)
- The time to reach steady-state depends on the time constant; it takes approximately 5 time constants to reach 99.3% of the final value
Capacitor Characteristics
Charge Storage and Time Constant
- Capacitor stores electrical charge, with its capacity determined by its capacitance () measured in farads (F)
- The amount of charge stored is proportional to the voltage across the capacitor ()
- Time constant () represents the time required to charge the capacitor to 63.2% of its final value or discharge it to 36.8% of its initial value
- A larger time constant results in slower charging and discharging rates (larger capacitance or resistance)
Voltage and Steady-State Behavior
- Voltage across the capacitor () changes exponentially during charging and discharging
- In steady-state (fully charged), the voltage across the capacitor equals the applied voltage ()
- In steady-state (fully discharged), the voltage across the capacitor is zero ()
- The capacitor acts as an open circuit in steady-state when fully charged, preventing current flow
- The capacitor acts as a short circuit in steady-state when fully discharged, allowing current to flow freely
