10.3 Voltage regulation and clipping circuits

Voltage Regulators

Zener Diode Regulator

A Zener diode regulator is the simplest way to hold a steady voltage across a load. The Zener diode sits in parallel with the load and operates in its reverse breakdown region, which is the key to how it works.

Under normal reverse bias, a diode blocks current. But once the reverse voltage reaches the Zener's specific breakdown voltage ($V_Z$), the diode begins conducting heavily while the voltage across it stays nearly constant. Any increase in input voltage just pushes more current through the Zener rather than raising the load voltage.

A typical Zener regulator circuit has three parts:

1. A series resistor ($R_S$) connected between the input supply and the load. This resistor drops the difference between the input voltage and $V_Z$.
2. The Zener diode connected in reverse bias across the load.
3. The load ($R_L$) in parallel with the Zener.

Zener diodes come in standard breakdown voltages like 3.3V, 5.1V, and 12V. This approach is cost-effective but best suited for low-power applications where the load current doesn't change much. Efficiency drops as the input voltage rises, because the series resistor dissipates more power.

Series and Shunt Regulators

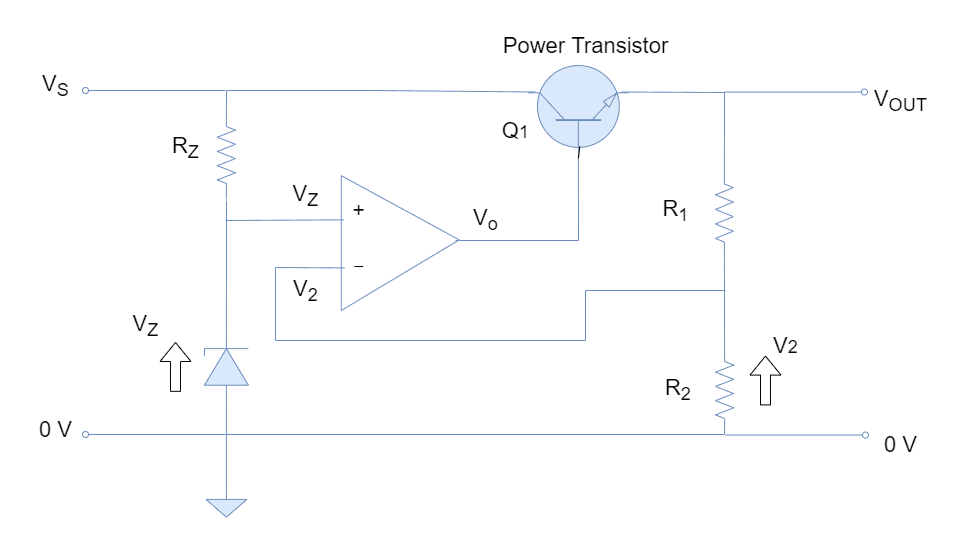

For better performance, series and shunt regulators use active components (usually transistors) with feedback to hold the output steady.

Series regulator — places a control element (a transistor) in series with the load:

• A feedback network senses the output voltage and compares it to a reference.
• If the output drops, the feedback drives the series transistor to decrease its resistance, passing more voltage to the load. If the output rises, the transistor's resistance increases.
• This gives tighter regulation and higher efficiency than a basic Zener circuit.
• The classic LM7805 IC is a series regulator that outputs a fixed 5V.

Shunt regulator — places a control element in parallel (shunt) with the load:

• Instead of adjusting series resistance, it diverts excess current through the shunt element to keep the output voltage constant.
• A feedback network adjusts how much current the shunt transistor sinks.
• Works well when the load current varies significantly, because the shunt element absorbs the difference.
• Commonly found in voltage reference circuits and overvoltage protection systems.

The trade-off: series regulators are generally more efficient because they only pass the current the load needs. Shunt regulators waste more power since excess current is diverted to ground, but they handle rapid load changes well.

Voltage Regulator Characteristics

When evaluating any voltage regulator, these are the specs that matter:

• Load regulation — How well the output voltage stays constant as the load current changes. Expressed as a percentage or in mV per amp of load change.
• Line regulation — How well the output voltage stays constant as the input voltage fluctuates. Also expressed as a percentage or mV per volt of input change.
• Dropout voltage — The minimum voltage difference between input and output needed for the regulator to work properly. For example, an LM7805 needs roughly 2V of headroom, so the input must be at least 7V. Low-dropout (LDO) regulators reduce this to a few hundred millivolts.
• Efficiency — The ratio of output power to input power: $\eta = \frac{P_{out}}{P_{in}} \times 100\%$. The power not delivered to the load is dissipated as heat in the regulator.
• Thermal management — Because regulators dissipate heat (especially at high dropout voltages or currents), heatsinks and thermal shutdown features are often necessary to prevent damage.

Clipping Circuits

Clipping circuits use diodes to "clip" or chop off portions of a waveform that exceed a set threshold. They're one of the simplest waveshaping tools you'll encounter.

Positive and Negative Clippers

Positive clipper — removes the part of the signal that goes above a threshold:

• A diode is oriented so that when the input signal exceeds the diode's forward voltage (about $0.7V$ for silicon), the diode turns on and shunts current away from the output.
• The output waveform retains everything below the threshold but the peaks above it get flattened.
• Used in overvoltage protection and situations where you only need the negative portion of a signal.

Negative clipper — removes the part of the signal that goes below a threshold:

• The diode is flipped compared to the positive clipper. Now it conducts when the signal swings negative past $-0.7V$, clipping the negative peaks.
• The output keeps the positive portion intact.
• Useful in rectification and peak detection circuits.

In both cases, the circuit consists of a resistor in series with the signal path and a diode connected to ground (or to the output node). The diode's orientation determines which half of the waveform gets clipped.

Biased Clippers

A standard clipper only clips at the diode's forward voltage ($\approx 0.7V$). A biased clipper adds a DC voltage source in series with the diode, shifting the clipping threshold to whatever level you choose.

• Positive biased clipper: A DC bias voltage ($V_{bias}$) is placed in series with the diode. The signal now clips at $V_{bias} + 0.7V$ instead of just $0.7V$. This lets a larger portion of the positive swing pass through before clipping kicks in.
• Negative biased clipper: The bias shifts the clipping threshold further into the negative direction, so clipping happens at $-(V_{bias} + 0.7V)$.

By choosing different bias voltages, you can clip at asymmetric levels, shape custom waveforms, or set precise amplitude limits for signal conditioning.

Clipping Circuit Applications

Clipping circuits show up across many areas of electronics:

• Audio processing — Guitar overdrive and distortion effects are literally clipping circuits shaping the audio waveform. Soft clipping rounds the peaks; hard clipping flattens them sharply.
• Data transmission — Clippers prevent signal overshoots and undershoots that could corrupt data or damage receiver circuits.
• ADC input protection — Analog-to-digital converters have a maximum input voltage range. A clipping circuit placed before the ADC prevents the input from exceeding that range, avoiding saturation and measurement errors.
• Power electronics — Transient voltage suppressors and clamping diodes clip voltage spikes caused by switching or lightning, protecting sensitive components from damage.
