8.3 Power in AC circuits

4 min read•august 6, 2024

AC circuits involve more than just voltage and current. They deal with different types of power: real, reactive, and apparent. These power types help us understand how energy flows in circuits with resistors, capacitors, and inductors.

is crucial in AC circuits. It shows how efficiently power is used. A low power factor means wasted energy. Engineers use to improve and reduce power losses in electrical systems.

Power Types in AC Circuits

Real, Reactive, and Apparent Power

Top images from around the web for Real, Reactive, and Apparent Power

  • Power factor - Wikipedia View original

    Is this image relevant?

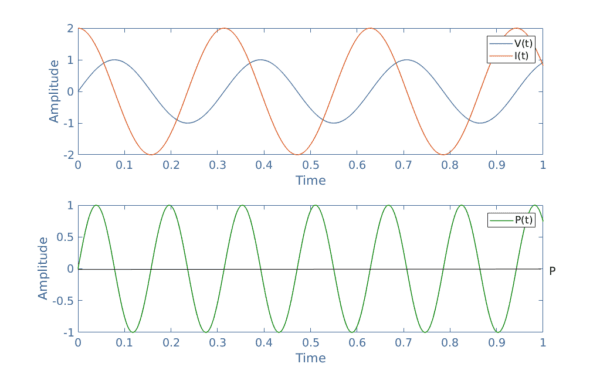

  • Power in AC Circuits - Electronics-Lab.com View original

    Is this image relevant?

  • Power factor - Wikipedia View original

    Is this image relevant?

1 of 3

Top images from around the web for Real, Reactive, and Apparent Power

  • Power factor - Wikipedia View original

    Is this image relevant?

  • Power in AC Circuits - Electronics-Lab.com View original

    Is this image relevant?

  • Power factor - Wikipedia View original

    Is this image relevant?

1 of 3
  • (active power) represents the average power consumed by the resistive components of a circuit
    • Measured in (W)
    • Denoted by the symbol P
    • Calculated using the formula P=VrmsIrmscos⁡(θ)P = V_{rms} I_{rms} \cos(\theta), where θ\theta is the phase angle between voltage and current
  • represents the power absorbed and released by the reactive components (inductors and capacitors) of a circuit
    • Measured in volt-ampere reactive (VAR)
    • Denoted by the symbol Q
    • Calculated using the formula Q=VrmsIrmssin⁡(θ)Q = V_{rms} I_{rms} \sin(\theta)
    • Reactive power does not contribute to the net energy transfer but is essential for maintaining the magnetic and electric fields in inductors and capacitors
  • is the total power supplied to a circuit, considering both real and reactive power
    • Measured in volt-amperes (VA)
    • Denoted by the symbol S
    • Calculated using the formula S=VrmsIrmsS = V_{rms} I_{rms}
    • Represents the maximum power that can be delivered to a load if the power factor is unity (1)

Complex Power

  • is a mathematical representation of the combination of real and reactive power in a circuit
    • Denoted by the symbol S and expressed as a complex number
    • Consists of a real part (real power, P) and an imaginary part (reactive power, Q)
    • Expressed as S=P+jQS = P + jQ, where j is the imaginary unit
    • The magnitude of complex power is equal to the apparent power, ∣S∣=P2+Q2=VrmsIrms|S| = \sqrt{P^2 + Q^2} = V_{rms} I_{rms}
    • The angle of complex power represents the phase angle between voltage and current, θ=tan⁡−1(Q/P)\theta = \tan^{-1}(Q/P)

Power Factor and Correction

Power Factor

  • Power factor is the ratio of real power to apparent power in an AC circuit
    • Denoted by the symbol cos⁡(θ)\cos(\theta) or pf
    • Calculated using the formula pf=PS=PP2+Q2=cos⁡(θ)pf = \frac{P}{S} = \frac{P}{\sqrt{P^2 + Q^2}} = \cos(\theta)
    • Ranges from 0 to 1, with 1 being the ideal power factor (purely resistive load)
    • A low power factor indicates a significant presence of reactive power, which can lead to increased power losses and reduced efficiency in power transmission and distribution systems

Power Triangle and Correction

  • The is a graphical representation of the relationship between real, reactive, and apparent power in an AC circuit
    • The base of the triangle represents real power (P), the height represents reactive power (Q), and the hypotenuse represents apparent power (S)
    • The angle between the base and the hypotenuse is the phase angle (θ\theta), which is related to the power factor by cos⁡(θ)\cos(\theta)
  • Power factor correction is the process of improving the power factor of a circuit by reducing the reactive power
    • Achieved by adding compensating devices, such as capacitors or inductors, in parallel or series with the load
    • Capacitors are used to compensate for inductive loads (motors, transformers) by providing leading reactive power
    • Inductors are used to compensate for capacitive loads by providing lagging reactive power
    • Improving the power factor reduces power losses, improves voltage regulation, and increases the efficiency of power transmission and distribution systems

AC Circuit Calculations

RMS Values and Calculations

  • RMS (Root Mean Square) values are used to represent the effective or equivalent DC value of an AC quantity (voltage or current)
    • Denoted by the subscript "rms" (e.g., VrmsV_{rms}, IrmsI_{rms})
    • For a sinusoidal waveform, the RMS value is equal to the peak value divided by 2\sqrt{2}
      • Vrms=Vpeak2V_{rms} = \frac{V_{peak}}{\sqrt{2}}
      • Irms=Ipeak2I_{rms} = \frac{I_{peak}}{\sqrt{2}}
    • RMS values are used in power calculations because they provide a consistent measure of the heating effect or power dissipation in a load, regardless of the waveform shape
  • AC circuit calculations involve using RMS values to determine power, voltage, and current in various configurations
    • In a purely resistive circuit, P=VrmsIrmsP = V_{rms} I_{rms}
    • In a circuit with a reactive component ( or ), the apparent power is calculated using S=VrmsIrmsS = V_{rms} I_{rms}
    • The real power is calculated using P=VrmsIrmscos⁡(θ)P = V_{rms} I_{rms} \cos(\theta), where θ\theta is the phase angle between voltage and current
    • The reactive power is calculated using Q=VrmsIrmssin⁡(θ)Q = V_{rms} I_{rms} \sin(\theta)
    • can be applied using RMS values: Vrms=IrmsZV_{rms} = I_{rms} Z, where Z is the of the circuit

Key Terms to Review (19)

Apparent Power: Apparent power is a measure of the total power in an AC circuit, represented as the product of the voltage and current without considering the phase angle between them. It is expressed in volt-amperes (VA) and combines both the real power, which performs actual work, and the reactive power, which sustains the electric and magnetic fields in the system. Understanding apparent power is crucial for managing power flow and efficiency in AC circuits.
Capacitor: A capacitor is an electronic component that stores electrical energy in an electric field, created by a pair of conductive plates separated by an insulating material known as a dielectric. Capacitors play a vital role in electrical circuits by influencing charge, current, voltage, and power dynamics, as well as energy storage and transfer, making them essential for various applications like filtering and timing.
Complex Power: Complex power is a key concept in alternating current (AC) circuits, represented as a combination of real power and reactive power. It accounts for the power that is used to do work and the power that oscillates between the source and the load without being consumed. Understanding complex power helps in analyzing the efficiency of AC systems, revealing how much of the total power contributes to useful work versus how much is wasted or stored temporarily.
Efficiency: Efficiency refers to the ratio of useful output to the total input in a system, expressed as a percentage. In electrical systems, it indicates how well energy is converted from one form to another, with minimal losses. Understanding efficiency is crucial in optimizing power consumption, voltage regulation, and rectification processes, as it directly impacts performance and cost-effectiveness.
Energy Loss: Energy loss refers to the energy that is dissipated as heat or radiation in a system, rather than being utilized for work or useful output. In alternating current (AC) circuits, energy loss is primarily associated with resistive heating in conductors and other components, which occurs due to the flow of electric current. Understanding energy loss is crucial for designing efficient electrical systems and minimizing wasted energy in various applications.
Impedance: Impedance is a measure of how much a circuit resists the flow of alternating current (AC), combining both resistance and reactance into a single complex quantity. It is essential in analyzing AC circuits, as it affects how voltage and current behave when sinusoidal sources are applied. Understanding impedance helps in calculating power consumption and behavior in circuits containing resistors, capacitors, and inductors.
Inductor: An inductor is a passive electrical component that stores energy in a magnetic field when electric current flows through it. It plays a crucial role in various electrical circuits by influencing the behavior of current and voltage, especially in response to changes over time, making it essential in understanding circuits that involve both AC and DC signals.
Kirchhoff's Laws: Kirchhoff's Laws are fundamental principles in electrical engineering that describe the behavior of electrical circuits, focusing on current and voltage relationships. These laws include Kirchhoff's Current Law (KCL), which states that the total current entering a junction equals the total current leaving, and Kirchhoff's Voltage Law (KVL), which asserts that the sum of the electrical potential differences (voltages) around any closed loop in a circuit is zero. These principles are essential for analyzing complex circuits, connecting various electrical concepts.
Ohm's Law: Ohm's Law is a fundamental principle in electrical engineering that relates voltage, current, and resistance in a circuit, typically expressed as $$V = I imes R$$. This relationship helps in understanding how electrical circuits function and allows for the calculation of one of these values if the other two are known, which is crucial in analyzing electrical devices and systems.
P = v_{rms} i_{rms} cos(θ): The equation $$p = v_{rms} i_{rms} cos(θ)$$ defines the real power (p) in an alternating current (AC) circuit, where $$v_{rms}$$ is the root mean square voltage, $$i_{rms}$$ is the root mean square current, and $$cos(θ)$$ represents the power factor that accounts for the phase difference between voltage and current. This relationship is crucial for understanding how effective power consumption differs from apparent power in AC circuits, impacting everything from energy efficiency to load calculations.
Parallel circuit: A parallel circuit is a type of electrical circuit in which two or more components are connected across the same voltage source, providing multiple pathways for current to flow. This configuration allows the voltage across each component to remain constant, while the total current is the sum of the currents flowing through each path, influencing resistance, power distribution, and overall circuit behavior.
Power Factor: Power factor is a measure of how effectively electrical power is being converted into useful work output, defined as the cosine of the phase angle between voltage and current waveforms in an AC circuit. A power factor of 1 (or 100%) indicates that all the power is being used effectively, while a lower power factor suggests inefficiencies in the system. Understanding power factor is crucial for analyzing energy consumption, efficiency in electrical systems, and designing circuits with resistors in series and parallel configurations.
Power Factor Correction: Power factor correction is the process of improving the power factor of an electrical system, which is a measure of how effectively electrical power is being converted into useful work output. By adjusting the power factor closer to 1, or unity, energy consumption can be optimized, reducing losses and increasing efficiency in alternating current (AC) circuits. This improvement not only leads to lower electricity bills but also enhances the reliability and capacity of the electrical supply system.
Power Triangle: The power triangle is a graphical representation that illustrates the relationship between three types of power in alternating current (AC) circuits: active power (P), reactive power (Q), and apparent power (S). This triangle helps in understanding how these powers interact and are represented in terms of their magnitudes and angles, ultimately aiding in the analysis and design of AC electrical systems.
Q = v_{rms} i_{rms} sin(θ): The equation $$q = v_{rms} i_{rms} sin(θ)$$ represents the real power in an alternating current (AC) circuit, where $$v_{rms}$$ is the root mean square voltage, $$i_{rms}$$ is the root mean square current, and $$θ$$ is the phase angle between the voltage and current waveforms. This formula highlights how power is not only dependent on the magnitudes of voltage and current but also on the phase relationship between them, which can significantly affect overall power consumption and efficiency in AC circuits.
Reactive Power: Reactive power is the power that oscillates between the source and reactive components in an AC circuit, primarily stored in inductors and capacitors. It is essential for maintaining the voltage levels that enable active power to perform useful work, ensuring that energy storage devices can release energy back into the system when needed. This type of power plays a crucial role in the functioning of AC circuits, influencing their overall performance and stability.
Real Power: Real power, also known as active power, is the actual power consumed by a load in an AC circuit and is measured in watts (W). It represents the rate at which electrical energy is converted into useful work, like running a motor or lighting a bulb. Understanding real power is crucial in analyzing how much of the supplied electrical energy is effectively used by devices and how much energy is wasted due to inefficiencies or reactive components.
Series Circuit: A series circuit is a type of electrical circuit in which components are connected end-to-end, providing a single path for current to flow. In this configuration, the same current flows through each component, and the total voltage across the circuit is the sum of the voltages across each component, making it crucial for understanding concepts like charge, current, voltage, and power, as well as resistance and conductance.
Watts: Watts is the unit of power in the International System of Units (SI) that measures the rate at which energy is transferred or converted. In the context of alternating current (AC) circuits, understanding watts is crucial for evaluating how electrical energy is used and dissipated, as it connects voltage, current, and resistance in practical applications. This relationship plays a key role in analyzing how electrical devices perform and their efficiency.
