10.2 Rectifier circuits
3 min read•august 6, 2024
Rectifier circuits are essential for converting AC to DC power. They come in different types, like half-wave and full-wave rectifiers, each with unique characteristics. Understanding these circuits is key to grasping how power supplies work in electronic devices.
Rectifiers have important features like and . These affect the quality of the DC output and the choice of components. Smoothing capacitors and transformers play crucial roles in improving rectifier performance and adapting voltage levels.
Rectifier Types
Half-Wave and Full-Wave Rectifiers
Top images from around the web for Half-Wave and Full-Wave Rectifiers

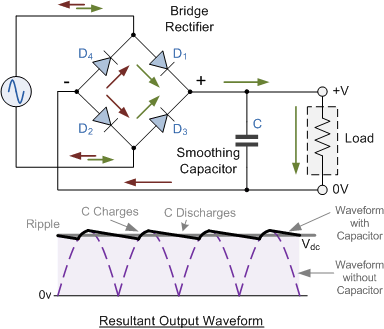

Diodes Archives - Electronics-Lab.com View original
Is this image relevant?
A "MEDIA TO GET" ALL DATAS IN ELECTRICAL SCIENCE...!!: Full Wave Rectifier View original
Is this image relevant?
A "MEDIA TO GET" ALL DATAS IN ELECTRICAL SCIENCE...!!: Full Wave Rectifier View original
Is this image relevant?
Diodes Archives - Electronics-Lab.com View original
Is this image relevant?
A "MEDIA TO GET" ALL DATAS IN ELECTRICAL SCIENCE...!!: Full Wave Rectifier View original
Is this image relevant?
1 of 3
Top images from around the web for Half-Wave and Full-Wave Rectifiers
Diodes Archives - Electronics-Lab.com View original
Is this image relevant?
A "MEDIA TO GET" ALL DATAS IN ELECTRICAL SCIENCE...!!: Full Wave Rectifier View original
Is this image relevant?
A "MEDIA TO GET" ALL DATAS IN ELECTRICAL SCIENCE...!!: Full Wave Rectifier View original
Is this image relevant?
Diodes Archives - Electronics-Lab.com View original
Is this image relevant?
A "MEDIA TO GET" ALL DATAS IN ELECTRICAL SCIENCE...!!: Full Wave Rectifier View original
Is this image relevant?
1 of 3
- allows current to flow only during the positive half-cycle of the input AC voltage
- Consists of a single connected in series with the load
- Output voltage is present only during the positive half-cycle (50% of the time)
- Inefficient due to the unused negative half-cycle
- allows current to flow during both the positive and negative half-cycles of the input AC voltage
- Consists of two diodes arranged in a configuration
- Output voltage is present during both half-cycles (100% of the time)
- More efficient than half-wave rectifiers as both half-cycles are utilized
Bridge Rectifiers
- Bridge rectifier is a type of full-wave rectifier that does not require a center-tapped transformer
- Consists of four diodes arranged in a
- During the positive half-cycle, two diodes conduct, allowing current to flow through the load
- During the negative half-cycle, the other two diodes conduct, maintaining the same current direction through the load
- Advantages of bridge rectifiers include:
- Compact design due to the absence of a center-tapped transformer
- Higher compared to half-wave rectifiers
- Commonly used in circuits for electronic devices (power adapters, battery chargers)
Rectifier Characteristics
Ripple Voltage
- Ripple voltage is the AC component that remains in the output voltage after rectification
- Caused by the incomplete filtering of the rectified voltage
- Appears as a small AC voltage superimposed on the DC output voltage
- Ripple voltage can be reduced by using filtering components (smoothing capacitors, inductors)
- Ripple frequency depends on the type of rectifier:
- Half-wave rectifier: ripple frequency is the same as the input AC frequency (60 Hz)
- Full-wave rectifier: ripple frequency is twice the input AC frequency (120 Hz)
Peak Inverse Voltage (PIV)
- Peak inverse voltage (PIV) is the maximum reverse voltage that a diode can withstand without breaking down
- Occurs during the negative half-cycle when the diode is reverse-biased
- Exceeding the PIV can cause the diode to conduct in the reverse direction, leading to damage
- PIV rating is an important consideration when selecting diodes for rectifier circuits
- Diodes must have a PIV rating higher than the maximum reverse voltage expected in the circuit
- In a half-wave rectifier, the PIV is equal to the peak voltage of the input AC waveform
- In a full-wave rectifier, the PIV is twice the peak voltage of the input AC waveform
Rectifier Components
Smoothing Capacitors
- Smoothing capacitors are used to reduce the ripple voltage in the output of a rectifier
- Connected in parallel with the load
- Charges during the peak of the rectified voltage and discharges during the valleys
- Smooths out the voltage fluctuations, providing a more stable DC output
- Capacitor value is chosen based on the desired ripple voltage and the
- Larger capacitor values result in lower ripple voltage but slower response to load changes
- Smaller capacitor values have higher ripple voltage but faster response to load changes
Transformers
- Transformers are used in rectifier circuits to step down the input AC voltage to a suitable level for rectification
- Consists of two windings (primary and secondary) wound on a common core
- Primary winding is connected to the input AC voltage source
- Secondary winding provides the desired voltage level for the rectifier circuit
- Center-tapped transformers are commonly used in full-wave rectifier circuits
- Secondary winding has a tap at the center, dividing it into two equal parts
- Allows the use of two diodes to rectify both half-cycles of the input AC voltage
- Transformers provide electrical isolation between the input and output circuits
- Prevents direct electrical connection, enhancing safety and reducing noise interference
