Implantable and Wearable Devices

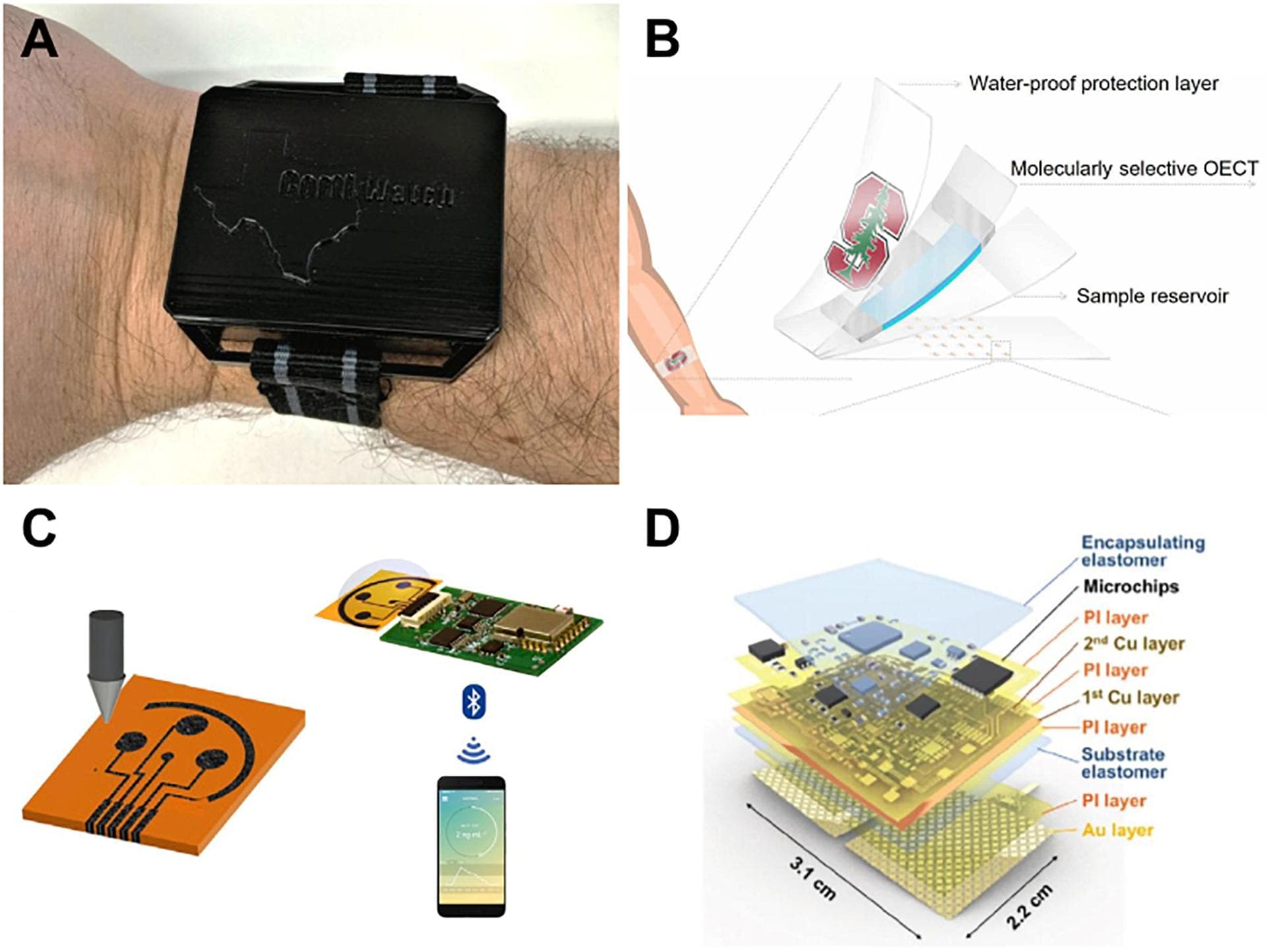

Wearable Medical Devices and Biosensors
Wearable medical devices are non-invasive devices worn on the body that continuously monitor health parameters like heart rate, blood pressure, and glucose levels. Their real value is that they let patients be monitored outside of a hospital or clinic, streaming real-time data to healthcare providers without requiring an office visit.
Biosensors are the core technology inside most wearable devices. They work by converting a biological signal into a measurable electrical signal. For example, a continuous glucose monitor uses an electrochemical biosensor that detects glucose concentration in interstitial fluid and outputs a voltage proportional to that concentration. Beyond glucose, biosensors can detect specific biomarkers like proteins or enzymes, making them useful for diagnosing and tracking a range of diseases.
Implantable Electronics and Nanoelectronics in Medicine
Implantable electronics are devices surgically placed inside the body to monitor, diagnose, or treat medical conditions. You've likely heard of the most common ones:
- Pacemakers regulate heart rhythm by delivering small electrical impulses to the heart muscle.
- Cochlear implants convert sound into electrical signals and stimulate the auditory nerve directly, bypassing damaged parts of the ear.
- Implantable drug delivery systems release precise doses of medication at a target site over time.
Nanoelectronics applies nanotechnology to shrink these devices even further. Working at the nanoscale (billionths of a meter) allows engineers to build sensors and actuators small enough for targeted drug delivery to specific cells or precise nerve stimulation. The smaller the device, the less invasive the procedure and the more precisely it can interact with biological tissue.
Brain-Computer Interfaces
A brain-computer interface (BCI) creates a direct communication pathway between the brain and an external device. BCIs record electrical signals from neurons, then interpret those signals using signal processing algorithms to translate thought patterns into commands.
The most prominent applications right now focus on restoring lost function:
- Helping individuals with paralysis control robotic limbs or computer cursors using their thoughts
- Enabling communication for patients with locked-in syndrome or severe neurological disorders
- Supporting neurorehabilitation after brain injuries or strokes by encouraging neuroplasticity (the brain's ability to rewire itself through repeated use of specific neural pathways)
From an EE perspective, the key challenges are signal-to-noise ratio in neural recordings, miniaturizing electrode arrays, and developing wireless power and data transmission for implanted BCIs.
Advanced Medical Technologies
Telemedicine and Robotic Surgery
Telemedicine uses telecommunications technology to deliver healthcare remotely. A patient can video-call a specialist hundreds of miles away, share data from wearable sensors, and receive a diagnosis without traveling to a clinic. This dramatically increases access to care, especially in rural or underserved areas.
Robotic surgery takes remote capability a step further. Robotic systems assist surgeons in performing complex procedures with greater precision and dexterity than the human hand alone can achieve. The da Vinci Surgical System is the most widely used example. It translates a surgeon's hand movements into smaller, more precise motions of tiny instruments inside the patient's body, enabling minimally invasive procedures like prostatectomies and cardiac valve repairs. The electrical engineering challenges here include real-time control systems, haptic feedback, and low-latency communication links.
Medical Imaging Advancements and Artificial Organs
Advances in medical imaging have made it possible to see inside the body with far greater detail and specificity than before. Three key technologies stand out:
- Functional MRI (fMRI) detects changes in blood oxygenation to map brain activity in real time.
- Positron emission tomography (PET) uses radioactive tracers to visualize metabolic processes, which is especially useful for detecting cancers.
- High-resolution ultrasound uses sound waves to produce detailed images of soft tissues without any radiation exposure.
These tools enable earlier detection and more targeted treatment planning because clinicians can see not just anatomy but also how tissues are functioning.
Artificial organs are engineered devices that replace or support failing organs. Examples include artificial hearts (like the SynCardia Total Artificial Heart), extracorporeal membrane oxygenation (ECMO) systems that function as temporary artificial lungs, and dialysis machines that perform kidney filtration. Progress in materials science has been critical here, since these devices must be biocompatible, meaning the body won't reject them or form dangerous blood clots around them.
Personalized Healthcare
Personalized Medicine and Nanoelectronics
Personalized medicine tailors treatments to an individual's genetic profile, lifestyle, and environment rather than using a one-size-fits-all approach. The goal is to maximize treatment effectiveness while minimizing side effects by accounting for individual biological variation.
Nanoelectronics enable this by providing nanoscale sensors and diagnostic tools sensitive enough to detect specific biomarkers or genetic variations. For instance, nanoelectronic biosensors can identify cancer-associated proteins in a blood sample at extremely low concentrations, potentially catching the disease far earlier than traditional screening methods. Similarly, nanoscale genetic testing platforms can rapidly identify mutations that predict how a patient will respond to a particular drug.
Wearable Devices and Biosensors in Personalized Healthcare
Wearable devices and biosensors feed into personalized healthcare by generating continuous, individual-specific health data over days, weeks, or months. This long-term data stream is far more informative than a single snapshot taken during a doctor's visit.
That data can then be analyzed using machine learning algorithms that identify patterns and predict health risks specific to that person. Practical outputs include:
- Personalized fitness or activity recommendations based on real-time cardiovascular data
- Medication reminders timed to an individual's metabolic patterns
- Early warnings when sensor readings trend toward dangerous thresholds
A concrete example: continuous glucose monitors paired with algorithm-driven insulin pumps can automatically adjust insulin delivery for a diabetic patient throughout the day, creating a near-closed-loop system that adapts to that individual's unique glucose response patterns.
