2.3 Energy and efficiency in electrical systems

Electrical Energy Units

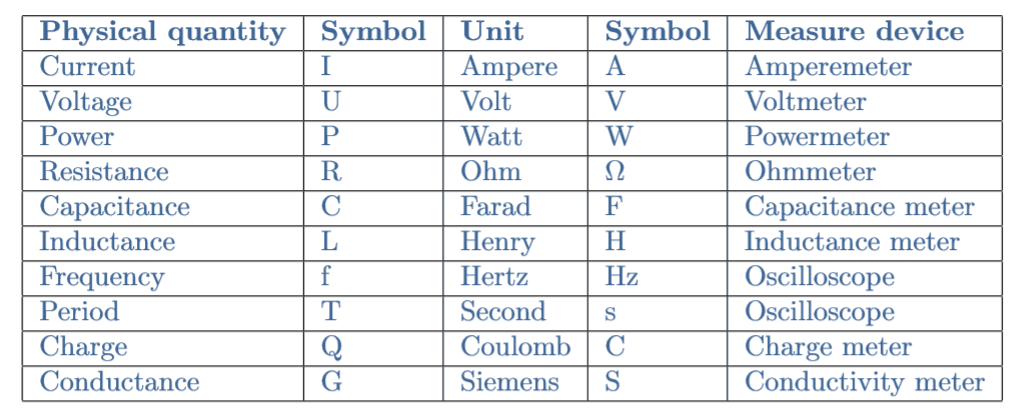

Measuring Electrical Energy

Electrical energy quantifies the capacity to do work or generate heat through the flow of electric charge. It's the quantity you're actually paying for on your electric bill.

The SI unit is the joule (J). One joule is the work done when a force of 1 newton acts over a distance of 1 meter. You can also express it in electrical terms:

$E = P \times t$

where $E$ is energy in joules, $P$ is power in watts, and $t$ is time in seconds.

For practical purposes, utility companies use the kilowatt-hour (kWh) because joules are inconveniently small for household-scale energy. One kWh is the energy consumed by a 1-kilowatt load running for 1 hour:

$1 \text{ kWh} = 3,600,000 \text{ J} = 3.6 \text{ MJ}$

That factor of 3.6 million comes from the unit conversion: 1 kW = 1,000 W, and 1 hour = 3,600 seconds, so $1,000 \times 3,600 = 3,600,000$ J.

Converting Between Joules and Kilowatt-hours

Joules to kWh: Divide by 3,600,000.

$7{,}200{,}000 \text{ J} \div 3{,}600{,}000 \text{ J/kWh} = 2 \text{ kWh}$

kWh to Joules: Multiply by 3,600,000.

$5 \text{ kWh} \times 3{,}600{,}000 \text{ J/kWh} = 18{,}000{,}000 \text{ J}$

A quick mental shortcut: if you know the power in kilowatts and the time in hours, you already have kWh directly. You only need the 3.6 MJ conversion when switching between SI units and utility units.

Energy Efficiency

Power Factor and Efficiency

These are two different ratios, and they measure different things. Don't mix them up.

Power factor applies specifically to AC circuits. It's the ratio of real power (watts, the power that actually does work) to apparent power (volt-amperes, the total power the source must deliver):

$\text{Power Factor} = \frac{P_{\text{real}}}{S_{\text{apparent}}}$

It ranges from 0 to 1. A power factor of 1 means all the power delivered is being used productively. A low power factor means the circuit draws more current than it needs to for the actual work being done, which wastes capacity in the supply system. Inductive loads like motors and transformers tend to lower the power factor.

Efficiency is more general. It's the ratio of useful output power to total input power:

$\eta = \frac{P_{\text{out}}}{P_{\text{in}}} \times 100\%$

An electric motor rated at 90% efficiency converts 90% of its electrical input into mechanical work. The other 10% is lost, mostly as heat. A typical incandescent light bulb, by contrast, has roughly 5% efficiency at producing visible light.

Energy Loss and Heat Dissipation

Every real electrical system loses some energy. The dominant source of loss in most circuits is resistive heating: current flowing through a conductor with resistance $R$ dissipates power as heat according to:

$P_{\text{loss}} = I^2 R$

This is why high-current systems need thicker conductors and why power transmission lines use very high voltages (to keep current low for a given power level).

Heat dissipation is the process of moving that waste heat away from components and into the surrounding environment. Common methods include:

• Heat sinks (metal fins that increase surface area for convection)
• Fans (forced-air cooling)
• Thermal paste (improves contact between a component and its heat sink)

If heat isn't managed properly, components overheat, degrade faster, and can fail. That's why thermal design matters just as much as circuit design.

Energy Management

Energy Conservation Strategies

Energy conservation means achieving the same result with less energy input. A few practical approaches:

• Efficient devices: LED bulbs use roughly 75% less energy than incandescent bulbs for the same light output. Energy Star-rated appliances meet specific efficiency benchmarks.
• System optimization: Better insulation reduces heating/cooling loads. Smart thermostats and energy management systems adjust usage based on real-time demand.
• Behavioral changes: Turning off lights and unplugging electronics when not in use reduces standby power draw, which can account for 5–10% of household electricity use.

Energy audits help identify where a building or system is wasting the most energy, so you can prioritize the fixes that give the biggest return.

Renewable Energy Sources

Renewable sources are naturally replenished on a human timescale and produce far fewer greenhouse gas emissions than fossil fuels. The main types relevant to electrical systems:

• Solar: Photovoltaic (PV) panels convert sunlight directly to electricity. Solar thermal collectors use sunlight to heat a fluid.
• Wind: Turbines convert kinetic energy from wind into electrical energy.
• Hydroelectric: Dams and run-of-river systems convert the potential and kinetic energy of flowing water.
• Geothermal: Heat pumps and power plants tap thermal energy stored underground.

Integrating renewables into the grid reduces dependence on non-renewable fuels, but it introduces challenges. Solar and wind output is intermittent, meaning it varies with weather and time of day. This creates a need for energy storage (batteries, pumped-storage hydro) and grid management strategies to balance supply and demand.
