24.3 Control systems and automation

Control System Fundamentals

Control systems and automation allow engineers to manage complex processes and machines with precision. These systems use feedback loops and mathematical models to maintain desired outputs even when disturbances or unexpected changes occur. You'll find them everywhere: industrial robots, smart thermostats, aircraft autopilots, and manufacturing lines. Understanding how they work is foundational to designing systems that are efficient, safe, and reliable.

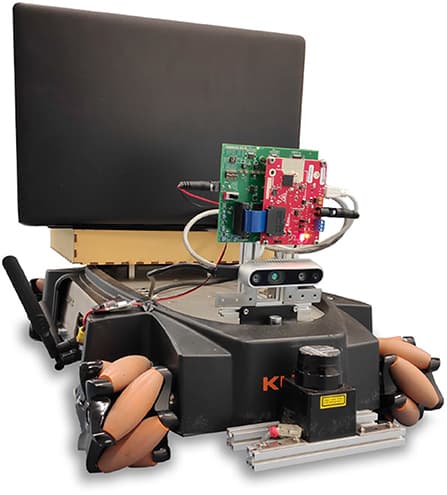

Feedback and State-Space Models

A feedback system uses the output of a process to adjust its input, creating what's called a closed-loop system. Think of a thermostat: it measures the room temperature (output), compares it to your set point, and turns the heater on or off (input adjustment) to keep the temperature where you want it. Without feedback, the system would run "open-loop" with no way to correct for drift or disturbances.

State-space models represent a system using a set of first-order differential equations that describe the relationships between inputs, outputs, and internal states. For example, to control a robot arm, you'd track both its position and velocity as internal states. The general form looks like:

$\dot{x} = Ax + Bu$ $y = Cx + Du$

where $x$ is the state vector, $u$ is the input, $y$ is the output, and $A$, $B$, $C$, $D$ are matrices that define the system's behavior.

Why bother with this representation? It lets you apply powerful advanced techniques like optimal control and state estimation. The Kalman filter, for instance, uses a state-space model to estimate unmeasurable internal states from noisy sensor data.

System Stability and Adaptive Control

Stability means a control system can maintain its desired output or return to it after a disturbance. An aircraft autopilot, for example, must keep the plane on course even through turbulence. If a system is unstable, small disturbances grow over time instead of dying out.

Stability analysis involves determining the conditions under which a system stays stable. This might mean finding the allowable range of controller gain values, or checking whether time delays in the feedback loop push the system toward oscillation. Common tools include root locus plots and Bode plots, which you may encounter in more advanced courses.

Adaptive control systems go a step further: they automatically adjust their own parameters when the system dynamics or environment change. A self-tuning controller, for instance, uses online parameter estimation to continuously update its gains based on observed behavior. Model reference adaptive control (MRAC) is one approach where the controller adjusts itself so the system tracks a desired reference model, even as conditions shift.

Industrial Automation

Programmable Logic Controllers (PLCs) and SCADA Systems

Programmable Logic Controllers (PLCs) are specialized digital computers built for controlling industrial processes and machinery. They're designed to be rugged and reliable in factory environments where heat, vibration, and electrical noise are constant concerns.

• PLCs use ladder logic or other programming languages to implement control algorithms
• They have modular input/output interfaces that connect directly to sensors (measuring temperature, pressure, etc.) and actuators (motors, valves, relays)
• A typical application is assembly line control, where a PLC sequences operations like "clamp part, drill hole, release part" based on sensor inputs

SCADA (Supervisory Control and Data Acquisition) systems sit above PLCs and provide a centralized interface for monitoring and controlling processes that may span multiple sites. Power grid management is a classic example: operators at a central station can see real-time data from substations across a region and issue remote commands.

SCADA systems collect data from PLCs and other field devices, display process information on operator screens, and allow for remote control and optimization. The key distinction is that PLCs handle local, real-time control, while SCADA provides the big-picture supervisory layer.

Process Automation

Process automation applies control systems and instrumentation to run industrial processes with minimal human intervention. This spans chemical manufacturing, oil and gas production, food processing, pharmaceutical production, and more.

The core elements of any process automation system are:

1. Sensor networks that measure process variables like temperature, pressure, and flow rate
2. Actuators that manipulate the process, such as valves, pumps, and heaters
3. Control algorithms that use sensor data to drive actuators and maintain desired conditions

For example, in a brewery, sensors track fermentation temperature and sugar concentration. Control algorithms adjust heaters and cooling systems to keep conditions within tight tolerances, producing consistent product batch after batch.

Advanced techniques like model predictive control (MPC) use a mathematical model of the process to predict future behavior and optimize control actions over a time horizon. This can improve product quality, reduce energy consumption, and increase throughput compared to simpler control strategies.

Process automation systems also often integrate with enterprise resource planning (ERP) and manufacturing execution systems (MES), connecting the shop floor to business-level planning for end-to-end production optimization.

Robotics and Motion Control

Robotics and Motion Control Systems

Robotics involves designing and controlling machines that can perform tasks autonomously or semi-autonomously across environments like manufacturing floors, hospitals, and remote exploration sites.

A robotic system has three key components:

• Sensors for perceiving the environment (cameras, lidar, force sensors)
• Actuators for generating motion (electric motors, pneumatic cylinders, hydraulic systems)
• Control algorithms for planning and executing tasks (path planning, trajectory tracking)

Motion control is the discipline of precisely controlling position, velocity, and acceleration of mechanical systems. This applies to industrial robot arms, CNC machines, 3D printers, and semiconductor positioning stages. These systems rely heavily on feedback control to minimize the error between the commanded motion profile and the actual motion.

PID Controllers

The PID (Proportional-Integral-Derivative) controller is the most widely used feedback controller in engineering. A familiar example is cruise control in a car: the system measures your actual speed, compares it to the set speed, and adjusts the throttle to minimize the difference.

A PID controller combines three terms, each addressing a different aspect of the error signal $e(t)$:

$u(t) = K_p \, e(t) + K_i \int e(t) \, dt + K_d \frac{de(t)}{dt}$

• Proportional ($K_p$): Produces a control action proportional to the current error. Larger error means stronger correction. On its own, it often leaves a small steady-state offset.
• Integral ($K_i$): Accumulates error over time and drives the steady-state offset to zero. If the error persists even slightly, this term keeps building until it's corrected.
• Derivative ($K_d$): Responds to how fast the error is changing. It acts like a damper, reducing overshoot and improving how quickly the system settles.

Tuning a PID controller means selecting $K_p$, $K_i$, and $K_d$ values that give you the performance you want. Common tuning methods include:

1. Ziegler-Nichols rules: A systematic approach where you increase the proportional gain until the system oscillates, then use formulas based on the oscillation period to set all three gains
2. Optimization-based methods: Using software to search for gain values that minimize a performance metric like overshoot or settling time

Performance is typically evaluated by looking at rise time (how fast the output reaches the set point), overshoot (how far it goes past), and settling time (how long until it stays within an acceptable range).

For more complex situations, variations like cascade control (using one PID loop inside another) and feed-forward control (anticipating disturbances before they affect the output) can significantly improve performance. An example is temperature control where coolant flow varies: a feed-forward term compensates for the known disturbance while the PID loop handles everything else.
