1.3 Branches and applications of electrical engineering
3 min read•august 6, 2024
Electrical engineering branches out into diverse fields, each with unique applications. From and to and , these areas shape our modern world and drive technological progress.
Understanding these branches helps grasp the breadth of electrical engineering. Whether it's powering cities, connecting people, or advancing healthcare, electrical engineers play a crucial role in solving complex problems and improving lives.
Power and Energy Systems
Electric Power Generation, Transmission, and Distribution
Top images from around the web for Electric Power Generation, Transmission, and Distribution
Transmission system operator - Wikipedia View original
Is this image relevant?

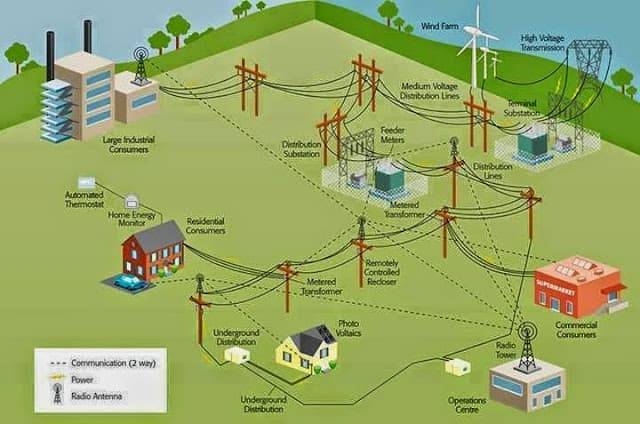

Power Generation,Transmission,and Distribution by Smart Grids ~ NEW TECH View original
Is this image relevant?
The Electric Power Transmission and Distribution Industry View original
Is this image relevant?
Transmission system operator - Wikipedia View original
Is this image relevant?
Power Generation,Transmission,and Distribution by Smart Grids ~ NEW TECH View original
Is this image relevant?
1 of 3
Top images from around the web for Electric Power Generation, Transmission, and Distribution
Transmission system operator - Wikipedia View original
Is this image relevant?
Power Generation,Transmission,and Distribution by Smart Grids ~ NEW TECH View original
Is this image relevant?
The Electric Power Transmission and Distribution Industry View original
Is this image relevant?
Transmission system operator - Wikipedia View original
Is this image relevant?
Power Generation,Transmission,and Distribution by Smart Grids ~ NEW TECH View original
Is this image relevant?
1 of 3
- Power systems involve the generation, , and of electrical power
- Generation converts various forms of energy (fossil fuels, nuclear, hydro, wind, solar) into electrical energy
- Transmission moves high-voltage electricity over long distances using power lines and substations
- Distribution delivers lower-voltage electricity to end-users through transformers and local power lines
Control Systems and Renewable Energy Integration
- manage and regulate the behavior of electrical systems to ensure stability, efficiency, and safety
- Involve , actuators, and feedback loops to monitor and adjust system parameters (voltage, frequency, power flow)
- Renewable energy sources (wind, solar, hydro) are increasingly integrated into power systems to reduce carbon emissions
- Control systems are crucial for managing the variability and intermittency of renewable energy generation
Power Electronics and Energy Conversion
- Electronics play a key role in power systems for converting and controlling electrical energy
- devices (, , ) enable efficient conversion between AC and DC power
- Used in applications such as motor drives, battery chargers, and grid-tied solar inverters
- Advances in semiconductor technology (silicon carbide, gallium nitride) improve the efficiency and reliability of power electronics
Telecommunications and Signal Processing
Wireless and Wired Communication Systems
- Telecommunications encompasses the transmission of information over distances using electrical or electromagnetic signals
- Wireless communication uses radio waves to transmit data (cellular networks, Wi-Fi, Bluetooth)
- Wired communication uses physical cables (copper, fiber optic) for high-speed data transmission (Ethernet, DSL, cable internet)
- Advances in and beyond promise faster speeds, lower latency, and increased connectivity for
Digital Signal Processing and Compression
- involves the analysis, modification, and synthesis of signals to extract information or improve transmission
- (DSP) uses digital circuits and algorithms to process signals in the digital domain
- DSP enables efficient of audio, video, and image data (MP3, JPEG, H.264) for storage and transmission
- Other applications include speech recognition, radar processing, and biomedical signal analysis
Microelectronics and Integrated Circuits
- deals with the design and fabrication of miniaturized electronic circuits and devices
- (ICs) combine multiple electronic components (transistors, resistors, capacitors) on a single semiconductor chip
- ICs enable the development of compact, high-performance, and low-power electronic devices (, computers, sensors)
- Advances in semiconductor manufacturing (smaller feature sizes, 3D integration) drive the continuous improvement of IC performance and functionality
Robotics and Biomedical Engineering
Robotics and Autonomous Systems
- Robotics involves the design, construction, and operation of robots for various applications
- Robots can be programmed to perform tasks autonomously or under human control
- Applications include manufacturing (assembly, welding), exploration (Mars rovers), and service robots (vacuum cleaners, surgical assistants)
- Advances in , computer vision, and enable more intelligent and adaptable robots
Biomedical Instrumentation and Devices
- Biomedical engineering applies engineering principles to solve medical problems and improve healthcare
- involves the design and development of devices for measuring and analyzing biological signals (EEG, ECG, MRI)
- Other biomedical devices include prosthetics, implants (pacemakers, cochlear implants), and drug delivery systems
- Advances in materials science, miniaturization, and wireless technology enable more sophisticated and patient-friendly biomedical devices
Control Systems and Electronics in Biomedical Applications
- Control systems are used in biomedical applications to regulate and optimize the performance of devices and processes
- Examples include closed-loop insulin delivery for diabetes management, and robotic surgery systems for precise and minimally invasive procedures
- Electronics play a crucial role in biomedical devices for signal acquisition, processing, and communication
- Advances in low-power electronics, wearable sensors, and wireless protocols (Bluetooth Low Energy) enable the development of mobile and remote health monitoring systems
