12.1 JFET and MOSFET structures and operation
3 min read•august 6, 2024
Field-effect transistors (FETs) are crucial in modern electronics. JFETs and MOSFETs, two main types, control current flow through a semiconductor channel using electric fields. They differ in structure and operation but share the ability to amplify signals and switch currents.
Understanding FETs is key to grasping how modern electronic devices work. JFETs use a reverse-biased PN junction, while MOSFETs use an insulated to control current. Both types are essential in analog and digital circuits, powering everything from smartphones to computers.
JFET Structure and Operation
JFET Components and Function
Top images from around the web for JFET Components and Function

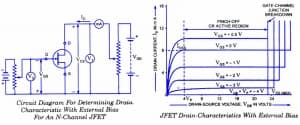

Characteristics of JFETS | Todays Circuits ~ Engineering Projects View original
Is this image relevant?
Characteristics of JFETS | Todays Circuits ~ Engineering Projects View original
Is this image relevant?
Điện tử cơ bản - JFET View original
Is this image relevant?
Characteristics of JFETS | Todays Circuits ~ Engineering Projects View original
Is this image relevant?
Characteristics of JFETS | Todays Circuits ~ Engineering Projects View original
Is this image relevant?
1 of 3
Top images from around the web for JFET Components and Function
Characteristics of JFETS | Todays Circuits ~ Engineering Projects View original
Is this image relevant?
Characteristics of JFETS | Todays Circuits ~ Engineering Projects View original
Is this image relevant?
Điện tử cơ bản - JFET View original
Is this image relevant?
Characteristics of JFETS | Todays Circuits ~ Engineering Projects View original
Is this image relevant?
Characteristics of JFETS | Todays Circuits ~ Engineering Projects View original
Is this image relevant?
1 of 3
- Junction Field-Effect Transistor () is a type of field-effect transistor that uses a reverse-biased PN junction to control the current flow through a semiconductor channel
- Channel is a region of semiconductor material (usually silicon) that connects the and terminals and conducts current
- Gate is a terminal that controls the channel conductivity by applying a voltage to the reverse-biased PN junction formed between the gate and the channel
- Source is the terminal through which majority carriers (electrons for N-channel, holes for P-channel) enter the channel
- Drain is the terminal through which majority carriers leave the channel
JFET Operation and Characteristics
- refers to the JFET's default state, where the channel is fully conductive when no voltage is applied to the gate (VGS = 0)
- Applying a reverse-bias voltage to the gate (VGS < 0 for N-channel, VGS > 0 for P-channel) increases the width, reducing the effective channel cross-sectional area and increasing its resistance
- is the gate-to-source voltage (VGS) at which the depletion regions from both sides of the channel meet, causing the channel to be "pinched off" and the drain current to become nearly constant ()
- JFETs are used in analog circuits for voltage-controlled resistors, constant current sources, and amplifiers due to their high input impedance and low noise characteristics
MOSFET Structure and Operation
MOSFET Components and Function
- Metal-Oxide-Semiconductor Field-Effect Transistor () is a type of field-effect transistor that uses an electric field to control the current flow through a semiconductor channel
- MOSFETs have four terminals: gate, source, drain, and body (substrate)
- Gate is insulated from the channel by a thin layer of silicon dioxide (SiO2), which acts as a dielectric
- Applying a voltage to the gate (VGS) creates an electric field that attracts or repels charge carriers in the substrate, modulating the channel conductivity
MOSFET Operation and Characteristics
- Enhancement mode MOSFETs have a non-conductive channel when no voltage is applied to the gate (VGS = 0) and require a gate voltage to create a conductive channel
- (VTH) is the minimum gate-to-source voltage required to create a conductive channel between the source and drain
- For an N-channel MOSFET, applying a positive VGS greater than VTH attracts electrons to the channel, making it conductive (VGS > VTH)
- For a P-channel MOSFET, applying a negative VGS lower than VTH attracts holes to the channel, making it conductive (VGS < VTH)
- (gm) is a measure of how much the drain current (ID) changes with respect to the gate-to-source voltage (VGS) and represents the amplification ability of the MOSFET
- MOSFETs are widely used in digital circuits (CMOS) and analog circuits for amplifiers, switches, and voltage-controlled current sources due to their high input impedance, low power consumption, and scalability
