23.3 Hardware description languages (VHDL/Verilog)
3 min read•august 6, 2024
Hardware description languages (HDLs) like and are essential tools for designing digital systems. They let engineers describe complex circuits using code, making it easier to create, test, and modify designs before building actual hardware.
HDLs support both behavioral and structural modeling, allowing designers to focus on functionality or specific components. With testbenches and , engineers can verify their designs virtually, catching errors early and saving time and resources in the development process.
Hardware Description Languages
Overview of HDLs
Top images from around the web for Overview of HDLs
ASIC-System on Chip-VLSI Design: Verilog HDL: Behavioural Modeling View original
Is this image relevant?

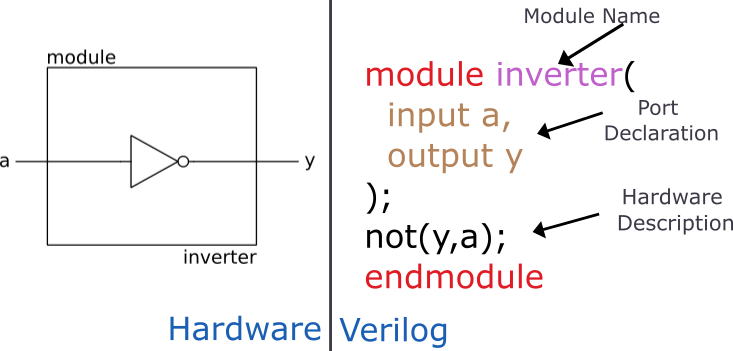

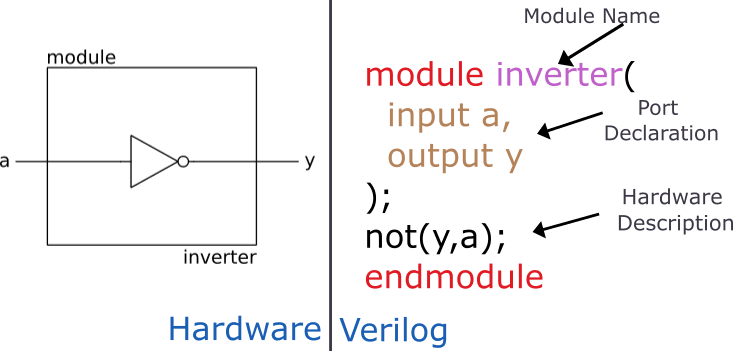

Basics of Verilog - Circuit Fever View original
Is this image relevant?
ASIC-System on Chip-VLSI Design: Verilog HDL: Hardware Description Using Basic Logic Gates View original
Is this image relevant?
ASIC-System on Chip-VLSI Design: Verilog HDL: Behavioural Modeling View original
Is this image relevant?
Basics of Verilog - Circuit Fever View original
Is this image relevant?
1 of 3
Top images from around the web for Overview of HDLs
ASIC-System on Chip-VLSI Design: Verilog HDL: Behavioural Modeling View original
Is this image relevant?
Basics of Verilog - Circuit Fever View original
Is this image relevant?
ASIC-System on Chip-VLSI Design: Verilog HDL: Hardware Description Using Basic Logic Gates View original
Is this image relevant?
ASIC-System on Chip-VLSI Design: Verilog HDL: Behavioural Modeling View original
Is this image relevant?
Basics of Verilog - Circuit Fever View original
Is this image relevant?
1 of 3
- VHDL (VHSIC Hardware Description Language) is a hardware description language used for designing and modeling digital systems
- Verilog is another widely used hardware description language that provides a way to describe digital circuits and systems
- Hardware description languages allow designers to specify the behavior and structure of digital systems at various levels of abstraction
- HDLs enable the design, simulation, and of digital circuits, making them essential tools in modern digital system design
Key Features of VHDL and Verilog
- Both VHDL and Verilog support modular design, allowing complex systems to be divided into smaller, manageable modules
- They provide constructs for describing concurrent and sequential behavior, making it possible to model the parallel nature of digital circuits
- VHDL and Verilog include , operators, and similar to programming languages, facilitating the description of digital logic
- These HDLs support hierarchical design, enabling designers to create reusable components and manage design complexity effectively
Modeling and Verification
Behavioral and Structural Modeling
- Behavioral modeling focuses on describing the functionality of a digital system using high-level constructs and abstractions
- It allows designers to express the desired behavior of a system without specifying the detailed implementation
- Structural modeling involves describing a digital system in terms of its components and their interconnections
- It represents the system as a hierarchical composition of smaller building blocks, such as logic gates and modules
Testbenches and Simulation
- Testbenches are used to verify the functionality and correctness of digital designs through simulation
- They provide a controlled environment for applying input stimuli to the design and observing its outputs
- Testbenches typically include stimulus generation, expected output checking, and reporting mechanisms
- Simulation allows designers to analyze the behavior of their designs under various conditions and detect any errors or inconsistencies
- It helps in identifying and fixing design issues early in the development cycle, reducing the risk of hardware failures
Digital Logic Components
Combinational Logic Elements
- Logic gates are the fundamental building blocks of digital circuits and perform basic Boolean operations (AND, OR, NOT, XOR)
- Combinational logic circuits produce outputs that depend solely on the current inputs, without any memory or state
- Examples of combinational logic components include multiplexers, decoders, and arithmetic circuits (adders, subtractors)
- These components are used to implement various digital functions and data manipulation operations
Sequential Logic Elements
- Flip-flops are sequential logic elements that store and maintain state information
- They have the ability to remember their previous output state and change their state based on input signals
- Common types of flip-flops include D flip-flops, JK flip-flops, and T flip-flops
- Sequential logic circuits, built using flip-flops and combinational logic, have outputs that depend on both the current inputs and the previous state
- Examples of sequential logic components include registers, counters, and finite state machines (FSMs)
Implementation
Synthesis and FPGA Programming
- Synthesis is the process of converting an HDL design into a gate-level representation that can be implemented on a physical device
- It involves optimizing the design, mapping it to the available resources of the target hardware platform
- Field Programmable Gate Arrays (FPGAs) are reconfigurable devices that can be programmed to implement digital circuits
- FPGA programming involves translating the synthesized design into a configuration file that can be loaded onto the FPGA
- The configuration file contains the necessary information to configure the FPGA's logic blocks, interconnects, and I/O pins
- FPGAs offer flexibility, allowing designers to modify and update their designs without the need for physical fabrication
Key Terms to Review (21)
Asic design: ASIC design, or Application-Specific Integrated Circuit design, refers to the process of creating customized integrated circuits that are tailored for a specific application or task. This design approach allows for optimized performance, power efficiency, and size, making ASICs ideal for consumer electronics, telecommunications, and other specialized functions. The use of hardware description languages like VHDL and Verilog is essential in this process, as they enable engineers to describe the functionality and structure of the circuit before it is manufactured.
Assign statement: An assign statement is a fundamental construct in hardware description languages like VHDL and Verilog that is used to assign values to signals or variables. This statement enables the designer to specify how data flows and is manipulated within digital circuits, making it essential for modeling behavior and functionality of hardware components.
Bottom-up design: Bottom-up design is an approach to system development where individual components are designed and developed first, before being integrated into a complete system. This method emphasizes creating smaller, simpler parts that can be combined to form a larger, more complex system. It fosters modularity and reusability, allowing designers to focus on the functionality of each piece while ensuring that they work well together when combined.
Concurrency: Concurrency refers to the ability of hardware systems to perform multiple operations simultaneously or in overlapping time periods. This concept is crucial in hardware description languages, where designers can define behaviors and structures that can execute concurrently, allowing for efficient use of resources and improved performance in digital designs.
Control Structures: Control structures are constructs in programming languages that dictate the flow of control in a program based on specific conditions or sequences. They allow for decision-making processes and repetitions within code, enabling programmers to create complex behaviors and logic. In hardware description languages, these structures are essential for defining the behavior of digital circuits and how they respond to various inputs.
Data types: Data types are classifications that specify the kind of data a variable can hold, including the operations that can be performed on it. In hardware description languages like VHDL and Verilog, understanding data types is essential for defining signals, ports, and variables used in digital circuits. Different data types enable precise modeling of hardware behavior, ensuring accurate synthesis and simulation of designs.
Entity: An entity is a fundamental concept in hardware description languages like VHDL and Verilog that represents a distinct component or module within a digital system. Entities are used to define the behavior and structure of hardware components, encapsulating their functionality and interconnections. They play a crucial role in modeling digital systems at various levels of abstraction, allowing designers to create reusable and modular designs.
Fpga design: FPGA design refers to the process of creating and implementing digital circuits using Field Programmable Gate Arrays (FPGAs), which are semiconductor devices that can be programmed to perform a variety of functions. This design process involves specifying the desired functionality in a hardware description language, allowing for the creation of custom logic circuits that can be reconfigured as needed. FPGAs are widely used for their flexibility, speed, and ability to handle parallel processing, making them ideal for applications ranging from telecommunications to automotive systems.
Module: A module is a self-contained block of code or design within a hardware description language that represents a specific functionality or component. It allows designers to encapsulate behavior and structure, making it easier to manage complex systems by dividing them into smaller, more manageable pieces. In the context of hardware description languages, modules facilitate the design, simulation, and synthesis of digital systems by promoting reusability and clarity.
Port: In the context of hardware description languages like VHDL and Verilog, a port is a connection point for communication between different components of a digital system. Ports serve as the interface through which signals are transmitted to and from a module, allowing for data flow and interaction among various parts of a circuit design. The proper use of ports is crucial for defining how modules interact and ensuring that signals are accurately sent and received.
Process statement: A process statement is a construct used in hardware description languages, like VHDL and Verilog, that defines a block of sequential operations or behaviors that can occur in response to specific events or conditions. This allows designers to describe how hardware components should operate over time, detailing the flow of signals and changes in state. Process statements are essential for modeling complex digital circuits, enabling simulation and synthesis of the desired behavior within a given clock cycle or event.
Register-transfer level (RTL): Register-transfer level (RTL) is an abstraction used in digital circuit design that describes the flow of data between registers and the operations performed on that data. This level of design emphasizes how data moves within the system rather than the specific gate-level implementation, allowing engineers to focus on data paths and control logic. RTL serves as a bridge between high-level programming and low-level hardware descriptions, making it essential for designing efficient digital systems.
Signal: In electronics and communications, a signal is a physical quantity that varies with time or space and conveys information. Signals are fundamental in hardware description languages like VHDL and Verilog, where they are used to represent the data and control information that flow through circuits and systems, serving as the building blocks for defining behaviors and interactions between components.
Simulation: Simulation refers to the imitation of a real-world process or system over time. It allows engineers and designers to create models that can replicate the behavior of complex systems, enabling analysis, testing, and optimization without the need for physical prototypes. This is crucial for validating designs and understanding system dynamics in various engineering fields.
Simulation tool: A simulation tool is a software application used to model and analyze the behavior of systems through virtual representations. These tools allow designers and engineers to experiment with different configurations and scenarios without the need for physical prototypes, making it easier to optimize performance and identify potential issues early in the design process. They are essential in the development and testing of systems, particularly in electronics and hardware design.
Synthesis: Synthesis is the process of combining various components to create a unified whole, often used in the context of circuit design and logic implementation. It involves translating high-level specifications into lower-level representations that can be physically realized. This process is crucial for ensuring that complex functionalities are correctly implemented within electronic devices and systems.
Synthesis tool: A synthesis tool is software that converts high-level hardware description language (HDL) code into a low-level representation that can be used to create a physical digital circuit. This process includes optimization of the design for performance, area, and power consumption. Synthesis tools are essential in the electronic design automation (EDA) process, making it possible to translate complex designs described in languages like VHDL or Verilog into actual circuit layouts.
Testbench: A testbench is a specialized environment used to verify and validate the functionality of a digital design, typically written in hardware description languages like VHDL or Verilog. It serves as a simulation framework where the design under test (DUT) can be executed, allowing for testing various input scenarios and monitoring outputs without needing the actual physical hardware. Testbenches include stimulus generation, response checking, and logging functionalities to automate the testing process.
Top-down design: Top-down design is an approach in system design where the overall system is broken down into smaller, manageable components, allowing for a more organized development process. This method promotes a hierarchical view of system components, encouraging designers to first outline the high-level functionality before addressing lower-level details. It facilitates better organization and integration, especially when using hardware description languages or generating schematics.
Verilog: Verilog is a hardware description language (HDL) used to model electronic systems. It allows designers to describe the structure and behavior of electronic circuits at various levels of abstraction, which is essential for digital design and verification processes.
VHDL: VHDL, or VHSIC Hardware Description Language, is a standardized language used for describing the behavior and structure of electronic systems. It enables engineers to model complex digital systems at a high level of abstraction, making it easier to design, simulate, and implement hardware in devices such as FPGAs and ASICs.
