2.4 Resonance

Resonance

Resonance describes how electrons are distributed across molecules when a single Lewis structure can't capture the full picture. Rather than molecules flipping between different structures, resonance represents the actual electron arrangement as a blend of multiple possible structures. This concept is central to understanding molecular stability, reactivity, and properties like bond length.

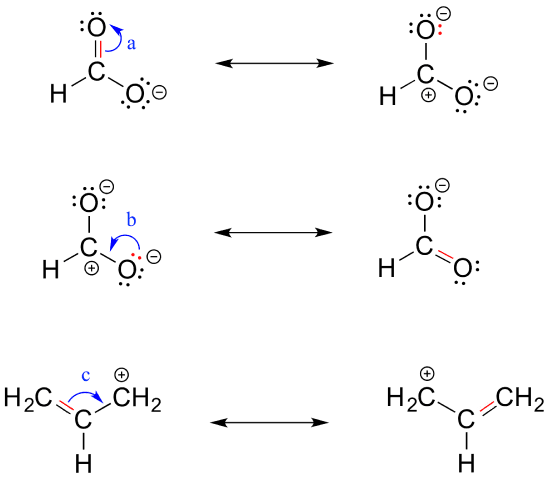

Resonance Forms vs. Molecular Structure

A resonance form is a valid Lewis structure showing one possible arrangement of electrons in a molecule. Most molecules with resonance have two or more of these forms, each placing electrons and bonds in slightly different positions. The key idea: no single resonance form accurately represents the real molecule.

The resonance hybrid is the actual structure of the molecule. It's a weighted average of all contributing resonance forms, with intermediate bond lengths and distributed charges. Think of it this way: if two resonance forms each show a double bond in a different location, the hybrid has two equivalent bonds, each somewhere between a single and double bond.

A few conventions to know:

• Resonance forms are connected by a double-headed arrow ($\leftrightarrow$). This does not mean the molecule switches back and forth. It means both forms contribute to one real structure.
• Resonance forms are sometimes called canonical structures.
• The atoms must stay in the same positions across all resonance forms. Only the electrons move.

Characteristics of Resonance Hybrids

The acetate ion ($CH_3COO^-$) is a classic example. It has two equivalent resonance forms:

• In one form, the negative charge sits on one oxygen, which is single-bonded to carbon, while the other oxygen is double-bonded to carbon.
• In the second form, the roles of the two oxygens are swapped.

In the resonance hybrid, neither oxygen carries the full negative charge. Instead, the charge is delocalized equally over both oxygens (each carries roughly $-\frac{1}{2}$). Both carbon-oxygen bonds are identical, with a bond order of 1.5.

This delocalization is what makes the hybrid more stable than any single resonance form would be on its own. Spreading charge over more atoms lowers the overall energy of the molecule. The stability gained from this effect is called resonance energy (or delocalization energy).

Bond Lengths in Resonance Structures

Bond order directly affects bond length:

• A single bond (bond order 1) is longer. For example, a C–C single bond is about 1.54 Å.
• A double bond (bond order 2) is shorter. A C=C double bond is about 1.34 Å.

When resonance gives a bond an intermediate bond order, the bond length falls between these values. In the acetate ion, each C–O bond has a bond order of 1.5, so each is shorter than a typical C–O single bond but longer than a typical C=O double bond.

Benzene is another great example. Each C–C bond in benzene has a bond order of 1.5, and the measured bond length is about 1.40 Å, right between the single-bond and double-bond values. All six C–C bonds are identical, which you'd never predict from a single Lewis structure showing alternating single and double bonds.

Electron Delocalization and Its Effects

Electron delocalization is the spreading of electrons over multiple atoms rather than confining them between just two. It's the underlying mechanism behind resonance, and it almost always increases stability by lowering the molecule's energy.

Two important extensions of this idea:

• Aromaticity is a special case of delocalization in cyclic, planar molecules with a continuous loop of p orbitals. Benzene is the textbook example. Aromatic compounds are unusually stable because of the extensive delocalization around the ring.
• The mesomeric effect describes how a substituent donates or withdraws electron density through resonance with the rest of the molecule. For instance, a lone pair on a nitrogen attached to a ring can be delocalized into the ring, making that nitrogen electron-donating by resonance.

Both of these concepts build directly on the resonance principles covered above, and you'll encounter them repeatedly when studying reactivity patterns later in the course.
