12.4 Mass Spectrometry in Biological Chemistry: Time-of-Flight (TOF) Instruments

Ionization Techniques for Biological Mass Spectrometry

Mass spectrometry is a powerful tool for analyzing biological molecules, but there's a fundamental challenge: you need to get large, fragile biomolecules into the gas phase as ions without destroying them. Two "soft" ionization techniques solve this problem: electrospray ionization (ESI) and matrix-assisted laser desorption ionization (MALDI). Both preserve delicate structures like protein folds and non-covalent complexes, enabling analysis of proteins, DNA, and other complex molecules.

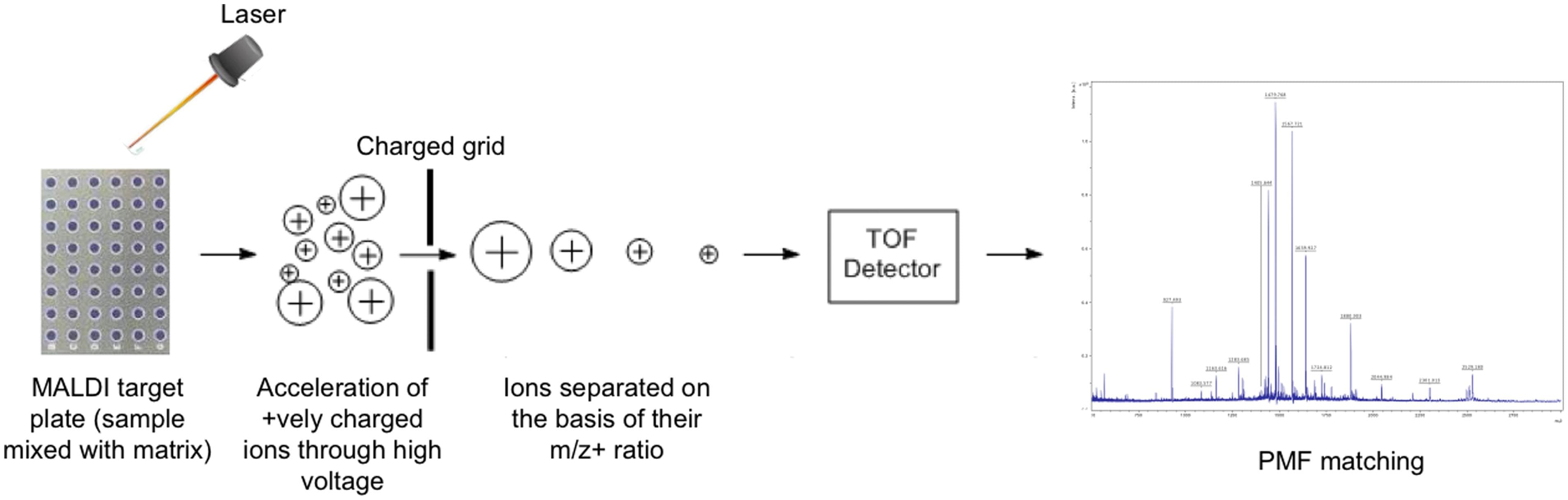

Electrospray vs MALDI ionization techniques

Electrospray Ionization (ESI) works from solution:

1. The sample is dissolved in a polar, volatile solvent and pumped through a narrow capillary.
2. A high voltage applied to the capillary tip creates a fine aerosol of charged droplets (called a "Taylor cone" spray).
3. As solvent evaporates, the droplets shrink and charge density increases.
4. Eventually, Coulombic repulsion (charge-charge repulsion) tears the droplets apart, releasing charged analyte molecules into the gas phase.

A distinctive feature of ESI is that it produces multiply charged ions. A protein with a mass of 50 kDa might carry 30–50 protons, giving you a series of peaks at different $m/z$ values. This actually helps because it brings the $m/z$ values into a range that many analyzers can handle. ESI also preserves non-covalent interactions, so you can study protein complexes in their native conformations.

Matrix-Assisted Laser Desorption Ionization (MALDI) works from a solid surface:

1. The sample is mixed with a UV-absorbing matrix compound (common matrices include sinapinic acid for proteins and α-cyano-4-hydroxycinnamic acid for peptides) and co-crystallized on a metal plate.
2. A pulsed UV laser irradiates the sample, causing rapid heating and vaporization of the matrix.
3. During this desorption process, the matrix transfers protons to the analyte molecules.
4. Ions are ejected from the surface into the gas phase and accelerated into the mass analyzer.

Unlike ESI, MALDI generates mostly singly charged ions ($[M+H]^+$), which simplifies the spectrum. This makes it straightforward to read the molecular weight directly from the spectrum. Because MALDI uses pulsed laser shots, it pairs naturally with time-of-flight analyzers.

Time-of-Flight Mass Analyzers

Time-of-flight (TOF) analyzers separate ions based on how fast they travel through a field-free drift tube. The concept is simple: give all ions the same kinetic energy, then let them race. Lighter ions fly faster and hit the detector first. This design offers high sensitivity and a theoretically unlimited mass range, which is why TOF is the go-to analyzer for large biomolecules.

Principles of TOF mass analyzers

Here's how a TOF measurement works, step by step:

1. Acceleration: Ions are accelerated through a fixed electric potential, giving them all the same kinetic energy: $KE = \frac{1}{2}mv^2 = qV$ where $q$ is the ion's charge and $V$ is the accelerating voltage.

2. Drift separation: Ions enter a field-free drift region. Since all ions have the same kinetic energy, their velocity depends on mass: $v = \sqrt{\frac{2qV}{m}}$ Lighter ions travel faster; heavier ions travel slower.

3. Detection: The time it takes an ion to cross the drift tube of length $L$ is: $t = \frac{L}{v} = L\sqrt{\frac{m}{2qV}}$

4. Calculating $m/z$: Rearranging gives: $\frac{m}{z} = \frac{2eV}{L^2}t^2$ So $m/z$ is proportional to the square of the flight time. Measure $t$, and you know the mass.

The reflectron is an important improvement. In practice, ions of the same $m/z$ don't all start with exactly the same kinetic energy, which blurs the arrival times and reduces resolution. A reflectron is an ion mirror at the end of the drift tube that reverses the ions' direction. Faster ions penetrate deeper into the reflectron and spend more time there, while slower ions turn around sooner. This corrects for the initial energy spread, and all ions of the same $m/z$ arrive at the detector at nearly the same time. The result is significantly improved mass resolution.

TOF vs magnetic sector for biomolecules

For biological applications like proteomics and metabolomics, TOF instruments dominate because of their wide mass range and speed. Magnetic sector instruments still have a niche where ultra-high mass accuracy is needed for small molecules, but they can't handle intact proteins the way TOF can.

Advanced TOF-MS Techniques

Tandem Mass Spectrometry and Ion Mobility

Tandem mass spectrometry (MS/MS) combines two stages of mass analysis to get structural information, not just molecular weight. In a typical experiment:

1. The first analyzer selects a specific "precursor" ion based on its $m/z$.
2. That ion is fragmented, usually by collision with an inert gas (collision-induced dissociation).
3. The second analyzer measures the $m/z$ of the resulting fragment ions.

The fragmentation pattern tells you about the molecule's structure. For proteins, MS/MS is the basis of peptide sequencing: you can read off amino acid sequences from the mass differences between fragment ions.

A common instrument design is the Q-TOF, which uses a quadrupole as the first mass filter and a TOF as the second analyzer. A linear ion trap can also be placed before the TOF to accumulate and isolate ions, improving sensitivity.

Ion mobility spectrometry (IMS) adds another dimension of separation. Before ions enter the TOF, they pass through a chamber filled with an inert buffer gas. Ions are separated based on their shape and size (specifically, their collisional cross-section), not just their $m/z$. Compact ions move through the gas faster than extended or unfolded ones. This is especially useful for distinguishing isomers that have the same mass but different three-dimensional structures, and for studying protein folding and conformational changes.
