13.9 Uses of 1H NMR Spectroscopy
3 min read•may 7, 2024
Nuclear Magnetic Resonance (NMR) spectroscopy is a powerful tool for determining molecular structures. It reveals the number and types of hydrogen atoms in a compound, their chemical environments, and how they're connected to each other.
focuses on hydrogen atoms, providing key information through chemical shifts, , and . This data helps identify functional groups, distinguish isomers, and confirm reaction products, making it essential for organic chemistry analysis.
1H NMR Spectroscopy
Interpretation of 1H NMR spectra
Top images from around the web for Interpretation of 1H NMR spectra
analytical chemistry - HNMR - Peak Splitting - Chemistry Stack Exchange View original
Is this image relevant?
“Pure shift” 1 H NMR, a robust method for revealing heteronuclear couplings in complex spectra ... View original
Is this image relevant?
“Pure shift” 1 H NMR, a robust method for revealing heteronuclear couplings in complex spectra ... View original
Is this image relevant?
analytical chemistry - HNMR - Peak Splitting - Chemistry Stack Exchange View original
Is this image relevant?
“Pure shift” 1 H NMR, a robust method for revealing heteronuclear couplings in complex spectra ... View original
Is this image relevant?
1 of 3
Top images from around the web for Interpretation of 1H NMR spectra
analytical chemistry - HNMR - Peak Splitting - Chemistry Stack Exchange View original
Is this image relevant?
“Pure shift” 1 H NMR, a robust method for revealing heteronuclear couplings in complex spectra ... View original
Is this image relevant?
“Pure shift” 1 H NMR, a robust method for revealing heteronuclear couplings in complex spectra ... View original
Is this image relevant?
analytical chemistry - HNMR - Peak Splitting - Chemistry Stack Exchange View original
Is this image relevant?
“Pure shift” 1 H NMR, a robust method for revealing heteronuclear couplings in complex spectra ... View original
Is this image relevant?
1 of 3
- Provides structural information about organic compounds
- Number of signals corresponds to number of unique hydrogen environments
- Integration values indicate relative number of hydrogens in each environment (1:2:3 ratio)

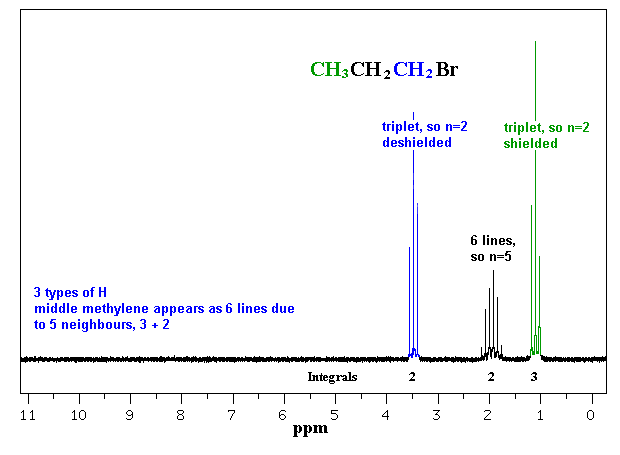

- Splitting patterns reveal number of neighboring hydrogens
- (s) no neighboring hydrogens
- (d) one neighboring hydrogen (ethanol -OH)
- (t) two neighboring hydrogens (ethyl acetate -CH2-)
- (q) three neighboring hydrogens (ethyl acetate -CH3)
- (m) complex splitting pattern or overlapping signals (benzene ring)
- () values in reflect electronic environment of hydrogens
- Electronegative atoms or groups cause to higher (aldehydes, carboxylic acids)
- Electron-donating groups cause to lower (alkyl groups)
- Aromatic and typically appear at 6-8 ppm (benzene, styrene)
- usually resonate at 0-5 ppm (cyclohexane, fatty acids)
- Comparing spectra of reactants and products determines reaction products
- Disappearance or appearance of signals indicates changes in hydrogen environments (alcohol to ketone)
- Shifts in peak positions reflect changes in electronic environment (ester hydrolysis)
- Integration values provide information about stoichiometry and yield (1:1 adduct formation)
Analysis of chemical shifts and patterns
- trends help identify functional groups
- Alcohols and carboxylic acids have with variable shift (phenol, acetic acid)
- Amines have exchangeable protons that may appear as broad singlets (aniline, piperidine)
- Aldehydes show a characteristic downfield singlet around 9-10 ppm (benzaldehyde)
- Aromatic protons appear as multiplets in the 6-8 ppm range (toluene, naphthalene)
- () provide information about dihedral angles and stereochemistry
- () depends on dihedral angle between protons
- Large ~ 12-14 Hz indicates anti orientation (trans alkenes)
- Small ~ 0-2 Hz suggests gauche orientation (cis alkenes)
- () between can reveal chiral centers (lactic acid)
- () depends on dihedral angle between protons
- Peak multiplicities and integration values determine substituents and symmetry
- Highly symmetric molecules have fewer unique hydrogen environments (p-xylene vs o-xylene)
- Substituents identified by characteristic splitting patterns and integrations (t-butyl group)
Applications of NMR spectroscopy
- Distinguishes between with different connectivity and unique spectra
- Peak positions, multiplicities, and integrations differ between isomers (butanol isomers)
- Symmetry differences lead to variations in number of signals (ortho vs para-disubstituted benzenes)
- may have similar spectra but exhibit differences in peak splitting
- have distinct chemical and magnetic environments
- Chemical shift differences distinguish diastereomers (meso vs dl-tartaric acid)
- Unique coupling constants differentiate diastereomers (cis vs trans-decalin)
- have identical spectra in achiral solvents (D vs L-alanine)
- or solvents can induce differences in enantiomer spectra (Mosher's acid)
- have distinct chemical and magnetic environments
- Analyzing product NMR spectra confirms regiochemistry of reactions
- Selective disappearance or shift of signals indicates site of reaction ()
- Integration values confirm relative amounts of regioisomers formed ()
- Coupling patterns provide insight into neighboring substituents and stereochemistry ()
NMR Spectroscopy Fundamentals
- and effects influence chemical shifts
- Electron-withdrawing groups cause deshielding, resulting in downfield shifts
- Electron-donating groups increase shielding, leading to upfield shifts
- is used as a reference compound for chemical shift calibration
- are employed to avoid interference from solvent proton signals
- The determines the resonance condition for nuclei in the magnetic field
