Wastewater management protects public health and the environment by collecting and treating water that's been contaminated by human activity. This section covers the types of wastewater, how collection systems move it, and the treatment processes that remove pollutants before discharge.
Wastewater Types and Sources
Domestic, Industrial, and Storm Water Runoff
Wastewater falls into three main categories, each with different characteristics that affect how it needs to be treated.
Domestic wastewater comes from residential areas: toilets, showers, sinks, and laundry. It contains organic matter, nutrients like nitrogen and phosphorus, and pathogens such as E. coli and Giardia. This is the most common type most treatment plants handle.
Industrial wastewater is generated by manufacturing processes and can contain chemicals, heavy metals (lead, mercury), and organic solvents specific to the industry. Because the pollutant profile varies so much from one factory to another, industrial sources often need pretreatment before their wastewater enters the municipal system.

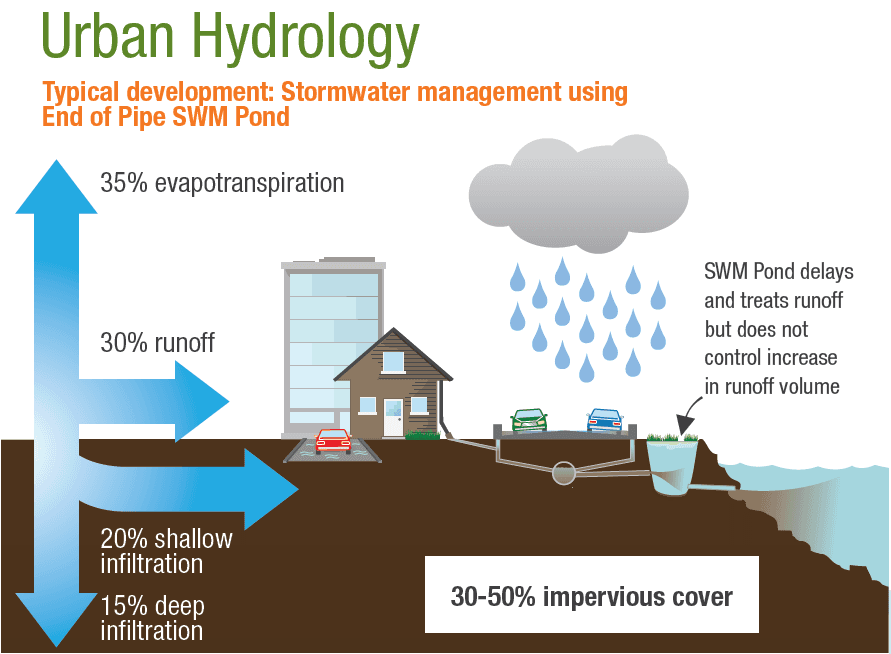

Storm water runoff flows over impervious surfaces like roads, parking lots, and rooftops, picking up oil, grease, sediment, and pesticides along the way. Unlike the other two types, storm water volume spikes dramatically during rain events, which creates design challenges for collection systems.
Infiltration, Inflow, and Composition
Two additional sources add to wastewater volume without being "wastewater" themselves:
- Infiltration is groundwater that seeps into sewer pipes through cracks, joint failures, or deteriorated pipe walls.
- Inflow is surface water that enters the system through illegal connections, broken manhole covers, or improperly connected storm drains.
Together, infiltration and inflow (I/I) can significantly increase the volume a treatment plant has to handle, especially during wet weather. Wastewater composition varies based on its source, with key parameters like BOD levels, suspended solids concentration, and pH all influencing what treatment steps are needed.
Wastewater Collection Systems
Gravity Flow and Network Components
Most wastewater collection systems rely on gravity to move sewage toward the treatment plant. Pipes are sloped so that wastewater flows downhill, and they're designed to maintain a minimum velocity of about 2 feet per second (0.6 m/s). Below that speed, solids settle out and cause blockages.
The collection network is organized in a hierarchy:
- Lateral sewers connect individual buildings to the system (typically around 8 inches in diameter).
- Trunk sewers collect flow from multiple laterals and carry it toward the plant (often 36 inches or larger).
- Interceptor sewers are the largest pipes, running along major routes and converging at the treatment facility.
Manholes are placed at regular intervals (typically 300–500 feet apart) and at every change in pipe direction or slope. They provide access points for inspection and maintenance.
Lift Stations and System Types
When the terrain doesn't allow continuous downhill flow, lift stations (also called pump stations) use pumps to move wastewater from a lower elevation to a higher one. Common pump types include centrifugal pumps and submersible pumps.
There are two main approaches to collection system design:
- Combined sewer systems carry both sanitary sewage and storm water in the same pipes. During heavy rain, these systems can overflow, discharging untreated sewage into waterways. Many older cities still use combined systems.
- Separate sewer systems keep sanitary sewage and storm water in isolated pipe networks. This reduces the volume reaching the treatment plant during storms and improves overall water quality. Most modern systems use this approach.
Design and Maintenance
Hydraulic design of sewer systems accounts for peak flow rates, pipe materials, slope, and capacity. Engineers commonly use Manning's equation to calculate flow velocity and determine minimum pipe slopes that keep solids moving.
Keeping the system functional requires ongoing monitoring and maintenance:
- CCTV inspection sends cameras through pipes to identify cracks, root intrusion, or structural failures.
- Smoke testing pumps non-toxic smoke into the system to find points where inflow enters.
- Cleaning methods like high-pressure jetting and root cutting prevent blockages and overflows.
Wastewater Treatment Stages
Treatment happens in a sequence of stages, each targeting different types of pollutants. Think of it as progressively finer filtering.
Preliminary and Primary Treatment
Preliminary treatment removes large debris and grit that could damage downstream equipment.
- Screens catch large objects like rags and plastics. Coarse screens have openings of 1–2 inches; fine screens use 0.25–0.5 inch openings.
- Comminutors shred any remaining large solids into smaller pieces.
- Grit chambers slow the flow enough for sand, gravel, and other heavy particles to settle out, while keeping lighter organic matter in suspension.
Primary treatment uses large sedimentation tanks where wastewater sits for about 2–3 hours. During that time, gravity pulls suspended solids to the bottom (forming primary sludge), while oils and grease float to the top and get skimmed off. Primary treatment typically reduces BOD by 25–40%.
Secondary and Tertiary Treatment
Secondary treatment is where biological processes do the heavy lifting. Microorganisms consume dissolved and colloidal organic matter that primary treatment couldn't remove.
The two most common methods:
- Activated sludge process: Wastewater is mixed with a culture of microorganisms in an aeration tank. Air is pumped in to keep the organisms active. Key design parameters include mixed liquor suspended solids (MLSS) concentration and the food-to-microorganism (F/M) ratio.
- Trickling filters: Wastewater is distributed over a bed of media (rock or plastic) coated with a biofilm of microorganisms. As water trickles through, the biofilm absorbs and breaks down organic matter.
Secondary treatment typically achieves 85–95% BOD reduction.
Tertiary treatment (advanced treatment) targets specific pollutants that survive secondary treatment:
- Nutrient removal focuses on nitrogen and phosphorus, which cause eutrophication if discharged. Methods include biological nutrient removal (BNR) processes like the anaerobic-anoxic-oxic (A2O) process, or chemical precipitation using metal salts.
- Disinfection eliminates pathogenic microorganisms before discharge. Common methods are chlorination, UV irradiation (typical dose around 40 mJ/cm²), and ozonation.
Sludge Treatment and Emerging Technologies
Every treatment stage produces sludge that needs its own processing chain:
- Thickening concentrates the sludge by removing excess water.
- Stabilization reduces odor and pathogen content. Anaerobic digestion is a common method, and it produces methane gas that can be captured for energy.
- Dewatering further removes water using belt presses, centrifuges, or drying beds.
- Final disposal or reuse options include landfilling, incineration, or land application as biosolids (if quality standards are met).
Emerging technologies are expanding what treatment plants can do:
- Membrane bioreactors (MBRs) combine biological treatment with membrane filtration, producing very high-quality effluent in a smaller footprint than conventional systems.
- Anaerobic digestion for energy recovery turns sludge processing into a source of renewable energy.
- Advanced oxidation processes target micropollutants like pharmaceuticals and personal care products that conventional treatment misses.
Wastewater Discharge Impacts
Environmental Effects
When wastewater is untreated or inadequately treated, the consequences for receiving water bodies are serious.
Eutrophication is one of the biggest concerns. Excess nitrogen and phosphorus fuel algal blooms, which block sunlight and deplete dissolved oxygen as they decompose. Indicators include chlorophyll-a concentration and dissolved oxygen levels. At large scales, this creates "dead zones" in coastal areas where aquatic life can't survive.
Bioaccumulation of heavy metals and persistent organic pollutants from industrial wastewater is another major issue. Mercury, for example, can bioaccumulate in fish by factors of 1,000 to 100,000, meaning concentrations in fish tissue are orders of magnitude higher than in the surrounding water. This affects entire food chains, including humans who eat contaminated fish.
Public Health Concerns
Pathogenic microorganisms in wastewater can cause waterborne diseases like cholera, typhoid fever, and hepatitis A if discharged without proper treatment. This remains a leading cause of illness and death in regions with inadequate sanitation infrastructure.
A growing concern is that wastewater contributes to the spread of antimicrobial resistance. Antibiotic-resistant bacteria such as MRSA and VRE have been detected in wastewater, and inadequate treatment can release these organisms into the environment.
Mitigation and Monitoring
Proper treatment dramatically reduces these risks. A well-operated treatment plant can achieve 99.99% reduction in fecal coliform bacteria, for example.
Regulatory compliance requires consistent monitoring of effluent parameters including BOD, total suspended solids (TSS), pH, and residual chlorine. These measurements ensure the plant is performing as designed and that discharge meets the standards set to protect receiving water bodies and public health.
