8.3 Hydraulic Structures and Machinery

Hydraulic structures and machinery are the backbone of water management systems. Dams, weirs, and spillways control water flow, while pumps and turbines harness its energy. Together, these elements provide water supply, flood control, and hydroelectric power.

Designing these systems requires understanding the forces acting on them. Engineers account for hydrostatic pressure, hydrodynamic forces, and uplift pressure to keep structures stable and safe. On the machinery side, proper selection of pumps and turbines ensures efficient performance across a range of conditions.

Hydraulic Structure Design

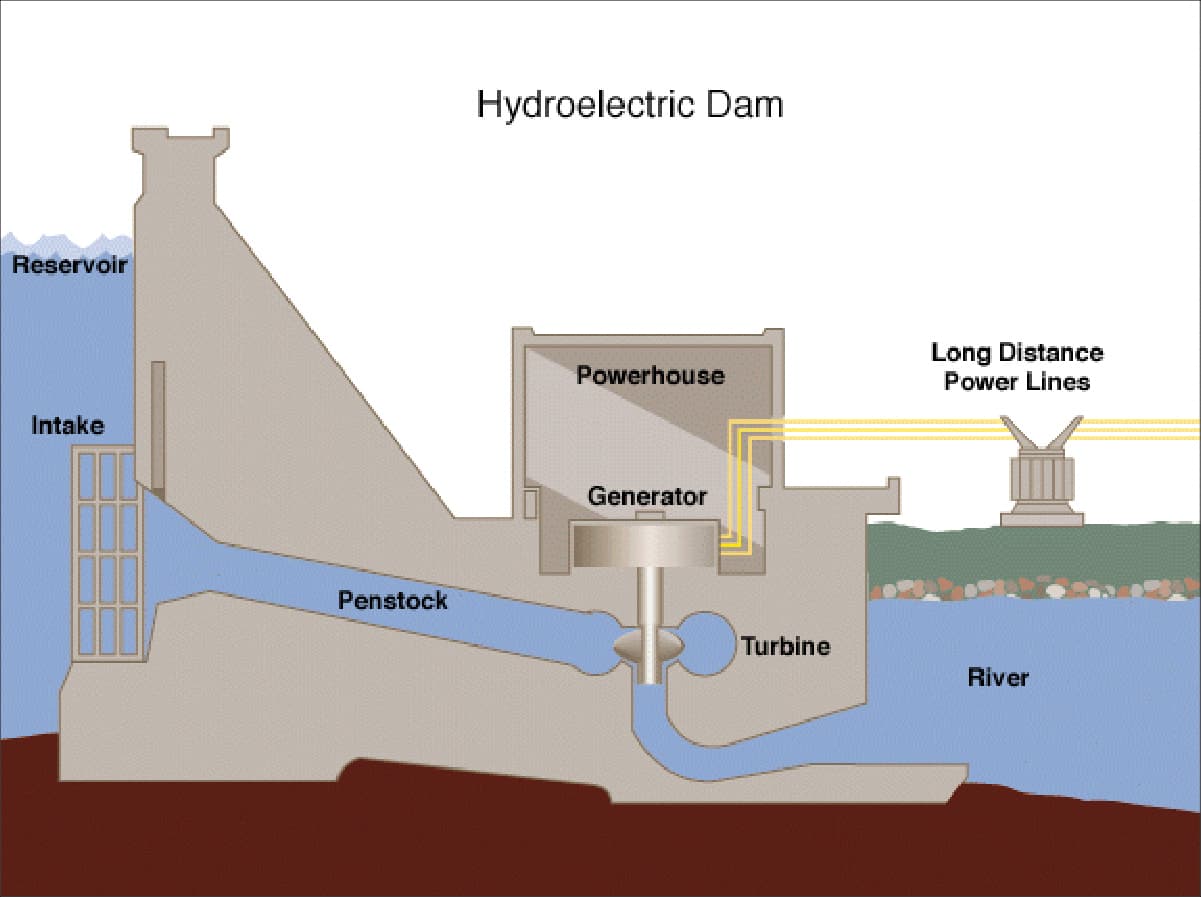

Dam, Weir, and Spillway Functions

Each type of hydraulic structure serves a distinct purpose in managing water:

• Dams impound water to create reservoirs for water supply, flood control, and hydropower generation.
• Weirs are low barriers across a channel that control water levels and allow engineers to measure flow rates. Because water flows over a weir in a predictable way, you can calculate discharge from the depth of water upstream.
• Spillways safely release excess water during floods, preventing a dam from being overtopped and potentially failing. They're essentially the dam's safety valve.

Designing any of these structures requires hydrological data (how much water to expect), site geology, structural integrity analysis, and assessment of environmental impacts.

Design Principles for Hydraulic Structures

• Dam type selection depends on site conditions. Gravity dams resist water pressure through sheer mass, arch dams transfer loads into the canyon walls, and earthfill dams use compacted soil or rock. Each suits different valley shapes and foundation materials.
• Foundation treatment and seepage control are critical for dam safety. Grouting and cutoff walls prevent water from undermining the foundation.
• Weir design focuses on crest shape, approach flow conditions, and tailwater effects, all of which influence how accurately you can measure discharge.
• Spillway design must include energy dissipation structures downstream. Water falling over a spillway carries enormous kinetic energy, and without features like stilling basins or flip buckets, that energy would erode the riverbed and threaten the dam's foundation.
• Common spillway types include ogee (curved crest for smooth flow), chute (steep channel), and side channel (flow parallel to the dam). The choice depends on site topography and required discharge capacity.

Forces on Hydraulic Structures

Types of Forces

Hydrostatic pressure acts perpendicular to the structure's surface and increases linearly with depth, following Pascal's law. At any point, the pressure equals $P = \rho g h$, where $\rho$ is water density, $g$ is gravitational acceleration, and $h$ is the depth below the surface. This is usually the dominant load on a dam.

Hydrodynamic forces result from flowing water and include drag, lift, and impact forces. These become significant during flood events or wherever flow velocities are high.

Uplift pressure is caused by water seeping under a structure. It pushes upward on the base, reducing the structure's effective weight and its ability to resist sliding or overturning. Engineers mitigate uplift through:

• Drainage galleries and relief wells within or beneath the structure
• Impervious barriers like cutoff walls and grout curtains that block seepage paths

Self-weight of the structure itself is what resists overturning and sliding. Gravity dams, for example, rely almost entirely on their mass for stability.

Stability Analysis

Engineers check a structure against three primary failure modes:

1. Overturning — Will the water pressure tip the structure forward? You compare the stabilizing moment (from self-weight) to the overturning moment (from hydrostatic and uplift forces).
2. Sliding — Will the structure slide along its base? You compare frictional resistance to the horizontal force from water pressure.
3. Bearing capacity — Can the foundation support the combined loads without excessive settlement or failure?

For each mode, a factor of safety is calculated (resisting forces divided by driving forces). Design codes from agencies like USACE and USBR specify minimum acceptable values.

In earthquake-prone regions, seismic forces require dynamic analysis. Additional stability measures such as shear keys or post-tensioning may be needed. Modern stability analysis often uses numerical methods like finite element analysis to model complex loading and geometry.

Hydraulic Machinery Principles

Pump Operating Principles

Pumps convert mechanical energy into hydraulic energy, increasing a fluid's pressure and/or velocity. The two main categories work in fundamentally different ways:

Centrifugal pumps use a rotating impeller to fling water outward, imparting kinetic energy. That kinetic energy is then converted to pressure energy as the flow slows down in the volute (spiral casing) or diffuser. These are the most common pump type for water supply and irrigation because they handle large flow rates efficiently.

Positive displacement pumps pressurize fluid by trapping a fixed volume and reducing the chamber size:

• Reciprocating pumps use pistons or plungers (common in well pumps)
• Rotary pumps use gears, lobes, or screws (common in oil transfer systems)

Positive displacement pumps deliver a nearly constant flow regardless of pressure, making them useful where precise flow control matters.

Turbine Operating Principles

Turbines do the reverse of pumps: they convert hydraulic energy into mechanical energy, typically to drive a generator for electricity production. They fall into two categories based on how they extract energy:

Reaction turbines operate fully submerged, extracting energy from both the pressure and velocity of water:

• Francis turbines suit medium-head applications (typical hydroelectric dams)
• Kaplan turbines suit low-head, high-flow applications (run-of-river plants). Their adjustable blades maintain efficiency across varying flow conditions.

Impulse turbines operate in air and convert the kinetic energy of high-velocity water jets:

• Pelton wheels suit high-head, low-flow sites (mountainous regions where water drops a long distance through a penstock)

Turbine performance is characterized by flow rate, head, power output, and efficiency, all of which are represented in characteristic curves that show how the machine behaves across its operating range.

Selecting Hydraulic Machinery

Performance Parameters

Flow rate ($Q$) and head ($H$) are the two primary parameters driving pump and turbine selection. Different machine types are designed for specific $Q$-$H$ ranges, so matching these to your site conditions is the first step.

Specific speed ($N_s$) is a dimensionless parameter that classifies pumps and turbines by their operating characteristics:

$N_s = \frac{N\sqrt{Q}}{H^{3/4}}$

where $N$ is rotational speed, $Q$ is flow rate, and $H$ is head. A low specific speed indicates a machine suited for high head and low flow; a high specific speed indicates low head and high flow. This single number guides you toward the right machine type.

Efficiency has three components: hydraulic (energy transfer between fluid and machine), volumetric (leakage losses), and mechanical (friction in bearings and seals). The product of all three gives overall efficiency, which directly affects energy costs over the life of the equipment.

Selection Process

For pumps, you start with a system curve analysis:

1. Calculate the static head (elevation difference the pump must overcome).
2. Determine friction losses in the piping system at various flow rates.
3. Plot the system curve (total head required vs. flow rate).
4. Overlay the pump's characteristic curve. The intersection is the operating point, where the pump will actually run.
5. Verify that the operating point falls near the pump's best efficiency point (BEP).

For turbines, selection depends on available head and expected flow variations:

Life cycle cost analysis is essential for any major selection decision. This goes beyond the purchase price to include energy consumption and maintenance over the equipment's lifespan. Engineers typically compare options using Net Present Value (NPV) or Internal Rate of Return (IRR) to account for the time value of money.
