Stormwater management is how engineers handle runoff from rain and snowmelt, especially in urban and agricultural areas. Without proper management, that runoff causes flooding, erosion, and water pollution. This section covers where stormwater comes from, how to manage it sustainably, how systems are designed, and how their effectiveness is measured.
Stormwater Runoff: Sources and Impacts
Urban and Agricultural Sources

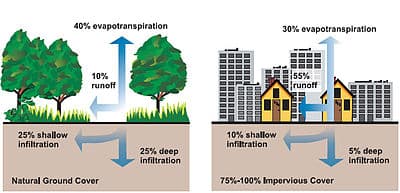

Stormwater runoff occurs when precipitation or snowmelt flows over land surfaces instead of soaking into the ground. The more impervious surface an area has (roads, parking lots, rooftops), the more runoff it generates, because water can't percolate through concrete or asphalt.
- Common sources include urban areas, construction sites, agricultural lands, and industrial facilities
- A typical city block generates about 5 times more runoff than a woodland area of the same size
- Impervious surfaces also absorb and retain heat. Runoff flowing over hot asphalt can raise stream temperatures by several degrees, harming aquatic ecosystems. This ties into the broader urban heat island effect.
Environmental Impacts
Runoff doesn't just move water; it moves pollutants. As it flows across surfaces, it picks up sediments, nutrients, heavy metals, and bacteria, then deposits them into streams, rivers, and lakes.
- Water quality degradation: Phosphorus from agricultural fertilizers, for instance, triggers algal blooms that deplete oxygen in water bodies and kill aquatic life.
- Erosion and flooding: Higher runoff volume and velocity scour stream banks and cause "flashy" flows, where water levels spike rapidly during storms and drop just as fast.
- Reduced groundwater recharge: In highly urbanized areas, groundwater recharge can drop by up to 35% compared to natural conditions, disrupting the natural hydrologic cycle across the watershed.
Sustainable Stormwater Management
Low Impact Development and Green Infrastructure
Both of these strategies aim to mimic natural hydrologic processes by promoting infiltration, evapotranspiration, and water reuse rather than simply piping runoff away.
- Low Impact Development (LID) manages stormwater at its source through small-scale, distributed practices. A bioswale along a roadside, for example, captures and filters runoff before it ever reaches a storm drain.
- Green Infrastructure (GI) uses natural systems and engineered solutions to manage stormwater while delivering additional environmental benefits. Green roofs are a common example: they absorb rainfall, reduce runoff volume, and provide building insulation at the same time.
The key distinction: LID is a design philosophy focused on source control, while GI is a broader category of nature-based solutions. In practice, they overlap significantly.
Best Management Practices and Design Principles
Best Management Practices (BMPs) are the specific structural and non-structural measures engineers use to reduce runoff and improve water quality. A few important ones:
- Constructed wetlands filter pollutants through natural biological processes while also creating wildlife habitat.
- Disconnecting impervious areas means redirecting runoff from hard surfaces to pervious areas where it can infiltrate. A simple example: disconnecting a roof downspout so it drains into a rain garden instead of a storm sewer.
- Rainwater harvesting collects roof runoff for later use in landscape irrigation or non-potable indoor applications, reducing both runoff volume and water demand.
A core design principle here is multifunctionality: stormwater controls should be integrated into site design so they serve more than one purpose. An infiltration basin built into a public park, for instance, handles stormwater while also providing recreational green space.
Stormwater Management System Design
Retention and Detention Systems
These two system types sound similar but work differently:
- Retention basins hold stormwater permanently or semi-permanently, allowing water to leave through infiltration, evaporation, and sediment settling. A wet pond with a permanent pool of water is a typical example; it provides additional storage capacity during storms above its normal water level.
- Detention basins temporarily store stormwater and release it at a controlled rate to reduce peak flows downstream. A dry basin empties completely between storm events, using outlet structures to regulate the discharge rate.
The simple distinction: retention basins keep water; detention basins delay water.
Infiltration and Permeable Surfaces
These approaches get water back into the ground rather than routing it through pipes.
- Infiltration trenches are linear excavations filled with gravel or other permeable material. Placed along the edge of a parking lot, for example, they capture sheet flow and allow it to soak into the surrounding soil.
- Permeable pavements are designed with void spaces that let water pass through the surface and infiltrate into underlying layers. Permeable interlocking concrete pavers in a plaza can significantly reduce runoff while recharging groundwater.
Design Considerations and Tools
Designing a stormwater system requires site-specific data and analysis. Key factors include:
- Site topography to determine how water flows across the landscape
- Soil characteristics to assess infiltration capacity (engineers conduct soil infiltration tests to determine whether infiltration-based BMPs are feasible at a given site)
- Rainfall intensity and runoff volume calculations based on local climate data and design storm events
- Pre-treatment measures such as sediment forebays and vegetated filter strips, which remove coarse sediment before it reaches the primary BMP, extending its functional lifespan
Hydraulic and hydrologic modeling tools help engineers size and optimize system components. EPA SWMM (Storm Water Management Model) is one widely used software package for simulating the performance of proposed stormwater systems against local regulations and design storms.
Evaluating Stormwater Management Effectiveness
Performance Monitoring and Analysis
Once a system is built, engineers need to verify it actually works. Evaluation centers on three key performance indicators:
- Runoff volume reduction: How much less water leaves the site compared to pre-development conditions?
- Peak flow attenuation: How effectively does the system reduce the maximum flow rate during a storm? This is typically measured at the outlet of detention or retention basins across multiple storm events.
- Pollutant removal efficiency: How much are contaminant concentrations reduced? Engineers collect water samples upstream and downstream of a BMP (using grab samples or automated samplers) to quantify removal rates.
Hydrograph analysis is another important tool. By comparing pre- and post-development runoff patterns using stream gauge data, engineers can evaluate whether flow control measures like LID practices are actually reducing peak flows in a watershed.
Long-term Assessment and Adaptive Management
Short-term performance data isn't enough. Stormwater systems change over time as sediment accumulates, vegetation matures, and materials degrade.
- Long-term monitoring tracks metrics like infiltration rates over several years to identify when maintenance is needed. A bioretention cell, for example, may show declining infiltration as fine sediments clog the soil media.
- Cost-benefit analysis compares the economic feasibility of different strategies. Green infrastructure often has higher upfront design costs but lower lifecycle costs than traditional gray infrastructure (pipes, concrete channels), plus it delivers environmental co-benefits.
- Life cycle assessment goes further by evaluating the full environmental footprint of a BMP, including carbon emissions from construction, operation, and maintenance over its entire design life.
- Adaptive management means adjusting practices based on what the monitoring data actually shows. If a rain garden's plant species aren't performing well under local climate conditions, you swap them out. The system improves continuously rather than being locked into its original design.
