2.2 Calculus

Calculus is the backbone of civil engineering math. It deals with rates of change and accumulation, which are crucial for understanding structural behavior and design. From stress analysis to fluid dynamics, calculus helps engineers model and solve complex real-world problems.

The main tools are limits, derivatives, and integrals. Engineers use them to optimize designs, calculate forces, and analyze material properties. Differential equations build on these tools, allowing engineers to model dynamic systems like vibrations in structures or fluid flow in pipes.

Limits, Continuity, and Derivatives

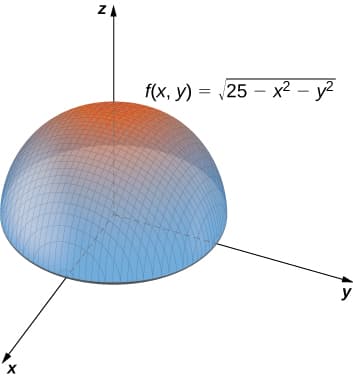

Fundamental Concepts of Limits and Continuity

A limit describes the value a function approaches as the input gets closer to a specific value. You're not asking "what does the function equal here?" but rather "what value is it heading toward?"

• Limits include one-sided limits (approaching from the left or right) and limits at infinity (what happens as $x$ grows without bound)
• Example: $\lim_{x \to 2} (x^2 - 4) = 0$

Continuity means a function has no breaks, jumps, or holes at a point. A function is continuous at a point when three conditions are met:

1. The function is defined at that point
2. The limit of the function as it approaches that point exists
3. The limit equals the function's actual value at that point

For example, $f(x) = x^2$ is continuous for all real numbers because it satisfies all three conditions everywhere.

Derivatives and Differentiation Techniques

The derivative of a function represents the rate of change, or the slope of the tangent line, at any point on the function's graph. Think of it as measuring instantaneous rate of change. A familiar example: velocity is the derivative of position with respect to time.

The formal definition comes from the difference quotient, which takes the slope of a secant line and shrinks the interval to zero:

$f'(x) = \lim_{h \to 0} \frac{f(x+h) - f(x)}{h}$

In practice, you'll rarely use the limit definition directly. Instead, you'll apply these differentiation rules:

• Power rule: $\frac{d}{dx}(x^n) = nx^{n-1}$
• Product rule: $\frac{d}{dx}(uv) = u\frac{dv}{dx} + v\frac{du}{dx}$
• Quotient rule: $\frac{d}{dx}\left(\frac{u}{v}\right) = \frac{v\frac{du}{dx} - u\frac{dv}{dx}}{v^2}$
• Chain rule: $\frac{d}{dx}(f(g(x))) = f'(g(x)) \cdot g'(x)$

Higher-order derivatives represent successive rates of change. The second derivative tells you the rate of change of the first derivative. For example, acceleration is the second derivative of position with respect to time. In civil engineering, the second derivative of a beam's deflection curve relates to the bending moment.

Implicit differentiation is used when you can't easily isolate one variable. For instance, to find $\frac{dy}{dx}$ for the equation $x^2 + y^2 = 25$, you differentiate both sides with respect to $x$, treating $y$ as a function of $x$, and then solve for $\frac{dy}{dx}$.

Differentiation for Optimization

Critical Points and Extrema

Critical points occur where the first derivative equals zero or is undefined. These are the candidates for local maxima and minima.

• Example: For $f(x) = x^3 - 3x^2 + 2x$, setting $f'(x) = 3x^2 - 6x + 2 = 0$ gives critical points at $x = 1 \pm \frac{1}{\sqrt{3}}$

Once you find critical points, you need to classify them:

• First derivative test: Check the sign of $f'(x)$ on either side of the critical point. If $f'$ changes from positive to negative, it's a local max. Negative to positive means a local min. No sign change means neither.
• Second derivative test: Evaluate $f''(x)$ at the critical point. If $f''(x) < 0$, it's a local maximum (concave down). If $f''(x) > 0$, it's a local minimum (concave up). If $f''(x) = 0$, the test is inconclusive and you should fall back to the first derivative test.

To find absolute extrema on a closed interval, evaluate the function at all critical points within the interval and at both endpoints. The largest value is the absolute max; the smallest is the absolute min.

Optimization Techniques in Civil Engineering

Optimization problems ask you to maximize or minimize a quantity like area, volume, cost, or efficiency. The general approach:

1. Define the quantity to optimize as a function of one or more variables
2. Write any constraint equations
3. Use substitution to reduce to a single-variable function (if possible)
4. Take the derivative, set it equal to zero, and solve
5. Verify your answer is a max or min using the derivative tests

Example: Designing a cylindrical water tank with minimum surface area for a given volume. You'd express surface area in terms of radius and height, use the volume constraint to eliminate one variable, then differentiate and solve.

When constraints can't be easily substituted away, the method of Lagrange multipliers finds extrema of a function subject to one or more constraints simultaneously. For instance, maximizing the volume of a rectangular box with a fixed surface area.

Civil engineering applications of optimization include:

• Designing structures for maximum strength with minimum material (truss optimization)
• Optimizing traffic flow in urban planning
• Minimizing construction costs while meeting safety standards
• Determining the optimal cross-sectional dimensions of a beam to minimize weight while maintaining required strength

Integration for Calculations

Definite Integrals and Fundamental Theorem of Calculus

Where derivatives measure rates of change, integrals measure accumulation. A definite integral represents the net area under a curve between two bounds.

You can approximate this area using Riemann sums, which divide the region into thin rectangles and add up their areas. As the rectangles get thinner, the approximation improves.

The Fundamental Theorem of Calculus connects differentiation and integration. It states that if $F(x)$ is an antiderivative of $f(x)$, then:

$\int_a^b f(x)\, dx = F(b) - F(a)$

This means you can evaluate a definite integral by finding an antiderivative and plugging in the bounds, rather than computing a limit of Riemann sums.

Example: The area under $y = x^2$ from $x = 0$ to $x = 2$ is $\int_0^2 x^2\, dx = \frac{x^3}{3}\Big|_0^2 = \frac{8}{3} - 0 = \frac{8}{3}$.

Integration Techniques and Applications

Not every integral is straightforward. Here are the main techniques you'll use:

• U-substitution: Works when the integrand contains a function and its derivative. You substitute to simplify the expression.
• Integration by parts: $\int u\, dv = uv - \int v\, du$. Useful when the integrand is a product of two different types of functions (e.g., $x \cdot e^x$).
• Partial fractions: Breaks a rational function into simpler fractions that are easier to integrate individually.
• Trigonometric substitution: Applies to integrals involving $\sqrt{a^2 - x^2}$, $\sqrt{a^2 + x^2}$, or $\sqrt{x^2 - a^2}$.

Improper integrals extend integration to infinite intervals or functions with vertical asymptotes. For example, $\int_0^\infty e^{-x}\, dx = 1$. You evaluate these as limits.

Civil engineering applications of integration include:

• Calculating moments of inertia for beam design (determines a cross-section's resistance to bending)
• Finding centroids of irregular shapes (the geometric center, which matters for load distribution)
• Determining hydrostatic pressure on surfaces like dams or retaining walls

Multiple integrals handle calculations in two and three dimensions:

• Double integrals calculate volumes and surface areas
• Triple integrals determine masses of three-dimensional objects
• Example: Finding the volume of a pyramid using a double integral

For volumes of solids of revolution (shapes formed by rotating a curve around an axis), two common methods apply:

• Shell method: $V = 2\pi \int_a^b x f(x)\, dx$
• Washer method: $V = \pi \int_a^b [R(x)^2 - r(x)^2]\, dx$

The choice between them depends on which makes the integral easier for a given problem.

Differential Equations in Civil Engineering

Ordinary Differential Equations (ODEs)

ODEs involve functions of one independent variable and their derivatives. They show up whenever a system's behavior depends on how quantities change relative to each other.

Example: $\frac{dy}{dx} + 2y = x$ is a first-order linear ODE.

Methods for solving first-order ODEs:

1. Separation of variables: Rearrange so each variable is on its own side, then integrate both sides: $\int \frac{dy}{g(y)} = \int f(x)\, dx$
2. Integrating factors: For equations in the form $\frac{dy}{dx} + P(x)y = Q(x)$, multiply both sides by $e^{\int P(x)\, dx}$ to make the left side a perfect derivative
3. Substitution methods: A change of variable can sometimes transform a complicated ODE into a simpler one

Second-order linear ODEs with constant coefficients are especially important in civil engineering. They have the general form:

$ay'' + by' + cy = f(x)$

To solve the homogeneous case ($f(x) = 0$), you form the characteristic equation $ar^2 + br + c = 0$ and solve for $r$. The nature of the roots (real and distinct, repeated, or complex) determines the form of the general solution. These equations model vibration analysis of structures, where the solution describes how a structure oscillates over time.

Partial Differential Equations (PDEs) and Numerical Methods

PDEs involve functions of multiple independent variables and their partial derivatives. They describe phenomena that vary across both space and time.

Example: $\frac{\partial^2 u}{\partial x^2} + \frac{\partial^2 u}{\partial y^2} = 0$ (Laplace's equation)

Common PDEs in civil engineering:

• Heat equation: Models how temperature distributes through a material over time
• Wave equation: Describes vibrations and wave propagation in structures
• Laplace's equation: Used in steady-state problems like groundwater flow and stress distribution

Most real-world PDEs can't be solved exactly, so engineers rely on numerical methods to approximate solutions:

• Euler's method: The simplest approach. It steps forward using $y_{n+1} = y_n + h \cdot f(x_n, y_n)$, where $h$ is the step size. Easy to understand but can accumulate error quickly with large steps.
• Runge-Kutta methods: Higher-order approximations (the fourth-order version, RK4, is widely used) that provide much better accuracy than Euler's method for the same step size.
• Finite difference methods: Discretize the entire domain into a grid and approximate derivatives at each grid point. This is the foundation for many computer-based structural analysis tools.

Example: Using Euler's method to approximate the deflection of a beam under load, stepping along the beam's length and computing deflection at each point.
