Statics and dynamics form the backbone of structural analysis in civil engineering. They help us understand how forces act on structures at rest and in motion, crucial for designing safe and efficient buildings and bridges.
These principles allow engineers to calculate loads, stresses, and movements in structures. From simple beams to complex skyscrapers, statics and dynamics provide the tools to ensure our built environment can withstand the forces of nature and daily use.
Forces and Moments on Structures
Vector Properties and Representation
Top images from around the web for Vector Properties and Representation
12.1 Conditions for Static Equilibrium | University Physics Volume 1 View original
Is this image relevant?
8.5: Applications of Statics - Physics LibreTexts View original
Is this image relevant?
Applications of Statics, Including Problem-Solving Strategies | Physics View original
Is this image relevant?
12.1 Conditions for Static Equilibrium | University Physics Volume 1 View original
Is this image relevant?
8.5: Applications of Statics - Physics LibreTexts View original
Is this image relevant?
1 of 3
Top images from around the web for Vector Properties and Representation
12.1 Conditions for Static Equilibrium | University Physics Volume 1 View original
Is this image relevant?
8.5: Applications of Statics - Physics LibreTexts View original
Is this image relevant?
Applications of Statics, Including Problem-Solving Strategies | Physics View original
Is this image relevant?
12.1 Conditions for Static Equilibrium | University Physics Volume 1 View original
Is this image relevant?
8.5: Applications of Statics - Physics LibreTexts View original
Is this image relevant?
1 of 3
Forces characterized by magnitude, direction, and point of application
Represented graphically or mathematically as vectors
Moments calculated as cross product of force vector and position vector
Example: Moment of a 100 N force acting 2 m from a pivot point equals 200 Nยทm
Principle of transmissibility applies to rigid bodies
Force effect independent of point of application along its line of action
Analysis Tools and Techniques

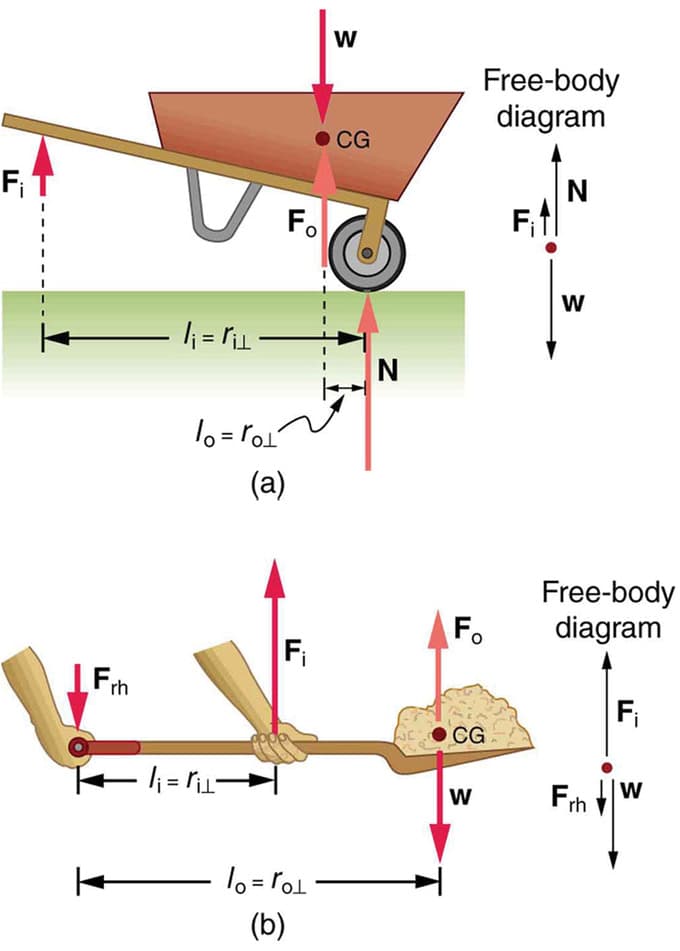

Free-body diagrams visualize all external forces and reaction forces on structures
Example: Diagram of a simply supported showing applied loads and support reactions
Distributed loads simplified to equivalent point loads using centroids and centers of pressure
Example: Uniform load on a beam replaced by a single force at the beam's midpoint
Static equivalence replaces complex force systems with simpler, equivalent systems
Structural analysis determines internal forces (axial, shear, bending) and moments
Method of sections cuts through a structure to analyze internal forces
Method of joints analyzes forces at connection points in trusses
Equilibrium Conditions for Forces
2D and 3D Equilibrium Equations
achieved when sum of forces and moments equals zero
Expressed as โF=0 and โM=0
2D systems use three equations: โFxโ=0, โFyโ=0, โM=0 about any point
3D problems require six equations: โFxโ=0, โFyโ=0, โFzโ=0, โMxโ=0, โMyโ=0, โMzโ=0
Static determinacy occurs when unknown reactions equal independent equilibrium equations
Constraints and supports determine types of reactions in a system
Pin joints allow rotation but prevent translation
Roller supports permit translation in one direction
Fixed supports prevent both rotation and translation
Advanced Equilibrium Concepts
Principle of superposition breaks complex loading into simpler cases
Example: Analyzing a beam with both point and distributed loads separately, then combining results
Friction forces governed by Coulomb's law of friction
Crucial for problems involving inclined planes or impending motion
Static friction force FsโโคฮผsโN, where ฮผsโ coefficient of static friction and N normal force
Kinetic friction force Fkโ=ฮผkโN, where ฮผkโ coefficient of kinetic friction
Impending motion analysis determines conditions just before movement occurs
Example: Determining angle at which a block on an incline begins to slide
Principles of Kinematics and Kinetics
Kinematics: Motion Description
Describes object motion without considering causing forces
Focuses on position, velocity, and acceleration
Rectilinear motion occurs along straight line
Curvilinear motion follows curved path
Kinematic equations for constant acceleration
v=v0โ+at
x=x0โ+v0โt+21โat2
v2=v02โ+2a(xโx0โ)
Projectile motion combines horizontal and vertical components
Example: Calculating range and maximum height of a ball thrown at an angle
Relative motion analysis compares movement in different reference frames
Example: Determining velocity of a passenger walking in a moving train relative to the ground
Kinetics: Forces and Resulting Motion
Relates forces to resulting motion, incorporating statics and kinematics concepts
Work, energy, and power fundamental to kinetics
Work equals force multiplied by displacement in force direction
of moving object KE=21โmv2
Power equals work done per unit time
Work-energy principle states change in kinetic energy equals net work done on object
Conservation of energy principle crucial for problem-solving
Example: Analyzing roller coaster motion using conservation of mechanical energy
Newton's Laws for Dynamics Problems
Fundamental Laws and Applications
Newton's First Law introduces inertia concept
Objects remain at rest or unless acted upon by external force
Newton's Second Law relates force, mass, and acceleration: F=ma
Forms basis for many dynamics calculations
Example: Calculating force needed to accelerate a 1000 kg car from 0 to 100 km/h in 10 seconds
Newton's Third Law states every action has equal and opposite reaction
Crucial for understanding force pairs in dynamic systems
Example: Rocket propulsion relies on reaction force of expelled gases
Advanced Dynamics Concepts
Linear momentum p=mv and its conservation principle derived from Newton's laws
Essential for solving collision problems
Example: Analyzing momentum before and after collision of two objects
Angular momentum analogous to linear momentum for rotational motion
L=Iฯ, where I moment of inertia and ฯ angular velocity
Impulse-momentum relationships useful for impact and short-duration force scenarios
Impulse equals change in momentum: Fฮt=mฮv
D'Alembert's principle transforms dynamics problems into equivalent static problems
Introduces inertial forces to bridge statics and dynamics
Example: Analyzing forces on elevator passengers during acceleration using an equivalent static system
Key Terms to Review (18)
Accelerated motion: Accelerated motion refers to the change in velocity of an object over time, which can include increases or decreases in speed, or changes in direction. This concept is crucial in understanding how forces influence movement, as it links directly to the laws of motion, where unbalanced forces cause acceleration. Recognizing the nature of accelerated motion is essential for analyzing dynamic systems where objects are not at rest and are influenced by various forces.
Beam: A beam is a structural element that primarily resists loads applied laterally to its axis. It is designed to support and transfer weight from one point to another, typically spanning across supports like walls or columns. Beams play a crucial role in maintaining the integrity and stability of structures, distributing forces effectively while resisting bending, shear, and deflection.
Compression: Compression refers to the process of applying a force that reduces the volume of a material or structure, typically resulting in the shortening of its length. This term is crucial for understanding how structures bear loads, as it relates to the internal forces acting within materials and how these forces affect their stability and integrity under various loading conditions.
Distributed Load: A distributed load is a type of load that is spread over a surface or length rather than being concentrated at a single point. This load can vary in magnitude and can be uniform or non-uniform across the structure. Understanding distributed loads is essential in analyzing structures for both static and dynamic conditions, as they influence how forces are transmitted through materials.
Equilibrium: Equilibrium refers to a state in which all forces acting on a body are balanced, resulting in no net force and no acceleration. This concept is crucial in understanding how structures and systems remain stable, as it signifies that the sum of all forces and moments equals zero, leading to a condition where objects maintain their position or move with constant velocity. The principles of equilibrium are foundational in analyzing both static and dynamic systems, as they allow engineers to determine how loads are distributed and how structures respond to external influences.
Free-body diagram: A free-body diagram is a visual representation used in physics and engineering to show all the external forces acting on a single object, isolated from its surroundings. This diagram helps to simplify complex situations by focusing solely on the object in question and the forces that influence its motion, making it essential for analyzing problems in statics and dynamics.
Kinetic energy: Kinetic energy is the energy an object possesses due to its motion, which is defined mathematically by the equation $$KE = \frac{1}{2} mv^2$$, where 'm' is the mass of the object and 'v' is its velocity. This type of energy is crucial in understanding how objects move and interact in both static and dynamic systems. It plays a vital role in concepts such as work, force, and momentum, highlighting the relationship between motion and energy transfer.
Moment Arm: The moment arm is the perpendicular distance from the line of action of a force to the axis of rotation. This distance plays a critical role in determining the torque produced by that force. A larger moment arm results in greater torque, which is essential for understanding the balance and movement of structures and bodies in both statics and dynamics.
Newton's Laws of Motion: Newton's Laws of Motion are three fundamental principles that describe the relationship between the motion of an object and the forces acting on it. These laws provide a framework for understanding both statics, where forces are balanced and objects are at rest, and dynamics, where unbalanced forces cause motion. By applying these laws, one can predict how objects will behave under various conditions, making them essential to the study of mechanics.
Point Load: A point load is a concentrated force applied at a specific point on a structure, causing stress and deformation in that localized area. Understanding point loads is essential for analyzing the stability and strength of structures, as they significantly affect how forces are distributed throughout a system. This concept is particularly important in assessing the performance and safety of structural elements under various load conditions.
Potential Energy: Potential energy is the energy stored in an object due to its position or state, which can be converted into kinetic energy when the object is set in motion. This energy is often associated with gravitational forces, as it depends on an object's height above a reference point, but it can also relate to other forces such as elastic or electric forces. Understanding potential energy is crucial for analyzing systems in both statics and dynamics, where the position and configuration of objects play a vital role in their behavior and movement.
Static equilibrium equations: Static equilibrium equations are mathematical expressions used to analyze the forces and moments acting on a body at rest, ensuring that the sum of all forces and moments equals zero. These equations are fundamental in understanding how structures maintain stability under applied loads, forming a critical part of statics in engineering mechanics.
Stress Analysis: Stress analysis is the method used to determine the internal forces, stresses, and deformations in materials and structures under external loads. By applying principles of equilibrium and material mechanics, this analysis helps engineers understand how structures will behave when subjected to various types of forces, whether static or dynamic.
Tension: Tension is a force that is transmitted through a string, rope, cable, or any other flexible medium when it is pulled tight by forces acting from opposite ends. This force plays a critical role in understanding how structures react to loads, influencing both stability and performance. In engineering, it's essential to analyze how tension affects structural integrity and safety, particularly in different scenarios involving various materials and design considerations.
Torque: Torque is a measure of the rotational force applied to an object, often referred to as the moment of force. It is crucial in understanding how forces cause objects to rotate around an axis, and is defined mathematically as the product of the force applied and the distance from the axis of rotation (lever arm). This concept connects to various principles in mechanics, including equilibrium and motion, where understanding how torque influences rotation is essential for analyzing structures and mechanical systems.
Truss: A truss is a structural framework composed of interconnected elements, typically arranged in triangular shapes, that support loads and provide stability. This design effectively distributes forces throughout the structure, making it a crucial component in bridges, roofs, and various other engineering applications. The efficiency of a truss lies in its ability to maintain structural integrity while using less material compared to solid beams, which is vital in both static and dynamic load conditions as well as in the utilization of timber and wood products.
Uniform Motion: Uniform motion refers to the movement of an object at a constant speed in a straight line, meaning it covers equal distances in equal intervals of time without changing direction. This concept is fundamental as it establishes a baseline for understanding more complex types of motion, providing insights into the principles of dynamics and how forces interact with static objects. When an object is in uniform motion, its velocity remains unchanged, making it easier to analyze scenarios involving forces and equilibrium.
Vibration Analysis: Vibration analysis is the process of measuring and interpreting vibrations in mechanical systems to identify issues and predict equipment failures. This technique is crucial for understanding the dynamic behavior of structures and machines, ensuring their operational reliability and safety. By analyzing vibration patterns, engineers can detect imbalances, misalignments, and wear, leading to timely maintenance and improved design.
