2.3 Geometry and Spatial Reasoning

Geometry and spatial reasoning form the backbone of civil engineering design and analysis. These mathematical tools allow engineers to conceptualize, measure, and manipulate physical structures and environments with precision.

From basic Euclidean principles to 3D modeling, geometric concepts show up in everything from road layout to structural analysis. This guide covers the core geometry, coordinate systems, and vector operations you'll need, then connects them to real civil engineering applications.

Euclidean Geometry Principles

Axioms and Fundamental Concepts

Euclidean geometry starts with a small set of axioms (statements accepted as true without proof) that form the foundation for all plane and solid geometry.

• The parallel postulate states that through a point not on a line, exactly one line can be drawn parallel to the given line.
• Another key axiom: two points determine a unique line.

These axioms let you build up everything else. The key geometric elements you'll work with:

• Points have no dimension; they just mark a location in space.
• Lines extend infinitely in both directions with no width.
• Planes are flat surfaces extending infinitely in all directions.
• Angles measure the space between two intersecting lines or planes.
• Polygons are closed figures with straight sides (triangles, quadrilaterals, etc.).

Two important comparison principles come up constantly:

• Congruent shapes have the same size and shape (identical if you overlay them).
• Similar shapes have the same shape but may differ in size (same angles, proportional sides).

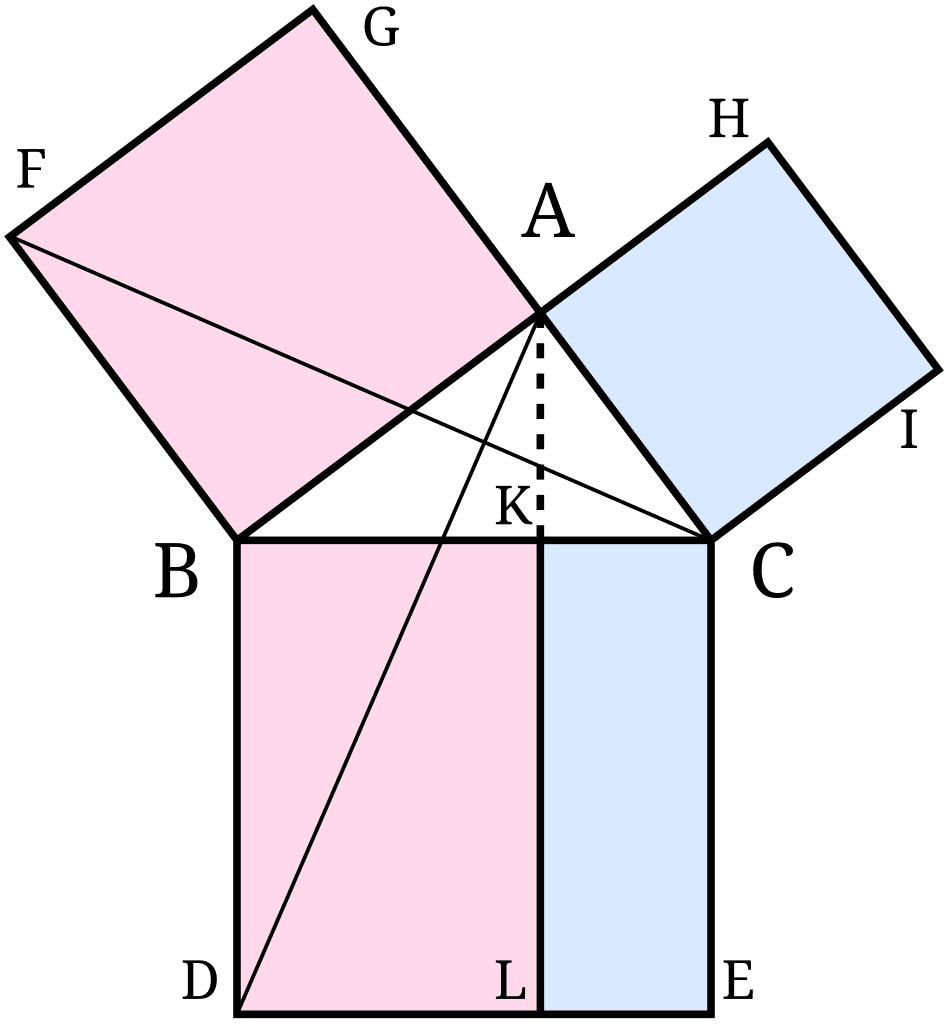

The Pythagorean theorem relates side lengths in right triangles. For a right triangle with legs $a$ and $b$ and hypotenuse $c$:

$a^2 + b^2 = c^2$

You'll use this far beyond simple triangles. It's the basis for calculating distances between any two points in a coordinate system.

Trigonometry and Measurement

Trigonometric ratios come from right triangle relationships. For a given angle in a right triangle:

• Sine = opposite / hypotenuse
• Cosine = adjacent / hypotenuse
• Tangent = opposite / adjacent

These let you solve for unknown angles and distances, which is essential for surveying, slope calculations, and structural design.

Common area formulas (2D):

• Rectangle: $A = l \times w$
• Triangle: $A = \frac{1}{2} \times b \times h$
• Circle: $A = \pi r^2$

Common volume formulas (3D):

• Rectangular prism: $V = l \times w \times h$
• Sphere: $V = \frac{4}{3}\pi r^3$
• Cylinder: $V = \pi r^2 h$

In civil engineering, these formulas are how you calculate material quantities (how much concrete for a column), design usable spaces, and analyze structural capacities.

Shapes and Properties in 2D & 3D

Two-Dimensional Shapes

Triangles are classified two ways:

• By side lengths: equilateral (all equal), isosceles (two equal), scalene (none equal)
• By angles: acute (all angles < 90°), right (one 90° angle), obtuse (one angle > 90°)

Quadrilaterals include squares, rectangles, parallelograms, and trapezoids. Regular polygons (pentagons, hexagons, etc.) have all sides and interior angles equal.

Angle patterns in polygons follow a simple rule:

• Interior angles of any triangle sum to 180°.
• For a polygon with $n$ sides, the sum of interior angles is $(n - 2) \times 180°$. So a hexagon ($n = 6$) has interior angles summing to $720°$.

Circle properties tie radius, diameter, circumference, and area together. Circumference is $C = 2\pi r$. Central angles and inscribed angles relate directly to arc lengths and chord lengths, which matters when you're designing curved structures.

Three-Dimensional Solids

3D shapes fall into two broad categories:

• Polyhedra have flat faces, straight edges, and vertices (cubes, pyramids, prisms).
• Curved solids have at least one curved surface (spheres, cylinders, cones).

The five Platonic solids are regular polyhedra where every face is identical: tetrahedron, cube, octahedron, dodecahedron, and icosahedron. These show up less in daily engineering work but illustrate important symmetry principles.

Cross-sections reveal the internal shape of a 3D object when sliced by a plane. For example, slicing a cylinder parallel to its base gives a circle, while slicing at an angle gives an ellipse. A cube can produce triangular, rectangular, or even hexagonal cross-sections depending on the cut angle. Understanding cross-sections is critical for analyzing beams and columns.

Projections map 3D objects onto 2D surfaces for engineering drawings:

• Orthographic projection shows separate top, front, and side views. This is the standard for construction documents.
• Isometric projection gives a 3D-like view on a 2D surface, useful for visualizing how parts fit together.

Symmetry and Advanced Concepts

Symmetry shows up in three main forms:

• Reflectional symmetry (mirror symmetry) across a line or plane
• Rotational symmetry around a point or axis
• Translational symmetry in repeating patterns (think of a row of evenly spaced bridge piers)

Topology studies properties that don't change under continuous deformation (stretching, bending, but not tearing). It focuses on connectivity, holes, and boundaries rather than exact shape. In civil engineering, topological thinking helps when analyzing networks like road systems or pipe layouts.

Computer-Aided Design (CAD) software is how engineers create and analyze 2D and 3D models in practice. Common tools in civil engineering include AutoCAD, SolidWorks, and Revit. These programs enable precise modeling, virtual testing, and team collaboration on complex projects.

Coordinate Systems and Vectors

Cartesian Coordinates

The Cartesian system represents points using perpendicular axes:

• In 2D, you use $x$ and $y$ coordinates on a plane. A point is written as an ordered pair like $(3, 5)$.
• In 3D, a $z$ coordinate is added for height or depth. A point becomes a triple like $(3, 5, 2)$.
• The origin is $(0, 0)$ in 2D or $(0, 0, 0)$ in 3D.

Lines in 2D are represented by $y = mx + b$, where $m$ is the slope and $b$ is the y-intercept. Planes in 3D are described by equations like $ax + by + cz = d$, where $a$, $b$, and $c$ are components of the normal vector (a vector perpendicular to the plane).

Alternative Coordinate Systems

Polar coordinates represent points using distance and angle from the origin: $(r, \theta)$, where $r$ is the distance and $\theta$ is the angle from the positive x-axis. These are especially useful for problems involving circular motion or radial symmetry, like designing curved roadways.

Spherical coordinates extend the polar system into 3D: $(r, \theta, \phi)$, where $r$ is distance from the origin, $\theta$ is the azimuthal angle, and $\phi$ is the polar angle. These are efficient for describing dome structures or any geometry with spherical symmetry.

Vectors and Operations

Vectors represent quantities that have both magnitude and direction. They're depicted as arrows in space or as ordered lists of components. In engineering, vectors describe forces, velocities, and displacements.

Key vector operations:

• Vector addition combines vectors tip-to-tail or by adding their components. The resultant vector represents the net effect. For example, if two forces act on a beam, adding the force vectors gives you the total force.
• Scalar multiplication changes a vector's magnitude without altering its direction. Multiplying a force vector by 2 doubles the force.
• Dot product measures how aligned two vectors are: $\mathbf{a} \cdot \mathbf{b} = |\mathbf{a}||\mathbf{b}|\cos\theta$ This is used in work calculations (force times displacement in the same direction) and in projecting one vector onto another.
• Cross product produces a new vector perpendicular to both input vectors: $\mathbf{a} \times \mathbf{b} = |\mathbf{a}||\mathbf{b}|\sin\theta \, \mathbf{\hat{n}}$ This is used in torque calculations and for finding normal vectors to planes.

Advanced Spatial Techniques

Transformation matrices modify geometric objects in space. Rotation, scaling, and translation can all be represented as matrix operations. These are essential for computer graphics and structural analysis simulations.

Geographic Information Systems (GIS) combine mapping with database functionality to manage spatial data. GIS lets engineers analyze relationships between geographic features, which is valuable for urban planning, environmental studies, and infrastructure siting.

Geometric Principles for Civil Engineering

Transportation Infrastructure Design

Road geometry involves curves, sight distances, and spatial relationships:

• Horizontal curves are designed as circular arcs or spiral transitions to guide vehicles smoothly around bends.
• Vertical curves (parabolic) ensure smooth elevation changes over hills and valleys.
• Sight distance calculations use geometry to verify that drivers can see far enough ahead to stop safely. For instance, on a crest vertical curve, the curve length must be sufficient so that a driver's line of sight clears the top of the hill.

Intersection design applies angle and area principles. Turning radii depend on vehicle types and speeds (a semi-truck needs a much larger radius than a car). Traffic islands and medians are shaped to direct flow and improve safety.

Structural Analysis and Design

Geometric properties of cross-sections are crucial for analyzing structural elements:

• Cross-sectional area directly affects load-bearing capacity. A larger area can carry more compressive load.
• Moment of inertia (also called second moment of area) influences how stiff a beam is and how much it deflects under load. A deeper beam has a much higher moment of inertia than a shallow one.
• Section modulus relates to bending stress in beams. It's derived from the moment of inertia divided by the distance to the extreme fiber.

Truss analysis uses geometry to determine how forces distribute through a structure:

1. Method of joints: At each node (joint), you apply vector equilibrium. The forces must sum to zero in both the x and y directions, letting you solve for unknown member forces.
2. Method of sections: You cut through the truss with an imaginary line, isolating a portion, then apply equilibrium equations to solve for internal forces in the cut members.

Hydraulic and Environmental Engineering

Channel and pipe design depends heavily on cross-sectional geometry:

• Circular pipes optimize flow capacity relative to material use, which is why most pressurized water mains and sewer lines are round.
• Trapezoidal channels balance hydraulic efficiency with ease of construction for open channels like irrigation canals.

Reservoir design considers volume-elevation relationships. Stage-storage curves are derived from topographic data and show how much water a reservoir holds at each elevation. Spillway design uses principles of weir hydraulics and free-fall trajectories to safely pass excess water.

Water treatment facilities rely on geometric arrangements too. Sedimentation tanks are sized for optimal particle settling time, and filtration systems use specific surface area calculations to maximize contact between water and filter media.

Geotechnical and Surveying Applications

Slope stability analysis applies geometry to soil mechanics:

• The slip circle method assumes a circular failure surface and checks whether the soil's resistance exceeds the driving forces along that arc.
• Infinite slope analysis applies to long, uniform slopes where end effects can be ignored.

Foundation design considers how loads spread through soil:

• Spread footings use area calculations to keep bearing pressure (force per unit area) below the soil's capacity. A footing carrying 200 kN on soil rated for 100 kPa needs at least 2 $m^2$ of area.
• Pile foundations transfer loads to deeper, stronger soil layers. Their geometry (cylindrical shafts, sometimes with conical tips) determines both skin friction and end-bearing capacity.

Surveying techniques rely on geometric relationships:

• Triangulation uses trigonometry to determine distances and positions from measured angles.
• Leveling applies principles of horizontal planes and vertical measurements to establish elevations across a site.

Building Information Modeling (BIM)

BIM integrates 3D geometry with project data so that a model isn't just a shape; it contains information about materials, costs, and schedules.

• Parametric modeling means that when you change one dimension, related elements update automatically. Widen a corridor, and the adjacent walls, floor area, and material quantities all adjust.
• Clash detection uses spatial relationships to flag conflicts between building systems before construction. For example, it can catch a duct running through a structural beam.

4D BIM adds the time dimension for construction scheduling. It links 3D model elements to a project timeline, letting teams visualize the construction sequence and spot logistical issues (like needing crane access to an area that's already been built around).
