3.2 Computer-Aided Design (CAD)

CAD Software Essentials

Computer-Aided Design (CAD) is software that lets engineers create 2D drawings and 3D models digitally. It replaces manual drafting with tools that are faster, more precise, and easier to edit. CAD also makes it simple to share designs with teammates, clients, and manufacturers, so everyone's working from the same information.

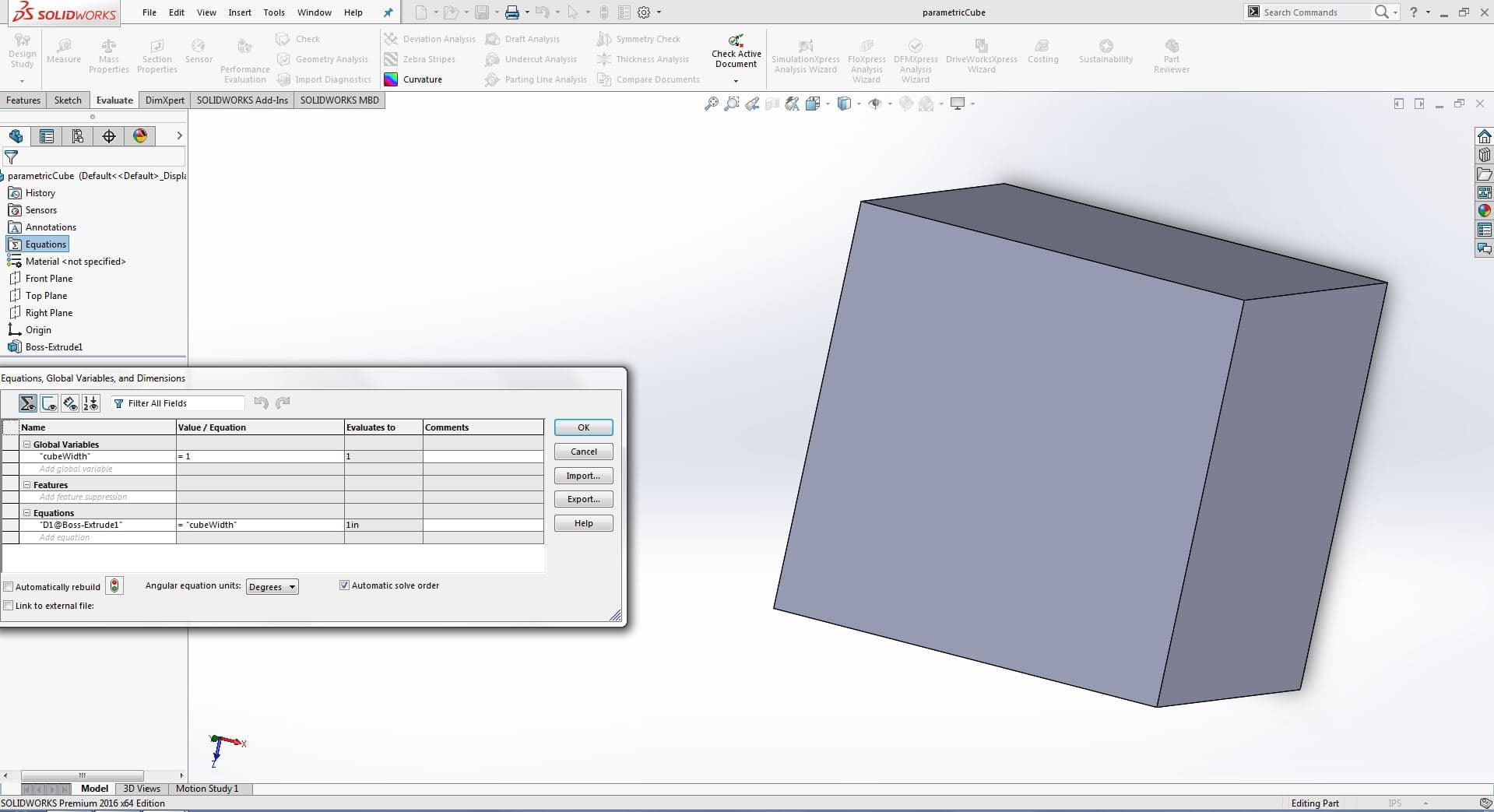

Interface and Basic Tools

Most CAD programs share a common layout: viewports (where you see your model), toolbars (quick-access buttons for common tools), a command line (where you can type commands directly), and menus for navigating deeper features.

2D drawing tools are where most designs start. You'll use these to create lines, arcs, splines, and geometric shapes like circles and rectangles. These simple elements combine to form the foundation of more complex designs.

3D modeling builds on those 2D foundations using a few key techniques:

• Extrusion takes a 2D shape and stretches it along a path to create a solid 3D object. Think of pushing a cookie cutter shape straight up to make a block.
• Revolution rotates a 2D profile around an axis. This is how you'd model something like a bowl or a shaft.
• Lofting creates a 3D shape by blending between two or more 2D cross-sections. It's useful for shapes that gradually change, like a duct that transitions from a circle to a rectangle.

Transformation tools let you modify objects after they're created:

• Scaling adjusts size, either uniformly (same in all directions) or non-uniformly
• Rotating changes orientation around a specified axis
• Mirroring creates a symmetrical copy across a line or plane
• Array creation replicates objects in linear, circular, or custom patterns (useful for things like bolt holes evenly spaced around a circle)

Advanced Features and Organization

Layer management is how you keep complex designs organized. Each layer groups related elements together, and you can assign colors to layers for quick identification (for example, structural elements in blue, electrical in red). Toggling layer visibility on and off lets you focus on just the parts you need without deleting anything.

Dimensioning and annotation tools add the measurements, notes, and symbols that communicate your design specifications:

• Linear dimensions indicate lengths and distances
• Angular dimensions specify angles between lines or surfaces
• Geometric tolerancing symbols convey allowable variations in form and position

Many CAD programs also include industry-specific tools. Architectural packages offer tools for creating walls, doors, and windows. Mechanical packages include libraries of standard parts like bolts and gears, saving you from modeling common components from scratch.

Technical Drawing Generation

Technical drawings are the standardized documents that communicate a design to fabricators, contractors, and other engineers. CAD software generates these drawings from your models, but you still need to understand the conventions behind them.

Drawing Standards and Projections

Two major standards govern how technical drawings are formatted:

• ANSI (American National Standards Institute), used primarily in North America
• ISO (International Organization for Standardization), adopted globally

Orthographic projection is the core technique for representing a 3D object as a set of 2D views. Each view shows the object from one direction:

• Front view shows the object as seen head-on
• Top view shows the object from above
• Side view shows the object from the left or right

Together, these views fully describe the object's geometry without any perspective distortion.

Section views cut through an object to reveal internal features that wouldn't be visible in a standard view:

• Full sections slice entirely through the object
• Half sections show the interior on one half and the exterior on the other, useful when the object is symmetrical
• Offset sections use a stepped cutting plane that jogs through multiple features of interest

Dimensioning and Drawing Types

Dimensioning on a technical drawing tells the manufacturer exactly what sizes and tolerances to hit:

• Linear dimensions specify lengths, widths, and heights
• Radial dimensions specify the size of circular features (holes, arcs)
• GD&T (Geometric Dimensioning and Tolerancing) symbols communicate tolerances for form, orientation, and location. GD&T goes beyond simple size to control things like flatness, concentricity, and true position.

Engineers produce two main types of drawings:

• Detail drawings focus on a single part, showing every dimension and specification needed to manufacture it
• Assembly drawings show how multiple parts fit together, often using exploded views to clarify the relationships between components

Drawing layout involves arranging views, notes, and a title block on a standardized sheet. The title block contains essential information: project name, drawing number, scale, revision history, and who approved the drawing.

Output and Reproduction

When it's time to print or share drawings, CAD software provides tools to control the output:

• Scale settings adjust the drawing to fit standard paper sizes (A0, A1, A2, etc.)
• Line weight controls vary line thickness so that object outlines, hidden lines, and centerlines are all visually distinct, improving readability

For digital deliverables, most CAD programs can export to PDF for easy sharing and archiving. Some also support 3D PDF, which lets recipients rotate and inspect a model interactively without needing CAD software.

Parametric Modeling Concepts

Parametric modeling is a design approach where the geometry of your model is driven by parameters (dimensions and constraints) rather than fixed coordinates. Change a parameter, and the entire model updates automatically. This makes design iteration much faster because you don't have to redraw anything from scratch.

Fundamentals of Parametric Design

Two types of constraints define how a parametric model behaves:

• Dimensional constraints specify sizes and distances (e.g., "this hole is 10 mm in diameter")
• Geometric constraints enforce relationships between elements (e.g., these two lines must stay parallel, or this arc must be tangent to that line)

Feature-based modeling builds a 3D model through a sequence of operations, each one adding or modifying geometry:

1. Start with a base feature, typically an extruded or revolved 2D sketch
2. Add secondary features that refine the shape: holes, fillets (rounded edges), chamfers (angled edges), and so on
3. Each feature is recorded in order and can be edited independently

The process starts with sketch-based modeling, where you draw a 2D profile and then apply a 3D operation to it. A fully defined sketch has all its dimensions and constraints locked down, so nothing can shift unexpectedly. An under-defined sketch still has some freedom, which can be useful early in the design process but should be resolved before finalizing.

Advanced Parametric Techniques

Constraints and relations are what encode your design intent. Beyond basic parallelism and perpendicularity, you can apply:

• Tangency constraints to ensure smooth transitions between curves or surfaces
• Symmetry constraints to keep a design balanced about a centerline

Design tables and configurations let you create families of parts from a single model. By varying key dimensions in a spreadsheet-like table, you can generate multiple sizes of the same part (say, a bracket in small, medium, and large) without building separate models. You can also swap material properties to create different versions of a component.

Assembly modeling brings individual parts together using mate constraints that define how components interact:

• Coincident mates align faces or edges of different parts
• Gear mates simulate rotational relationships between meshing components

The history tree (sometimes called the feature tree) is a chronological record of every modeling operation. It displays parent-child relationships between features, so you can see which features depend on others. You can reorder, edit, or suppress features in the tree to quickly explore design changes.

Collaboration in CAD Environments

Real engineering projects involve teams, and CAD environments include tools to keep everyone's work organized and compatible.

Version Control and File Management

Version control systems track every change made to a design file and manage revisions across a team:

• Check-in/check-out systems prevent two people from editing the same file at the same time, avoiding conflicts
• Branching allows parallel development of design variations that can later be merged

File naming conventions and folder structures keep projects navigable. A typical convention might use project-specific prefixes (e.g., PRJ001_BRACKET_A), with hierarchical folders separating assemblies, individual parts, and drawings.

Reference file management is how large assemblies stay manageable. Instead of copying geometry into one massive file, you link to external part files. When a source file is updated, the assembly updates automatically. Lightweight references load simplified versions of parts to improve performance when working with large assemblies.

Data Exchange and Collaborative Tools

Different teams often use different CAD software, so data exchange formats are critical for interoperability:

• STEP (Standard for the Exchange of Product model data) is the most common format for transferring 3D models between platforms
• DXF (Drawing Exchange Format) is widely used for sharing 2D drawings

Cloud-based CAD platforms and PDM (Product Data Management) systems enable real-time collaboration. Multiple users can edit models simultaneously, and files are automatically backed up and synchronized.

Review tools help teams give feedback without altering the original design:

• Redlining tools let reviewers add comments and markups directly on drawings
• Comparison tools highlight differences between design iterations, making it easy to see what changed

Access control regulates who can view or edit sensitive design files. Role-based permissions assign privileges based on job function, and time-limited access can be granted to temporary team members or outside contractors.
