Building Information Modeling Fundamentals
Building Information Modeling (BIM) is a process for creating and managing digital representations of a building's physical and functional characteristics. Unlike a standard 3D model, a BIM model contains data about every component: what material a wall is made of, how much a beam weighs, when a system needs maintenance. That data stays useful from initial planning through construction, daily operations, and even eventual demolition.
For civil engineers, BIM matters because it gives every team member access to the same up-to-date information, which dramatically reduces miscommunication and costly errors on-site.
Core Concepts and Digital Representation
A BIM model is an intelligent 3D model, meaning each element carries information beyond just its shape. A wall isn't just a rectangle; it knows its thickness, material, fire rating, and cost. This intelligence is what separates BIM from basic CAD drafting.
- Multidisciplinary data integration: BIM pulls together architectural, structural, and MEP (mechanical, electrical, plumbing) information into one coordinated environment.
- Enhanced visualization: Stakeholders who aren't engineers can actually see what the building will look like and how systems fit together, which leads to better feedback early on.
- Clash detection: The software automatically identifies conflicts between building systems before construction starts. For example, if a ductwork run passes through a structural beam, BIM flags it so the team can fix it virtually rather than discovering it on the job site.
- Real-time collaboration: Multiple team members can work on the model with version control, so changes are tracked and nobody overwrites someone else's work.
Benefits and Applications
Cost estimation becomes far more reliable with BIM. Because every element in the model carries material and dimensional data, you can generate quantity takeoffs (counts and measurements of all materials needed) directly from the model instead of measuring drawings by hand.
- Material schedules, like how many cubic meters of concrete or linear meters of piping are needed, update automatically as the design changes.
- Project management improves because information is centralized. Everyone works from the same source of truth.
BIM also extends well beyond the construction phase:
- Facilities management: Building owners use BIM data to track maintenance schedules, equipment locations, and renovation plans.
- Decommissioning: When a building reaches end-of-life, the model helps plan safe and efficient demolition.
- Parametric modeling: Engineers can create custom components that adjust automatically when parameters change. For instance, a parametric staircase component recalculates step dimensions if you change the floor-to-floor height.
BIM Software Navigation
User Interface and Basic Modeling
BIM platforms like Autodesk Revit, ArchiCAD, or Bentley OpenBuildings provide tools for 3D modeling, annotation, and documentation all within one interface. The core workflow involves placing and modifying building elements such as walls, floors, roofs, doors, and windows.
- You build by selecting element types and placing them in the model, not by drawing individual lines.
- Materials and textures can be applied to elements for realistic rendering, which helps during client presentations and design reviews.
- Layering and filtering let you control what's visible at any time. A structural engineer might hide architectural finishes to focus on the frame, while an architect might hide ductwork to review room layouts.
Advanced Techniques and File Management
Good file management is critical in BIM because projects involve many files, team members, and revisions.
- Follow consistent naming conventions (e.g., ProjectName_Discipline_Phase_Version) so files are easy to find and nobody accidentally opens an outdated version.
- Use shared coordinate systems and grids to ensure that when separate discipline models are combined, everything lines up correctly. If the structural model uses a different origin point than the architectural model, elements will appear in the wrong locations.
Advanced modeling techniques include:
- Adaptive components that adjust geometry based on changing parameters (useful for curved facades or irregular structures)
- Conceptual massing tools for exploring building forms during early design before committing to detailed modeling
Disciplinary Integration in BIM
Model Federation and Coordination
On real projects, different disciplines (architecture, structural, MEP) typically build their own models. Model federation is the process of combining these separate models into one coordinated view so the full building can be reviewed together.
- Each discipline maintains its own file, but models are linked and referenced so changes propagate across the federated model.
- Modeling standards and protocols ensure compatibility. If the architectural team models walls one way and the structural team models them differently, integration breaks down.
Level of Development (LOD) is a specification that defines how detailed and reliable model elements should be at each project stage:
- At early design, an element might be a rough placeholder (LOD 100).
- By construction, that same element should include exact geometry, materials, and fabrication details (LOD 400).
- LOD keeps expectations clear so nobody over-models during schematic design or under-models during construction documents.
Collaborative Workflows and Conflict Resolution
- Worksets (in Revit) or similar workspace systems allow multiple users to edit the same model simultaneously without overwriting each other's work. Each person "checks out" the elements they're editing.
- Clash detection tools automatically scan the federated model for interferences. The software generates a report listing every conflict, its location, and which systems are involved. The team then works through these clashes in coordination meetings.

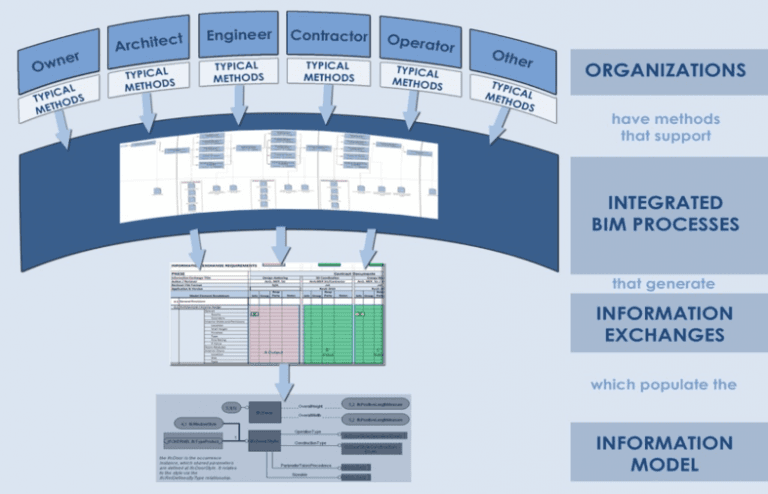

A BIM Execution Plan (BEP) is a document created at the start of a project that defines:
- What BIM deliverables are expected at each phase
- Which software and file formats each team will use
- Roles and responsibilities for model management
- Clash resolution procedures and meeting schedules
The BEP keeps everyone aligned, especially on large projects with many firms involved.
Information Extraction from BIM Models
Documentation and Visualization
One of BIM's biggest practical advantages is that 2D drawings are generated directly from the 3D model. Plans, elevations, sections, and details all pull from the same source, so they stay consistent with each other.
- When you change something in the model (say, move a door), every drawing that shows that door updates automatically. This eliminates the classic problem of drawings contradicting each other.
- Quantity takeoffs and material schedules can be extracted for cost estimation, giving estimators accurate numbers for bidding and procurement.
- Customized reports and visual presentations can be tailored for different audiences: detailed technical data for engineers, simplified visuals for clients, progress snapshots for project managers.
Analysis and Construction Planning
BIM data feeds directly into performance analysis tools:
- Energy simulations use the model's geometry, materials, and orientation to predict heating, cooling, and lighting loads.
- Daylighting studies analyze how natural light enters spaces, helping optimize window placement and shading.
4D BIM adds a time dimension by linking the 3D model to a construction schedule. Here's how it works:
- Each model element is assigned to a construction activity (e.g., "pour second-floor slab" happens in Week 12).
- The software generates an animation showing the building rising over time, activity by activity.
- Project managers use this to spot scheduling conflicts, plan crane locations, and communicate the construction sequence to the team.
For interoperability, BIM models can be exported to open formats like IFC (Industry Foundation Classes), which allows data to move between different software platforms for structural analysis, energy modeling, fabrication, and more.
