5.1 Properties of Materials

Construction Material Properties

Construction materials form the foundation of every civil engineering project. Each material has unique properties that determine where and how it can be used. Understanding these properties lets engineers design structures that are safe, efficient, and built to last.

This guide covers the main categories of material properties, how engineers test them, and how materials behave under real-world conditions.

Physical Properties of Materials

Physical properties describe a material's basic characteristics before any load is applied. These properties affect everything from how heavy a structure will be to how it handles moisture and temperature changes.

• Density is mass per unit volume. Higher density means heavier material, which directly increases the loads a structure must support.

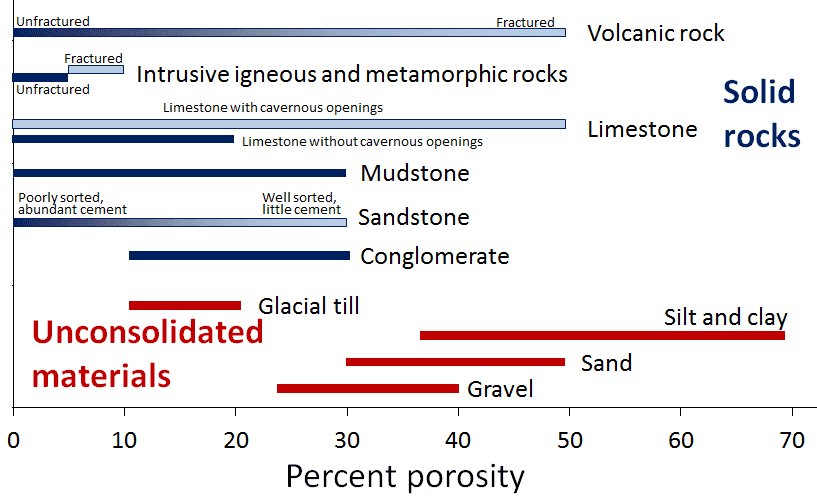

• Porosity measures the void space inside a material. More voids generally mean lower strength and higher permeability. Concrete and wood both have significant porosity, but in very different ways.
• Specific gravity compares a material's density to water's density. It's useful for buoyancy calculations and estimating material quantities.
• Unit weight is weight per unit volume. Engineers use this constantly when calculating dead loads in structural design.
• Permeability describes how easily fluid flows through a material. This is critical for structures that must resist water, like dams and below-grade foundations.
• Water absorption capacity affects how a material behaves when wet. Materials that absorb a lot of water can lose strength and deteriorate faster.
• Thermal conductivity quantifies how well a material transfers heat. Steel conducts heat readily, while fiberglass resists heat flow, making it useful as insulation.
• Coefficient of thermal expansion measures how much a material's dimensions change with temperature. Engineers must account for this in bridges, pavements, and any structure exposed to large temperature swings.

Mechanical Properties of Materials

Mechanical properties describe how a material responds to applied forces. These are the properties engineers rely on most during structural design.

Strength comes in several forms, depending on the type of force:

• Compressive strength is resistance to crushing. Concrete has high compressive strength, which is why it's used in columns and foundations.
• Tensile strength is resistance to pulling apart. Steel excels here, which is why it's used in cables and reinforcement bars.
• Flexural strength is resistance to bending. This matters for beams, bridge girders, and floor joists.

Deformation behavior tells you how a material changes shape under stress:

• Elasticity is a material's ability to return to its original shape after the load is removed. Think of a rubber band snapping back.
• Plasticity is the opposite: permanent deformation that remains after the load is removed. Steel and aluminum both exhibit plasticity, which is why they can be shaped.
• Ductility measures how much a material can stretch before it breaks. Ductile materials like steel give visible warning before failure, which is a major safety advantage in earthquake-prone regions.

Resistance properties round out the picture:

• Hardness is resistance to surface indentation. Harder materials work better for flooring and road surfaces that see heavy wear.
• Toughness is the total energy a material can absorb before fracturing. A tough material is both strong and ductile, making it ideal for impact-resistant structures.

Durability and Workability Properties

These properties address two questions: How long will the material last? And how easy is it to work with during construction?

Durability properties:

• Weathering resistance describes how well a material holds up against UV radiation, freeze-thaw cycles, and other environmental exposure.
• Chemical resistance measures tolerance to corrosive substances. This matters for industrial structures exposed to acids or solvents.
• Fatigue resistance is performance under repeated loading. Bridges experience millions of load cycles over their lifespan, so fatigue resistance is critical.
• Creep is slow, time-dependent deformation under a constant load. Even if a load doesn't cause immediate failure, creep can gradually change a structure's shape over years.
• Fire resistance indicates how a material performs at high temperatures. Building codes set minimum fire resistance ratings to ensure safe evacuation time.

Workability properties:

• Consistency describes how fluid or stiff a material is in its fresh state. For concrete, this is measured by the slump test.
• Setting time is how long a material takes to harden. This directly affects construction scheduling, since workers need enough time to place and finish the material.
• Shrinkage is volume reduction during curing or drying. Shrinkage is a major cause of cracking in concrete structures, so engineers design joints and reinforcement to manage it.

Material Properties in Civil Engineering

Structural Integrity and Safety

Selecting the right material for a structural application means balancing several properties at once.

• Strength-to-weight ratio compares how strong a material is relative to how heavy it is. Steel has a much higher strength-to-weight ratio than concrete, which is one reason steel dominates in high-rise buildings.
• Ductility provides warning before failure. A ductile beam will visibly sag before it breaks, giving occupants time to evacuate. Brittle materials like unreinforced concrete fail suddenly, with little warning.
• Fatigue resistance prevents failure in structures subjected to repeated loading, such as bridges and offshore platforms.
• Fracture toughness measures resistance to crack growth. A material with low fracture toughness can fail catastrophically once a small crack starts to spread.
• Impact resistance protects against sudden forces from collisions or explosions, relevant for vehicle barriers and blast-resistant facades.
• Fire resistance determines how long a structure remains stable during a fire, directly affecting evacuation time.

Energy Efficiency and Environmental Impact

Material properties also influence a building's energy use and environmental footprint.

• Thermal properties affect insulation performance and energy consumption. Insulation materials are rated by their R-value, which measures resistance to heat flow. Higher R-values mean better insulation.
• Recyclability and embodied energy matter for sustainability. Embodied energy is the total energy required to produce a material. Steel is highly recyclable, which offsets its high embodied energy.
• Acoustic properties determine how much sound a material transmits or absorbs, which is important for noise control in buildings near highways or airports.
• Light reflectance affects the urban heat island effect (dark surfaces absorb more heat) and indoor lighting needs.
• Moisture resistance prevents thermal bridging and mold growth, both of which reduce energy efficiency and indoor air quality.
• Biodegradability influences material choices for temporary structures and environmentally sensitive sites.

Long-term Performance and Maintenance

The cheapest material upfront isn't always the cheapest over a structure's full lifespan. Long-term properties drive maintenance costs.

• Corrosion resistance is especially important for metal structures in coastal regions or industrial zones, where salt and chemicals accelerate deterioration.
• Abrasion resistance matters in high-traffic areas like floors, roads, and bridge decks.
• Chemical resistance keeps materials intact in harsh environments like wastewater treatment plants.
• UV resistance prevents degradation in outdoor applications such as roofing and exterior cladding.
• Freeze-thaw resistance is crucial in cold climates. Water enters pores, freezes, expands, and cracks the material. Concrete pavements and masonry are particularly vulnerable.

Testing and Evaluating Material Properties

Engineers use two broad categories of testing: destructive tests (which break the sample) and non-destructive tests (which leave the material intact).

Destructive Testing Methods

Destructive tests provide precise measurements of material properties, but the test specimen is damaged or destroyed in the process.

• Tensile testing pulls a sample apart to measure strength and ductility. The resulting stress-strain curve reveals elastic behavior, yield point, and ultimate strength.
• Compression testing crushes a sample to determine behavior under load. This is the standard test for concrete and masonry.
• Flexural testing bends a sample to assess bending strength, directly relevant for beams and slabs.
• Impact testing strikes a notched sample to measure toughness and energy absorption. The two common methods are the Charpy test (sample supported as a beam) and the Izod test (sample clamped as a cantilever).
• Fatigue testing applies repeated loading cycles to find a material's endurance limit, the stress level below which it can survive essentially infinite cycles.
• Creep testing applies a constant load at elevated temperature over an extended period to measure time-dependent deformation.
• Hardness testing presses an indenter into the surface. Common scales include Brinell (large steel ball), Rockwell (cone or small ball), and Vickers (diamond pyramid).
• Torsion testing twists a sample to evaluate behavior under shear, important for shafts and fasteners.

Non-Destructive Testing Techniques

Non-destructive testing (NDT) lets engineers evaluate materials and structures without causing damage. This is essential for inspecting existing structures.

• Ultrasonic testing sends high-frequency sound waves through a material. Changes in the reflected signal reveal internal flaws and material thickness.
• Radiography uses X-rays or gamma rays to create images of a material's interior, similar to a medical X-ray.
• Magnetic particle inspection detects surface and near-surface cracks in ferromagnetic materials (like steel) by applying magnetic fields and iron particles.
• Eddy current testing identifies surface defects and measures thickness in electrically conductive materials using electromagnetic induction.
• Acoustic emission testing "listens" for sounds produced by active cracks or defects in a structure under load.
• Thermography uses infrared cameras to detect temperature differences that indicate defects, delamination, or heat loss.
• Ground-penetrating radar (GPR) sends radar pulses into concrete or soil to locate embedded objects, voids, or rebar.
• Rebound hammer test bounces a spring-loaded mass off a concrete surface. The rebound distance gives a quick estimate of surface hardness and compressive strength. It's fast but less precise than core sampling.

Standardized Testing and Analysis Methods

Standardized methods ensure that test results are consistent and comparable across labs and projects.

• ASTM International publishes the most widely used standards for material testing and specifications in civil engineering.
• In-situ testing assesses material properties where they're installed, using techniques like core sampling from existing concrete or load testing of structural elements.
• Accelerated weathering tests simulate years of environmental exposure in weeks using UV lamps, moisture, and temperature cycling (QUV and xenon arc methods).
• Microscopic analysis reveals a material's internal structure. Scanning electron microscopy (SEM) provides high-magnification images, while optical microscopy works for larger-scale features.
• Thermal analysis characterizes how materials respond to temperature changes. Differential scanning calorimetry (DSC) measures heat flow, and thermogravimetric analysis (TGA) tracks mass changes.
• X-ray diffraction (XRD) identifies crystalline phases and mineral composition.
• Particle size analysis determines the size distribution of granular materials. Sieve analysis is the simplest method; laser diffraction provides finer resolution.
• Chemical analysis identifies composition and impurities using techniques like X-ray fluorescence (XRF) and atomic absorption spectroscopy.

Material Behavior Under Conditions

Environmental Factors

Real structures face a range of environmental conditions that can degrade materials over time.

• Temperature fluctuations cause expansion and contraction. When a material is restrained from moving freely, thermal stresses build up, potentially causing cracking.
• Humidity affects hygroscopic materials significantly. Wood swells and shrinks with moisture changes, and concrete needs adequate moisture during curing to develop full strength.
• Chemical exposure degrades materials gradually. Acid rain dissolves limestone, and chloride ions from road salt or seawater penetrate concrete and corrode the steel reinforcement inside.
• UV radiation breaks down polymers and organic materials, causing plastic to become brittle and wood to weather.
• Biological factors include fungal decay in wood and microbial-induced corrosion in metals.
• Atmospheric pollutants like sulfur dioxide accelerate surface degradation, particularly on marble and limestone facades in urban areas.
• Salinity in marine environments causes steel corrosion and salt crystallization in porous materials, which generates internal pressure and spalling.
• Freeze-thaw cycles are among the most damaging mechanisms in cold climates. Water in pores expands about 9% when it freezes, generating enough pressure to crack concrete and stone.

Loading Conditions and Material Response

How a load is applied matters just as much as how large it is.

• Static loads are constant over time (like the weight of the structure itself). Under sustained static loads, creep becomes a concern.
• Dynamic loads vary with time, such as traffic on a bridge or wind on a building. These require fatigue analysis.
• Cyclic loading causes progressive damage even at stress levels well below the material's static strength. This is why fatigue is sometimes called "the silent failure mode."
• Impact loading produces very high strain rates over short durations. Materials often behave differently under impact than under slow loading; concrete, for example, shows higher apparent strength at high strain rates.
• Multiaxial stress states occur in complex structural elements where forces act in multiple directions simultaneously. Simple uniaxial test data may not fully capture material behavior in these situations.
• Residual stresses from manufacturing (rolling, welding, casting) exist in a material before any external load is applied, and they can either help or hurt performance.
• Stress concentrations develop at holes, notches, sharp corners, and other geometric discontinuities. These localized high-stress zones are common sites for crack initiation.
• Load rate effects influence material response. Viscoelastic materials like polymers and even concrete behave differently depending on how quickly the load is applied.

Material Processing and Scale Effects

How a material is manufactured and the size of the actual structural element both affect performance.

• Heat treatment changes a metal's microstructure and properties. Tempering steel, for instance, increases toughness at the expense of some hardness.
• Cold working (rolling or drawing metal at room temperature) increases strength but reduces ductility.
• Fiber orientation in composite materials creates directional properties. A composite can be very strong along the fiber direction but weak perpendicular to it.
• Grain size influences strength: smaller grains generally mean higher strength (described by the Hall-Petch relationship).
• Casting defects like voids and inclusions create internal stress concentrations that reduce strength.
• Welding introduces residual stresses and creates a heat-affected zone where the metal's properties differ from the base material.
• Scale effects mean that laboratory test specimens don't always predict full-scale behavior. Larger concrete specimens, for example, tend to show lower compressive strength than small test cylinders of the same mix.
• Surface treatments like case hardening (steel) and anodizing (aluminum) modify properties at the surface to improve wear or corrosion resistance.
