Green Infrastructure for Sustainable Cities
Green infrastructure uses natural and semi-natural systems to handle problems that cities traditionally solve with concrete and pipes. Instead of relying solely on storm drains, retention ponds, and treatment plants ("gray" infrastructure), green infrastructure works with ecological processes to manage stormwater, support biodiversity, and improve quality of life. It's a core concept in sustainable urban development because it addresses multiple challenges at once.

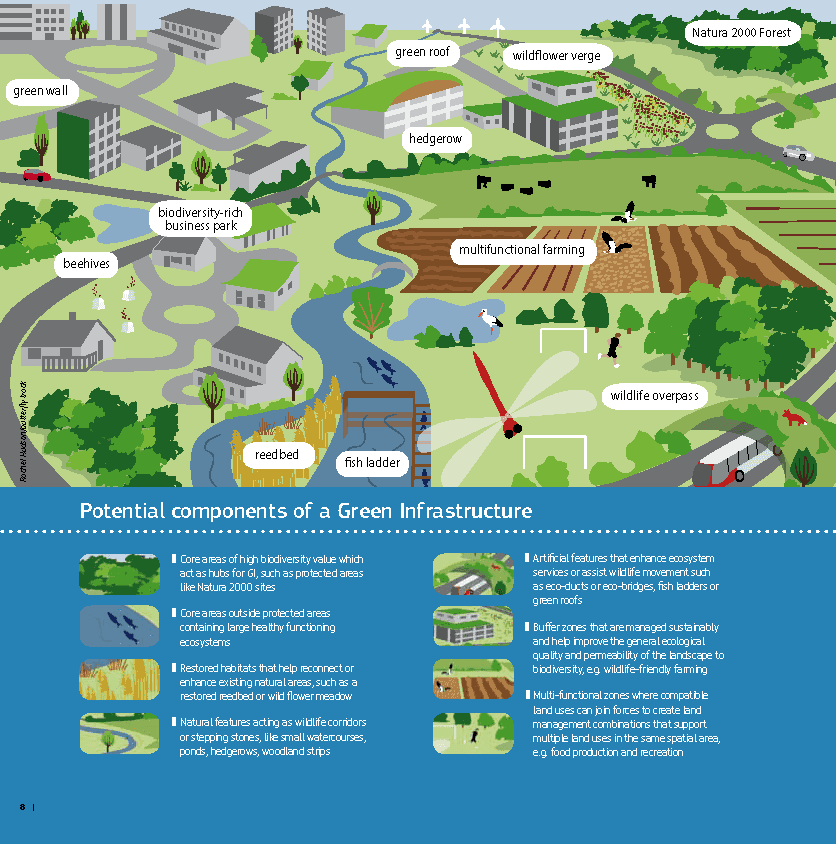

Defining Green Infrastructure
Green infrastructure is a connected network of natural and designed features that provide ecosystem services in urban and rural settings. These features include parks, community gardens, green roofs, urban forests, wetlands, bioswales, and permeable pavements.
The key idea is integration: rather than treating nature as separate from the built environment, green infrastructure weaves ecological systems directly into urban planning. A single rain garden, for example, can reduce stormwater runoff, filter pollutants, support pollinators, and improve the look of a neighborhood.
- Functions as a complement or alternative to traditional gray infrastructure
- Enhances environmental quality, resource efficiency, and community well-being
- Works best as an interconnected network rather than isolated features
Role in Sustainable Urban Development
Urbanization creates hard, impervious surfaces (roads, rooftops, parking lots) that amplify problems like flooding, heat buildup, and habitat loss. Green infrastructure directly counteracts these effects.
- Climate adaptation: Reduces the urban heat island effect through shade and evapotranspiration; sequesters carbon in vegetation and soils
- Resilience: Provides natural buffers against extreme weather events like floods and heatwaves
- Air and water quality: Filters pollutants through soil, roots, and vegetation rather than relying entirely on engineered treatment
- Biodiversity: Creates and connects habitats within urban landscapes, supporting species that would otherwise be squeezed out by development
- Water management: Reduces stormwater runoff volume and promotes groundwater recharge, easing the load on aging drainage systems
Benefits of Green Infrastructure
Stormwater Management Improvements
Stormwater management is often the primary engineering justification for green infrastructure. When rain falls on impervious surfaces, it runs off quickly, picking up pollutants and overwhelming drainage systems. Green infrastructure slows that water down, spreads it out, and filters it naturally.
- Bioretention systems (rain gardens, bioswales) capture and treat stormwater at the source before it enters the drainage network
- Permeable pavements let water infiltrate through the surface, reducing the volume of runoff
- Green roofs retain rainwater in their growing medium and release it slowly through evapotranspiration, delaying peak flows
- Constructed wetlands provide natural water treatment while also storing floodwater
Together, these systems reduce pressure on conventional drainage infrastructure and lower the risk of urban flooding.
Biodiversity Enhancement
Cities fragment natural habitats, making it difficult for species to move, feed, and reproduce. Green infrastructure creates pockets of habitat and, more importantly, connects them.
- Green corridors (linear parks, stream buffers, tree-lined streets) let species move between habitat patches, supporting genetic exchange in otherwise fragmented landscapes
- Urban tree canopy provides nesting sites for birds and shelter for small mammals
- Pollinator-friendly plantings in rain gardens and green roofs support bees and butterflies, which are critical for urban agriculture and broader ecosystem health
- Native plant species help rebuild soil biodiversity, which in turn supports healthier vegetation and better stormwater infiltration
Human Well-being Improvements
The benefits aren't just ecological. Research consistently shows that access to green space improves physical and mental health.
- Air quality: Vegetation filters particulate matter and absorbs gaseous pollutants
- Noise reduction: Trees and vegetation buffer urban noise
- Heat relief: Shade and evapotranspiration from green infrastructure can lower local temperatures by several degrees, reducing heat-related illness
- Mental health: Exposure to natural environments reduces stress and improves cognitive function
- Community benefits: Shared green spaces encourage social interaction and physical activity, and they tend to increase nearby property values
Design and Implementation of Green Infrastructure
Green Roof Systems
Green roofs install vegetation on building rooftops to manage stormwater, reduce energy use, and add habitat. They come in two main types:
- Extensive green roofs: Shallow growing medium (typically 5–15 cm), planted with hardy, low-maintenance species like sedums. Lighter weight, lower cost, and minimal upkeep.
- Intensive green roofs: Deeper growing medium (15 cm or more), supporting a wider variety of plants including shrubs and even small trees. These function more like rooftop gardens but require significantly more structural support and maintenance.
Key design considerations:
- Structural capacity of the building to support the added weight (saturated soil is heavy)
- Waterproofing membrane to protect the roof deck, with a root barrier layer
- Drainage layer to prevent waterlogging while retaining enough moisture for plants
- Growing medium selected for weight, drainage, and nutrient content
- Plant selection based on local climate, sun exposure, wind conditions, and maintenance budget
- Irrigation systems for dry periods, especially on intensive roofs
Green roofs also provide insulation, reducing heating costs in winter and cooling costs in summer.
Rain Gardens and Bioswales
Rain gardens are shallow, planted depressions designed to collect and filter stormwater runoff from nearby impervious surfaces like driveways, parking lots, or rooftops. Water pools temporarily, then infiltrates through engineered soil layers that remove pollutants.
Design steps for a rain garden:
- Calculate the drainage area (the impervious surface feeding runoff to the garden)
- Size the garden accordingly (a common rule of thumb is 5–10% of the drainage area, though this varies by soil type and rainfall)
- Select an engineered soil mix that balances infiltration rate with pollutant removal
- Choose native plants adapted to both wet and dry conditions, since the garden will cycle between saturated and dry states
- Include an overflow mechanism (such as a raised outlet) for storms that exceed the garden's capacity
- Add a pretreatment area (like a gravel strip) to catch sediment and debris before water enters the main planting area
Bioswales are vegetated channels that convey stormwater while filtering it through soil and plant roots. They're often used along roads and parking lots. The main difference from rain gardens is that bioswales are designed to move water along a linear path, while rain gardens collect it in a single depression.
Permeable Pavement Solutions
Permeable pavements let water pass through the surface and into a stone storage layer beneath, where it infiltrates into the ground or is collected for slow release. This directly reduces surface runoff.
Common types:
- Porous asphalt: Looks like regular asphalt but has a more open aggregate structure
- Pervious concrete: Similar concept with concrete, using less fine aggregate to create voids
- Interlocking pavers: Individual units with gaps filled with gravel or grass that allow water through
These are best suited for parking lots, low-traffic roads, sidewalks, and pedestrian plazas. They're generally not appropriate for high-speed or heavy-traffic roads.
Design and maintenance considerations:
- Subgrade must be properly prepared with an adequate stone storage layer beneath the surface
- Regular maintenance (vacuuming or pressure washing) is needed to prevent fine sediment from clogging the pores
- Can be combined with subsurface storage systems for additional stormwater capacity
Performance and Maintenance of Green Infrastructure
Performance Assessment Methods
You can't manage what you don't measure. Assessing green infrastructure performance involves tracking how well the system delivers on its intended functions.
- Hydrological monitoring: Measuring runoff reduction, infiltration rates, and peak flow delay to quantify stormwater benefits
- Water quality testing: Sampling for pollutants (nutrients, heavy metals, sediment) before and after treatment by the system
- Biodiversity surveys: Tracking species richness and habitat use over time
- Life cycle assessment (LCA): Comparing the long-term environmental impacts and benefits of green infrastructure against conventional gray alternatives
- Remote sensing and GIS: Useful for monitoring large-scale green infrastructure networks across a city
- Economic valuation: Putting dollar figures on ecosystem services (flood damage avoided, energy savings, health benefits) to justify continued investment
Maintenance Requirements and Strategies
Green infrastructure is not "install and forget." Long-term performance depends on consistent, planned maintenance.
Common maintenance activities:
- Regular inspections to catch problems early (clogging, erosion, plant die-off)
- Vegetation management: pruning, replanting, and controlling invasive species
- Sediment removal from bioswales, rain gardens, and permeable pavement systems
- Seasonal tasks like spring cleanup and fall leaf removal to prevent clogging
- Integrated pest management to handle invasive species without harming beneficial organisms
Each site should have a site-specific maintenance plan that accounts for local climate, the types of vegetation used, and how heavily the area is used. Adaptive management is important: if monitoring shows declining performance, the maintenance approach should be adjusted.
Cost-Benefit Analysis and Long-Term Considerations
Green infrastructure often has higher upfront design costs than conventional solutions, but lower long-term costs when you account for the full range of benefits.
A thorough cost-benefit analysis should consider:
- Initial costs: Design, materials, installation
- Ongoing costs: Maintenance, inspections, vegetation replacement
- Avoided costs: Reduced flood damage, lower stormwater treatment expenses, decreased energy use in buildings with green roofs
- Co-benefits: Improved public health, increased property values, job creation in installation and maintenance, enhanced community spaces
Resilience benefits are particularly important for long-term planning. Green infrastructure that reduces flood damage during a major storm event can pay for itself in a single event. Cities increasingly look at integrating green infrastructure with other sustainability initiatives like urban agriculture and renewable energy to maximize return on investment.
