9.1 Hydrology and Water Cycle

Hydrologic Cycle Components and Processes

Hydrology is the study of how water moves through Earth's systems. It covers everything from rainfall and river flow to groundwater storage. For civil engineers, understanding hydrology is essential because it directly informs how we design infrastructure like bridges, dams, stormwater systems, and water supply networks.

This section covers the hydrologic cycle, the factors that control water flow, how precipitation turns into runoff, and the key equations you'll need for calculating hydrologic parameters.

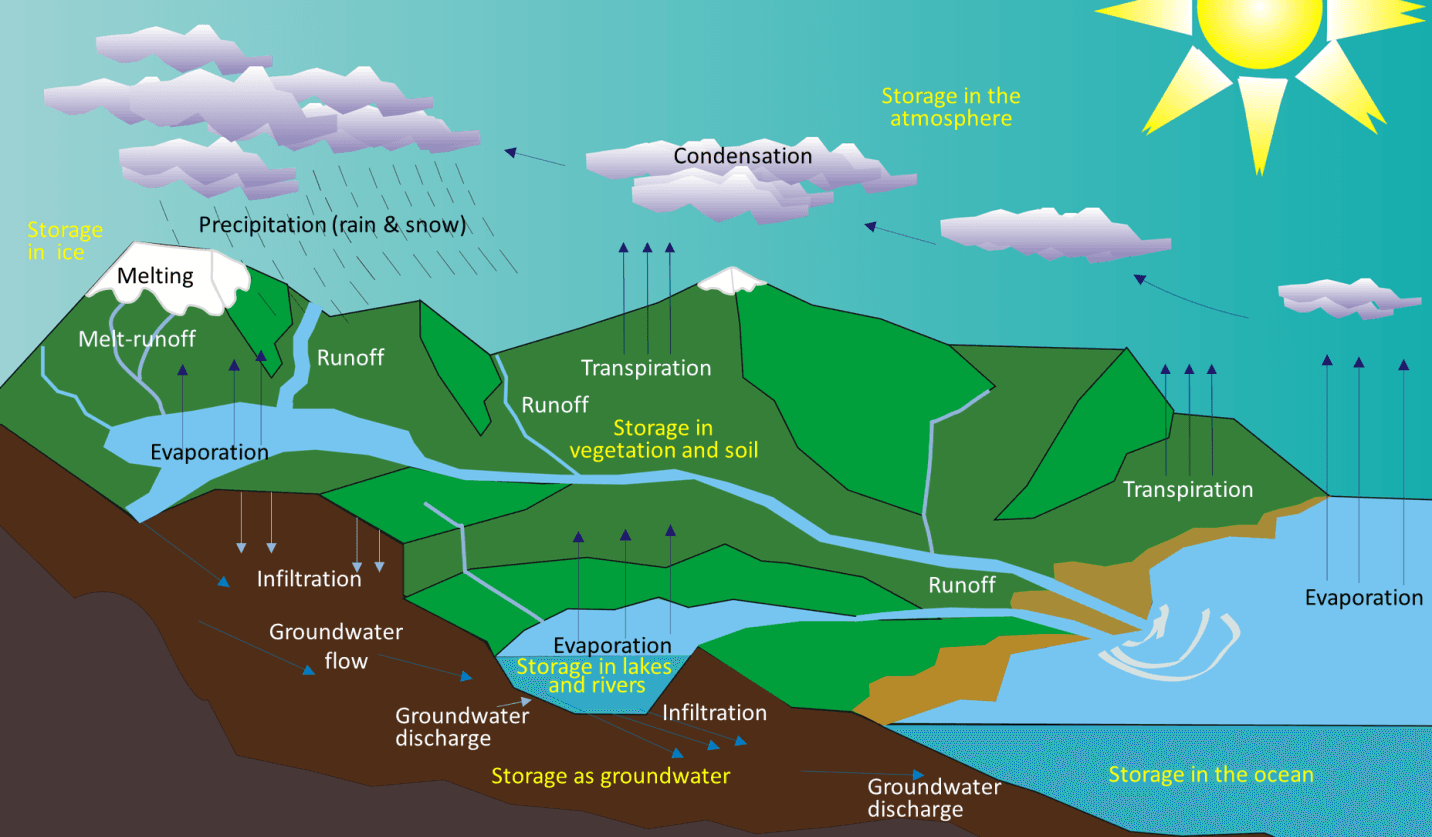

Water Movement and Key Components

The hydrologic cycle describes the continuous movement of water on, above, and below Earth's surface. There's no starting point; water just keeps cycling through different phases and locations.

The major components:

• Precipitation occurs when atmospheric water vapor condenses and falls as rain, snow, sleet, or hail. This is the primary input of water to a watershed.
• Evaporation converts liquid water to vapor, mainly from oceans, lakes, and land surfaces.
• Transpiration is the release of water vapor from plants through their leaves. Plants pull water from the soil through their roots and lose it through small pores called stomata.
• Infiltration moves water from the surface down into soil and rock layers.
• Surface runoff is water flowing over the land surface. It happens when precipitation arrives faster than the ground can absorb it.
• Groundwater flow moves water slowly through subsurface rock formations and aquifers (like sandstone or limestone layers).

Water Transport and Storage

Most of Earth's water isn't readily available to us. Oceans hold about 97% of all water, and glaciers and ice caps store roughly 2%. Freshwater in rivers, lakes, and groundwater makes up a small fraction, and the atmosphere contains less than 0.001%. Yet that tiny atmospheric share drives the entire cycle by transporting moisture across the globe.

The water table is the upper surface of the saturated zone in an unconfined aquifer. Below the water table, all pore spaces in the soil and rock are filled with water.

Evapotranspiration is a combined term for evaporation and transpiration together. Engineers use this term frequently because separating the two in field measurements is nearly impossible.

Interconnected Processes and Human Impact

• Interception by vegetation (trees, shrubs, leaf litter) captures some precipitation before it ever reaches the ground, reducing the amount available for infiltration or runoff.
• Urbanization replaces permeable soil with impervious surfaces like roads and rooftops, which increases runoff volume and speed while reducing infiltration and groundwater recharge.
• Deforestation removes the transpiration and interception that forests provide, often increasing runoff and erosion.
• Climate change alters precipitation patterns, increases evaporation rates, and shifts the timing of snowmelt, all of which affect how engineers plan for water supply and flood risk.

Factors Influencing Water Flow

Surface Water Flow Factors

Several physical characteristics of a watershed control how water moves across the surface:

• Topography is a major driver. Steeper slopes produce faster runoff and less infiltration because water has less time to soak in. Drainage patterns (how channels connect) determine where water concentrates.
• Soil characteristics like texture, structure, and permeability control how quickly water enters the ground. Sandy soils drain fast; clay soils resist infiltration.
• Climate factors include precipitation intensity, storm duration, temperature, and evapotranspiration rates. A short, intense storm produces more runoff than a gentle, long-duration rain of the same total depth.
• Land use matters enormously. Urban areas generate far more runoff than forested land for the same rainfall event. Agricultural practices like tilling can either increase or decrease infiltration depending on the method.
• Vegetation cover slows runoff, promotes infiltration through root channels, and adds organic matter that improves soil structure.

Groundwater Flow Factors

Groundwater moves much more slowly than surface water, and its behavior depends on the properties of the subsurface material:

• Hydraulic conductivity (K) measures how easily water moves through a porous medium. Gravel has high K; clay has very low K.
• Transmissivity (T) is the product of hydraulic conductivity and aquifer thickness ($T = Kb$). It represents the aquifer's overall ability to transmit water across its full saturated thickness.
• Porosity is the fraction of a material's volume that consists of void space. Primary porosity exists in materials like sand and gravel (spaces between grains). Secondary porosity develops in fractured rock through cracks and dissolution channels.
• Specific yield is the portion of water in an unconfined aquifer that actually drains out under gravity. Not all pore water is recoverable; some clings to grain surfaces.
• Storativity describes the volume of water released from storage per unit surface area of aquifer per unit decline in hydraulic head. For confined aquifers, storativity is much smaller than specific yield.
• The hydraulic gradient (change in hydraulic head over distance) is what drives groundwater flow. Water moves from high head to low head.
• Darcy's Law ties these together, relating flow rate to hydraulic conductivity and gradient (more on this in the calculations section).
• Human activities like excessive groundwater pumping lower the water table locally, creating a cone of depression around the well that can reduce flow to nearby wells and streams.

Precipitation, Infiltration, and Runoff Relationship

These three processes are tightly linked. When rain falls on a watershed, it gets partitioned: some infiltrates, some runs off, and some is lost to interception and surface storage. Understanding this partitioning is central to engineering design.

Precipitation and Infiltration

The intensity and duration of a storm directly determine how much water infiltrates versus runs off. A soil can only absorb water at a certain maximum rate, called its infiltration capacity, which decreases over time during a storm as the soil becomes saturated.

• Initial abstraction is the precipitation that never becomes runoff. It includes interception by vegetation, water filling small surface depressions, and early infiltration.
• Horton overland flow occurs when rainfall intensity exceeds the soil's infiltration capacity. The excess water flows across the surface. This is the classic mechanism for runoff generation.
• Saturation excess overland flow happens when the soil is completely saturated (often in low-lying or wet areas), so any additional rain runs off regardless of intensity.
• Antecedent moisture conditions (how wet the soil already is) strongly affect infiltration capacity. Soil that's already wet from a previous storm absorbs much less from the next one.

Runoff Generation and Watershed Response

Once excess water begins flowing, it collects into channels and eventually reaches the watershed outlet.

• Time of concentration ($T_c$) is the time it takes for water to travel from the most hydraulically distant point in the watershed to the outlet. After one $T_c$ has passed since the start of a uniform storm, the entire watershed is contributing to flow at the outlet.
• A hydrograph plots discharge (flow rate) at the outlet over time. It shows how the watershed responds to a precipitation event, including the rising limb, peak flow, and recession.
• Baseflow is the steady groundwater contribution to a stream. It sustains stream flow between storms.
• Interflow is water that moves laterally through shallow soil layers above the water table, reaching the stream faster than deep groundwater but slower than surface runoff.

Factors Affecting Infiltration and Runoff

• Sandy soils have higher infiltration rates than clay soils due to larger pore spaces.
• Vegetation increases infiltration through root channels and organic matter, while also slowing surface flow.
• Steeper slopes reduce infiltration opportunity time (water moves downhill too fast to soak in).
• Impervious surfaces (roads, parking lots, rooftops) in urban areas dramatically increase runoff volumes and peak flows. This is one of the biggest concerns in civil engineering stormwater design.

Hydrologic Parameter Calculation

Surface Water Calculations

Rational Method estimates peak discharge for small watersheds (typically under about 200 acres). It's one of the simplest and most commonly used formulas in stormwater design:

$Q = CIA$

Where:

• $Q$ = peak discharge (cubic feet per second, if using US customary units)
• $C$ = runoff coefficient (dimensionless, ranges from ~0.1 for forests to ~0.95 for impervious surfaces)
• $I$ = rainfall intensity (inches per hour, corresponding to the storm duration equal to $T_c$)
• $A$ = drainage area (acres)

The key assumption is that peak flow occurs when the entire watershed is contributing, which happens when storm duration equals or exceeds the time of concentration.

Time of concentration can be estimated with empirical formulas. The Kirpich equation is a common one:

$T_c = 0.0195 L^{0.77} S^{-0.385}$

Where $T_c$ is in minutes, $L$ is the maximum flow length in meters, and $S$ is the average watershed slope (m/m).

SCS Curve Number Method estimates direct runoff depth from a storm. It's widely used for larger watersheds and accounts for soil type, land use, and antecedent moisture:

$Q = \frac{(P - 0.2S)^2}{P + 0.8S}$

Where $Q$ = runoff depth, $P$ = rainfall depth, and $S$ = potential maximum retention (related to the curve number by $S = \frac{1000}{CN} - 10$ in inches). This equation only applies when $P > 0.2S$; otherwise, runoff is zero.

Statistical Methods for Hydrologic Analysis

Engineers need to estimate how often extreme events (like major floods) will occur. Frequency analysis uses historical data to assign probabilities to different flow magnitudes.

• The Gumbel distribution is commonly used for annual maximum flood data: $F(x) = e^{-e^{-(x - \mu)/\beta}}$ where $\mu$ and $\beta$ are location and scale parameters.
• The Log-Pearson Type III distribution is the standard method recommended by federal agencies in the US for flood frequency analysis. It fits a Pearson Type III distribution to the logarithms of the flow data.
• Intensity-Duration-Frequency (IDF) curves relate rainfall intensity to storm duration for various return periods (e.g., 10-year, 100-year storms). You'll use these curves to find the $I$ value in the Rational Method.
• The Mann-Kendall test is a statistical test used to detect trends in hydrologic time series data, such as whether annual peak flows are increasing over time.

Groundwater and Water Balance Calculations

Darcy's Law calculates the volumetric flow rate of groundwater through a porous medium:

$Q = -KA\frac{dh}{dl}$

Where:

• $Q$ = volumetric flow rate
• $K$ = hydraulic conductivity
• $A$ = cross-sectional area perpendicular to flow
• $\frac{dh}{dl}$ = hydraulic gradient (negative sign indicates flow in the direction of decreasing head)

This law assumes laminar flow through a saturated, homogeneous medium. It's the foundation of most groundwater analysis.

Thornthwaite Method provides an estimate of potential evapotranspiration (PET) based on temperature:

$PET = 16\left(\frac{10T}{I}\right)^a$

Where $PET$ is in mm/month, $T$ is mean monthly temperature (°C), $I$ is an annual heat index, and $a$ is an empirical exponent derived from $I$. This method is useful when limited climate data is available, though it tends to underestimate PET in arid regions.

Water Balance Equation is the fundamental accounting equation for any hydrologic system:

$P = Q + ET + \Delta S$

Where $P$ = precipitation, $Q$ = runoff, $ET$ = evapotranspiration, and $\Delta S$ = change in storage (groundwater, soil moisture, surface water). If you know three of these terms, you can solve for the fourth. This equation applies at any scale, from a small watershed to the entire globe.
