3.1 Technical Drawing and Drafting

Technical drawing and drafting form the visual language of engineering. These skills let engineers communicate complex designs clearly and precisely, so that anyone reading a drawing can understand exactly what needs to be built. From orthographic projections to dimensioning techniques, this foundation is what makes it possible to translate ideas into buildable structures.

This section covers how to read and create technical drawings, apply proper dimensioning, use manual drafting tools, and follow industry standards that keep drawings universally interpretable.

Interpreting Technical Drawings

Types of Technical Drawings

Orthographic projections represent three-dimensional objects on a two-dimensional surface using multiple views, typically front, top, and side. Think of it as looking straight at an object from three different directions and drawing exactly what you see each time. Together, these views give a complete picture of the object's geometry.

Isometric drawings provide a three-dimensional representation of an object where all three axes are equally foreshortened and set at 120-degree angles to each other. These are great for giving someone a quick visual sense of what the object looks like in 3D, though they aren't used for precise fabrication.

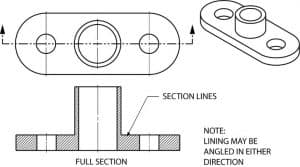

Sectional views show the internal features of an object by "cutting" through it with an imaginary plane. These are especially useful for complex objects or assemblies where hidden details (like hollow interiors or internal channels) would be impossible to read from the outside views alone.

Auxiliary views display the true shape of inclined surfaces that appear distorted in the principal orthographic views. If a surface sits at an angle, the front/top/side views won't show its real dimensions. An auxiliary view is projected perpendicular to that angled surface so you can measure it accurately.

Line Types and Symbols

Every line on a technical drawing carries specific meaning. Using the wrong line type is like using the wrong word in a sentence: it changes the message entirely.

• Solid (visible) lines represent edges and outlines you can actually see from that viewing direction
• Dashed (hidden) lines indicate edges or features behind the visible surface
• Center lines (alternating long and short dashes) show axes of symmetry or rotation
• Phantom lines (long dash, two short dashes) depict alternate positions or repeated features

Standard symbols communicate materials, finishes, and specifications without lengthy written descriptions:

• Cross-hatching patterns denote different materials in section views (steel, concrete, wood each have distinct patterns)
• Surface finish symbols indicate how smooth or rough a surface must be
• Welding symbols specify joint types and weld characteristics at connection points

Scale and Proportion Interpretation

Scale relates the dimensions on the drawing to the actual size of the object. A bridge obviously can't be drawn at full size, so you shrink it down proportionally.

• Common scales include 1:2 (half size), 1:1 (full size), and 2:1 (double size)
• For larger structures, metric scales like 1:100 or 1:1000 are typical
• A scale bar on the drawing provides a visual reference, so you can estimate dimensions quickly even if the drawing has been resized during printing or copying

Proportions between parts must stay consistent. If a column is twice as wide as a beam in reality, it needs to look that way on the drawing too. This is how readers understand spatial relationships and design intent at a glance.

Dimensioning and Annotation Techniques

Dimensioning Systems and Rules

Dimensioning is how you tell the builder exactly how big everything is. There are two main systems:

• Aligned dimensioning places the text parallel to each dimension line, so you rotate the page to read angled dimensions
• Unidirectional dimensioning keeps all text horizontal regardless of dimension line direction, making it easier to read without rotating the sheet

Placement rules keep things clean and readable:

1. Place dimension lines outside the view whenever possible
2. Extend extension lines slightly beyond the dimension lines (but don't let them touch the object outline)
3. Avoid crossing dimension lines and extension lines; rearrange if needed

Different geometric features require specific techniques:

• Circular arcs use radial dimensioning with an "R" prefix (e.g., R25 means a 25 mm radius)
• Complete circles use diametral dimensioning with the Ø symbol (e.g., Ø50)
• Angles are dimensioned in degrees

Scaling and Units

Standard scale ratios are grouped by discipline:

• Architectural scales: 1/4" = 1'-0", 1/8" = 1'-0" (common for building plans)
• Engineering scales: 1" = 10', 1" = 20' (common for site plans and civil work)

Unit systems require careful attention. Metric drawings typically use millimeters (mm) for detail drawings or meters (m) for site plans. Imperial drawings use inches or feet. If a drawing mixes units for any reason, each dimension must be clearly labeled to prevent costly mistakes.

Annotations and Tolerances

Annotations add information that dimensions alone can't convey:

• Leaders are lines with arrows connecting a note to a specific feature on the drawing
• Callouts highlight important details or reference specifications
• Revision clouds are irregular outlines that mark areas changed in an updated version of the drawing

Tolerances specify how much a dimension is allowed to vary from the target value. Nothing can be built to absolute perfection, so tolerances define what's acceptable.

• Dimensional tolerances give a range, such as $\pm 0.005$ in
• Geometric tolerances control form and orientation (flatness, perpendicularity, etc.) using the GD&T (Geometric Dimensioning and Tolerancing) system
• Fits describe the relationship between mating parts, like H7/g6, which defines a specific clearance between a shaft and hole

Manual Drafting Skills

Drafting Tools and Setup

Even in an era of CAD software, understanding manual drafting builds your spatial reasoning and helps you appreciate what the software is doing behind the scenes. Each tool serves a specific purpose:

• T-squares slide along the drawing board edge to guide horizontal lines and align triangles
• Triangles (30-60-90 and 45-45-90) rest against the T-square to create angled lines at standard increments
• Compasses draw precise circles and arcs of a given radius
• Mechanical pencils in different lead hardnesses provide consistent, controllable line weights

Drawing sheet preparation follows a standard routine:

1. Tape the sheet to the board and establish borders (typically 1/2" from the edge)
2. Include a title block in the lower right corner with project name, drawing number, scale, date, and drafter information
3. Use a light grid system to help with layout and proportioning before committing to final lines

Basic Geometric Construction

Manual drafting relies on a set of fundamental construction techniques that let you build accurate geometry using only a straightedge and compass:

• Bisecting a line segment or angle (dividing it into two equal parts)
• Constructing perpendicular and parallel lines from a given line
• Drawing tangent lines to circles (lines that touch the circle at exactly one point)

More complex shapes are built from these basics:

• Regular polygons like hexagons and octagons, constructed by dividing a circle into equal parts
• Ellipses using the trammel (two-strip) method
• Parabolas using the focus-directrix method

Manual Projection and View Creation

Creating orthographic projections by hand follows a systematic process:

1. Draw the front view first, as it typically shows the most detail
2. Project lines vertically to create the top view and horizontally to create the side view
3. Add hidden lines (dashed) to show features not visible from that direction

For isometric drawings:

1. Start with vertical lines for height, then draw receding edges at 30 degrees from horizontal
2. Circles in isometric views appear as ellipses, often drawn using specialized isometric templates

For sectional views:

1. Draw a cutting plane line on one view to show where the imaginary cut is made
2. In the section view, apply hatching patterns to any surfaces that were "cut through"
3. Hidden lines are typically omitted in section views to keep them clean and readable

Industry Standards in Technical Drawing

Major Drawing Standards

Standards exist so that a drawing created in one office can be read accurately in another, anywhere in the world.

• ANSI (American National Standards Institute) governs U.S. practices. The ASME Y14 series is the key standard covering dimensioning and tolerancing.
• ISO (International Organization for Standardization) provides global standards. The ISO 128 series addresses general technical drawing principles.
• Industry-specific standards supplement these general ones:
  • AIA (American Institute of Architects) for building documentation
  • IEEE for electrical schematics

Paper Sizes and Formats

ANSI paper sizes are standard in North America:

• A (8.5" × 11"), B (11" × 17"), C (17" × 22"), D (22" × 34"), E (34" × 44")

ISO A series sizes are used internationally:

• A4 (210 × 297 mm), A3 (297 × 420 mm), A2 (420 × 594 mm), A1 (594 × 841 mm), A0 (841 × 1189 mm)

Drawing sheet layout follows a consistent pattern: the working area sits within the borders, the title block goes in the lower right corner, and revision history is typically placed above the title block.

Specialized Drawing Conventions

Different disciplines use standardized symbols so that drawings remain clear without excessive written notes:

• Material representation: Cross-hatching in section views uses distinct patterns for brick, concrete, steel, and wood. Each pattern is standardized so there's no ambiguity.
• Mechanical components: Threads are shown using simplified representations rather than drawing every thread turn. Standard symbols exist for bolts, nuts, washers, gear tooth profiles, and splines.
• Architecture: Doors, windows, and plumbing fixtures each have recognized symbols that appear on floor plans.
• Electrical: Switches, outlets, and circuit breakers use standard schematic symbols.
• Piping: P&ID (Piping and Instrumentation Diagram) symbols represent valves, instruments, and flow directions in process systems.
