The Structure and Properties of Wood as an Engineering Material
Anisotropic Nature and Cellular Structure
Wood behaves differently depending on which direction you load it. This property is called anisotropy, and it's one of the most important things to understand about timber as a structural material. Force applied along the grain produces a very different response than force applied across it.

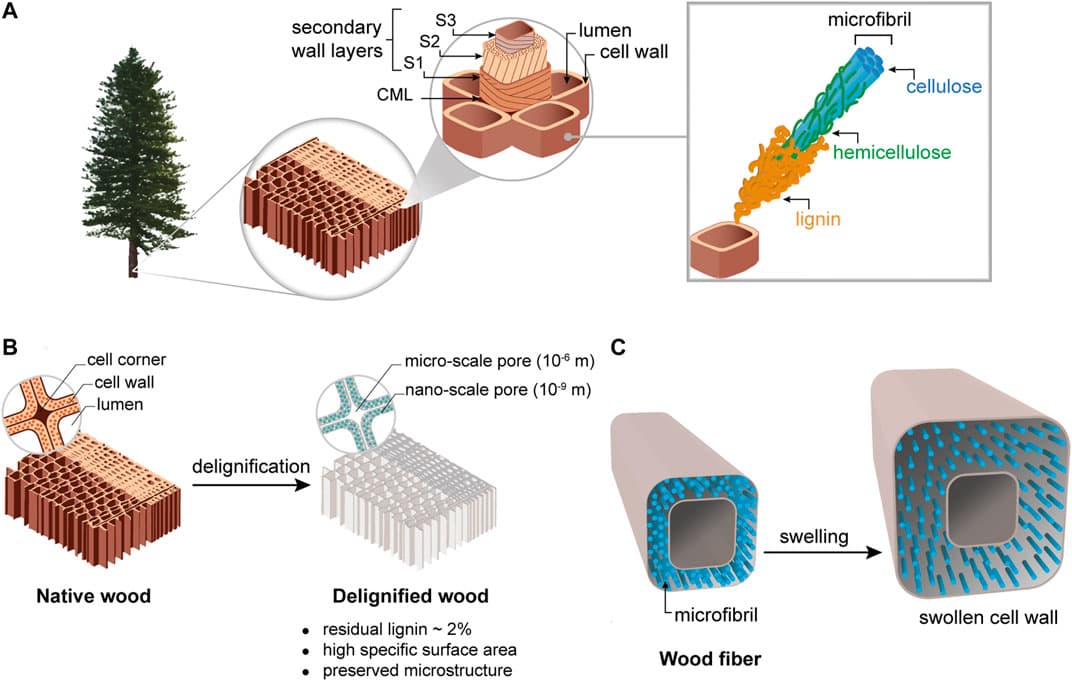

At the microscopic level, wood is made of cellulose fibers embedded in a matrix of lignin and hemicellulose. Think of it like a bundle of drinking straws glued together: strong along the length of the straws, but much weaker if you push sideways against them. This cellular structure is what gives wood its surprisingly high strength-to-weight ratio, which actually compares favorably to steel, making it efficient for trusses and bridges.
Moisture content significantly affects wood's mechanical properties, dimensional stability, and durability:
- High moisture content reduces strength and stiffness (wet wood is weaker)
- Very low moisture content increases brittleness (overly dry wood can crack)
- Dimensional changes from moisture fluctuation can cause warping, swelling, or shrinkage
Wood also exhibits viscoelastic behavior, meaning it deforms slowly over time under sustained load. This phenomenon, called creep, matters for long-term performance. A beam that seems fine at first may gradually sag over years if creep isn't accounted for in design.
Natural Variability and Versatile Properties
Unlike steel or concrete, no two pieces of wood are identical. Properties vary by species, growth conditions, and natural defects like knots. This variability is why grading systems exist for structural lumber:
- Visual grading involves inspecting for knots, grain angle, splits, and other visible characteristics
- Machine stress rating (MSR) measures stiffness mechanically to predict strength more precisely
Beyond structural strength, wood has several properties that make it useful across many applications:
- Thermal insulation: Wood's cellular structure traps air, making it a natural insulator. That's one reason it's so common in wall framing and roof sheathing for energy-efficient buildings.
- Acoustic performance: Wood absorbs and diffuses sound effectively, which is why you'll see it in concert halls and recording studios.
- Aesthetics: Exposed timber beams and wood finishes provide warmth and visual appeal for both structural and decorative uses.
Various Types of Engineered Wood Products and Their Applications in Construction
Engineered wood products solve many of the limitations of solid sawn lumber. By breaking wood down and reassembling it, manufacturers can reduce variability, increase strength, and create members in sizes and shapes that natural lumber can't achieve.
Plywood and Oriented Strand Board (OSB)
Plywood is made by gluing thin wood veneers together with each layer's grain rotated 90° from the one below it. This cross-layering gives plywood improved dimensional stability and strength in multiple directions, unlike solid wood which is strong mainly along the grain. Common uses include wall sheathing, roof decking, and concrete formwork.
Oriented Strand Board (OSB) is manufactured from wood strands arranged in layers, with strands in each layer oriented in a specific direction. It serves as a cost-effective alternative to plywood and is commonly used in residential construction for wall sheathing, roof sheathing, and subflooring.
Glued Laminated Timber and Cross-Laminated Timber
Glued Laminated Timber (Glulam) is made by bonding layers of dimensioned lumber together with structural adhesives. Because the laminations can be curved during manufacturing, glulam allows for large arches, long-span beams, and other shapes that solid timber simply can't achieve. You'll find it in commercial and industrial buildings where both structural performance and visual appeal matter.
Cross-Laminated Timber (CLT) consists of panels made by layering wood boards at right angles and bonding them together. CLT has enabled a new generation of tall wood buildings. These panels can serve as floors, walls, and roofs in multi-story construction, offering a lighter alternative to concrete and steel systems.
Engineered Lumber Products
- Laminated Veneer Lumber (LVL): Thin wood veneers bonded together with grain running parallel. Produces a strong, uniform material commonly used for beams and headers in residential and commercial buildings.
- Parallel Strand Lumber (PSL): Long wood strands aligned parallel to the member's length and bonded under pressure. Creates high-strength columns and beams for heavy-load applications like transfer girders.
- I-joists: Combine engineered wood flanges (top and bottom) with a thinner web material (often OSB or plywood). They're lightweight, allow longer spans than solid lumber, and the open web makes it easier to run plumbing and electrical through floor and roof assemblies.
Environmental Impact and Sustainability Aspects of Timber as a Construction Material
Carbon Sequestration and Renewable Resource
Trees absorb carbon dioxide as they grow, and that carbon remains stored in the wood even after it's harvested and used in construction. This process is called carbon sequestration, and it gives timber a unique environmental advantage over materials like concrete and steel, which release significant during production.
Timber is a renewable resource when sourced from sustainably managed forests. Engineered wood products further improve resource efficiency by utilizing a higher percentage of each harvested tree, reducing waste compared to solid sawn lumber.
Life Cycle Assessment and Sustainable Practices
Life Cycle Assessment (LCA) studies consistently show that timber construction has lower embodied energy and a smaller carbon footprint than comparable steel or concrete alternatives. This accounts for everything from raw material extraction through manufacturing, transport, and end-of-life disposal.
Sustainable forestry certification programs, such as the Forest Stewardship Council (FSC), verify that timber comes from responsibly managed forests that protect biodiversity and maintain healthy ecosystems. Using certified timber also contributes to green building certifications like LEED, where projects can earn credits for renewable materials and local sourcing.
Waste Management and Innovations
Wood waste from construction and demolition doesn't have to end up in a landfill. It can be recycled into new products or used for bioenergy production, supporting circular economy principles.
Innovations in wood preservation are also reducing environmental impact. Newer copper-based treatments are less toxic than older preservatives like chromated copper arsenate (CCA), while still extending the service life of timber in challenging environments such as marine structures and outdoor applications.
Structural Behavior of Timber Elements Under Different Loading Conditions
Orthotropic Properties and Failure Modes
Wood is specifically orthotropic, meaning it has distinct strength and stiffness properties in three directions: along the grain (longitudinal), across the grain (radial), and tangential to the growth rings. In structural design, the most critical distinction is between parallel-to-grain and perpendicular-to-grain properties. This must be considered for every design decision, from beam bending to column buckling.
Timber elements typically behave as linear elastic up to the proportional limit, then exhibit nonlinear behavior before failure. The main failure modes to understand are:
- Bending failure: Tension failure in the bottom fibers of a beam (the tension side)
- Compression failure: Crushing of wood fibers, often visible as wrinkling on the compression side
- Tension failure: Splitting along the grain, since wood is weak in tension perpendicular to grain
- Shear failure: Sliding between wood fibers, typically horizontal shear in beams
Each failure mode is governed by the specific strength properties of the wood species and its grade.
Connections and Long-Term Behavior
Connections are often the weakest link in a timber structure. They frequently determine the overall strength and ductility of the system, so they deserve careful attention in design. Common connection types include nailed, bolted, and glued connections, each with different load-transfer characteristics.
Two long-term effects must be accounted for in timber design:
- Creep: Under sustained loads, timber gradually deforms beyond its initial elastic deflection. Beams and floors are particularly susceptible.
- Load duration effect: Wood can resist higher stresses under short-duration loads (like wind or impact) than under long-duration loads (like dead load). Design codes adjust allowable stresses accordingly.
Size Effect and Fire Performance
The size effect means that larger timber members have lower strength per unit area than smaller ones. This is because larger members are statistically more likely to contain strength-reducing defects. It's an important consideration when designing large glulam beams or heavy timber columns.
Timber's fire performance is more predictable than many people expect. Wood chars at a known, steady rate (roughly 0.6 mm per minute for most softwoods). The char layer that forms acts as insulation, protecting the unburned inner core and allowing the member to continue carrying load. Engineers can design fire-resistant timber elements by oversizing members to account for the expected char depth during a design fire.
Common Timber Design Codes and Standards Used in Civil Engineering Practice
North American Standards
- National Design Specification (NDS) for Wood Construction: The primary reference for timber design in the United States. It provides design values, adjustment factors, and methodologies for various wood products.
- International Building Code (IBC): Includes provisions for timber construction and references specific wood design standards for code compliance.
- American Wood Council (AWC): Publishes technical design guides and supplements that aid engineers in applying NDS provisions to real projects.
International and Material-Specific Standards
- Eurocode 5: The standard for design of timber structures used across European countries, offering a comprehensive and unified approach to timber engineering.
- CSA O86: The Canadian Standards Association standard governing engineering design of wood structures in Canada. It provides an alternative approach to timber design within North American practice.
- ASTM International: Publishes numerous standards for testing and specifying wood products, including methods for determining mechanical properties and durability.
Grading and Product-Specific Standards
Grading rules are essential for determining the allowable design values of structural lumber. Different agencies oversee grading for different species and regions. For example, the Southern Pine Inspection Bureau (SPIB) publishes grading rules for southern pine species.
Product-specific standards ensure consistency and reliability for engineered wood products:
- Plywood: PS 1 (Structural Plywood)
- OSB: PS 2 (Performance Standard for Wood-Based Structural-Use Panels)
- Glulam: ANSI A190.1 (Standard for Wood Products – Structural Glued Laminated Timber)
