11.1 Exploring the Outer Planets

Composition and Structure of the Outer Planets

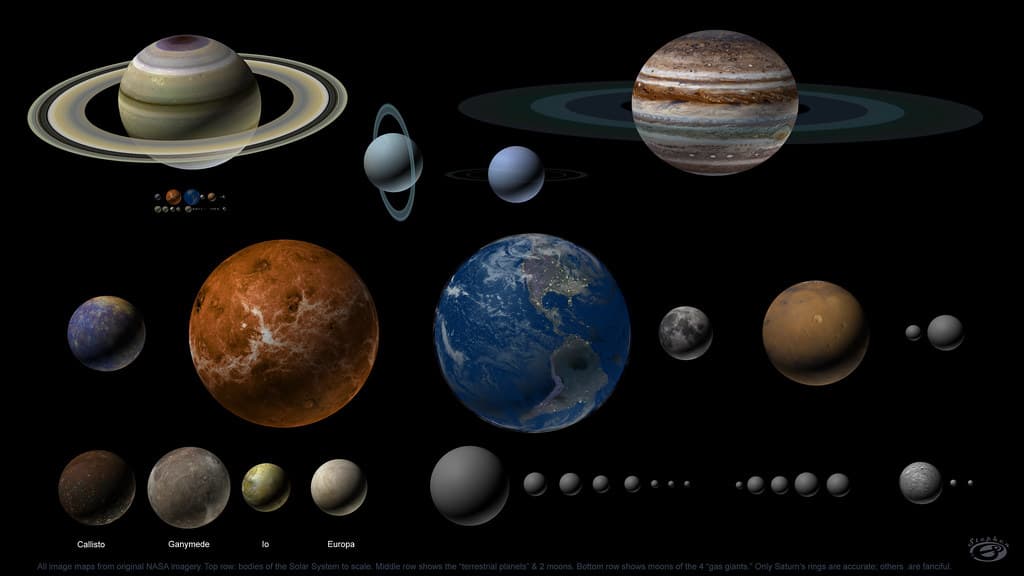

The four outer planets are split into two categories based on what they're made of. Jupiter and Saturn are gas giants, composed primarily of hydrogen and helium. Uranus and Neptune are ice giants, built from heavier stuff like water, methane, and ammonia ices. Understanding this distinction helps explain why these planets look and behave so differently from each other.

Internal Structure

Gas giants and ice giants are layered differently from the inside out:

• Gas giants (Jupiter, Saturn): A rocky core sits at the center, surrounded by a thick layer of metallic hydrogen (hydrogen compressed so intensely it conducts electricity like a metal). Above that are outer layers of molecular hydrogen and helium gas.
• Ice giants (Uranus, Neptune): These have smaller rocky cores than the gas giants. Instead of metallic hydrogen, their mantles consist of hot, dense fluid made of water, methane, and ammonia ices mixed with rock.

Both types of planet generate strong magnetic fields because their interiors contain electrically conductive fluids (metallic hydrogen in gas giants, ionic water in ice giants).

Atmospheres and Surface Features

• Gas giant atmospheres display colorful bands (alternating stripes of rising and sinking gas) and massive storms. Jupiter's Great Red Spot, a storm larger than Earth, has persisted for centuries.
• Ice giant atmospheres are thinner and generally less turbulent, though Neptune surprised scientists with some of the fastest winds in the solar system (up to ~2,100 km/h).
• All four giant planets emit more heat than they receive from the Sun. This internal heat drives their dynamic weather systems.

Rings

All four outer planets have ring systems. Saturn's rings are by far the most prominent and visible, but Jupiter, Uranus, and Neptune each have thinner, darker rings discovered during spacecraft flybys.

Robotic Missions to the Outer Planets

Almost everything we know about the outer planets comes from robotic spacecraft. These missions fall into two categories: flybys (a spacecraft passes by quickly, collecting data on the way) and orbital missions (a spacecraft enters orbit and studies a planet for months or years).

Early Flybys

• Pioneer 10 and 11 (1970s): The first spacecraft to visit Jupiter and Saturn. They measured magnetic fields, radiation belts, and atmospheric properties, proving that spacecraft could survive the intense radiation environment around Jupiter.
• Voyager 1 and 2 (launched 1977): Conducted flybys of Jupiter and Saturn. Voyager 2 went on to become the only spacecraft to visit Uranus (1986) and Neptune (1989). Together, the Voyagers discovered new moons, previously unknown ring systems, and complex atmospheric storms across all four giant planets.

Orbital Missions

• Galileo (1995–2003): The first spacecraft to orbit Jupiter. It dropped a probe into Jupiter's atmosphere and studied the planet's moons up close. A major discovery was evidence of subsurface oceans beneath the icy crusts of Europa and Ganymede, making them prime targets in the search for habitable environments.
• Cassini-Huygens (2004–2017): Orbited Saturn for 13 years. The Huygens probe detached and landed on Saturn's moon Titan, revealing a surface with lakes of liquid methane and a thick nitrogen atmosphere. Cassini also discovered water-ice geysers erupting from Enceladus, suggesting a subsurface ocean with potential habitability.

Orbital Missions to Jupiter and Saturn

Juno at Jupiter (2016–present)

Juno is currently orbiting Jupiter in a polar orbit, meaning it passes over the north and south poles rather than circling the equator. Its main objectives:

1. Study Jupiter's composition, gravity field, and magnetic field
2. Observe auroras and plasma waves in the polar magnetosphere
3. Investigate Jupiter's deep interior to understand how the planet formed

Juno has revealed that Jupiter's interior is more complex than expected, with an asymmetric gravity field suggesting its core may be partially dissolved rather than a neat solid ball. It has also captured stunning images of Jupiter's polar cyclones.

Cassini-Huygens at Saturn (2004–2017)

Cassini's long mission at Saturn produced a wealth of discoveries:

1. Mapped complex structures and dynamics within Saturn's rings, showing they are far more intricate than previously thought
2. Revealed the geological diversity of Saturn's moons, especially the active geysers on Enceladus that spray water ice into space
3. Studied prebiotic chemistry (organic molecules that could be precursors to life) in Titan's atmosphere and on its surface
4. Observed seasonal changes in Saturn's atmosphere and magnetosphere over nearly half a Saturnian year

These orbital missions have transformed the outer planets from distant dots of light into complex, dynamic worlds with moons that rank among the most promising places to search for life beyond Earth.
