3.4 Orbits in the Solar System

Orbital Characteristics and Dynamics in the Solar System

Everything in the solar system orbits the Sun along paths shaped by gravity. Planets, asteroids, and comets each follow distinct types of orbits, and Kepler's laws describe the patterns connecting orbital size, shape, speed, and period. Understanding these orbits explains why Mercury zips around the Sun in 88 days while Neptune takes 165 years.

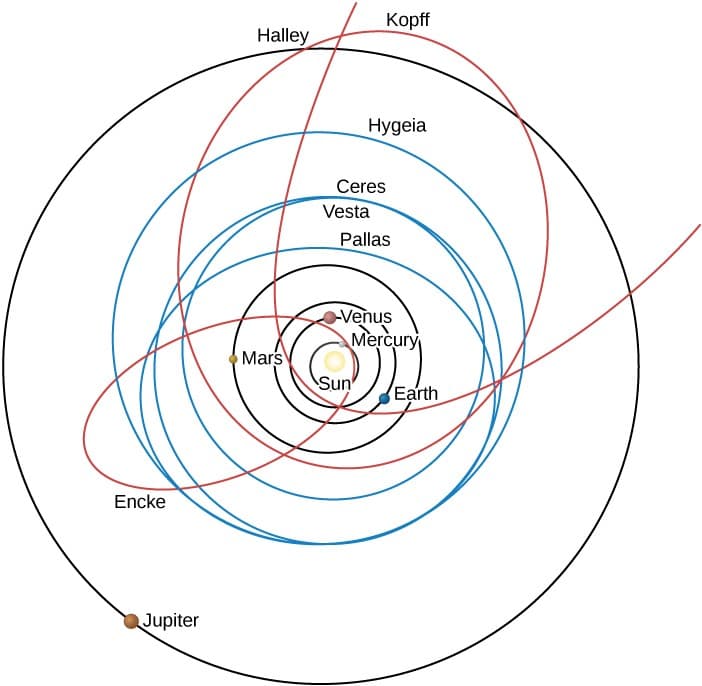

Orbital characteristics in solar system

The three main categories of orbiting objects each have distinctive orbital signatures.

Planets orbit the Sun in nearly circular ellipses, all moving counterclockwise as viewed from above the Sun's north pole. They orbit close to the same flat plane, called the ecliptic plane. Their orbital eccentricities are close to 0, meaning their orbits are close to perfect circles. Earth's eccentricity is about 0.017, and Mars's is about 0.093.

Asteroids are mostly found in the asteroid belt between Mars and Jupiter. They orbit the Sun in elliptical paths with a wider range of eccentricities than planets. Most travel in the same direction as the planets, though a few have retrograde (backward) orbits. Their orbital inclinations vary more than those of planets, but most still stay relatively close to the ecliptic plane. Notable examples include Ceres and Vesta.

Comets have highly elliptical orbits with eccentricities close to 1, meaning their paths are very elongated. Their orbital periods range from a few years to hundreds of thousands of years. Short-period comets (like Halley's Comet, ~76 years) originate from the Kuiper Belt, while long-period comets (like Comet Hale-Bopp) come from the much more distant Oort Cloud. Comets can orbit at steep angles to the ecliptic plane. When they swing close to the Sun, solar radiation and the solar wind cause them to develop glowing comas and tails.

Distance effects on planetary orbits

The farther an object is from the Sun, the longer it takes to complete one orbit and the slower it moves. Kepler's Third Law captures this relationship:

$P^2 = a^3$

Here, $P$ is the orbital period in years and $a$ is the semi-major axis (the average orbital distance) in astronomical units (AU). To use it, you cube the distance and then take the square root to find the period.

Some concrete comparisons show this pattern clearly:

• Earth at 1 AU has an orbital period of 1 year
• Jupiter at 5.2 AU has an orbital period of about 11.9 years
• Mercury at 0.39 AU orbits in just 0.24 years (88 days)

Orbital speed also drops with distance, because the Sun's gravitational pull weakens farther out. Mercury travels at about 47.4 km/s, while Neptune crawls along at about 5.4 km/s.

Key points in orbital paths

Every elliptical orbit has two special points that mark the extremes of distance from the Sun.

Perihelion is the closest point to the Sun. At perihelion, an object moves at its fastest because the Sun's gravitational pull is strongest there. For comets, perihelion is when they're most active, displaying their brightest comas and longest tails.

Aphelion is the farthest point from the Sun. At aphelion, an object moves at its slowest. Comets at aphelion show minimal or no coma and tail activity.

Orbital dynamics and stability

Kepler's three laws together describe how planets move:

1. First Law (Law of Ellipses): Planets orbit in ellipses with the Sun at one focus, not at the center.
2. Second Law (Equal Areas): A line connecting a planet to the Sun sweeps out equal areas in equal time intervals. This is why planets speed up near perihelion and slow down near aphelion.
3. Third Law: $P^2 = a^3$, linking orbital period to orbital size (covered above).

An object stays in a stable orbit because the inward pull of gravity is balanced by the object's tendency to move in a straight line (its inertia). The result is a continuous curved path rather than a fall inward or an escape outward.

Conservation of angular momentum is the deeper reason behind Kepler's Second Law. Angular momentum depends on both speed and distance from the Sun. Since it's conserved (stays constant), when a planet moves closer to the Sun, it must speed up, and when it moves farther away, it slows down.

Orbital resonance happens when two orbiting bodies exert regular, repeating gravitational tugs on each other. For example, Pluto and Neptune are in a 3:2 resonance, meaning Pluto completes exactly 2 orbits for every 3 of Neptune's. These resonances often create long-term orbital stability.

Lagrange points are five specific positions in the orbital system of two large bodies (like the Sun and Earth) where a small object can remain in a stable position relative to both. Several spacecraft, including the James Webb Space Telescope, are parked at the Sun-Earth L2 Lagrange point.
