5.4 Heat Exchanger Design and Optimization

Factors Influencing Heat Exchanger Design

Heat exchanger design comes down to balancing thermal performance against cost and practical constraints. Every design decision involves trade-offs: better heat transfer often means higher pressure drop, and a more compact design may cost more to fabricate.

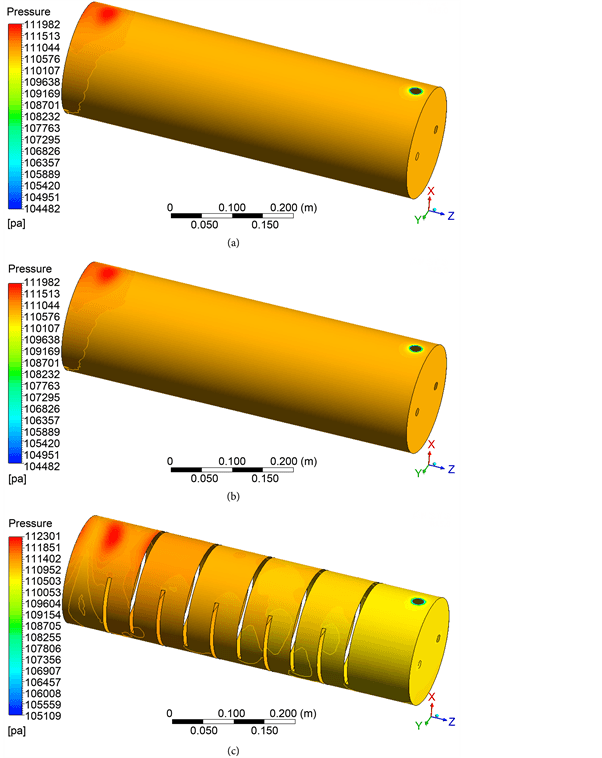

Thermal and Hydraulic Performance

The required heat transfer rate drives the overall size and type of exchanger you need. A higher duty means more surface area, which means a larger (and more expensive) unit.

Pressure drop is the other major performance constraint. Higher pressure drops require more pumping power, which raises operating costs. In many real designs, the allowable pressure drop ends up limiting how aggressive you can be with heat transfer enhancement.

The fluid properties of both streams directly shape the design:

• Viscosity affects the Reynolds number and therefore the flow regime (laminar vs. turbulent) and heat transfer coefficient
• Density influences pressure drop and flow velocity
• Thermal conductivity determines how readily heat moves through the fluid

Economic and Spatial Considerations

Cost shows up in two places: capital cost (materials, fabrication, installation) and operating cost (pumping power, maintenance). A cheaper exchanger that requires enormous pumping power isn't actually a good deal.

Physical constraints matter too. The available space and piping layout often dictate which exchanger type is feasible. A shell-and-tube unit handles high pressures well but takes up more room than a plate heat exchanger, which offers high surface area in a compact footprint.

Heat Exchanger Design Calculations

Heat Transfer Correlations

The Nusselt number ($Nu$) is a dimensionless ratio of convective to conductive heat transfer. It tells you how effective convection is relative to pure conduction through the fluid. $Nu$ is typically correlated as a function of the Reynolds number ($Re$, characterizing flow regime) and the Prandtl number ($Pr$, relating momentum diffusivity to thermal diffusivity).

The Dittus-Boelter correlation is the most common starting point for turbulent flow in circular tubes:

$Nu = 0.023 \cdot Re^{0.8} \cdot Pr^{0.4}$

This applies when $Re > 10{,}000$, $0.6 < Pr < 160$, and $L/D > 10$ (fully developed flow). The exponent on $Pr$ is 0.4 for heating and 0.3 for cooling of the fluid.

The effectiveness-NTU method is used when you don't know the outlet temperatures ahead of time. You calculate:

1. The number of transfer units: $NTU = \frac{UA}{C_{min}}$, where $U$ is the overall heat transfer coefficient, $A$ is the surface area, and $C_{min}$ is the smaller heat capacity rate.
2. The heat capacity ratio: $C_r = \frac{C_{min}}{C_{max}}$
3. The effectiveness $\varepsilon$ from a correlation specific to the exchanger geometry (counterflow, parallel flow, crossflow, etc.).
4. The actual heat transfer rate: $q = \varepsilon \cdot C_{min} \cdot (T_{h,in} - T_{c,in})$

Pressure Drop Equations

The Darcy-Weisbach equation gives the frictional pressure drop through a pipe or tube:

$\Delta p = f \cdot \frac{L}{D} \cdot \frac{\rho v^2}{2}$

where $f$ is the Darcy friction factor, $L$ is the pipe length, $D$ is the diameter, $\rho$ is the fluid density, and $v$ is the mean velocity.

To find $f$ for turbulent flow in rough pipes, you use the Colebrook equation:

$\frac{1}{\sqrt{f}} = -2.0 \log\left(\frac{\epsilon/D}{3.7} + \frac{2.51}{Re\sqrt{f}}\right)$

This is implicit in $f$ (it appears on both sides), so you solve it iteratively or use an explicit approximation like the Swamee-Jain equation. Here $\epsilon$ is the absolute surface roughness of the pipe.

Heat Exchanger Design Optimization

Balancing Performance and Economics

Optimization means finding the design that minimizes total cost (capital + operating) while meeting the thermal duty. The core trade-offs:

• More surface area improves heat transfer but increases material and fabrication costs.
• Lower pressure drop reduces pumping power (operating cost) but may require larger flow passages, increasing the exchanger's physical size and capital cost.
• Higher fluid velocities boost the heat transfer coefficient but raise pressure drop quadratically (since $\Delta p \propto v^2$).

Design Enhancements and Optimization Techniques

Material selection affects both thermal performance and cost. Copper and aluminum have high thermal conductivity and improve heat transfer, but they're more expensive and may not resist corrosion as well as stainless steel in aggressive environments.

Enhanced surfaces can significantly boost performance:

• Fins increase the effective heat transfer area, especially useful on the side with the lower heat transfer coefficient (typically the gas side).
• Turbulators (twisted tapes, wire coils) promote mixing and break up the thermal boundary layer, raising $Nu$.
• Both enhancements increase pressure drop and manufacturing complexity, so the net benefit must be evaluated.

Computational optimization techniques are used when the design space is large and the trade-offs are nonlinear. Methods like genetic algorithms and particle swarm optimization can search many combinations of tube diameter, length, baffle spacing, and flow arrangement to find the design that minimizes total cost subject to thermal and pressure drop constraints.

Fouling Impact on Heat Exchanger Performance

Fouling Mechanisms and Effects

Fouling is the gradual buildup of unwanted material on heat transfer surfaces. It degrades performance in two ways: it adds thermal resistance (reducing heat transfer) and it narrows flow passages (increasing pressure drop).

The main types of fouling:

• Particulate fouling: suspended solids settle on surfaces
• Crystallization fouling (scaling): dissolved salts precipitate as temperature changes (common in cooling water systems)
• Chemical reaction fouling: deposits form from chemical reactions at the surface (e.g., polymerization in refineries)
• Corrosion fouling: corrosion products accumulate on the surface
• Biological fouling: growth of organisms like algae or biofilms

The thermal resistance added by fouling layers is captured by the fouling resistance $R_f$. The overall heat transfer coefficient including fouling on both sides is:

$\frac{1}{U} = \frac{1}{h_1} + R_{f,1} + \frac{t}{k_w} + R_{f,2} + \frac{1}{h_2}$

where $h_1$ and $h_2$ are the convection coefficients, $t$ is the wall thickness, and $k_w$ is the wall thermal conductivity.

Fouling Factors and Mitigation Strategies

Fouling factors are empirical values of $R_f$ published in standards like TEMA (Tubular Exchanger Manufacturers Association). They represent expected fouling resistance for specific fluid types and operating conditions.

Designers add these fouling factors into the $U$ calculation from the start, which results in an oversized exchanger. The extra surface area ensures the unit can still meet the required duty even after fouling develops over its service life. The downside is higher capital cost upfront.

Mitigation strategies include:

• Regular cleaning (mechanical or chemical) to remove deposits and restore performance
• Velocity control: maintaining sufficiently high fluid velocities to discourage deposition
• Water treatment: reducing the concentration of foulants in the feed stream
• Material and coating selection: using surfaces that resist fouling or are easier to clean
