10.3 Distillation and Extraction

Citation:

Distillation and extraction are key separation methods in mass transfer equipment. They rely on different physical properties to separate components: volatility for distillation and solubility for extraction. Both are crucial in industries like chemical processing and pharmaceuticals.

These processes are influenced by factors like relative volatility, distribution coefficients, and system design. Understanding these principles helps optimize separation efficiency, reduce energy consumption, and improve overall process economics in industrial applications.

Principles and Applications of Distillation and Extraction

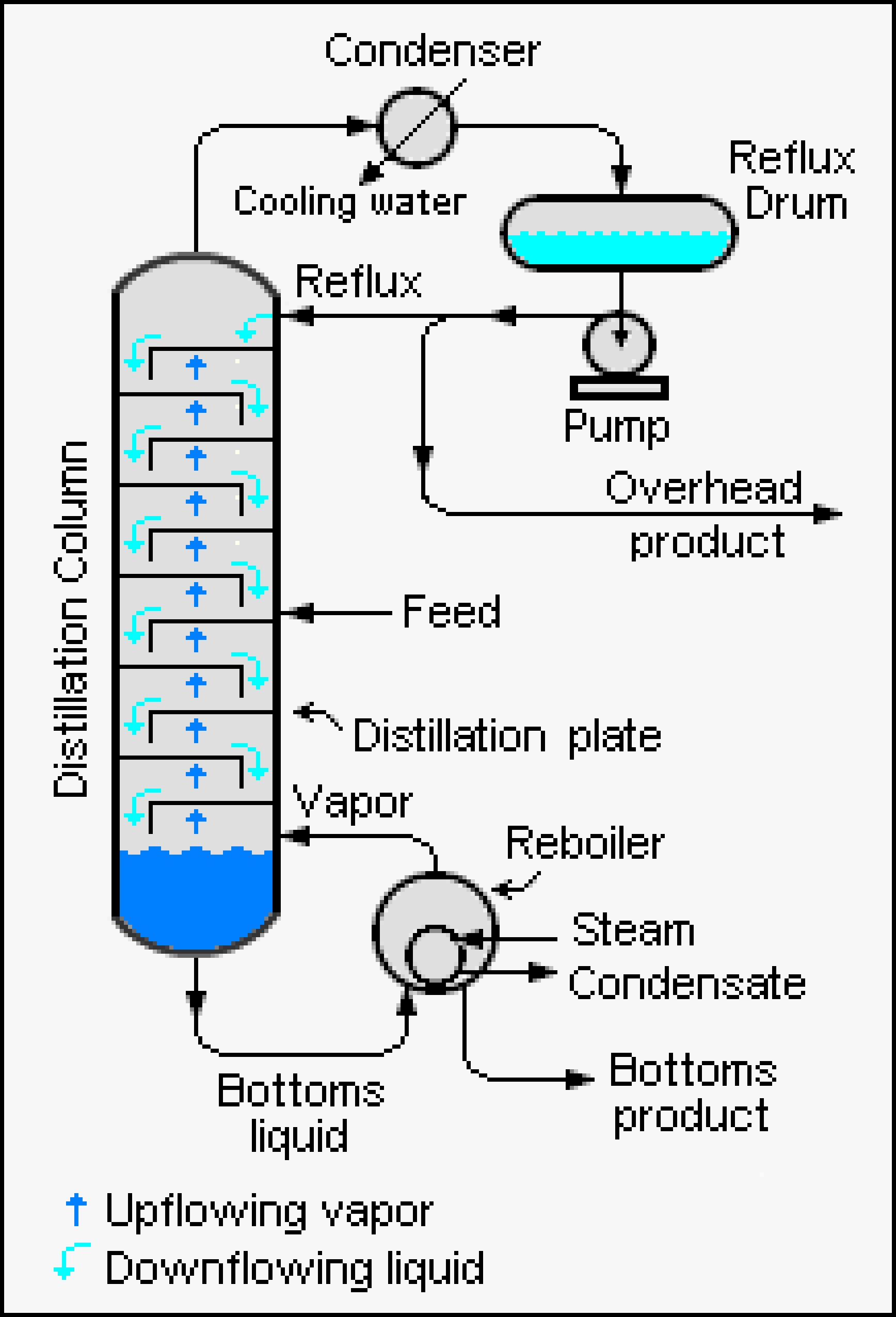

Fundamentals of Distillation

Distillation separates components in a liquid mixture based on differences in volatility (boiling points)
Involves vaporization and condensation of the mixture to achieve separation
Widely used in chemical, petrochemical, and refining industries for separating and purifying liquid mixtures (crude oil fractionation, alcohol purification, solvent recovery)

Fundamentals of Extraction

Extraction separates components based on differences in solubility in two immiscible phases, typically a liquid-liquid system
Desired component is transferred from one phase to another based on its relative solubility
Finds applications in various fields (chemical processing, pharmaceuticals, food industry) for separating valuable components from mixtures (essential oils, fragrances, bioactive compounds)

Factors Influencing Separation Efficiency

Distillation Factors

Relative volatility of components in the mixture determines ease of separation; higher relative volatility leads to better separation efficiency
Number of theoretical stages in a distillation column affects separation efficiency; increasing stages improves separation but also increases capital and operating costs
Reflux ratio, the ratio of liquid returned to the column to distillate product, influences separation efficiency; higher reflux ratios enhance separation but require more energy input

Extraction Factors

Distribution coefficient, the ratio of a component's concentration in extract phase to its concentration in raffinate phase, determines separation efficiency
Selectivity of solvent used in extraction plays a crucial role in separation efficiency; a solvent with high selectivity for the desired component improves separation performance
Contact time between phases and interfacial area available for mass transfer affect separation efficiency in both distillation and extraction processes

Design and Optimization of Separation Systems

Distillation System Design

McCabe-Thiele method used for design and analysis of binary distillation systems; involves constructing equilibrium diagram and operating lines to determine number of theoretical stages required for desired separation
Fenske-Underwood-Gilliland (FUG) method employed for design of multicomponent distillation systems; involves calculating minimum reflux ratio, minimum number of stages, and optimum feed stage location
Process simulation software (Aspen Plus, HYSYS) used to model, simulate, and optimize distillation systems; helps evaluate design alternatives and perform sensitivity analyses

Extraction System Design

Choice of solvent is critical; factors such as selectivity, distribution coefficient, density difference, and environmental impact are considered in solvent selection
Design of extraction columns involves determining number of theoretical stages, column dimensions, and operating conditions (flow rates, temperature) to achieve desired separation
Process simulation software also used to model, simulate, and optimize extraction systems

Energy Consumption and Economics of Distillation and Extraction

Energy Considerations

Distillation is energy-intensive due to heat required for vaporization and condensation; energy consumption influenced by relative volatility of components, reflux ratio, and column pressure
Heat integration techniques (feed preheating, side reboilers, heat pumps) can reduce energy consumption in distillation systems
Extraction processes generally have lower energy requirements compared to distillation, as they do not involve phase change; however, cost of solvents and their recovery can impact economics

Economic Aspects

Economic viability of distillation depends on energy costs, capital investment (column size, materials of construction), and value of separated products
Choice between distillation and extraction for a specific separation task based on factors such as nature of mixture, required purity, energy efficiency, and overall economic feasibility
Life cycle assessment (LCA) can evaluate environmental impact and sustainability of distillation and extraction processes, considering energy consumption, greenhouse gas emissions, and waste generation

Key Terms to Review (21)

Theoretical stages: Theoretical stages refer to the idealized concepts in separation processes that represent the number of equilibrium stages needed to achieve a desired degree of separation in distillation or extraction. This concept helps in understanding how the efficiency of a separation process can be optimized by examining the phases involved and the interactions between them, ultimately guiding the design and operation of equipment for these processes.

Distribution coefficient: The distribution coefficient is a ratio that describes how a solute divides itself between two immiscible phases, typically a liquid and a solid or two liquids. This term is crucial in understanding separation processes such as distillation and extraction, as it indicates the preference of a compound for one phase over another. A higher distribution coefficient means that the solute prefers one phase significantly more than the other, affecting how effectively separation techniques can remove or concentrate specific components from a mixture.

Diffusion: Diffusion is the process by which molecules move from an area of higher concentration to an area of lower concentration, driven by the concentration gradient. This natural tendency of substances to spread out plays a vital role in various processes, including the transport of mass in fluids, the formation of boundary layers, and even in biological systems where nutrient and gas exchange occurs.

Relative Volatility: Relative volatility is a dimensionless number that quantifies the ease with which one component in a mixture can be separated from another during processes like distillation or extraction. It is defined as the ratio of the vapor pressures of two components at a given temperature, allowing for the comparison of their volatilities. This concept is crucial for understanding how effectively components can be separated based on their physical properties.

Alcohol production: Alcohol production refers to the process of fermenting sugars to create alcoholic beverages, which involves converting carbohydrates into ethanol and carbon dioxide by yeast or bacteria. This process is critical for the creation of various types of alcoholic drinks, including beer, wine, and spirits, and often employs techniques like distillation to increase the alcohol content and refine flavors.

Petroleum refining: Petroleum refining is the industrial process of converting crude oil into useful products such as gasoline, diesel, jet fuel, heating oil, and other petrochemicals. This transformation involves separating the various components of crude oil and then converting those components into products that meet specific quality standards, utilizing techniques such as distillation and chemical processing.

Fenske Equation: The Fenske Equation is a mathematical expression used to determine the minimum number of theoretical stages required for a continuous distillation process. It connects the efficiency of the distillation column with the separation of components based on their volatility, emphasizing the relationship between the feed composition, product purity, and relative volatility. This equation is essential for understanding the design and optimization of distillation operations in chemical engineering.

McCabe-Thiele Method: The McCabe-Thiele Method is a graphical technique used to analyze and design binary distillation processes. It provides a way to determine the number of theoretical stages required for the separation of two components in a mixture, along with the optimal feed conditions. This method is particularly useful because it simplifies the design of distillation columns by allowing engineers to visualize the relationships between liquid and vapor compositions, equilibrium lines, and operating lines.

Extractor: An extractor is a device or apparatus used to separate specific components from a mixture, typically by utilizing differences in their physical or chemical properties. This process is essential in various applications such as separating desired products from solvents or separating volatile compounds from mixtures. Extractors play a crucial role in both distillation and extraction processes, allowing for the efficient recovery of valuable substances while minimizing waste.

Solid-liquid extraction: Solid-liquid extraction is a process used to separate a soluble compound from a solid material by dissolving it in a suitable solvent. This method is commonly employed in various fields, including chemistry and food processing, and relies on the principles of solubility and diffusion to efficiently extract the desired component from the solid matrix. Understanding the dynamics of this extraction process can provide insights into separation techniques that are essential for purification and concentration tasks.

Interfacial area: Interfacial area refers to the surface area that exists between two different phases, such as liquid and vapor or liquid and solid, which plays a crucial role in mass and heat transfer processes. The larger the interfacial area, the more efficient the transfer of components between these phases, affecting separation processes and extraction efficiency. This concept is particularly significant in operations where multiple phases interact, like distillation and extraction.

Distillation efficiency: Distillation efficiency refers to the effectiveness of a distillation process in separating components based on differences in their boiling points. A higher distillation efficiency means a greater ability to produce a purer product by maximizing the separation of volatile components from less volatile ones, often measured by the number of theoretical plates in a distillation column or the overall yield of desired fractions.

Reflux ratio: The reflux ratio is the ratio of the amount of liquid returned to the distillation column to the amount of liquid taken off as distillate product. This concept is crucial for understanding the efficiency and performance of a distillation process, as it affects the purity of the separated components and the energy consumption involved in the process. A higher reflux ratio typically leads to greater separation but also increases energy costs and operational complexity.

Distillation column: A distillation column is a key piece of equipment used in the separation of mixtures based on differences in boiling points. It operates on the principle of vaporization and condensation, allowing components with lower boiling points to rise and be collected, while higher boiling point components descend. This process is crucial for purifying liquids and is widely used in industries such as petrochemical, pharmaceutical, and food processing.

Liquid-liquid extraction: Liquid-liquid extraction is a separation technique used to isolate specific components from a liquid mixture by distributing them between two immiscible liquid phases. This process takes advantage of differences in solubility to separate compounds, often utilizing solvents with varying polarities. It's a crucial method in both chemical engineering and analytical chemistry for purifying substances or concentrating desired components from complex mixtures.

Dew Point: The dew point is the temperature at which air becomes saturated with moisture, leading to the condensation of water vapor into liquid water. It is an essential concept in understanding distillation and extraction processes, as it indicates the temperature at which vapor begins to condense, affecting separation and purification efficiency.

Simple distillation: Simple distillation is a separation technique used to separate a liquid mixture into its individual components based on differences in boiling points. This process involves heating the mixture to a temperature at which one or more components vaporize, then cooling the vapor back into a liquid to collect the purified component. Simple distillation is particularly effective for separating substances that have significantly different boiling points and is often employed in various industrial and laboratory applications.

Fractional distillation: Fractional distillation is a separation process used to separate a mixture of liquids into its individual components based on differences in boiling points. It is particularly effective for separating mixtures where the components have closer boiling points, allowing for the efficient extraction of desired substances. This technique plays a vital role in various industries, especially in refining and chemical manufacturing.

Bubble Point: The bubble point is the temperature at which a liquid mixture begins to form vapor bubbles at a given pressure. This point is crucial in understanding phase equilibrium and helps determine how mixtures behave during processes like absorption, stripping, distillation, and extraction. The bubble point plays a significant role in the efficiency of separation processes, indicating the conditions under which a mixture can start vaporizing.

Henry's Law: Henry's Law states that the amount of gas dissolved in a liquid at a constant temperature is directly proportional to the partial pressure of that gas above the liquid. This law is crucial in understanding processes where gases are absorbed into liquids and can be applied to analyze how gases behave in various industrial operations.

Raoult's Law: Raoult's Law states that the partial vapor pressure of each component in an ideal solution is equal to the vapor pressure of that pure component multiplied by its mole fraction in the solution. This law helps in understanding how components interact during phase changes and is crucial for processes involving mass transfer, such as absorption, stripping, distillation, and extraction.
