Boundary layers are crucial in convection heat transfer. They form near solid surfaces, affecting fluid velocity and temperature gradients. Understanding boundary layers helps explain how heat moves between surfaces and fluids in different flow conditions.
Convection coefficients quantify heat transfer rates in various flows. They depend on fluid properties, flow conditions, and surface characteristics. Knowing how to calculate and apply convection coefficients is key to solving real-world heat transfer problems.
Boundary Layers in Convective Heat Transfer
Concept and Development of Boundary Layers
Top images from around the web for Concept and Development of Boundary Layers
Frontiers | Heat and Mass Transport in Modeling Membrane Distillation Configurations: A Review View original
Is this image relevant?

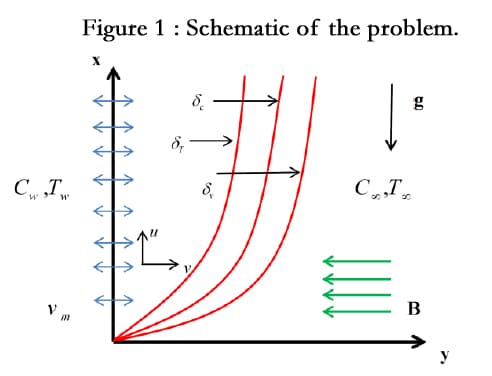

Investigation of Natural Convection Boundary Layer Heat and Mass Transfer View original
Is this image relevant?
Frontiers | Heat and Mass Transport in Modeling Membrane Distillation Configurations: A Review View original
Is this image relevant?
Investigation of Natural Convection Boundary Layer Heat and Mass Transfer View original
Is this image relevant?
1 of 2
Top images from around the web for Concept and Development of Boundary Layers
Frontiers | Heat and Mass Transport in Modeling Membrane Distillation Configurations: A Review View original
Is this image relevant?
Investigation of Natural Convection Boundary Layer Heat and Mass Transfer View original
Is this image relevant?
Frontiers | Heat and Mass Transport in Modeling Membrane Distillation Configurations: A Review View original
Is this image relevant?
Investigation of Natural Convection Boundary Layer Heat and Mass Transfer View original
Is this image relevant?
1 of 2
A is a thin region near a solid surface where the fluid velocity changes from zero at the surface to the away from the surface
The boundary layer develops as a result of the , which states that the fluid velocity at the surface is equal to the velocity of the surface
This condition arises due to the adhesive forces between the fluid molecules and the solid surface
The fluid particles in direct contact with the surface have zero velocity relative to the surface
The thickness of the boundary layer increases in the flow direction, starting from the leading edge of the surface
The boundary layer grows as more fluid particles are slowed down by the viscous forces near the surface
The boundary layer thickness is typically defined as the distance from the surface where the velocity reaches 99% of the free-stream velocity
Significance of Boundary Layers in Heat Transfer
The boundary layer plays a crucial role in convective heat transfer, as it determines the temperature gradient and heat flux at the surface
The temperature profile in the boundary layer is influenced by the and the thermal properties of the fluid
A thinner boundary layer results in a steeper temperature gradient and higher heat transfer rates
The is directly related to the boundary layer characteristics, such as thickness and velocity profile
A thinner boundary layer and higher velocity gradients near the surface lead to higher convection coefficients
Factors that affect the boundary layer, such as surface roughness and flow turbulence, also influence the convective heat transfer coefficient
Laminar vs Turbulent Boundary Layers
Characteristics of Laminar Boundary Layers
Laminar boundary layers are characterized by smooth, parallel flow with no mixing between fluid layers
The fluid particles move in orderly, parallel paths without significant cross-flow or mixing
Laminar flow occurs at low Reynolds numbers, typically below a critical value that depends on the geometry and flow conditions
In laminar boundary layers, the velocity profile is parabolic, with the maximum velocity at the center and zero velocity at the surface
The velocity gradient is highest near the surface and decreases towards the center of the flow
The parabolic velocity profile is a result of the balance between viscous forces and pressure gradients in the flow
Characteristics of Turbulent Boundary Layers
Turbulent boundary layers are characterized by chaotic, fluctuating flow with significant mixing between fluid layers
The fluid particles have random, three-dimensional motion with intense mixing and cross-flow
Turbulent flow occurs at high Reynolds numbers, typically above a critical value that depends on the geometry and flow conditions
In turbulent boundary layers, the velocity profile is flatter compared to laminar flow, with a sharp gradient near the surface and a more uniform velocity distribution away from the surface
The velocity gradient near the surface is much higher than in laminar flow, resulting in enhanced momentum and heat transfer
The flatter velocity profile is a result of the increased mixing and momentum exchange between fluid layers
The transition from laminar to turbulent flow occurs at a critical , which depends on the surface roughness, pressure gradient, and other factors
Surface roughness promotes early transition to turbulence by introducing disturbances in the flow
Adverse pressure gradients (increasing pressure in the flow direction) can also trigger the transition to turbulence
Convection Coefficients for Different Flows
Definition and Units of Convection Coefficient
The convection coefficient h is a measure of the rate of heat transfer between a surface and a fluid, expressed in units of W/(m2⋅K)
It quantifies the ability of a fluid to transfer heat by convection, considering the fluid properties, flow conditions, and surface characteristics
Higher values of h indicate more effective heat transfer, while lower values suggest less efficient heat transfer
Convection Coefficients for External Flows
For external flow over a flat plate, the convection coefficient can be determined using empirical correlations based on the Nu, Reynolds number Re, and Pr
The is commonly used for turbulent flow: Nu=0.023⋅Re0.8⋅Pr0.4
For laminar flow, the can be applied: Nu=0.664⋅Re0.5⋅Pr1/3
The convection coefficient for flow over cylinders and spheres can be estimated using correlations that account for the shape and orientation of the object
The is used for flow over a cylinder: Nu=0.3+[1+(0.4/Pr)2/3]1/40.62⋅Re0.5⋅Pr1/3⋅[1+(282,000Re)5/8]4/5
For flow over a sphere, the is commonly employed: Nu=2+(0.4⋅Re1/2+0.06⋅Re2/3)⋅Pr0.4⋅(μ∞/μs)1/4
Convection Coefficients for Internal Flows
For internal flow in pipes and ducts, the convection coefficient depends on the flow regime (laminar or turbulent), the geometry of the cross-section, and the surface roughness
In laminar flow, the Nusselt number is a function of the Gz=(D/L)⋅Re⋅Pr, where D is the pipe diameter and L is the pipe length
For turbulent flow in smooth pipes, the Dittus-Boelter correlation can be used: Nu=0.023⋅Re0.8⋅Prn, where n=0.4 for heating and n=0.3 for cooling
The convection coefficient for flow in non-circular ducts can be estimated using correlations that account for the shape and aspect ratio of the cross-section
The is used for laminar flow in rectangular ducts: Nu=1.86⋅(Re⋅Pr⋅LDh)1/3⋅(μwμb)0.14, where Dh is the hydraulic diameter, μb is the bulk fluid viscosity, and μw is the viscosity at the wall temperature
For turbulent flow in rectangular ducts, the can be applied: Nu=1+12.7⋅(f/8)1/2⋅(Pr2/3−1)(f/8)⋅(Re−1000)⋅Pr, where f is the friction factor
Convection Coefficients for Natural Convection
In , the convection coefficient is a function of the Gr and the Prandtl number Pr, which account for the buoyancy-driven flow and the fluid properties
The Grashof number represents the ratio of buoyancy forces to viscous forces: Gr=ν2g⋅β⋅(Ts−T∞)⋅L3, where g is the gravitational acceleration, β is the thermal expansion coefficient, Ts is the surface temperature, T∞ is the ambient temperature, L is the characteristic length, and ν is the kinematic viscosity
The Ra is the product of the Grashof and Prandtl numbers: Ra=Gr⋅Pr
Empirical correlations for the Nusselt number in natural convection are based on the geometry and orientation of the surface
For vertical plates, the Churchill-Chu correlation can be used: Nu=(0.825+[1+(0.492/Pr)9/16]8/270.387⋅Ra1/6)2
For horizontal plates with the hot surface facing upward, the McAdams correlation is applicable: Nu=0.54⋅Ra1/4 for 104<Ra<107 and Nu=0.15⋅Ra1/3 for 107<Ra<1011
Dimensional Analysis for Convective Heat Transfer
Buckingham Pi Theorem and Dimensionless Parameters
Dimensional analysis is a technique used to simplify complex problems by identifying the relevant dimensionless parameters that govern the system's behavior
It helps in reducing the number of variables and obtaining generalized relationships between the parameters
Dimensional analysis is particularly useful in fluid mechanics and heat transfer, where the governing equations are often complex and involve many variables
The Buckingham Pi theorem states that any physically meaningful equation involving n variables can be rewritten in terms of p=n−k dimensionless parameters, where k is the number of independent dimensions
The dimensionless parameters, denoted as Π1,Π2,...,Πp, are formed by combining the original variables in a way that eliminates their dimensions
The theorem provides a systematic approach to determine the minimum number of dimensionless parameters needed to describe a physical problem
Key Dimensionless Parameters in Convective Heat Transfer
The Reynolds number Re is a dimensionless parameter that represents the ratio of inertial forces to viscous forces in a fluid
It is defined as Re=μρ⋅v⋅L, where ρ is the fluid density, v is the velocity, L is the characteristic length, and μ is the dynamic viscosity
The Reynolds number is used to characterize the flow regime (laminar or turbulent) and the boundary layer behavior
Laminar flow typically occurs at low Reynolds numbers (Re<2300), while turbulent flow occurs at high Reynolds numbers (Re>4000)
The Nusselt number Nu is a dimensionless parameter that represents the ratio of convective heat transfer to conductive heat transfer in a fluid
It is defined as Nu=kh⋅L, where h is the convection coefficient, L is the characteristic length, and k is the thermal conductivity of the fluid
The Nusselt number is used to quantify the effectiveness of convective heat transfer
Higher Nusselt numbers indicate more effective convective heat transfer compared to conductive heat transfer
The Prandtl number Pr is a dimensionless parameter that represents the ratio of momentum diffusivity to thermal diffusivity in a fluid
It is defined as Pr=αν=kcp⋅μ, where ν is the kinematic viscosity, α is the thermal diffusivity, cp is the specific heat capacity, μ is the dynamic viscosity, and k is the thermal conductivity
The Prandtl number is used to characterize the relative thickness of the velocity and thermal boundary layers
For Pr<1, the is thicker than the velocity boundary layer, while for Pr>1, the velocity boundary layer is thicker than the thermal boundary layer
Other dimensionless parameters, such as the Grashof number Gr and the Rayleigh number Ra, are used to describe natural convection and the onset of convective instabilities
The Grashof number represents the ratio of buoyancy forces to viscous forces: Gr=ν2g⋅β⋅(Ts−T∞)⋅L3
The Rayleigh number is the product of the Grashof and Prandtl numbers: Ra=Gr⋅Pr
These parameters are used to characterize the flow regime and heat transfer in natural convection problems
Key Terms to Review (27)
Blasius Solution: The Blasius solution is an analytical solution to the steady, two-dimensional boundary layer flow over a flat plate. It describes how the velocity profile develops within the boundary layer as a fluid moves over a surface, significantly influencing drag and heat transfer characteristics in convective heat transfer scenarios.
Boundary Layer: A boundary layer is a thin region near a surface where the flow velocity changes from zero (due to the no-slip condition) to the free stream velocity of the fluid. This concept is crucial in understanding how momentum, heat, and mass transfer occur between a solid surface and the surrounding fluid, impacting various phenomena such as drag, convection, and diffusion.
Churchill-Bernstein Correlation: The Churchill-Bernstein correlation is an empirical formula used to predict the convective heat transfer coefficient for flow over a flat plate or in duct flow. This correlation provides a means to estimate heat transfer rates in situations where traditional theoretical approaches may be complicated by boundary layer effects and fluid properties. It is especially useful in scenarios with turbulent flow, where it helps in the analysis of thermal performance in engineering applications.
Convective Heat Transfer Coefficient: The convective heat transfer coefficient is a measure of the heat transfer between a solid surface and a fluid flowing over it. This coefficient depends on the nature of the flow, the properties of the fluid, and the characteristics of the surface, making it crucial for understanding how heat is transferred in various situations involving convection.
Daniel Bernoulli: Daniel Bernoulli was a Swiss mathematician and physicist best known for his contributions to fluid dynamics, particularly the principle that describes the behavior of fluid flow and pressure. His work established the foundation for understanding how fluid velocity affects pressure, which is critical in analyzing boundary layers and convection coefficients in heat transfer applications.
Dittus-Boelter Correlation: The Dittus-Boelter Correlation is an empirical relationship used to calculate the convective heat transfer coefficient for turbulent flow inside smooth tubes. This correlation is crucial for understanding heat transfer in various engineering applications, as it connects fluid dynamics and thermal characteristics of flow systems. Its relevance spans across boundary layer behavior, forced convection scenarios, and optimization in heat exchanger design, making it an essential tool for engineers and designers.
Forced Convection: Forced convection refers to the process of heat transfer between a solid surface and a fluid (liquid or gas) that is being forced to flow over the surface by an external source, such as a pump or fan. This method enhances heat transfer rates compared to natural convection, as it increases fluid velocity and disrupts boundary layers, ultimately improving thermal performance in various applications.
Free-Stream Velocity: Free-stream velocity refers to the speed of a fluid flow far from any solid boundaries, where the effects of viscous forces are negligible. It is crucial in understanding how fluid behaves as it moves past objects, influencing the development of boundary layers and convection coefficients that determine heat and mass transfer characteristics.
Gnielinski Correlation: The Gnielinski correlation is an empirical relationship used to calculate the convective heat transfer coefficient for fluid flow inside pipes, particularly under turbulent conditions. This correlation is crucial for determining heat transfer rates in internal flows, as it provides a means to relate the Nusselt number to the Reynolds number and the Prandtl number, which are essential for analyzing convection phenomena and boundary layer behavior.
Graetz Number: The Graetz Number is a dimensionless quantity that characterizes the heat transfer in a fluid flowing through a duct or a pipe, particularly when considering the thermal development of the boundary layer. It helps assess the relative importance of conduction and convection in heat transfer problems and is crucial for understanding thermal entry lengths and the efficiency of heat exchangers.
Grashof Number: The Grashof number is a dimensionless quantity used in fluid mechanics to characterize the ratio of buoyant forces to viscous forces within a fluid. It plays a crucial role in understanding natural convection phenomena, indicating whether buoyancy-driven flow is significant compared to viscous effects. This number helps determine flow regimes and influences heat transfer rates in various fluid situations, especially where temperature differences lead to density variations.
Hot-wire Anemometry: Hot-wire anemometry is a technique used to measure fluid velocity by utilizing the heat transfer from a heated wire to the surrounding fluid. This method is particularly effective in studying boundary layers and convection coefficients, as it allows for precise measurements of the flow characteristics in both laminar and turbulent conditions. The temperature change of the wire, caused by the cooling effect of the fluid flow, provides insights into the velocity profile and heat transfer behavior within boundary layers.
Laminar boundary layer: A laminar boundary layer is a thin region adjacent to a solid surface where fluid flow is smooth and orderly, characterized by parallel layers of fluid that slide past each other without mixing. In this layer, the velocity of the fluid changes from zero at the solid surface (due to the no-slip condition) to nearly the free stream velocity outside the boundary layer. This concept is crucial in understanding heat and mass transfer in various flow scenarios.
Ludwig Prandtl: Ludwig Prandtl was a German physicist and engineer, known as the father of modern fluid mechanics. His work laid the foundation for the concept of boundary layers, which describes the thin region of fluid near a solid surface where viscous forces are significant. This concept is crucial in understanding convection coefficients and how heat transfer occurs between a solid surface and a moving fluid.
Natural Convection: Natural convection is the process of heat transfer that occurs due to the movement of fluid caused by density differences resulting from temperature variations within that fluid. When a portion of a fluid is heated, it becomes less dense and rises, while cooler, denser fluid descends, creating a circulation pattern that enhances heat transfer. This mechanism plays a vital role in various thermal systems, impacting how energy is transferred through fluids in both natural and engineered environments.
No-slip condition: The no-slip condition is a fundamental principle in fluid mechanics that states that a fluid in contact with a solid boundary has zero velocity relative to that boundary. This means that the fluid adheres to the surface, resulting in a velocity gradient near the boundary, which is crucial for understanding how fluids behave in different situations, particularly when analyzing boundary layers and convection phenomena, as well as in numerical simulations of fluid flow.
Nusselt Number: The Nusselt number is a dimensionless quantity used in heat transfer that represents the ratio of convective to conductive heat transfer across a boundary. It helps to characterize the efficiency of convective heat transfer in fluid flows, making it essential for understanding processes involving both heat and mass transfer.
Pohlhausen Correlation: The Pohlhausen Correlation is a method used to estimate the friction coefficient in boundary layer flow, particularly for laminar and turbulent flows over flat plates. It connects the characteristics of boundary layers to heat transfer rates and is crucial in determining convection coefficients, which are essential for analyzing heat transfer in fluid systems.
Prandtl Number: The Prandtl number is a dimensionless number that measures the relative thickness of the momentum boundary layer to the thermal boundary layer in a fluid. It helps characterize the heat transfer and fluid flow properties in convection processes, highlighting the relationship between momentum diffusivity (viscosity) and thermal diffusivity (heat conduction). Understanding the Prandtl number is crucial for analyzing various heat transfer scenarios, especially in both forced and natural convection.
Rayleigh Number: The Rayleigh Number is a dimensionless quantity used in fluid mechanics to determine the nature of convection in a fluid. It quantifies the balance between buoyancy forces and viscous forces, indicating whether natural convection will occur within a fluid layer due to temperature differences. This number plays a crucial role in analyzing boundary layers and convection coefficients, as well as understanding natural convection processes.
Reynolds Number: Reynolds number is a dimensionless quantity that helps predict flow patterns in different fluid flow situations by comparing inertial forces to viscous forces. It is a critical factor in determining whether the flow is laminar or turbulent, influencing heat and mass transfer rates in various contexts.
Sieder-Tate Correlation: The Sieder-Tate correlation is an empirical relationship used to estimate the convective heat transfer coefficient in internal flow situations, especially in turbulent flow through ducts and pipes. This correlation helps in analyzing heat transfer rates by relating the Nusselt number to the Reynolds and Prandtl numbers, which are key factors in characterizing fluid flow and heat transfer behavior. It's particularly useful in engineering applications where accurate predictions of thermal performance are critical.
Thermal boundary layer: The thermal boundary layer is the region in a fluid where temperature changes from the value of the fluid away from a surface to the temperature of that surface. This layer is crucial in understanding heat transfer, as it influences convection and the effectiveness of heat exchange between a solid and a fluid. The characteristics of this layer can significantly affect the heat transfer coefficients and the overall thermal performance of systems.
Turbulent boundary layer: A turbulent boundary layer is a layer of fluid in which the flow is chaotic and characterized by velocity fluctuations, typically occurring near a solid surface. In this layer, the effects of viscosity are significant, and the flow transitions from a smooth, laminar state to a more complex turbulent state, impacting heat and mass transfer rates as well as the overall drag on surfaces. Understanding this concept is crucial for analyzing convection phenomena and designing systems involving fluid flow over surfaces.
Velocity Profile: A velocity profile is a graphical representation that shows how fluid velocity varies across different positions within a flow field. Understanding the velocity profile is crucial because it helps to characterize flow behavior, predict pressure drops, and determine heat transfer rates, especially in boundary layers and forced convection scenarios.
Whitaker Correlation: The Whitaker Correlation is a method used to estimate the heat transfer coefficients in turbulent flow over flat surfaces. This correlation helps determine the relationship between the Reynolds number and the Nusselt number, facilitating the prediction of convection heat transfer in boundary layers. It is particularly valuable for understanding how fluid properties and flow characteristics affect heat transfer rates in various applications.
Wind Tunnel Testing: Wind tunnel testing is a method used to study the aerodynamic properties of objects by simulating the effects of wind on them in a controlled environment. This technique is crucial for analyzing flow patterns, drag forces, and heat transfer characteristics, providing valuable data for improving designs and performance in various engineering applications.
