2.4 Multidimensional and Unsteady Conduction

Multidimensional and unsteady conduction deals with heat transfer in multiple directions and over time. This complex topic builds on earlier concepts, introducing shape factors and boundary conditions to solve real-world engineering problems.

Understanding these principles is crucial for analyzing heat flow in various systems. From industrial processes to everyday appliances, mastering multidimensional and unsteady conduction enables engineers to design more efficient and effective thermal management solutions.

Steady-State Conduction Problems

Multidimensional Heat Conduction Equations

Top images from around the web for Multidimensional Heat Conduction Equations

•

  Lie Group Classifications and Stability of Exact Solutions for Multidimensional Landau-Lifshitz ... View original

  Is this image relevant?

•

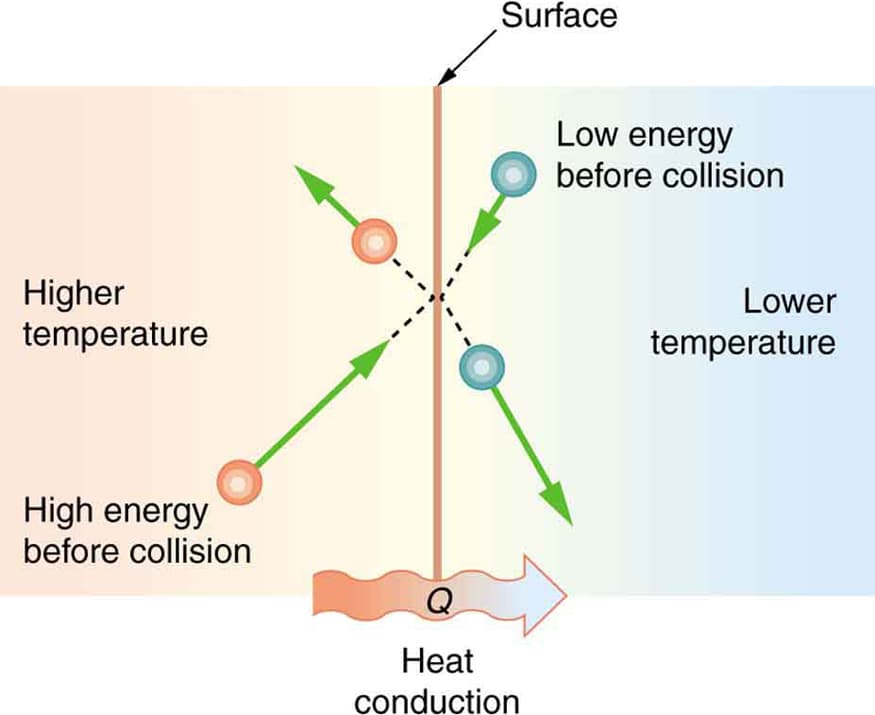

  Conduction · Physics View original

  Is this image relevant?

•

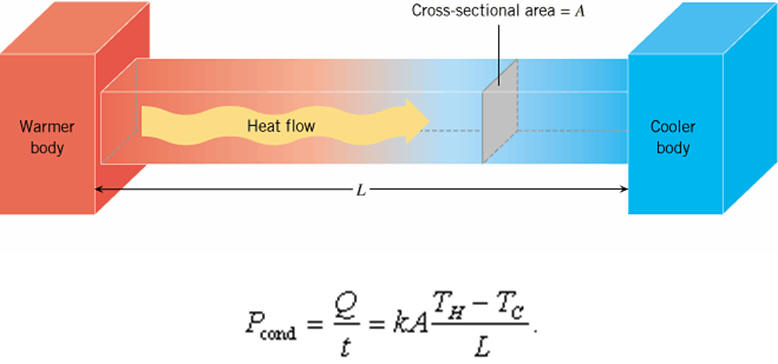

  I-1 Genesis of Fourier Analysis - Utopie View original

  Is this image relevant?

•

  Lie Group Classifications and Stability of Exact Solutions for Multidimensional Landau-Lifshitz ... View original

  Is this image relevant?

•

  Conduction · Physics View original

  Is this image relevant?

1 of 3

Top images from around the web for Multidimensional Heat Conduction Equations

•

  Lie Group Classifications and Stability of Exact Solutions for Multidimensional Landau-Lifshitz ... View original

  Is this image relevant?

•

  Conduction · Physics View original

  Is this image relevant?

•

  I-1 Genesis of Fourier Analysis - Utopie View original

  Is this image relevant?

•

  Lie Group Classifications and Stability of Exact Solutions for Multidimensional Landau-Lifshitz ... View original

  Is this image relevant?

•

  Conduction · Physics View original

  Is this image relevant?

1 of 3

• Two-dimensional and three-dimensional steady-state conduction problems involve heat transfer in multiple spatial directions (rectangular, cylindrical, or spherical coordinate systems)
• The general heat conduction equation for multidimensional steady-state problems is derived from the energy conservation principle and Fourier's law of heat conduction
• The general heat conduction equation for two-dimensional steady-state problems in rectangular coordinates: $\frac{\partial}{\partial x}\left(k\frac{\partial T}{\partial x}\right) + \frac{\partial}{\partial y}\left(k\frac{\partial T}{\partial y}\right) + \dot{q} = 0$, where $k$ is the thermal conductivity, $T$ is the temperature, and $\dot{q}$ is the heat generation rate per unit volume
• The general heat conduction equation for three-dimensional steady-state problems in rectangular coordinates: $\frac{\partial}{\partial x}\left(k\frac{\partial T}{\partial x}\right) + \frac{\partial}{\partial y}\left(k\frac{\partial T}{\partial y}\right) + \frac{\partial}{\partial z}\left(k\frac{\partial T}{\partial z}\right) + \dot{q} = 0$

Solution Methods for Multidimensional Conduction Problems

• Solving multidimensional steady-state conduction problems requires applying appropriate boundary conditions (specified temperature, specified heat flux, convection, or insulation) to the general heat conduction equation
• Analytical solutions for multidimensional steady-state conduction problems can be obtained using techniques such as separation of variables, Laplace transforms, or Green's functions for simple geometries and boundary conditions
• Numerical methods (finite difference or finite element methods) are often employed to solve multidimensional steady-state conduction problems with complex geometries or boundary conditions
• Continuity conditions must be satisfied at interfaces between different materials or regions with different thermal properties, ensuring that the temperature and heat flux are continuous across the interface

Boundary Conditions for Conduction

Types of Boundary Conditions

• Boundary conditions specify the thermal conditions at the boundaries of a multidimensional conduction problem and are essential for obtaining a unique solution
• The four main types of boundary conditions in multidimensional conduction problems:
  • Specified temperature (Dirichlet condition): The temperature is known and prescribed at the boundary
  • Specified heat flux (Neumann condition): The heat flux is known and prescribed at the boundary
  • Convection (Robin condition): The boundary experiences convective heat transfer with a surrounding fluid at a known temperature and convective heat transfer coefficient
  • Insulation (Adiabatic condition): The boundary is perfectly insulated, and there is no heat flux across the boundary
• Boundary conditions can be uniform or non-uniform, depending on whether the prescribed temperature, heat flux, or convective conditions are constant or vary along the boundary

Application of Boundary Conditions

• In multidimensional conduction problems, different types of boundary conditions may be applied to different surfaces or regions of the domain
• Applying appropriate boundary conditions is crucial for accurately modeling the physical situation and obtaining a well-posed mathematical problem that yields a unique solution
• Examples of boundary conditions in practice:
  • A metal plate with one surface maintained at a constant temperature (specified temperature condition) and the other surface exposed to convective cooling (convection condition)
  • A pipe with a constant heat flux (specified heat flux condition) applied to its outer surface and insulated (insulation condition) at both ends

Shape Factors in Conduction

Concept and Definition of Shape Factors

• Shape factors are dimensionless parameters that characterize the geometric configuration and facilitate the calculation of heat transfer rates in multidimensional conduction problems
• Shape factors are derived from the solution of the heat conduction equation for specific geometries and boundary conditions, and they relate the heat transfer rate to the temperature difference and thermal conductivity
• The general expression for the heat transfer rate using shape factors: $Q = Sk(T_1 - T_2)$, where $Q$ is the heat transfer rate, $S$ is the shape factor, $k$ is the thermal conductivity, and $T_1$ and $T_2$ are the temperatures at two specified locations

Application of Shape Factors

• Shape factors are available for various common geometries (rectangular plates, cylinders, spheres, and parallel or perpendicular plates) with different aspect ratios and boundary conditions
• Shape factors can be used to simplify the analysis of multidimensional conduction problems by reducing the problem to an equivalent one-dimensional problem with an effective thermal resistance
• When using shape factors, it is important to ensure that the assumptions used in their derivation (constant thermal conductivity and steady-state conditions) are valid for the problem at hand
• Shape factors can be combined using thermal resistance network analogy for problems involving multiple geometries or materials in series or parallel arrangements
• Examples of shape factor applications:
  • Calculating the heat transfer rate between two parallel plates of different temperatures
  • Determining the thermal resistance of a cylindrical pipe with a given length and diameter

Transient Heat Conduction in Multidimensional Systems

Transient Heat Conduction Equations

• Transient heat conduction in multidimensional systems involves heat transfer that varies with both space and time, resulting in time-dependent temperature distributions
• The general heat conduction equation for transient multidimensional problems includes a time-derivative term: $\rho c\frac{\partial T}{\partial t} = \frac{\partial}{\partial x}\left(k\frac{\partial T}{\partial x}\right) + \frac{\partial}{\partial y}\left(k\frac{\partial T}{\partial y}\right) + \frac{\partial}{\partial z}\left(k\frac{\partial T}{\partial z}\right) + \dot{q}$, where $\rho$ is the density, $c$ is the specific heat capacity, and $t$ is time
• Initial conditions must be specified for transient problems, describing the temperature distribution at the beginning of the transient process ($t = 0$)
• The Biot number ($Bi$) is a dimensionless parameter that characterizes the relative importance of surface heat transfer (convection) and internal heat conduction in a transient problem, defined as: $Bi = \frac{hL}{k}$, where $h$ is the convective heat transfer coefficient, $L$ is a characteristic length, and $k$ is the thermal conductivity

Solution Methods for Transient Multidimensional Conduction

• Analytical solutions for transient multidimensional conduction problems can be obtained using techniques such as separation of variables, Laplace transforms, or Green's functions for simple geometries, boundary conditions, and initial conditions
• Lumped system analysis can be applied to transient problems with a small Biot number ($Bi < 0.1$), assuming a uniform temperature distribution within the solid at any given time
• Numerical methods (finite difference, finite element, or finite volume methods) are commonly used to solve transient multidimensional conduction problems with complex geometries, boundary conditions, or initial conditions
• Numerical methods discretize the spatial and temporal domains, approximating the partial derivatives in the heat conduction equation using finite differences or other techniques, and solve the resulting system of algebraic equations
• Stability, convergence, and accuracy of numerical solutions must be considered when selecting appropriate spatial and temporal discretization schemes and solving transient multidimensional conduction problems
• Examples of transient multidimensional conduction problems:
  • Analyzing the temperature distribution in a three-dimensional solid object subjected to a sudden change in surface temperature
  • Determining the time-dependent temperature profile in a cross-section of a heat exchanger fin during a transient heating process
