Convective Mass Transfer Mechanisms
Transport of Chemical Species
Top images from around the web for Transport of Chemical Species

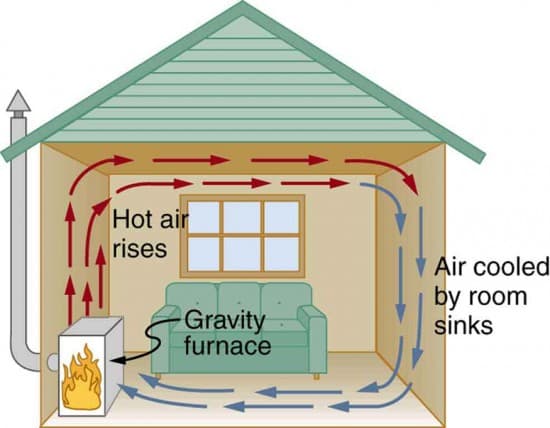

Energy Transfer: Convection | METEO 3: Introductory Meteorology View original
Convective mass transfer involves the transport of chemical species within a fluid due to the bulk motion of the fluid
occurs when external forces cause fluid motion (pumps, fans)
occurs when density differences drive fluid motion (buoyancy-driven flow)
The rate of convective mass transfer is influenced by various factors
Fluid properties such as density, viscosity, and diffusivity affect the transport of species
Flow characteristics including velocity, turbulence, and development impact mass transfer rates
like surface area and shape determine the extent of mass transfer
Advection and Diffusion
The two primary mechanisms of convective mass transfer are and
Advection is the transport of species by the bulk motion of the fluid, characterized by the fluid velocity
Example: The transport of dissolved sugar in a stirred tank
Diffusion is the transport of species due to concentration gradients, governed by
Example: The spread of dye in a stagnant fluid
Convective mass transfer plays a crucial role in various engineering applications
Chemical reactors rely on convective mass transfer to bring reactants together and remove products
utilize convective mass transfer to enhance heat transfer through phase change processes
Absorption and desorption processes, such as gas scrubbing or stripping, depend on convective mass transfer
Separation techniques like distillation and extraction employ convective mass transfer to separate components based on their relative volatilities or solubilities
Conservation Equations for Species Transport
Species Continuity Equation
The conservation of species in a convective mass transfer system is described by the
The equation accounts for the accumulation, convection, and diffusion of species
The general form of the species continuity equation for species A in a binary mixture is:
∂t∂CA+∇⋅(uCA)=∇⋅(DAB∇CA)+RA
where CA is the concentration of species A, t is time, u is the velocity vector, DAB is the binary diffusion coefficient, and RA is the rate of generation or consumption of species A
Simplifications to the species continuity equation can be made based on the specific problem
Steady-state conditions assume that concentrations and velocities do not change with time
Incompressible flow assumes constant fluid density, simplifying the continuity equation
Negligible diffusion in certain directions may be assumed when diffusion is much slower than advection
Coupling with Other Conservation Equations
The species continuity equation is coupled with other conservation equations to fully describe the convective mass transfer system
The conservation of mass (continuity equation) ensures that the total mass of the system is conserved
Example: The continuity equation for an incompressible fluid is ∇⋅u=0
The conservation of momentum () describes the motion of the fluid
Example: The Navier-Stokes equations for an incompressible Newtonian fluid are ρ(∂t∂u+u⋅∇u)=−∇p+μ∇2u+f
Solving the coupled equations simultaneously provides a complete description of the convective mass transfer system
, such as finite difference or , are often employed to solve the coupled equations
Simplifying assumptions and appropriate boundary conditions are applied to make the problem tractable
Solving Convective Mass Transfer Problems
Boundary Conditions
Solving convective mass transfer problems requires specifying appropriate boundary conditions
Boundary conditions describe the concentration or flux of species at the system boundaries (walls, inlets, outlets)
Common boundary conditions include:
Specified concentration: The concentration of a species is known at the boundary (constant concentration at a wall)
Specified flux: The mass flux of a species is known at the boundary, which can be due to surface reactions, adsorption, or desorption (constant flux at a catalytic surface)
Symmetry: The or mass flux is zero at the boundary due to symmetry (centerline of a pipe)
Choosing appropriate boundary conditions is crucial for accurately solving convective mass transfer problems
Boundary conditions should reflect the physical reality of the system
Incorrect or incomplete boundary conditions can lead to erroneous solutions
Simplifying Assumptions and Solution Methods
Simplifying assumptions can be made to reduce the complexity of convective mass transfer problems
Steady-state conditions assume that concentrations and velocities do not change with time, eliminating time derivatives
Incompressible flow assumes constant fluid density, simplifying the continuity equation
Negligible diffusion in certain directions may be assumed when diffusion is much slower than advection (plug flow reactor)
Analytical solutions to convective mass transfer problems are available for simple geometries and boundary conditions
Example: The Graetz problem for laminar flow in a circular tube with a constant wall concentration has an analytical solution
Analytical solutions provide insight into the fundamental behavior of the system and can serve as benchmarks for numerical solutions
Numerical methods are often employed to solve more complex convective mass transfer problems
discretize the domain into a grid and approximate derivatives using finite differences
Finite element methods divide the domain into elements and approximate the solution using basis functions
Numerical methods allow for the solution of problems with complex geometries, non-linear equations, and coupled phenomena
Dimensionless Numbers in Convective Mass Transfer
Schmidt Number
The Schmidt number (Sc) is a dimensionless number that characterizes the relative thickness of the velocity and concentration boundary layers
It is defined as the ratio of momentum diffusivity (kinematic viscosity) to mass diffusivity:
Sc=Dν
where ν is the kinematic viscosity and D is the mass diffusivity
The Schmidt number provides insight into the relative importance of momentum and mass transfer
For Sc » 1, the concentration boundary layer is much thinner than the velocity boundary layer (mass transfer is slower than momentum transfer)
For Sc « 1, the concentration boundary layer is much thicker than the velocity boundary layer (mass transfer is faster than momentum transfer)
The Schmidt number is used to develop empirical correlations for convective mass transfer coefficients
Example: The (Sh) is often correlated with the (Re) and Schmidt number (Sc) as Sh=f(Re,Sc)
Sherwood Number
The Sherwood number (Sh) is a dimensionless number that represents the ratio of the convective mass transfer rate to the diffusive mass transfer rate
It is defined as:
Sh=DhmL
where hm is the convective , L is a characteristic length, and D is the mass diffusivity
The Sherwood number is analogous to the Nusselt number (Nu) in heat transfer
Higher values of the Sherwood number indicate a greater influence of convection on mass transfer compared to diffusion
The Sherwood number is used to characterize the performance of convective mass transfer systems
Example: In a packed bed reactor, the Sherwood number can be used to determine the effectiveness factor, which relates the actual reaction rate to the ideal reaction rate without mass transfer limitations
Empirical correlations for the Sherwood number are developed based on experimental data and dimensionless analysis
These correlations relate the Sherwood number to other dimensionless numbers, such as the Reynolds number (Re) and Schmidt number (Sc)
Example: The Dittus-Boelter correlation for mass transfer in turbulent flow through a circular pipe is Sh=0.023Re0.8Sc0.4
Significance in Analysis and Design
Dimensionless numbers help in the analysis, design, and scaling of convective mass transfer systems
They allow for the comparison of different systems and the identification of limiting factors
Dimensionless numbers can be used to develop empirical correlations for mass transfer coefficients, which are essential for design calculations
The Schmidt and Sherwood numbers are particularly useful in the development of analogies between heat and mass transfer
The Chilton-Colburn analogy relates the Nusselt number (Nu) for heat transfer to the Sherwood number (Sh) for mass transfer, enabling the use of heat transfer correlations for mass transfer problems
Example: The Chilton-Colburn analogy states that Sh=Nu(Sc/Pr)1/3, where Pr is the Prandtl number (ratio of momentum diffusivity to thermal diffusivity)
Dimensionless numbers also facilitate the scaling and optimization of convective mass transfer processes
By maintaining similar dimensionless numbers, small-scale experiments can be used to predict the performance of large-scale systems
Optimization can be performed by manipulating the dimensionless numbers to achieve desired mass transfer rates or system efficiency
