2.5 Numerical Methods for Conduction Problems
4 min read•august 13, 2024
Numerical methods are essential for solving complex conduction problems in heat transfer. They allow us to tackle scenarios where analytical solutions aren't possible. This section covers finite difference and finite element methods, breaking down their strengths and when to use each.
We'll explore how to discretize the heat diffusion equation and solve steady-state and transient problems. We'll also dive into accuracy and stability, learning how to ensure our numerical solutions are reliable and meaningful.
Finite Difference and Finite Element Methods
Fundamentals and Comparison
Top images from around the web for Fundamentals and Comparison

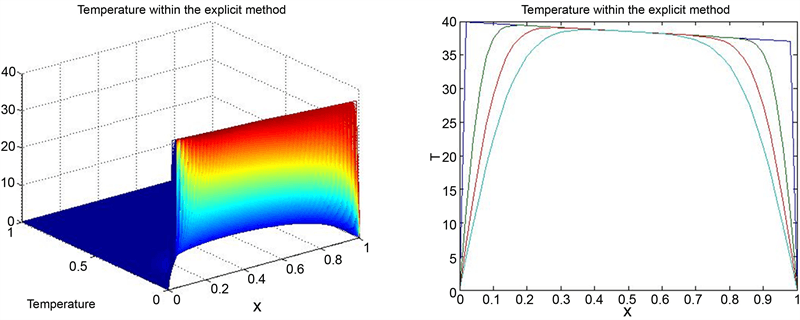

Finite Difference Approximation for Solving Transient Heat Conduction Equation of Copper View original
Is this image relevant?
Finite Difference Approximation for Solving Transient Heat Conduction Equation of Copper View original
Is this image relevant?
Finite Difference Approximation for Solving Transient Heat Conduction Equation of Copper View original
Is this image relevant?
Finite Difference Approximation for Solving Transient Heat Conduction Equation of Copper View original
Is this image relevant?
Finite Difference Approximation for Solving Transient Heat Conduction Equation of Copper View original
Is this image relevant?
1 of 3
Top images from around the web for Fundamentals and Comparison
Finite Difference Approximation for Solving Transient Heat Conduction Equation of Copper View original
Is this image relevant?
Finite Difference Approximation for Solving Transient Heat Conduction Equation of Copper View original
Is this image relevant?
Finite Difference Approximation for Solving Transient Heat Conduction Equation of Copper View original
Is this image relevant?
Finite Difference Approximation for Solving Transient Heat Conduction Equation of Copper View original
Is this image relevant?
Finite Difference Approximation for Solving Transient Heat Conduction Equation of Copper View original
Is this image relevant?
1 of 3
- Understand the fundamentals of finite difference and finite element methods for solving conduction problems
- Finite difference methods discretize the problem domain into a grid of nodes and approximate derivatives using finite differences, resulting in a system of algebraic equations
- Finite element methods discretize the problem domain into elements, approximate the solution within each element using interpolation functions, and minimize the residual error to obtain a system of equations
- Both methods transform the continuous governing equations into a discrete system of equations that can be solved numerically
Factors Influencing Method Selection
- The choice between finite difference and finite element methods depends on factors such as geometry complexity, accuracy requirements, and computational resources
- Finite difference methods are well-suited for simple geometries (rectangular, cylindrical) and structured grids, while finite element methods can handle complex geometries and unstructured meshes
- Finite element methods generally provide higher accuracy and better ability to capture local solution features compared to finite difference methods
- Computational cost and memory requirements are typically higher for finite element methods due to the need to store and solve larger systems of equations
Discretization of Heat Diffusion Equation
Explicit and Implicit Schemes
- The heat diffusion equation is a parabolic partial differential equation that describes the spatial and temporal distribution of temperature in a conducting medium
- Explicit schemes, such as the forward-time central-space (FTCS) method, calculate the temperature at the next time step using the known temperatures at the current time step
- Implicit schemes, such as the backward-time central-space (BTCS) method, solve for the temperatures at the next time step simultaneously using a system of equations
- Explicit schemes are simpler to implement but have stability limitations, requiring small time steps to maintain numerical stability (Courant-Friedrichs-Lewy condition)
- Implicit schemes are unconditionally stable, allowing larger time steps, but require the solution of a system of equations at each time step
Crank-Nicolson Method
- The is a second-order accurate that combines the advantages of both explicit and implicit schemes
- It uses a central difference approximation in time and a central difference approximation in space, resulting in a tridiagonal system of equations
- The Crank-Nicolson method is unconditionally stable and provides good accuracy, but requires the solution of a system of equations at each time step
- It is widely used in heat transfer and fluid dynamics problems due to its favorable stability and accuracy properties
Numerical Solutions for Conduction Problems
Steady-State and Transient Problems
- problems involve the spatial distribution of temperature under constant boundary conditions and no time dependence
- problems involve the spatial and temporal distribution of temperature, considering initial conditions and time-varying boundary conditions
- One-dimensional problems can be solved using finite difference methods by discretizing the domain along a single spatial coordinate (thin rod, plane wall)
- Multi-dimensional problems (2D and 3D) require along multiple spatial coordinates and can be solved using finite difference or finite element methods (plates, cylinders, irregular shapes)
Solution Procedure and Boundary Conditions
- The discretized equations are assembled into a system of algebraic equations, which can be solved using techniques such as Gauss-Seidel, Jacobi, or matrix inversion methods
- Boundary conditions, such as prescribed temperatures (Dirichlet), prescribed heat fluxes (Neumann), or convective conditions (Robin), must be incorporated into the numerical formulation
- specify the temperature values at the domain boundaries and are implemented by modifying the corresponding equations or matrix entries
- specify the heat flux at the domain boundaries and are implemented using finite difference approximations of the flux gradient
- involve a combination of temperature and heat flux (convective heat transfer) and are implemented by modifying the equations or matrix entries accordingly
Accuracy and Stability of Numerical Solutions
Error Sources and Reduction
- Truncation errors arise from the approximation of derivatives using finite differences, leading to differences between the numerical and exact solutions
- Discretization errors can be reduced by refining the grid (decreasing the grid spacing) or using higher-order approximations for derivatives
- Round-off errors occur due to the finite precision of computer arithmetic and can accumulate over many iterations
- Stability of the numerical scheme is crucial to prevent the growth of errors over time, leading to oscillations or divergence of the solution
Stability Criteria and Convergence
- The Fourier number (Fo) and the Courant-Friedrichs-Lewy (CFL) condition provide guidelines for selecting stable time step sizes in explicit schemes
- For explicit schemes, the Fourier number should be less than or equal to 0.5 in one-dimensional problems and 0.25 in two-dimensional problems to ensure stability
- Implicit schemes are unconditionally stable, allowing larger time steps, but may require smaller time steps to capture transient behavior accurately
- of the numerical solution can be assessed by monitoring the residual error or the change in the solution between successive iterations
- Verification of the numerical solution can be performed by comparing it with analytical solutions for simplified cases (infinite plate, semi-infinite solid) or by using a study to examine the convergence rate
Key Terms to Review (24)
ANSYS: ANSYS is a comprehensive software suite used for engineering simulation, enabling users to perform finite element analysis (FEA), computational fluid dynamics (CFD), and other simulations to predict how products will perform under various conditions. It allows engineers to create virtual prototypes, saving time and resources in the design and testing phases of product development.
Boundary condition implementation: Boundary condition implementation refers to the process of applying specific conditions at the boundaries of a domain in numerical simulations, which is crucial for accurately solving heat conduction problems. This process ensures that the physical behavior at the edges of the domain is properly modeled, affecting the overall results of simulations. Correctly defining these conditions is essential for achieving realistic solutions that can be used in practical applications.
Comparison with analytical solutions: Comparison with analytical solutions involves evaluating the results obtained from numerical methods against exact solutions derived from mathematical models. This process is crucial as it helps validate numerical approaches, ensuring their accuracy and reliability when dealing with complex heat conduction problems where analytical solutions may be readily available.
Convergence: Convergence refers to the process by which a numerical method approaches a solution that is close to the true solution of a problem as the calculation proceeds. This concept is vital when using numerical methods for heat conduction, where one aims for the numerical solution to become increasingly accurate as the mesh size decreases or the number of iterations increases. It highlights the reliability and effectiveness of the numerical methods employed in solving conduction problems.
Crank-Nicolson Method: The Crank-Nicolson method is a numerical technique used for solving partial differential equations, particularly useful in heat conduction and diffusion problems. It combines the features of both explicit and implicit methods, offering a stable and accurate way to handle time-dependent problems while allowing for flexibility in grid spacing. This method is especially effective for unsteady-state diffusion and conduction scenarios, enabling the calculation of temperature or concentration distributions over time.
Dirichlet Boundary Conditions: Dirichlet boundary conditions specify the value of a function on a boundary, meaning that the temperature (or other specified quantity) is fixed at the boundaries of a given domain. This type of condition is crucial in numerical methods for conduction problems, as it directly influences the solution of heat transfer equations by defining how the system interacts with its environment at the edges.
Discretization: Discretization is the process of transforming continuous models and equations into discrete counterparts, often by breaking down a domain into smaller, manageable sections or nodes. This technique is crucial in numerical simulations as it allows complex physical phenomena, such as heat and mass transfer, to be approximated using numerical methods. By discretizing a problem, we can apply computational techniques to solve equations that govern unsteady-state diffusion, fluid dynamics, and conduction problems.
Element Type: Element type refers to the geometric shape and dimensional characteristics used in numerical methods for modeling physical systems, particularly in the context of finite element analysis. Different element types, such as 1D line elements, 2D triangular elements, or 3D tetrahedral elements, are employed to discretize a given domain into smaller parts for analysis. The choice of element type impacts the accuracy and efficiency of numerical simulations, especially in conduction problems.
Explicit scheme: An explicit scheme is a numerical method used to solve differential equations by directly calculating the state of a system at a future time based on known information from the current state. This method updates the solution using straightforward calculations without needing iterative procedures, which makes it relatively easy to implement. However, explicit schemes are often limited by stability conditions, which can constrain the size of the time step and grid spacing used in simulations.
Finite difference method: The finite difference method is a numerical technique used to approximate solutions to differential equations by discretizing the variables involved. This method transforms continuous functions into discrete counterparts, allowing for the analysis of systems such as heat and mass transfer. It is particularly useful in solving steady-state and unsteady-state diffusion problems, as well as addressing complex inverse problems in heat and mass transfer.
Finite element method: The finite element method (FEM) is a numerical technique used for finding approximate solutions to boundary value problems for partial differential equations. It breaks down complex structures into smaller, simpler parts called finite elements, which can be analyzed individually, making it particularly useful for problems in heat and mass transfer, where the behavior of materials under various conditions needs to be predicted accurately.
Fourier's Law: Fourier's Law states that the rate of heat transfer through a material is proportional to the negative gradient of temperature and the area through which heat is flowing. This principle is fundamental in understanding conduction as it quantitatively describes how heat moves through different materials and forms the basis for thermal analysis in various engineering applications.
Grid refinement: Grid refinement is the process of increasing the resolution of a computational grid in numerical simulations to improve the accuracy of results, especially in regions where high gradients or complex phenomena occur. By refining the grid, simulations can capture more detail, leading to better predictions and insights into the behavior of heat conduction problems.
Heat Equation: The heat equation is a partial differential equation that describes how heat diffuses through a given region over time. It is fundamental in understanding how temperature changes in materials due to various modes of heat transfer, linking the concepts of conduction, convection, and radiation, while also being applicable in both steady-state and unsteady conditions in different dimensions.
Implicit scheme: An implicit scheme is a numerical method used for solving partial differential equations, especially in unsteady-state problems, where the solution at the next time step is expressed in terms of both the known and unknown values at that step. This approach allows for greater stability and accuracy in computations compared to explicit schemes, particularly when dealing with stiff equations or larger time steps. It requires solving a system of equations at each time step but is often more efficient for complex problems.
Matlab: MATLAB is a high-level programming language and interactive environment designed for numerical computing, visualization, and programming. It is widely used in engineering, scientific research, and mathematical modeling for its powerful built-in functions and easy-to-use interface. In the context of numerical methods for conduction problems, MATLAB provides tools to solve complex differential equations and analyze heat transfer scenarios efficiently.
Mesh density: Mesh density refers to the number of discrete points or elements within a given area used to represent a physical domain in numerical simulations. Higher mesh density results in more refined and detailed numerical models, leading to improved accuracy in solving conduction problems, as it allows for better representation of temperature gradients and heat fluxes across materials.
Neumann Boundary Conditions: Neumann boundary conditions are a type of boundary condition used in partial differential equations where the derivative of a function is specified at the boundary, often representing a gradient or flux. This means that instead of fixing the value of the function itself, you control how the function behaves at the edges, which is crucial for modeling heat transfer and other physical phenomena accurately. These conditions are particularly important in numerical methods for solving conduction problems, where they help define how heat flows out of or into a system.
Robin Boundary Conditions: Robin boundary conditions are a type of boundary condition used in heat transfer and other fields, combining both Dirichlet and Neumann conditions. They specify a linear relationship between the function value and its derivative at the boundary, typically reflecting a physical scenario where heat transfer occurs through conduction and convection. This approach allows for more flexibility in modeling real-world systems, especially when simulating thermal behavior in conduction problems.
Specific Heat Capacity: Specific heat capacity is the amount of heat required to raise the temperature of one unit mass of a substance by one degree Celsius (or one Kelvin). This property is crucial in understanding how materials respond to heat transfer through conduction, convection, and radiation, as it determines how much energy a material can absorb or release when its temperature changes.
Stability criterion: The stability criterion is a mathematical condition that determines the stability of a numerical solution when modeling physical phenomena, particularly in unsteady-state diffusion and conduction problems. This criterion ensures that the numerical method produces results that converge to the true solution over time without exhibiting oscillations or divergence. It is crucial for ensuring accurate simulations and reliable predictions in transient heat and mass transfer processes.
Steady-state conduction: Steady-state conduction refers to the condition where the temperature distribution within a material does not change over time, even though heat is being transferred. In this state, the heat entering any part of the material equals the heat leaving that part, leading to a constant temperature profile. This concept is essential in understanding how heat transfer occurs through conduction in various scenarios without temporal variations.
Thermal Conductivity: Thermal conductivity is the property of a material that indicates its ability to conduct heat. This property plays a crucial role in heat transfer processes, influencing how effectively heat moves through different materials and affecting the performance of systems that rely on efficient thermal management.
Transient conduction: Transient conduction refers to the temporary state of heat transfer within a material when it experiences a change in temperature over time, before reaching thermal equilibrium. This process is crucial in understanding how heat moves through materials during periods of change, such as when a hot object is placed next to a cold one. It connects directly to heat conduction principles and requires analysis of temperature variations within the material, as well as the use of mathematical models to describe the unsteady behavior of thermal energy transfer.
