1.4 Stefan-Boltzmann Law

Stefan-Boltzmann Law

The Stefan-Boltzmann Law quantifies how much thermal radiation a surface emits based on its temperature. Because the emitted power scales with the fourth power of temperature, even small temperature increases lead to large jumps in radiated energy. This makes the law essential for analyzing radiative heat transfer in everything from furnace design to spacecraft thermal management.

Real-world surfaces aren't perfect emitters, so we introduce emissivity to bridge the gap between ideal blackbody behavior and actual materials. This section covers the law itself, blackbody radiation, net heat transfer calculations, and the role of emissivity and absorptivity.

Stefan-Boltzmann Law

Mathematical Representation and Physical Meaning

The Stefan-Boltzmann Law states that the total radiant heat power emitted by a surface is proportional to the fourth power of its absolute temperature:

$Q = \sigma A T^4$

where:

• $Q$ = heat transfer rate (W)
• $\sigma$ = Stefan-Boltzmann constant = $5.67 \times 10^{-8} \, W/m^2 \cdot K^4$
• $A$ = surface area ($m^2$)
• $T$ = absolute temperature (K)

The Stefan-Boltzmann constant $\sigma$ is a fundamental physical constant that links temperature to radiated power. Notice that temperature must be in Kelvin. Using Celsius here is one of the most common mistakes in radiation problems.

This equation applies to ideal blackbodies, which are perfect emitters and absorbers of thermal radiation. No real surface behaves exactly like a blackbody, but the law provides the theoretical maximum emission at any given temperature.

Emissivity and Real Surfaces

Emissivity ($\varepsilon$) is the ratio of radiation emitted by a real surface to the radiation a blackbody would emit at the same temperature. It ranges from 0 to 1, where $\varepsilon = 1$ corresponds to a perfect blackbody.

For a real surface, the Stefan-Boltzmann Law becomes:

$Q = \varepsilon \sigma A T^4$

• High-emissivity surfaces ($\varepsilon$ close to 1): rough, oxidized, or non-metallic materials. Asphalt ($\varepsilon \approx 0.90$), red brick ($\varepsilon \approx 0.93$), and human skin ($\varepsilon \approx 0.98$) all radiate nearly as well as a blackbody.
• Low-emissivity surfaces ($\varepsilon$ close to 0): highly polished metals. Polished aluminum ($\varepsilon \approx 0.05$) and polished gold ($\varepsilon \approx 0.03$) reflect most thermal radiation instead of emitting it.

The pattern to remember: shiny, smooth metals are poor emitters; rough, dark, non-metallic surfaces are strong emitters.

Blackbody Radiation

Characteristics of Blackbody Radiation

A blackbody is an idealized object that absorbs all incident electromagnetic radiation, regardless of frequency or angle. It also emits the maximum possible radiation at every wavelength for its temperature.

The radiation a blackbody emits depends only on its temperature. Two key real-world approximations of a blackbody:

• Cavity radiator: a hollow enclosure with a small opening. Radiation entering the hole bounces around inside and is almost entirely absorbed, making the hole behave like a blackbody.
• Cosmic microwave background (CMB): the remnant radiation from the early universe, which follows a nearly perfect blackbody spectrum at about 2.7 K.

Relationship to Planck's Law

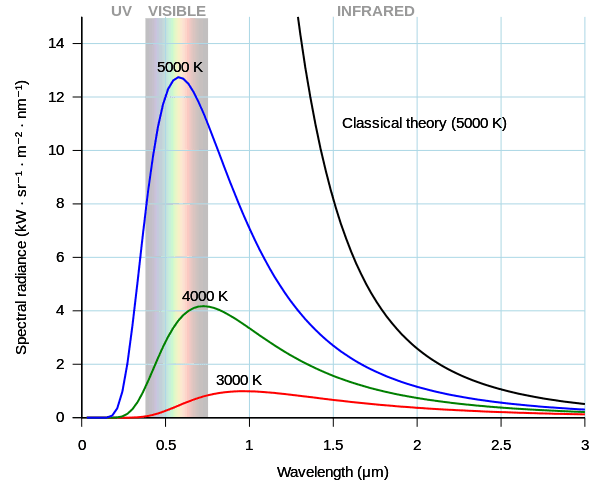

Planck's Law describes the spectral distribution of blackbody radiation. It gives the intensity of radiation at each wavelength for a given temperature.

The Stefan-Boltzmann Law is actually derived by integrating Planck's Law over all wavelengths. In other words, Planck's Law tells you how much energy is emitted at each wavelength, while the Stefan-Boltzmann Law tells you the total energy emitted across all wavelengths.

Practical examples of Planck's Law in action:

• The color of stars corresponds to their surface temperature. Hotter stars appear blue-white; cooler stars appear red.
• The Sun's emission spectrum peaks in the visible range (around 500 nm), consistent with its surface temperature of roughly 5,778 K.

You don't typically need to integrate Planck's Law by hand in an introductory course, but understanding that the Stefan-Boltzmann Law is the "total" version of Planck's Law helps connect the concepts.

Thermal Radiation Heat Transfer

Calculating Net Heat Transfer Rate between Surfaces

When two surfaces at different temperatures exchange radiation, the net heat transfer depends on the difference of their fourth-power temperatures.

For two blackbody surfaces:

$Q_{net} = \sigma A (T_1^4 - T_2^4)$

where $T_1$ and $T_2$ are the absolute temperatures of surfaces 1 and 2.

For real surfaces with equal emissivity:

$Q_{net} = \varepsilon \sigma A (T_1^4 - T_2^4)$

For a real surface radiating to its surroundings (surroundings treated as a blackbody at $T_{surr}$):

$Q_{net} = \varepsilon \sigma A (T^4 - T_{surr}^4)$

This last form is the one you'll use most often. For example, to find the net radiative heat loss from a hot pipe in a large room, you'd use the pipe's emissivity, surface area, and temperature along with the room temperature as $T_{surr}$.

View Factors in Radiative Heat Transfer

When multiple surfaces exchange radiation, not all radiation leaving one surface reaches another. The view factor ($F_{ij}$) accounts for this geometry.

$F_{ij}$ is the fraction of radiation leaving surface $i$ that is intercepted by surface $j$. View factors depend on the size, shape, separation, and orientation of the surfaces.

Common configurations with known view factor solutions:

• Two large parallel plates facing each other: $F_{12} \approx 1$ (nearly all radiation from one plate reaches the other)
• Concentric cylinders or spheres: the inner surface "sees" only the outer surface, so $F_{inner \to outer} = 1$
• Small surface enclosed by a much larger surface: $F_{small \to large} = 1$

View factors satisfy the summation rule: for an enclosure, the view factors from any surface to all surrounding surfaces (including itself, if concave) must sum to 1.

Emissivity and Absorptivity

Factors Influencing Emissivity

Emissivity depends on three main factors:

1. Material composition: metals tend to have low emissivity; non-metals tend to have high emissivity.
2. Surface finish: polishing a metal surface lowers its emissivity; roughening or oxidizing it raises emissivity.
3. Temperature: emissivity can change with temperature, though for many engineering calculations it's treated as constant over moderate temperature ranges.

Emissivity can also vary with wavelength. A surface might have different emissivity values in the visible spectrum versus the infrared spectrum. For most introductory problems, you'll use a single average value (called total hemispherical emissivity), but be aware that spectral variation exists.

Absorptivity and Kirchhoff's Law

Absorptivity ($\alpha$) is the fraction of incident radiation that a surface absorbs (the rest is reflected or transmitted).

Kirchhoff's Law of thermal radiation states that at thermal equilibrium, a surface's emissivity and absorptivity are equal for a given wavelength and direction:

$\varepsilon_\lambda = \alpha_\lambda$

This is powerful because it means a good emitter is also a good absorber, and a poor emitter is a poor absorber (and therefore a good reflector).

Factors that affect absorptivity:

• Surface color matters primarily in the visible spectrum. Dark surfaces absorb more visible light than light-colored surfaces. However, in the infrared range (where most room-temperature radiation occurs), color has much less effect.
• Surface roughness increases both absorptivity and emissivity by creating more surface area and causing multiple reflections that trap incoming radiation.
• Angle of incidence: radiation striking a surface at normal incidence (perpendicular) is generally absorbed more than radiation arriving at a steep, oblique angle.
