Boiling and condensation are crucial heat transfer processes in many engineering applications. These phenomena involve phase changes between liquid and vapor states, dramatically affecting heat transfer rates and system efficiency.
Understanding boiling regimes and condensation types is essential for designing effective heat exchange systems. From 's high heat transfer rates to 's superior performance, these concepts are key to optimizing thermal management in various industries.
Pool Boiling Regimes
Mechanisms and Characteristics
Top images from around the web for Mechanisms and Characteristics

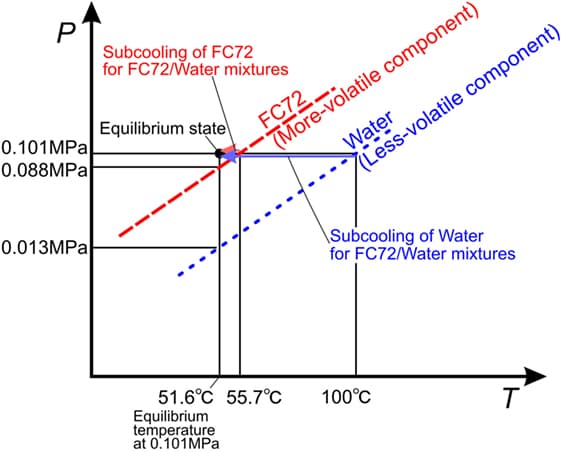

Frontiers | Heat Transfer Characteristics during Boiling of Immiscible Liquids Flowing in Narrow ... View original
Is this image relevant?
1 of 2
Pool boiling occurs when a heated surface is submerged in a large volume of stagnant liquid, and the liquid near the surface undergoes to vapor
The boiling process can be divided into different regimes based on the excess temperature (ΔT), which is the difference between the surface temperature and the of the liquid
The boiling regimes, in order of increasing ΔT, are: natural convection, nucleate boiling, transition boiling, and
Regimes and Their Descriptions
In the natural convection regime, heat transfer occurs primarily through convection currents in the liquid, without significant bubble formation
Example: Heating in a pot before bubbles start to form
Nucleate boiling is characterized by the formation and growth of vapor bubbles at nucleation sites on the heated surface, leading to high heat transfer rates
Example: Water boiling in a pot with bubbles forming at the bottom and rising to the surface
Transition boiling occurs when the vapor bubbles begin to coalesce and form larger vapor patches, resulting in a decrease in heat transfer coefficient
Example: Large vapor patches forming on a heated surface, causing the liquid to intermittently contact the surface
In the film boiling regime, a stable vapor film covers the heated surface, acting as an insulating layer and reducing the heat transfer rate
Example: Leidenfrost effect, where a droplet of liquid levitates on a cushion of its own vapor when placed on a sufficiently hot surface
Critical Heat Flux in Boiling
Factors Influencing Critical Heat Flux
The (CHF) is the maximum heat flux that can be achieved during nucleate boiling before the transition to film boiling occurs
Factors that influence the critical heat flux include:
Surface roughness: Rougher surfaces provide more nucleation sites, increasing the CHF
Surface wettability: Highly wettable surfaces promote liquid contact and delay the onset of film boiling, increasing the CHF
Liquid properties: Liquids with higher of vaporization, higher thermal conductivity, and lower tend to have higher CHF values
System pressure: Increasing the system pressure generally increases the CHF
Estimating Critical Heat Flux
Correlations, such as the Zuber correlation, can be used to estimate the critical heat flux based on fluid properties and system parameters
where C is a constant, ρv and ρl are vapor and liquid densities, hfg is the latent heat of vaporization, σ is the surface tension, and g is the gravitational acceleration
Example: Estimating the CHF for water at atmospheric pressure using the Zuber correlation with C=0.131, ρl=958kg/m3, ρv=0.6kg/m3, hfg=2257kJ/kg, and σ=0.0589N/m
Film vs Dropwise Condensation
Mechanisms and Characteristics
Condensation occurs when a vapor comes into contact with a surface at a temperature below the saturation temperature of the vapor
is characterized by the formation of a continuous liquid film on the cooling surface, with the condensate flowing down the surface due to gravity
Example: Steam condensing on a cold vertical plate, forming a continuous liquid film
Dropwise condensation occurs when the condensate forms discrete droplets on the cooling surface, which grow, coalesce, and are eventually shed from the surface
Example: Water vapor condensing on a non-wettable surface, such as a treated metal or a hydrophobic coating
Heat Transfer Coefficients
The heat transfer coefficient for film condensation can be estimated using the Nusselt analysis, which accounts for the thermal resistance of the liquid film
where ρl and ρv are liquid and vapor densities, g is the gravitational acceleration, hfg is the latent heat of vaporization, kl is the liquid thermal conductivity, μl is the liquid dynamic viscosity, Tsat and Ts are the saturation and surface temperatures, and L is the characteristic length
Dropwise condensation typically results in higher heat transfer coefficients compared to film condensation due to the reduced thermal resistance and the continuous exposure of the surface to the vapor
Promoting dropwise condensation requires the use of non-wettable surfaces or the application of surface treatments to prevent the formation of a continuous liquid film
Boiling and Condensation Applications
Problem-Solving Approach
Boiling and condensation heat transfer find applications in various fields, such as power generation, refrigeration, and process industries
In boiling heat transfer problems, the objective is often to determine the heat transfer rate, surface temperature, or critical heat flux for a given set of conditions
In condensation heat transfer problems, the goal may be to calculate the heat transfer rate, surface temperature, or condensation rate for a given set of conditions
When solving problems, it is essential to:
Identify the boiling or condensation regime
Select the appropriate correlations or models
Account for the relevant fluid properties and system parameters
Calculating Heat Transfer Rates
The heat transfer rate in boiling can be calculated using Newton's law of cooling:
q=h×A×ΔT
where h is the boiling heat transfer coefficient, A is the surface area, and ΔT is the excess temperature
The heat transfer rate in condensation can be determined using the appropriate heat transfer coefficient correlation:
Nusselt analysis for film condensation
Empirical correlations for dropwise condensation
Example: Calculating the heat transfer rate for film condensation of steam on a vertical tube with a surface temperature of 80°C, given the saturation temperature of 100°C, tube length of 1 m, and tube diameter of 0.02 m
