9.3 Analogy Between Heat and Mass Transfer
4 min read•august 13, 2024
Heat and mass transfer share striking similarities in their underlying principles and equations. This connection allows us to apply heat transfer knowledge to mass transfer problems, simplifying complex calculations and analysis.
The analogy between heat and mass transfer extends to key concepts like laws, convective coefficients, and dimensionless numbers. By swapping variables, we can adapt heat transfer correlations for mass transfer applications across various scenarios.
Heat vs Mass Transfer Analogies
Similarities in Transport Phenomena
Top images from around the web for Similarities in Transport Phenomena
Molecular Transport Phenomena: Diffusion, Osmosis, and Related Processes – College Physics View original
Is this image relevant?

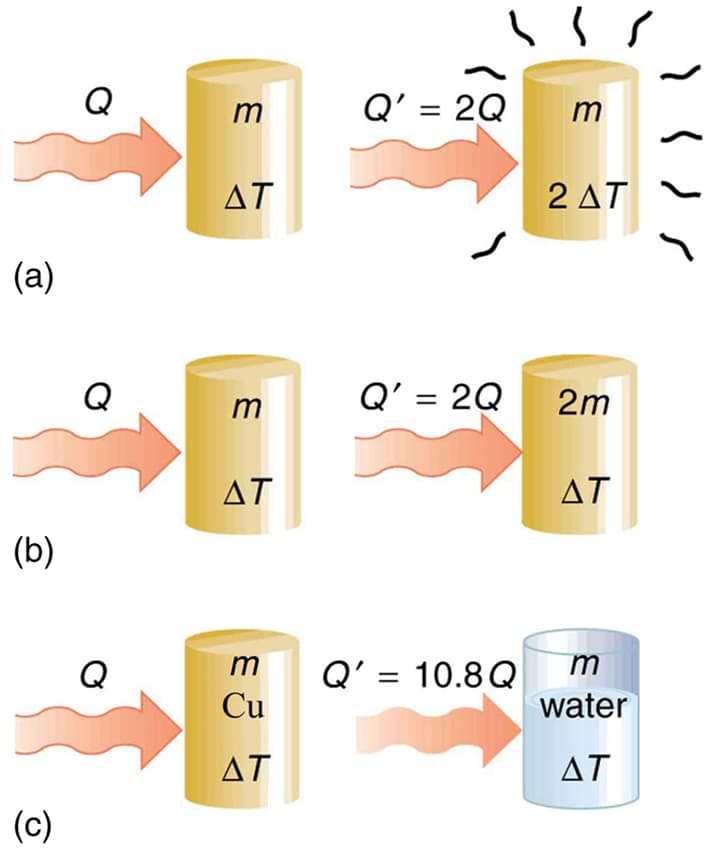

Temperature Change and Heat Capacity | Physics View original
Is this image relevant?
1.6 Mechanisms of Heat Transfer – University Physics Volume 2 View original
Is this image relevant?
Molecular Transport Phenomena: Diffusion, Osmosis, and Related Processes – College Physics View original
Is this image relevant?
Temperature Change and Heat Capacity | Physics View original
Is this image relevant?
1 of 3
Top images from around the web for Similarities in Transport Phenomena
Molecular Transport Phenomena: Diffusion, Osmosis, and Related Processes – College Physics View original
Is this image relevant?
Temperature Change and Heat Capacity | Physics View original
Is this image relevant?
1.6 Mechanisms of Heat Transfer – University Physics Volume 2 View original
Is this image relevant?
Molecular Transport Phenomena: Diffusion, Osmosis, and Related Processes – College Physics View original
Is this image relevant?
Temperature Change and Heat Capacity | Physics View original
Is this image relevant?
1 of 3
- Heat transfer and mass transfer are analogous transport phenomena
- Heat transfer involves the transport of energy
- Mass transfer involves the transport of mass or species
- The driving force for heat transfer is the temperature gradient
- The driving force for mass transfer is the concentration gradient
Analogous Laws and Coefficients
- of diffusion for mass transfer is analogous to of heat
- Mass flux is proportional to the concentration gradient
- Heat flux is proportional to the temperature gradient
- The convective is analogous to the convective
- Relates the mass flux to the concentration difference between the surface and the bulk fluid
- Relates the heat flux to the temperature difference between the surface and the bulk fluid
Dimensionless Numbers
- The (Sh) in mass transfer is analogous to the (Nu) in heat transfer
- Represents the ratio of convective mass transfer to diffusive mass transfer
- Represents the ratio of convective heat transfer to conductive heat transfer
- The Schmidt number (Sc) in mass transfer is analogous to the (Pr) in heat transfer
- Represents the ratio of momentum diffusivity to mass diffusivity
- Represents the ratio of momentum diffusivity to thermal diffusivity
Applying Heat Transfer Correlations for Mass Transfer
Variable Substitution
- The heat-mass transfer analogy allows the use of well-established heat transfer correlations to solve mass transfer problems by replacing the relevant variables and dimensionless numbers
- Replace the Nusselt number (Nu) with the Sherwood number (Sh)
- Replace the Prandtl number (Pr) with the Schmidt number (Sc)
- Replace the thermal diffusivity (α) with the mass diffusivity (D)
Adapting Correlations
- The Dittus-Boelter correlation for turbulent flow in tubes can be adapted for mass transfer
- Original correlation:
- Adapted correlation:
- The Chilton-Colburn analogy relates the heat transfer Stanton number (St) to the mass transfer Stanton number (St_m)
- Allows the use of heat transfer correlations for mass transfer problems
Applicability to Various Geometries and Flow Conditions
- The heat-mass transfer analogy can be applied to various geometries and flow conditions
- Flow over flat plates (boundary layer flow)
- Flow in packed beds (porous media)
- Natural (buoyancy-driven flow)
- Use the appropriate heat transfer correlations and replace the relevant variables and dimensionless numbers
Limitations of the Heat-Mass Transfer Analogy
Assumptions on Dimensionless Numbers
- The heat-mass transfer analogy assumes that the Prandtl number (Pr) and Schmidt number (Sc) are of similar magnitude
- Typically within the range of 0.6 to 60
- The analogy may not be accurate for fluids with very high or low Pr or Sc numbers (e.g., liquid metals, highly viscous fluids)
Boundary Layer Assumptions
- The analogy assumes that the velocity and temperature/concentration boundary layers are similar and fully developed
- This assumption may not hold for complex geometries or flow conditions with significant boundary layer interactions (e.g., flow separation, recirculation zones)
- The analogy may be less accurate for developing boundary layers or entrance regions
Constant Fluid Properties
- The analogy assumes that the fluid properties are constant and not affected by the heat or mass transfer process
- This assumption may not be valid for systems with large temperature or concentration gradients
- Fluid properties can vary significantly with temperature or concentration (e.g., viscosity, density, diffusivity)
Neglecting Chemical Reactions and Phase Changes
- The analogy does not account for the effects of chemical reactions or phase changes
- Chemical reactions can significantly influence the mass transfer process (e.g., reaction kinetics, catalysis)
- Phase changes (e.g., , ) can alter the mass transfer rates and mechanisms
Diffusion-Convection Dominance
- The analogy assumes that the mass transfer process is governed by diffusion and convection
- Neglects the effects of other transport mechanisms (e.g., migration in electrolyte solutions, surface reactions)
- The analogy may be less accurate when these additional transport mechanisms are significant
Coupling Effects
- The accuracy of the heat-mass transfer analogy may be limited in cases where the Soret effect (thermal diffusion) or Dufour effect (diffusion thermo) are significant
- The Soret effect is the mass transfer caused by a temperature gradient
- The Dufour effect is the heat transfer caused by a concentration gradient
- These phenomena couple heat and mass transfer processes and are not accounted for in the standard heat-mass transfer analogy
