7.2 One-point perspective

Definition of One-Point Perspective

One-point perspective is a linear perspective technique that creates the illusion of depth on a flat surface. It relies on a single vanishing point placed on the horizon line, where all lines moving away from the viewer appear to converge. Think of standing in the middle of a long, straight road: the edges of the road seem to meet at a point in the distance. That's one-point perspective in action.

This technique shows up constantly in architectural drawings, interior designs, and landscapes because it produces a convincing sense of space with a relatively simple setup.

Key Characteristics

Single Vanishing Point

All lines that move away from the viewer (into the "depth" of the scene) converge toward one point on the horizon line. This vanishing point sits at the viewer's eye level. Objects closer to the vanishing point appear smaller, which is what sells the illusion of distance.

Parallel Lines and How They Behave

Not every line in a one-point perspective drawing converges. Here's the rule:

• Lines going into depth (called orthogonal lines) angle toward the vanishing point
• Horizontal lines parallel to the picture plane stay horizontal in your drawing
• Vertical lines stay vertical and never converge

Only the lines representing depth change angle. The horizontals and verticals that face you directly stay true.

Foreshortening

As objects recede toward the vanishing point, they appear compressed along their depth axis. A row of evenly spaced fence posts, for example, will look closer and closer together the farther back they go. The degree of compression increases the nearer an object gets to the vanishing point.

Creating a One-Point Perspective Drawing

Here's the step-by-step process:

1. Draw the horizon line. This horizontal line represents your eye level. Place it higher on the page to suggest you're looking down at the scene, or lower to suggest you're looking up.

2. Place the vanishing point. Mark a single point on the horizon line. Centering it creates a symmetrical, head-on view. Shifting it left or right changes where the viewer seems to be standing.

3. Draw the front face of your object. Since you're looking straight at it, this face has no perspective distortion. Draw it with true horizontal and vertical lines. For a box, this is just a rectangle.

4. Draw orthogonal lines. From each corner of the front face, draw light lines back to the vanishing point. These lines define the edges that recede into space.

5. Connect with vertical and horizontal lines. To "close off" the back of the object, draw vertical and horizontal lines between the orthogonals. Where you place these back edges determines how deep the object appears.

6. Erase construction lines. Clean up any orthogonal lines that extend past the object so only the visible edges remain.

One-Point Perspective vs. Other Types

Two-Point Perspective

Uses two vanishing points on the horizon line. You'd use this when viewing an object at an angle, like looking at the corner of a building. Both sets of horizontal edges converge, each toward its own vanishing point. It produces a more dynamic composition than one-point.

Three-Point Perspective

Adds a third vanishing point above or below the horizon line. This captures the effect of looking sharply up at a skyscraper or down from a rooftop. The vertical lines themselves now converge, creating a dramatic sense of height or depth.

Atmospheric Perspective

This isn't about vanishing points at all. Instead, it mimics how the atmosphere affects distant objects: they lose detail, become less saturated in color, and shift toward cooler blue tones. Combining atmospheric perspective with linear perspective strengthens the depth in a drawing considerably.

Applications of One-Point Perspective

Interior Spaces

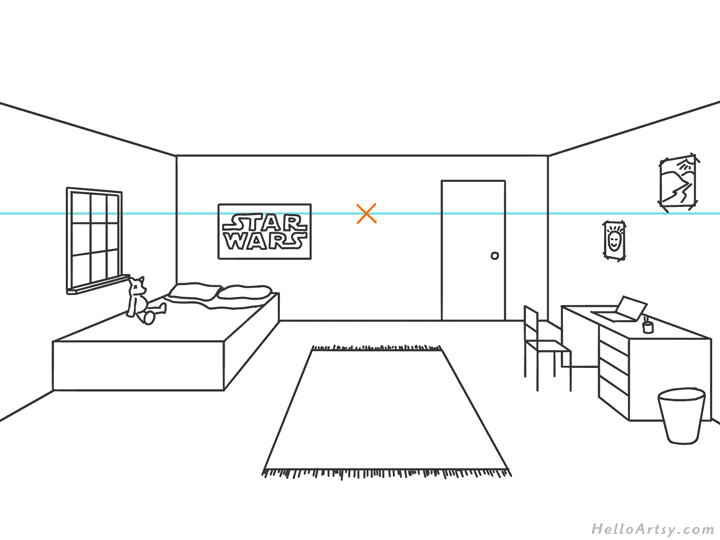

Rooms, hallways, and corridors are classic one-point subjects because you're typically looking straight down their length. The back wall serves as the front plane, and the floor, ceiling, and side walls all converge neatly toward a single point.

Cityscapes and Streets

A straight street with buildings on either side is practically a textbook example. The road edges, rooflines, and window rows all aim at the same vanishing point, pulling the viewer's eye deep into the scene.

Tunnels and Corridors

Long, narrow spaces emphasize convergence dramatically. The repetitive structure of a tunnel (support beams, tiles, lights) makes the perspective effect especially visible and gives you great opportunities to practice consistent spacing.

Common Mistakes

Incorrect Vanishing Point Placement

If your vanishing point drifts off the horizon line, or if you accidentally shift it mid-drawing, the whole scene will look warped. Pick your point, mark it clearly, and use a ruler to keep every orthogonal line aimed precisely at it.

Inconsistent Line Angles

This usually happens when you eyeball orthogonal lines instead of drawing them to the vanishing point. Even small angle errors compound across a drawing. The fix is simple: physically draw a light guideline from the object's corner to the vanishing point, then trace along it.

Inaccurate Foreshortening

A common version of this mistake is spacing objects evenly along the depth axis. In reality, the gaps between repeated elements (like floor tiles or windows) should get progressively smaller as they approach the vanishing point. If your spacing stays uniform, the scene will look flat.

Enhancing One-Point Perspective Drawings

Adding Details and Textures

Details like brick patterns, wood grain, or tile grids follow the same perspective rules. Horizontal texture lines stay horizontal, vertical ones stay vertical, and any lines going into depth converge toward the vanishing point. Keeping textures consistent with the perspective makes surfaces feel believable.

Incorporating Shading and Shadows

Shading adds volume to forms that perspective alone can't fully convey. Decide on a light source direction before you start shading, and keep it consistent throughout the drawing. Shadows cast on the ground plane should also follow the perspective grid.

Using Color Effectively

Color can reinforce depth. Warmer, more saturated colors tend to come forward, while cooler, less saturated colors recede. This pairs naturally with atmospheric perspective. Even in a simple colored-pencil drawing, shifting your palette slightly cooler in the background strengthens the sense of space.

Examples in Art

Renaissance Art

Renaissance painters formalized one-point perspective. Leonardo da Vinci's The Last Supper is a classic example: all the architectural lines in the room converge on Christ's head, making it both a spatial illusion and a compositional focal point. Raphael's The School of Athens uses a similar centered vanishing point to organize a complex scene with dozens of figures.

Modern Architectural Drawings

Architects rely on one-point perspective to communicate how a space will feel from the inside. Interior renderings of lobbies, hallways, and retail spaces almost always use this technique because it closely matches how a person standing in the space would actually see it.

Contemporary Illustration

Comic book artists and concept designers use one-point perspective to establish environments quickly. It's common in panels showing characters walking down hallways, standing in rooms, or moving through urban settings. The simplicity of one vanishing point keeps the setup fast while still delivering strong spatial depth.

Exercises for Practicing

Simple Box Drawings

Start with a single rectangular box. Place your vanishing point, draw the front face, extend orthogonals, and close off the back. Once that feels comfortable, draw multiple boxes at different positions relative to the horizon line: some above it, some below, some overlapping. Notice how their position changes whether you see the top or bottom face.

Room Interiors

Draw a basic room by starting with a rectangle for the back wall, then extending orthogonals from each corner to the vanishing point. Add a floor, ceiling, and side walls. Then populate the room with furniture, windows, and a doorway. Try moving the vanishing point left or right to see how the composition shifts.

Street Scenes

Draw a road receding to the vanishing point with buildings on each side. Add elements like windows, doors, lampposts, and sidewalks, making sure each one follows the perspective grid. This exercise combines everything: orthogonal lines, foreshortening of repeated elements, and vertical lines that stay vertical. Try adding atmospheric perspective by reducing detail in the background buildings.
