Muscles of the body
Muscles shape the surface of the human body. Every bump, ridge, and curve you see on a figure traces back to muscles lying beneath the skin. For drawing purposes, you need to understand where muscles sit, how they connect to the skeleton, and how they change shape during movement.
Muscles can be classified by their structure, location, and whether you control them consciously or not.
Skeletal vs smooth muscles
Skeletal muscles attach to bones via tendons and produce voluntary movements. The biceps brachii is a classic example. These are the muscles you'll draw most often because they sit close to the surface and define the body's visible form. They have a striated (striped) appearance due to the organized arrangement of their internal fibers.
Smooth muscles are found in internal organs and blood vessels, producing involuntary movements like digestion. You won't draw these directly, but understanding that not all muscle tissue is the same helps you appreciate why skeletal muscles look and behave the way they do.
Voluntary vs involuntary control
- Voluntary muscles are consciously controlled through the somatic nervous system, allowing precise movements like grasping with the hand muscles
- Involuntary muscles are regulated by the autonomic nervous system and function without conscious thought, such as cardiac muscle in the heart
- Some muscles have both types of control depending on the situation. The diaphragm, for instance, works automatically during normal breathing but can be consciously overridden when you hold your breath
Anatomy of skeletal muscles
Skeletal muscles have specific structural features that determine their shape, the direction they pull, and how they look under the skin. Knowing these features helps you render muscles with accurate form and contour.
Origin and insertion points
- The origin is the attachment point that stays relatively stationary during contraction (typically the proximal attachment, closer to the body's center)
- The insertion is the attachment point that moves when the muscle contracts (typically the distal attachment, farther from the center)
- Together, origin and insertion determine the direction of pull and the resulting movement. For example, the biceps originates on the scapula and inserts on the radius, so when it contracts, the forearm pulls toward the upper arm
Muscle belly and tendons
The muscle belly is the fleshy, contractile middle portion of the muscle. This is the part that visibly bulges and changes shape during contraction, and it's what you're primarily rendering when you draw muscles.
Tendons are dense connective tissue that attach the muscle belly to bone. They transmit force but don't contract themselves. In drawing, tendons matter because they create visible transitions where the fleshy belly tapers into a firmer, flatter form near the joints. The Achilles tendon at the back of the ankle is a good example of a tendon that's clearly visible on the surface.

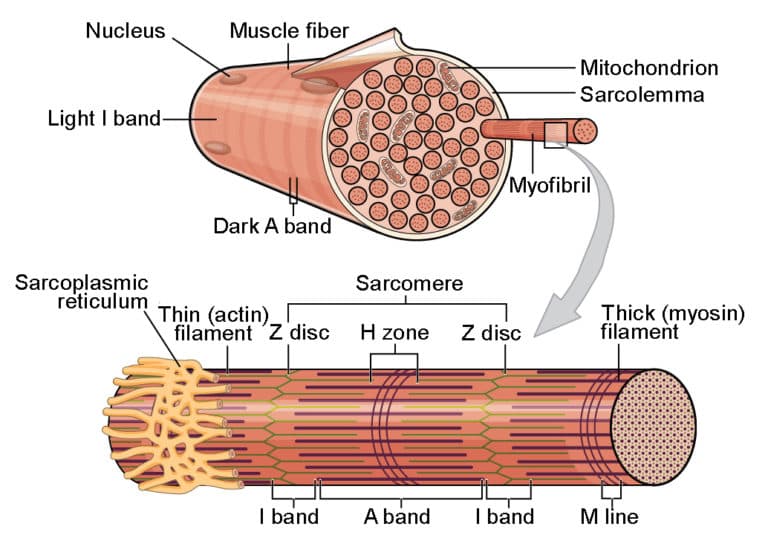

Muscle fibers and fascicles
- Muscle fibers are the individual contractile cells within a muscle, containing myofibrils and sarcomeres
- Fascicles are bundles of muscle fibers wrapped in connective tissue
- The arrangement of fascicles affects the muscle's shape and the direction of its pull. Parallel fascicles (like in the sartorius) create long, strap-like muscles. Pennate arrangements (like in the rectus femoris) pack more fibers into a shorter space, creating a thicker, more powerful form
How muscles produce movement
Understanding how muscles contract and work together helps you draw figures in action. A flexed arm looks different from a relaxed one because the muscles are in different states of contraction.
Muscle contraction mechanism
Muscle contraction works through the sliding filament theory: myosin filaments pull on actin filaments within structures called sarcomeres, shortening them and generating force. When thousands of sarcomeres shorten simultaneously across the muscle's fibers, the entire muscle shortens and thickens visibly. This is why a contracted biceps bulges outward.
Concentric vs eccentric contractions
- Concentric contractions occur when a muscle shortens while generating force, producing movement. Think of the biceps during a biceps curl as you lift the weight up.
- Eccentric contractions involve the muscle lengthening while still producing force, usually to control or slow down a movement. The same biceps works eccentrically when you slowly lower the weight back down.
- Isometric contractions generate force without any change in muscle length, maintaining a static position. Holding a plank is a full-body example.
For drawing, this matters because a muscle performing a concentric contraction looks short and bulky, while the same muscle during an eccentric contraction appears longer and more taut.
Agonist vs antagonist muscles
- Agonist muscles (prime movers) are the primary muscles producing a specific movement. The quadriceps are the agonist during knee extension.
- Antagonist muscles oppose the agonist, providing stability and controlled deceleration. The hamstrings act as antagonists during knee extension.
- When drawing, notice that as one muscle group contracts and bulges, the opposing group stretches and flattens. This push-pull relationship creates the surface rhythms you see across a figure in motion.
Major muscle groups
Familiarizing yourself with the major superficial muscles and their actions is essential for drawing the figure in various poses. Focus on the muscles you can actually see from the surface.
Muscles of the head and neck
- Facial muscles control expressions and sit just beneath the skin. The orbicularis oculi circles the eye (squinting, blinking), and the zygomaticus major pulls the corner of the mouth upward (smiling).
- Neck muscles support and move the head. The sternocleidomastoid runs diagonally from behind the ear to the collarbone and sternum. It's one of the most visible neck muscles and creates a prominent V-shape on the front of the neck. The trapezius connects the skull and spine to the shoulder blade, forming the slope from neck to shoulder.
- The platysma is a thin, sheet-like muscle extending from the chest up over the neck to the lower face. It becomes visible during strain or intense expressions.
Muscles of the torso
The torso contains the largest and most complex muscle groups in the body.
- The erector spinae run along the spine and maintain upright posture, creating two visible columns along the back
- The rectus abdominis runs vertically down the front of the abdomen and has a segmented appearance (the "six-pack" form), divided by tendinous intersections
- The pectoralis major is a large, fan-shaped chest muscle that connects the arm to the sternum and clavicle, contributing to arm movements across the body
- The latissimus dorsi is a broad, flat muscle of the back that gives the torso its V-shaped taper when viewed from behind
- The external obliques wrap around the sides of the torso, helping to flex and rotate the trunk and creating the visible contour between the ribs and the hips
Muscles of the upper limbs
- The deltoid caps the shoulder joint like a rounded pad, with three distinct heads (anterior, lateral, posterior) that enable arm abduction, flexion, and extension
- The biceps brachii on the front of the upper arm flexes the elbow, while the triceps brachii on the back extends it. Together they define the upper arm's profile.
- The forearm muscles form a tapered mass from elbow to wrist, controlling hand and wrist movements. The forearm is widest near the elbow and narrows toward the wrist, which is an important proportion to capture in drawing.
Muscles of the lower limbs
- The gluteal muscles (gluteus maximus, medius, and minimus) form the shape of the buttocks and are responsible for hip extension, abduction, and rotation. The gluteus maximus is the largest muscle in the body.
- The quadriceps femoris group covers the front of the thigh with four muscles that extend the knee. The vastus lateralis on the outside and the rectus femoris down the center are the most visible.
- The hamstrings cover the back of the thigh, flexing the knee and extending the hip. They create a visible mass that's distinct from the quadriceps when viewed from the side.
- The gastrocnemius forms the visible bulge of the calf, while the soleus sits beneath it. Both plantarflex the ankle (pointing the foot), and together they create the characteristic diamond shape of the lower leg from behind.
Rendering muscles in drawings
Knowing anatomy is only useful if you can translate it onto paper. This section covers how to use your anatomical knowledge when actually drawing.
Anatomical landmarks and forms
Anatomical landmarks are bony points or surface features that serve as reference points for locating muscles. The acromion process (tip of the shoulder), the iliac crest (top of the hip bone), and the clavicle are examples you'll use constantly.
When drawing, identify these landmarks first, then build the muscle forms around them. Pay attention to how muscles overlap and layer on top of each other. The deltoid overlaps the upper biceps and triceps. The pectoralis tucks under the deltoid at the front of the shoulder. These overlapping relationships create the surface forms that make a figure look three-dimensional.
Proportions and relationships
- Using the head as a unit of measurement helps establish relative sizes and positions of muscles throughout the body (the average figure is about 7.5 heads tall)
- Observe how muscle groups relate to each other and to the skeleton beneath. The width of the shoulders, the taper of the waist, and the swell of the calves all follow proportional relationships.
- Getting proportions right matters more than rendering every individual muscle. A figure with correct proportions and simplified muscle forms will look more convincing than one with detailed muscles in the wrong places.
Foreshortening and perspective
Foreshortening occurs when a body part or muscle group points toward or away from the viewer, causing it to appear compressed or distorted. An arm reaching directly toward you, for example, will look much shorter than it actually is, with the hand appearing large and the shoulder small.
Applying perspective principles to the musculature helps create depth and three-dimensionality. Practice drawing muscles from multiple angles. A deltoid viewed from the front looks very different from the same muscle viewed from behind or from above.
Shading techniques for volume
Shading creates the illusion of form, volume, and depth on a flat surface. For muscles, shading is how you communicate the rounded, organic shapes beneath the skin.
- Hatching and cross-hatching can follow the direction of muscle fibers to reinforce the form
- Blending works well for smooth transitions between muscle groups
- Pay attention to your light source direction. Highlights fall on the parts of the muscle closest to the light, core shadows sit where the form turns away, and reflected light often appears along the edges where muscles meet
The subtle transitions between adjacent muscles are just as important as the muscles themselves. Avoid outlining every muscle with hard edges; instead, use value changes to suggest where one form ends and another begins.
Common anatomical variations
Human anatomy follows general patterns, but there's significant variation among individuals. Recognizing these differences makes your figure drawings more believable and diverse.
Male vs female musculature
- Males on average have greater muscle mass and more visible muscle definition, partly due to higher testosterone levels
- Females typically carry a higher percentage of body fat, which softens the surface forms and creates smoother transitions between muscles
- These are general tendencies, not rules. Individual variation in muscle development and body composition creates a wide range of appearances within any group
Effects of age and body composition
- With age, muscle mass naturally decreases (a process called sarcopenia), and muscle definition becomes less pronounced
- Body composition refers to the relative amounts of fat, muscle, and bone. Someone with low body fat will show more muscle definition, while someone with higher body fat will have softer, less defined surface forms.
- Athletes, elderly individuals, and children all present very different surface anatomies even though the underlying muscle structure is the same. Observing real people in a range of body types will sharpen your ability to draw convincingly.
Artistic interpretation and style
Anatomical accuracy provides a foundation, but artists often make deliberate choices about how to represent the musculature.
- You might exaggerate certain muscle groups to emphasize power or movement
- You might simplify forms to fit a more graphic or stylized approach
- You might soften or sharpen muscle definition to convey a particular mood or character
The goal is to develop your own approach while keeping your anatomical knowledge as a reliable base. Knowing the rules gives you the freedom to break them intentionally and effectively.
