Basic 3D forms
Basic forms are the foundation of drawing complex objects. Every subject you'll ever draw, from a coffee mug to a human figure, can be broken down into some combination of cubes, spheres, cylinders, and cones. These four forms are your building blocks.
Mastering them means learning how planes, contours, and light work together to create the illusion of depth and volume on a flat surface. Once you can draw these four forms convincingly, you can tackle far more complex subjects with confidence.
Characteristics of basic forms
Planes and contours
Planes are the flat surfaces that make up a form. A cube has six planes; a cylinder has two flat planes (top and bottom) and one curved surface. Contours are the edges where one plane meets another or where the form's outline separates it from the background.
The way planes and contours catch or turn away from light is what makes a form look three-dimensional. A sharp contour (like the edge of a cube) creates an abrupt value change, while a soft contour (like the curve of a sphere) creates a gradual one.
Geometric vs organic forms
- Geometric forms are based on mathematical principles and have regular, uniform shapes: cubes, pyramids, cylinders, cones, and spheres.
- Organic forms are irregular and free-flowing, the kind you find in nature: rocks, tree trunks, clouds.
In practice, most real-world objects are organic but can be approximated with geometric forms. A tree trunk is roughly a cylinder. A head is roughly a sphere. Learning to see objects this way is the whole point of studying basic forms.
Drawing cubes
Perspective and foreshortening

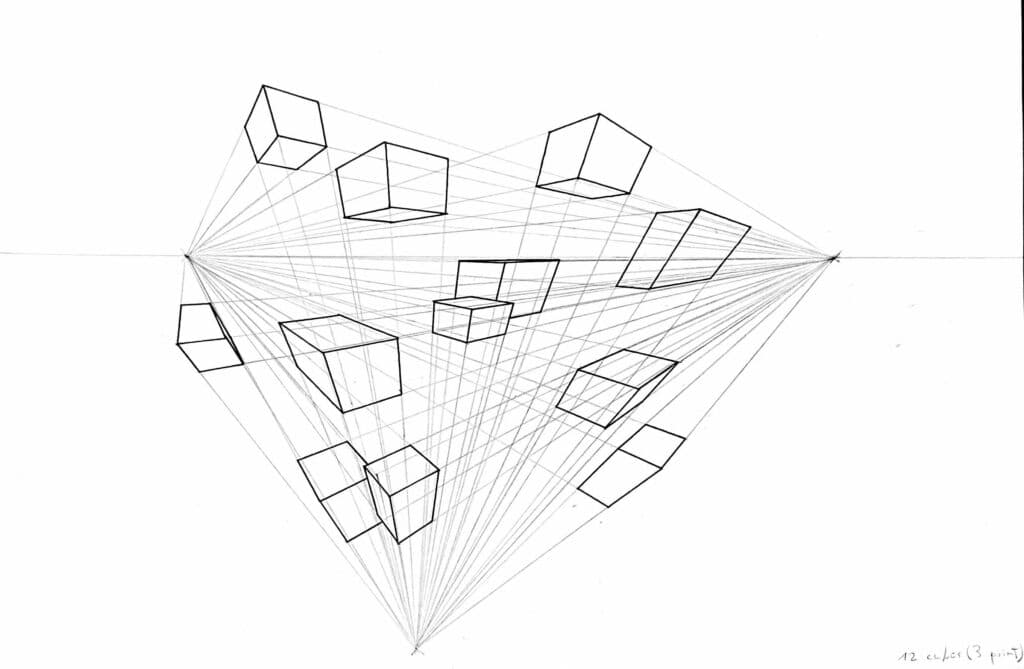

Cubes are drawn using linear perspective to create the illusion of depth on a 2D surface. Depending on how the cube is oriented to the viewer, you'll use either one-point or two-point perspective.
Foreshortening happens when a plane of the cube angles away from you, making it appear compressed or shorter than it actually is. The more a plane tilts away, the narrower it looks. Applying perspective principles consistently keeps your proportions and angles accurate.
Constructing with lines and planes
- Start by drawing the front vertical edge of the cube.
- From the top and bottom of that edge, extend lines toward your vanishing point(s) to establish the receding sides.
- Draw the back vertical edges to close off the visible planes.
- Make sure receding lines on the same plane converge toward the same vanishing point.
- Darken the planes facing away from the light source to reinforce the cube's three-dimensional structure.
A common mistake is making the receding sides too long or too short. Step back and check that the proportions feel right before committing to your values.
Drawing spheres
Light and shadow on spheres
A sphere under a single light source displays a predictable pattern of values. Learning this pattern is one of the most useful things you can do early on:
- Highlight: The brightest spot, where light reflects most directly off the surface.
- Midtones: The gradual transition zone between the highlight and the shadow. This area covers most of the sphere's surface.
- Core shadow: The darkest band on the sphere itself, found where the surface turns completely away from the light.
- Reflected light: A subtle lightening along the shadow side, caused by light bouncing off nearby surfaces back onto the sphere. This is lighter than the midtones but never as light as the lit side.
- Cast shadow: The shadow the sphere projects onto the surface beneath it.
Techniques for shading spheres
- Lightly sketch the circle and identify where your light source is coming from.
- Mark the highlight area and leave it as your lightest value.
- Build up the darkest values in the core shadow first.
- Gradually work the midtones from the core shadow toward the highlight, using smooth, even strokes.
- Blend the transitions so there are no harsh lines or visible bands.
- Darken the edges of the sphere slightly on the shadow side to emphasize its roundness and separate it from the background.
The key to a convincing sphere is seamless gradation. If you can see distinct stripes of value, keep blending.
Drawing cylinders
Ellipses in perspective
A cylinder is formed by two circular planes (top and bottom) connected by a curved surface. When you view a circle at any angle other than straight-on, it appears as an ellipse.
The degree of the ellipse (how open or narrow it looks) depends on your eye level relative to the cylinder. An ellipse near your eye level will be very narrow, almost a line. An ellipse far above or below your eye level will be rounder and more open. On a single cylinder, the ellipse farther from eye level will always be slightly more open than the one closer to it.
Make sure your ellipses are symmetrical on both sides of the center axis and have rounded ends, not pointed ones. Pointed ends are one of the most common beginner mistakes with cylinders.
Curved surfaces and edges
- Draw a vertical center axis line.
- Sketch the top and bottom ellipses, making sure they're consistent with your viewing angle.
- Connect the outer edges of the ellipses with two straight, parallel side lines (or slightly converging lines if the cylinder is in strong perspective).
- Shade the curved surface with a gradual transition from light to dark across its width, similar to how you shade a sphere but only in one direction.
- The lightest area runs vertically along the side facing the light. The core shadow runs vertically along the opposite side, with a strip of reflected light at the very edge.
Drawing cones
Apex and base of cones
A cone has two key parts: a circular base and a pointed apex where all the sides converge. The apex should align directly above (or below) the center of the base.
When viewed at an angle, the base appears as an ellipse, following the same perspective rules as cylinder ellipses. The sides of the cone are straight lines that taper from the edges of the base ellipse up to the apex.
Foreshortening and tapering
- As the sides rise toward the apex, they converge and appear to shorten due to foreshortening.
- The tapering must be symmetrical on both sides of the center axis, or the cone will look lopsided.
- Shading on a cone works like a cylinder but with a twist: the lit and shadowed areas narrow as they approach the apex, because the form itself is narrowing. The gradation from light to dark still wraps around the surface, but the value bands taper to a point at the top.
Combining basic forms
Intersections and overlaps
Complex objects can be broken down into combinations of basic forms. A table lamp, for instance, might be a cone (shade) sitting on a cylinder (stem) resting on a cube (base).
When combining forms, pay attention to how they intersect. Where a cylinder meets a cube, for example, the contour line of the cylinder will curve across the flat plane of the cube. Drawing these intersection lines accurately is what makes combined forms look solid and believable.
Use overlapping to establish depth: forms closer to the viewer should overlap and partially obscure forms behind them.
Negative space between forms
Negative space is the empty area surrounding and between objects. When you're arranging multiple forms in a composition, the shapes created by negative space can be just as useful as the forms themselves.
If something looks "off" in your drawing but you can't pinpoint why, try looking at the negative spaces instead of the objects. Checking the accuracy of those in-between shapes often reveals proportion or placement errors you'd otherwise miss.
Lighting and shading
Light source and cast shadows
Before you start shading, establish a clear light source direction. Every form in your drawing should be lit consistently from the same source.
Cast shadows are projected onto surrounding surfaces when a form blocks the light. Their shape depends on both the form casting them and the surface receiving them. A sphere casts an elliptical shadow on a flat table, while a cube casts a more angular one. Cast shadows are typically darkest and sharpest closest to the object and become lighter and softer as they move away.
Shading techniques for volume
The goal of shading is to describe how each plane or surface relates to the light source:
- Planes facing the light get the lightest values.
- Planes facing away get the darkest values.
- Curved surfaces get smooth, gradual transitions between light and dark.
You have several techniques to choose from:
- Hatching: Parallel lines that build up value. Closer spacing = darker values.
- Cross-hatching: Overlapping sets of hatching lines at different angles for richer darks.
- Blending: Smoothing graphite or charcoal with a tortillon, chamois, or finger for seamless gradations.
- Stippling: Patterns of dots. More dots packed together = darker values.
Each technique produces a different surface quality, so choose based on the effect you want. Blending works well for smooth forms like spheres; hatching can suggest more texture and energy.
Textures on basic forms
Smooth vs rough surfaces
Texture changes how light behaves on a surface, which changes how you shade it:
- Smooth surfaces (glass, polished metal) have tight, consistent value transitions and sharp, bright highlights.
- Rough surfaces (rock, bark, concrete) scatter light in many directions, producing more varied values, softer highlights, and small cast shadows within the texture itself.
The underlying form still dictates the overall light-to-dark pattern. Texture is layered on top of that pattern, not instead of it.
Techniques for rendering textures
- Stippling works well for granular textures like sand, concrete, or stone.
- Hatching and cross-hatching can simulate linear textures like wood grain or fabric weave.
- Varied pressure creates the unevenness of rough surfaces: press harder for deeper crevices, lighter for raised areas.
- Spacing and direction of your marks matter too. Marks that follow the contour of the form reinforce its three-dimensionality, while random marks can flatten it.
Start with the overall shading of the form first, then add texture marks on top. If you try to do both at once, you'll likely lose the sense of volume.
